Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of paste sachet packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable paste sachet packaging machine made in China here from our factory.
DETAILED DISPLAY
An air-inflatable film roll mounting shaft allows for quick installation of film rolls of different specifications via air inflation, facilitating film replacement and reducing roll swaying.
01
Five filling mechanisms operate simultaneously, with different pump structures selected for different liquids to improve metering accuracy.
02

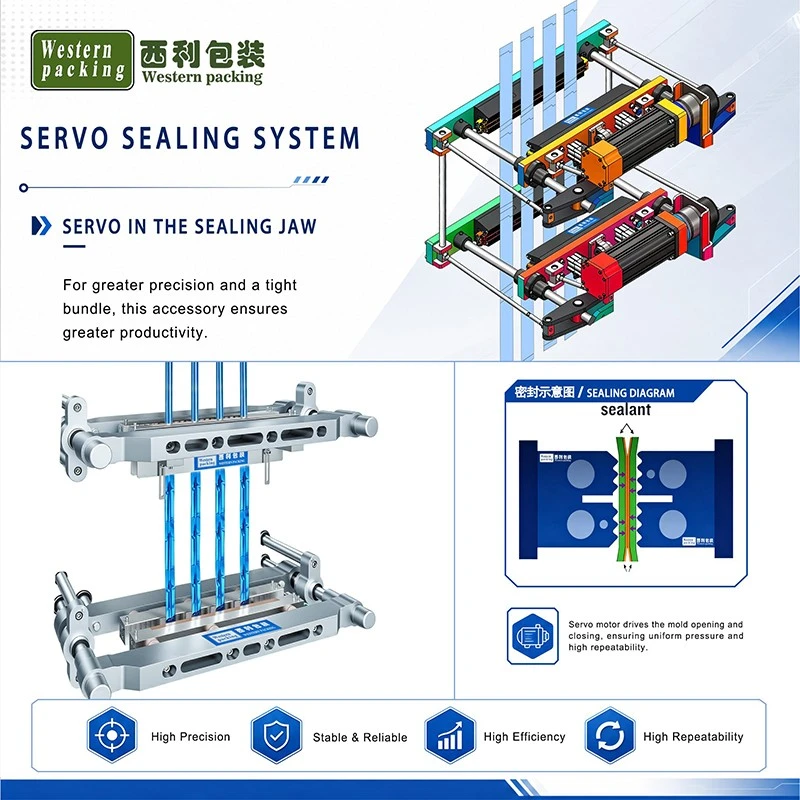

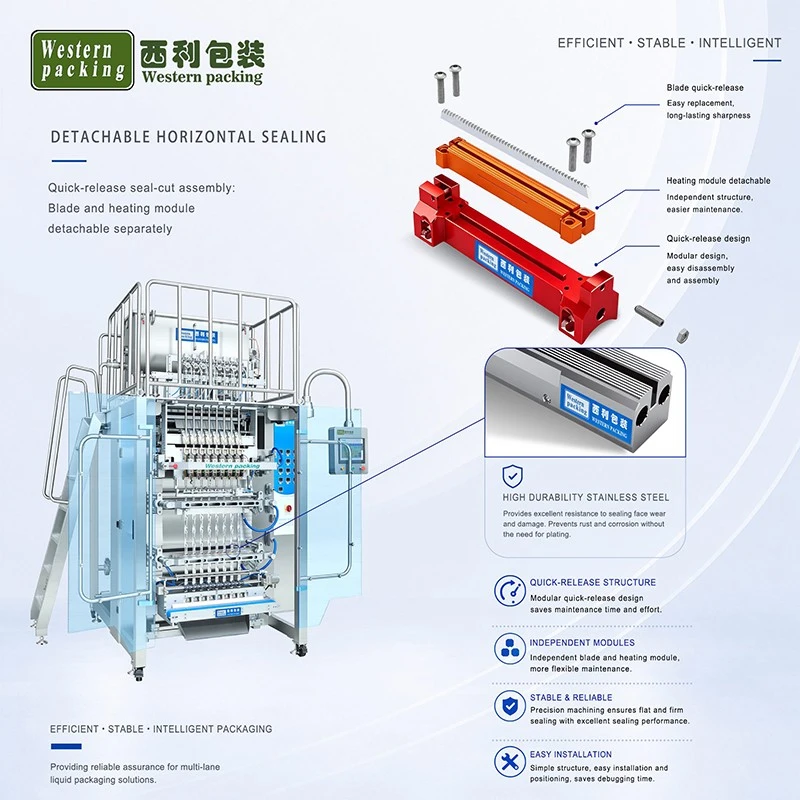

The paste sachet packaging machine sealing assembly uses independent heating control, allowing temperature adjustment based on film thickness to ensure a secure seal.
03
Synchronized film feeding and sealing/cutting actions improve equipment stability during high-speed production.
04
Hot Tags: paste sachet packaging machine, China paste sachet packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Paste Sachet Packaging Machine |
|||
|
Model |
WP-480Y |
WP-680Y |
WP-880Y |
WP-1080Y |
|
Capacity |
40-50 cycles per min |
|||
|
Dosage |
1-30g/30-70g |
|||
|
Size |
(L)30-160mm(W)25-100mm |
|||
|
Power |
2700W |
3300W |
3500W |
4000W |
|
Weight |
350kg |
450kg |
550kg |
650kg |
|

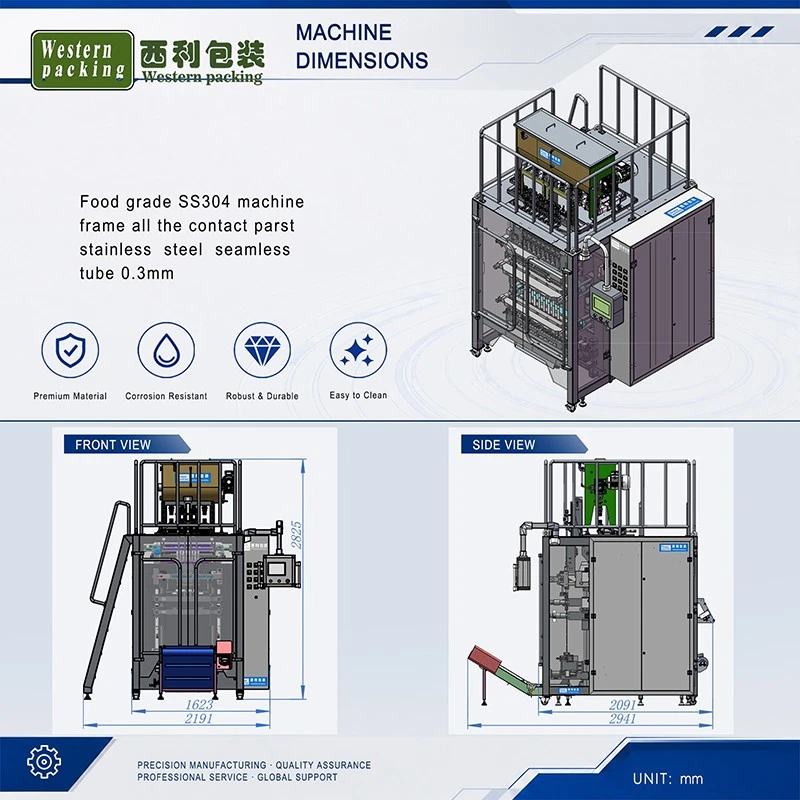

Dimension(L*W*H) |
1100*1050*2100mm |
1200*1100*2350mm |
1300*1200*2450mm |
1440*1300*2550mm |

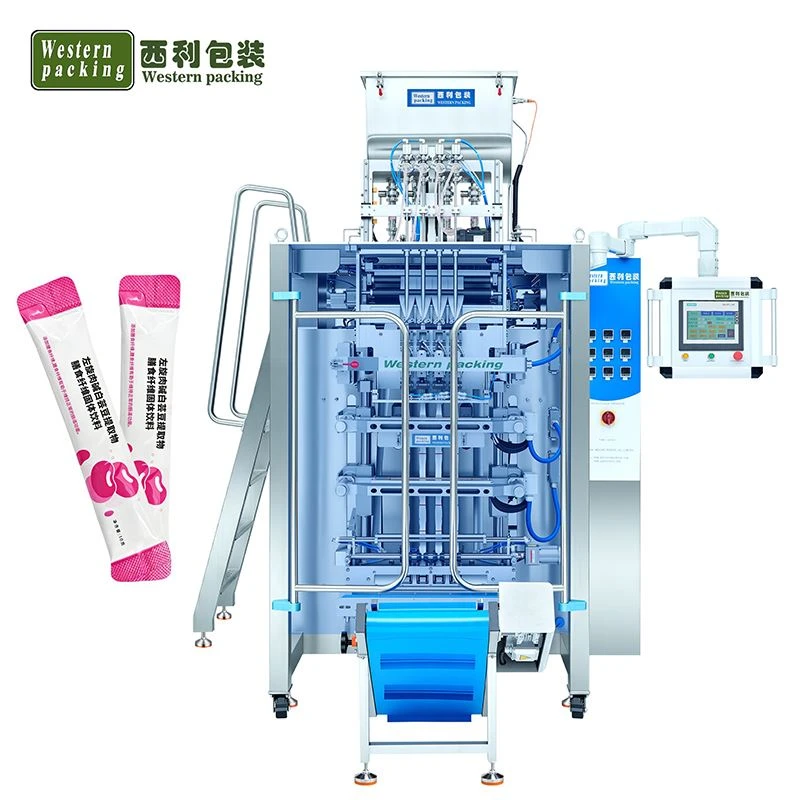

PASTE SACHET PACKAGING MACHINE
This paste sachet packaging machine is optimized for the characteristics of various liquid products, allowing for the selection of a suitable filling system based on material viscosity, flow rate, and packaging capacity. Options include piston pumps, peristaltic pumps, or other precision metering methods. Whether it's liquid beverages, juices, honey, syrups, or sauces and daily chemical liquids with a certain viscosity, it can achieve stable filling, ensuring consistent volume in each pouch.
With a four-side seal packaging structure, each finished pouch undergoes independent heat sealing on all four sides, resulting in a flatter, fuller bag shape and clearer seals. This effectively reduces leakage and bag breakage during transportation. Furthermore, the equipment is equipped with a servo film feeding system, photoelectric positioning device, and intelligent temperature control system, maintaining stable bag length control, precise film positioning, and reliable sealing even at high speeds.
PRODUCT ADVANTAGES
1. Reduced Product Waste: Precise metering and stable sealing reduce liquid spillage and poor sealing, improving the yield of finished packaging.
2. Reduced Labor Costs: From feeding and filling to sealing and bag cutting, the entire process is automated, requiring only personnel for material replenishment and equipment monitoring.
3. Easy Connection to Automated Production Lines: The equipment can be connected to subsequent equipment such as conveying, testing, and packing systems to achieve continuous production.
