Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of automatic sauce packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable automatic sauce packing machine made in China here from our factory.
DETAILED DISPLAY
01.

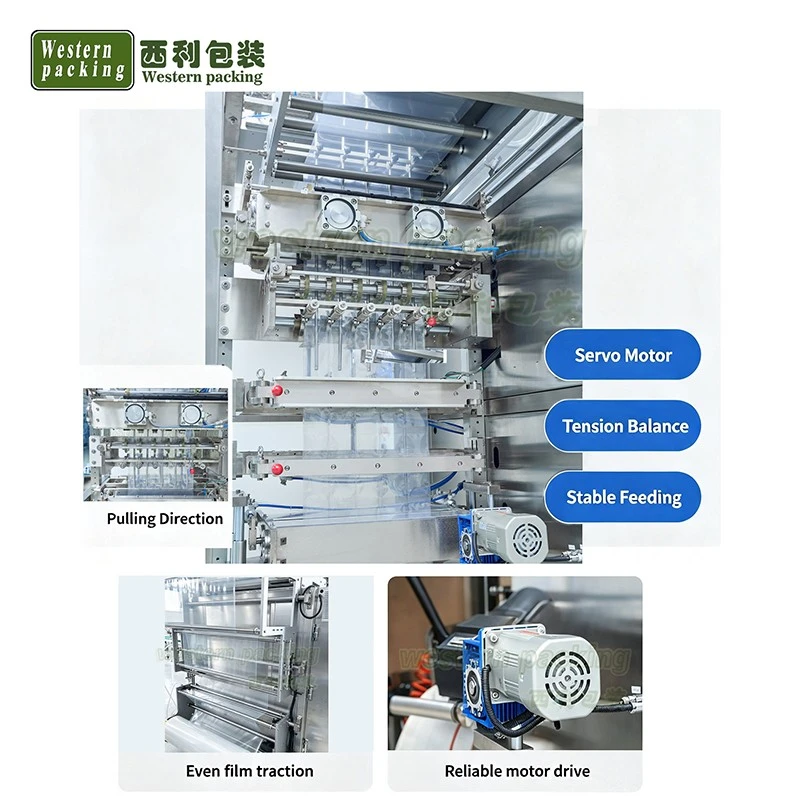

The automatic film feeding mechanism is responsible for the continuous supply of packaging film and is a fundamental component for the stable operation of the equipment. It employs a tension control structure to ensure the film roll unfolds evenly during high-speed operation, preventing bag length deviations or unstable sealing positions due to variations in film tension.
01
02.
The forming area of the equipment features an adjustable structure, allowing for the replacement or adjustment of forming components according to different packaging specifications.
02
03.
The filling nozzle position can be adjusted according to the packaging bag size. This effectively controls the liquid entry point into the bag, reducing splashing caused by liquid impact and improving the cleanliness of the sealing area.
03
04.
The automatic sauce packing machine uses independent temperature control units to control each sealing area. Operators can adjust the back sealing temperature and cross sealing temperature separately to achieve optimal heat sealing results for different film materials.
04
05.
The bag cutting assembly operates precisely according to the set bag length. The cutter's movement is synchronized with the cross sealing action, ensuring a clean cut and reducing burrs and packaging damage.
05
Hot Tags: automatic sauce packing machine, China automatic sauce packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Automatic Sauce Packing Machine |
||
|
Model |
WP-480YB |
WP-680YB |
WP-880YB |
|
Capacity |
200-350 cycles per min |
||
|
Dosage |
3-50g |
||
|
Size |
(L)30-160mm(W)15-50mm |
||
|
Power |
4200W |
||
|
Weight |
680kg |
||
|
Dimension(L*W*H) |
1200*950*2300mm |
||
AUTOMATIC SAUCE PACKING MACHINE

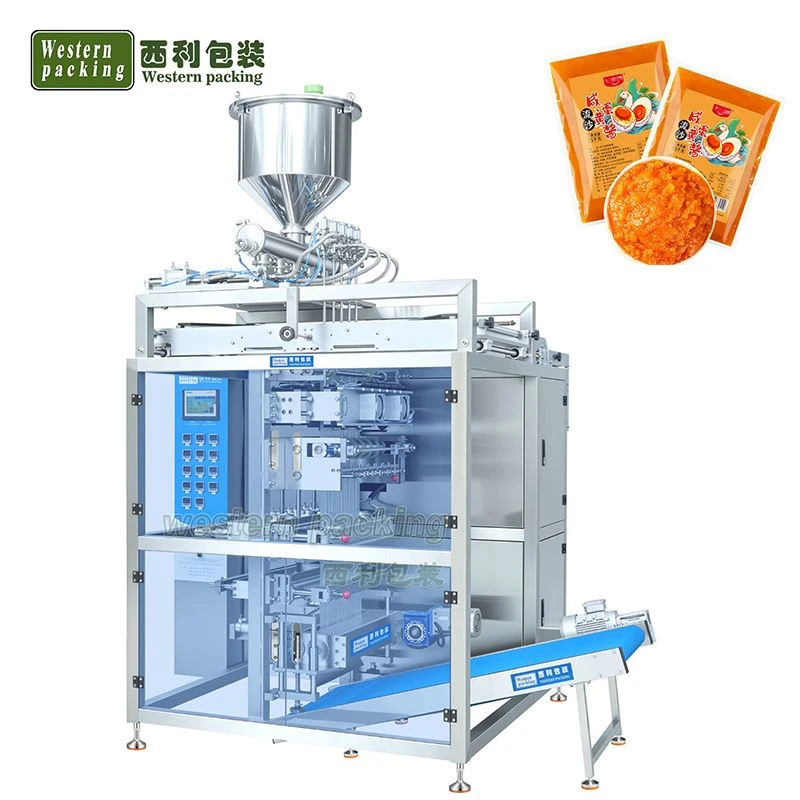

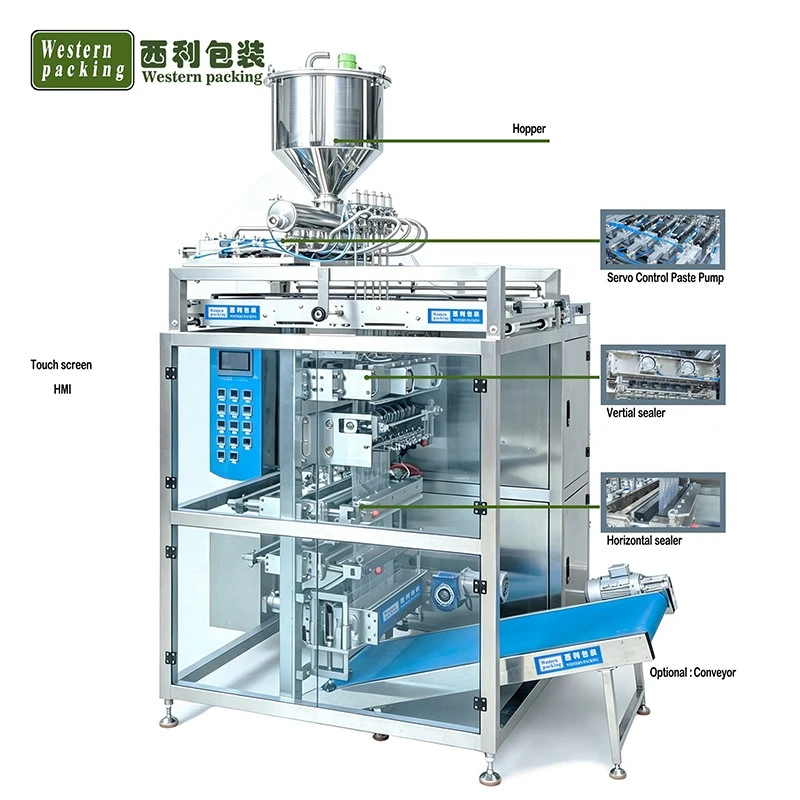

The multi-lane liquid back-seal automatic sauce packing machine is an automated device developed for the continuous packaging needs of small-bag liquid products. It employs multi-lane back-seal bag forming technology, longitudinally sealing the packaging film to form the bag, and then completing precise filling, lateral sealing, and automatic cutting.
This equipment is primarily used in the production of liquid products requiring high efficiency, small dosage, and multiple packaging sizes, such as sauces, beverage concentrates, personal care products, medical liquids, and daily chemical liquids.
Compared to traditional single-row back-seal packaging equipment, the multi-row structure can simultaneously complete the production of multiple packaging units, increasing output while maintaining consistency in packaging size, filling capacity, and sealing quality.
PRODUCT ADVANTAGES
1. More Stable Batch Consistency: Multi-lane and automated control reduces manual intervention, ensuring each bag is produced according to uniform parameters. This maintains consistency in dosage, bag length, and sealing effect.
2. Wider Product Compatibility: The equipment is suitable not only for beverage liquids but also for food sauces, personal care solutions, cleaning solutions, and other products in various industries.
3. Convenient Production and Maintenance: The main material contact areas are designed for easy disassembly and cleaning. Operators can quickly complete daily checks, reducing equipment downtime.
