Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of juice sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable juice sachet packing machine made in China here from our factory.
DETAILED DISPLAY
For products with special characteristics, a heating and stirring system can be configured to maintain a uniform material state and avoid inconsistencies in concentration and material state between different packaging stages.
01

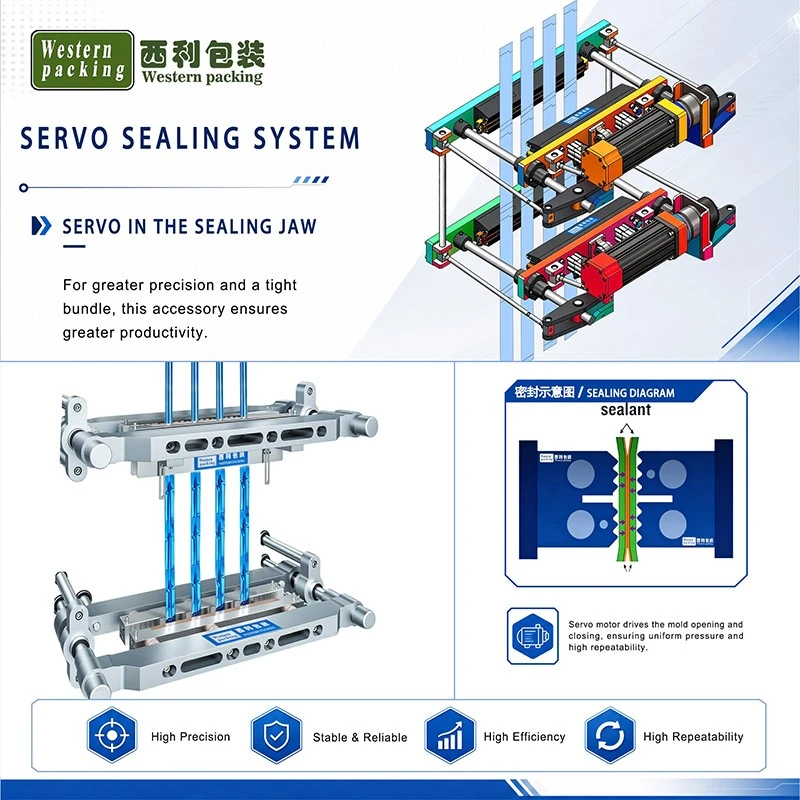

Independent control of longitudinal and transverse sealing temperatures allows for adjustment of heating parameters based on different packaging film materials, ensuring a firm seal and reducing film burning.
02
Precise control of the packaging film's movement distance via a servo motor improves bag length control accuracy, ensuring consistent product dimensions.
03
The juice sachet packing machine utilizes photoelectric sensors to detect the packaging film's edge position in real time, automatically adjusting when slight film misalignment occurs.
04
Hot Tags: juice sachet packing machine, China juice sachet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Juice Sachet Packing Machine |
||
|
Model |
WP-480YS |
WP-680YS |
WP-880YS |
|
Capacity |
30-40 cycles per min |
||
|
Dosage |
1-5-20-40g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
2700W |
3300W |
3600W |
|
Weight |
550kg |
650kg |
880kg |
|

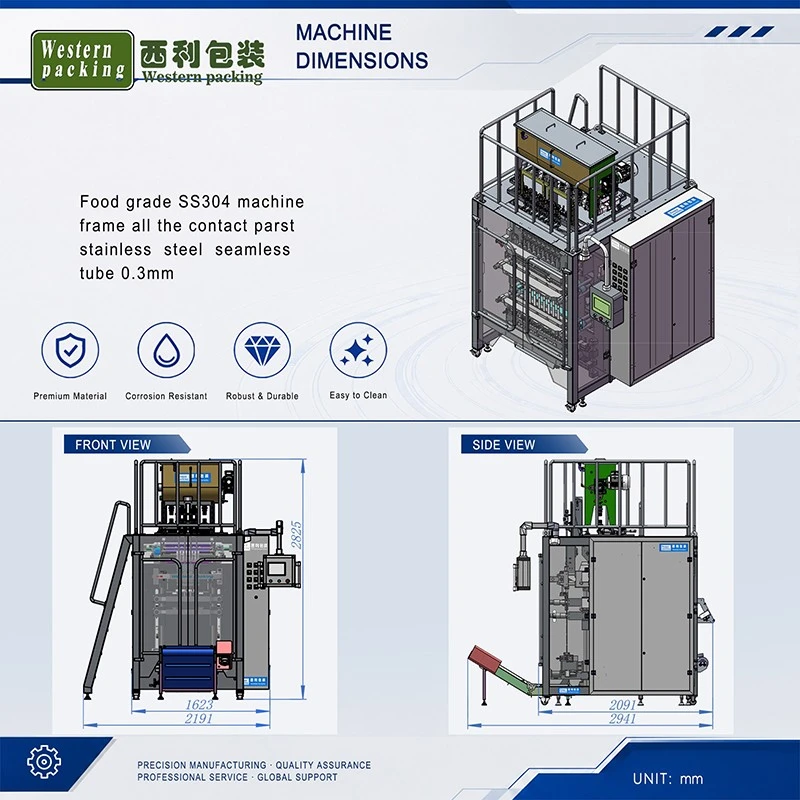

Dimension(L*W*H) |
1100*850*2100mm |
1200*950*2350mm |
1300*1050*2450mm |
JUICE SACHET PACKING MACHINE

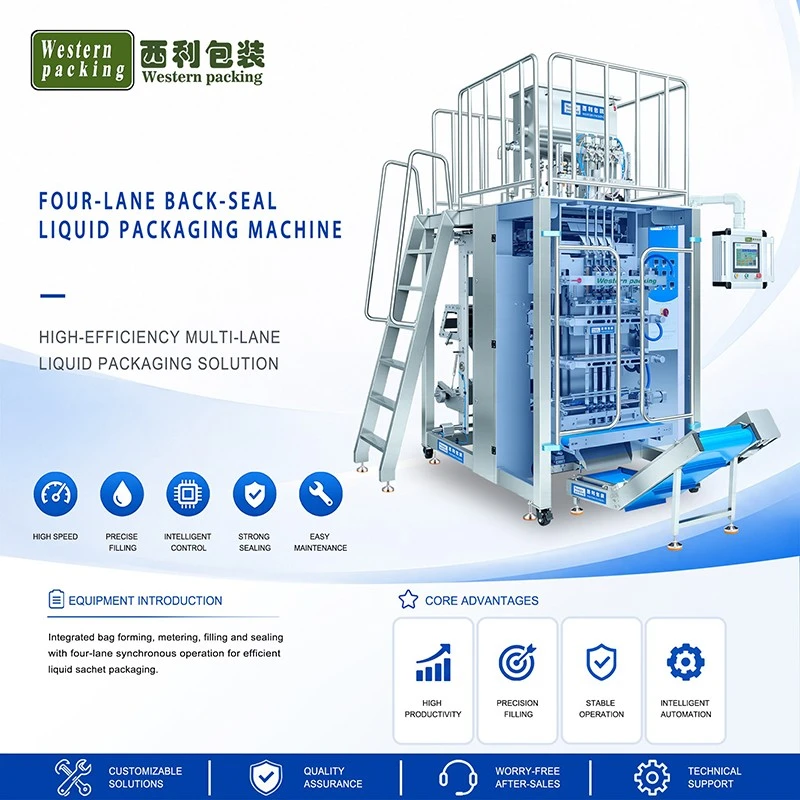

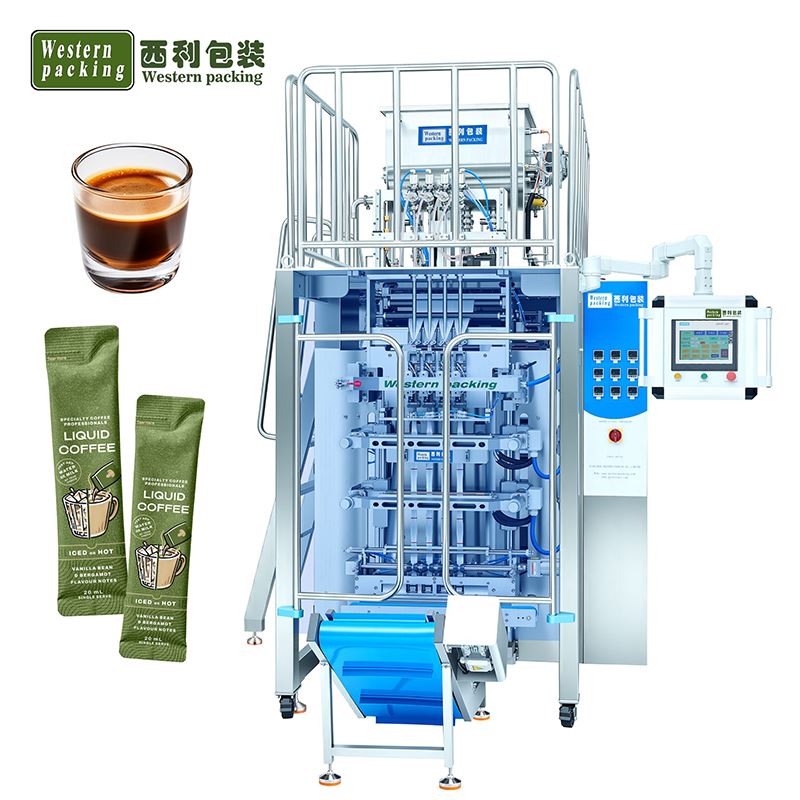

The multi-lane juice sachet packing machine is a high-speed automated packaging equipment designed for free-flowing liquids and semi-fluid products such as jelly, fruit-flavored beverages, lactic acid bacteria liquid, juice, sauces, honey, and syrups. The equipment adopts a multi-row synchronous packaging structure, which can complete bag making, quantitative filling, sealing, cutting, and finished product output of multiple strip bags simultaneously, significantly increasing output per unit time.
The equipment supports various packaging forms such as back-seal strip bags and rounded corner strip bags. Different filling pump systems can be matched according to the product viscosity, packaging capacity, and bag shape requirements, meeting the packaging needs from small food factories to large automated production lines.
PRODUCT FEATURES
1. High-efficiency multi-row parallel operation: Compared to traditional single-row machines, output is increased exponentially, significantly reducing the cost per bag.
2. High-precision filling system: Utilizing corrosion-resistant, high-precision rotary valves or plunger metering pumps, filling errors can be controlled within ±1%, ensuring consistent product net content.

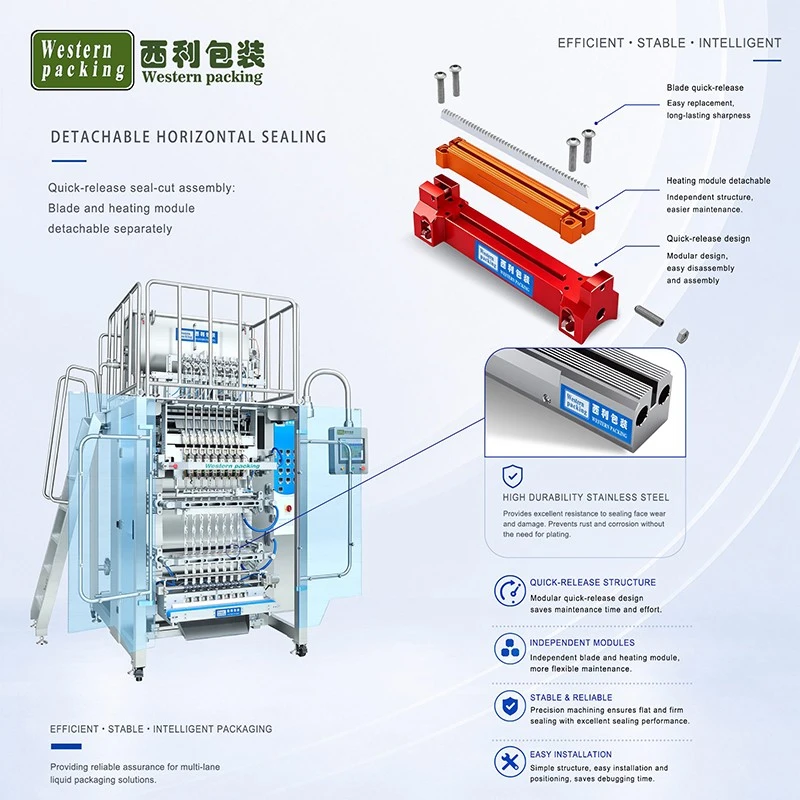

3. Stable heat-sealing mechanism: An independent temperature control module, combined with a high-hardness sealing blade holder, ensures clear, smooth, and strong sealing lines, eliminating the risk of leakage.
4. Automatic fault detection: Equipped with multiple automatic alarm and shutdown protection functions for film shortage, film breakage, material shortage, and insufficient air pressure, reducing scrap rates.
