Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of irregular shape sachet liquid packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable irregular shape sachet liquid packing machine made in China here from our factory.
DETAILED DISPLAY

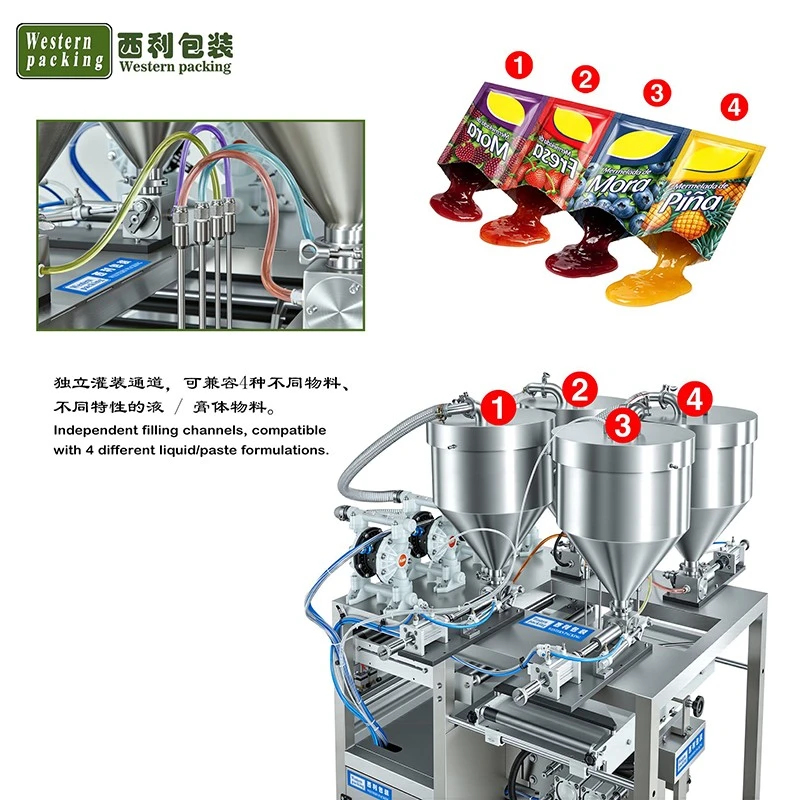

Each liquid is transported through independent pipelines, reducing the risk of material mixing and facilitating cleaning and maintenance.
01
Different products use separate storage spaces, avoiding the sharing of multiple liquids in the same container and improving production hygiene.
02
A precise metering mechanism controls the dispensing volume each time based on product characteristics, ensuring a stable volume for each bag.
03
Anti-drip filling nozzles reduce liquid residue after filling, preventing contamination of the sealing area.
04
Hot Tags: irregular shape sachet liquid packing machine, China irregular shape sachet liquid packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Irregular Shape Sachet Liquid Packing Machine |
|
Capacity |
40-50 cycles per min |
|
Dosage |
1-30g/30-70g |
|
Size |
(L)30-160mm(W)25-100mm |

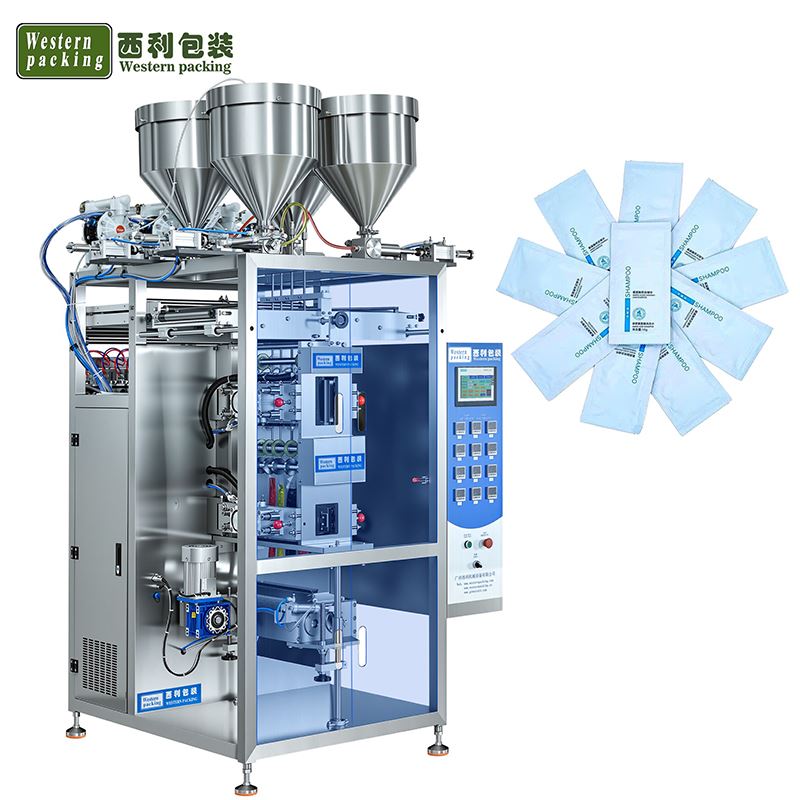

IRREGULAR SHAPE SACHET LIQUID PACKING MACHINE
For manufacturers producing multiple products simultaneously, this irregular shape sachet liquid packing machine reduces production losses caused by frequent equipment changes. A single machine can cover the packaging needs of various types of liquid products, including beverages, juices, honey, sauces, cooking oils, condiments, shampoos, shower gels, and disinfectants.

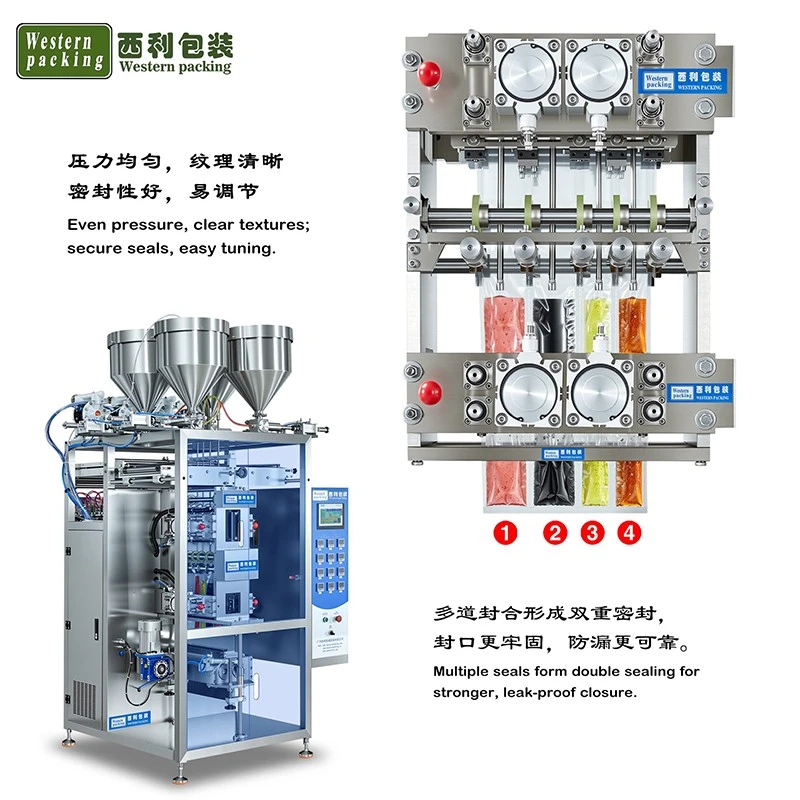

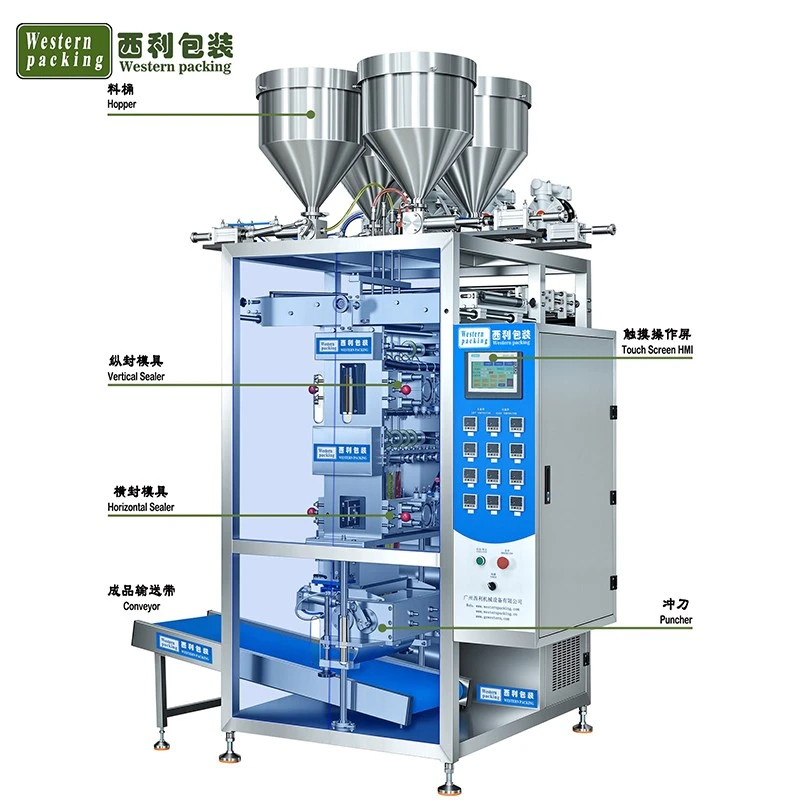

In actual production, the packaging film automatically enters the equipment and passes through a forming system to create four independent bags. Four filling mechanisms then simultaneously fill the bags with liquid. Finally, a heat-sealing system seals the bags on all four sides, and the finished bags are automatically cut and output. The entire process operates continuously, significantly reducing manual intervention and improving packaging consistency.
PRODUCT FEATURES
1. Independent Control: Separate metering structure. Each material has its own independent metering device, eliminating the need to share a single filling system and preventing interference between different liquids.
2. Reduced Changeover and Cleaning Time: Because each material has its own independent metering path, the entire filling system does not need to be emptied when changing products.
3. More Flexible Parameter Adjustment: Metering, speed, and capacity parameters for each column can be adjusted independently.
