Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of energy gel sachet packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable energy gel sachet packaging machine made in China here from our factory.
DETAILED DISPLAY
A piston pump, peristaltic pump, or gear pump can be selected based on the liquid viscosity to achieve stable quantitative filling of different products.
01
The feed pipe is made of corrosion-resistant food-grade material, facilitating disassembly and cleaning, and meeting hygienic production requirements.
02
It stably supports the operation of the packaging film roll, and in conjunction with a tension adjustment device, ensures smoother film conveying.
03
The energy gel sachet packaging machine uses air-locking to tighten the packaging film roll, reducing roll sway and improving film feeding stability during high-speed operation.
04
Hot Tags: energy gel sachet packaging machine, China energy gel sachet packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Energy Gel Sachet Packaging Machine |
||
|
Model |
WP-480YB |
WP-680YB |
WP-880YB |
|
Capacity |
200-350 cycles per min |
||
|
Dosage |
3-50g |
||
|
Size |
(L)30-160mm(W)15-50mm |
||
|
Power |
4200W |
||
|
Weight |
680kg |
||
|
Dimension(L*W*H) |
1200*950*2300mm |
||

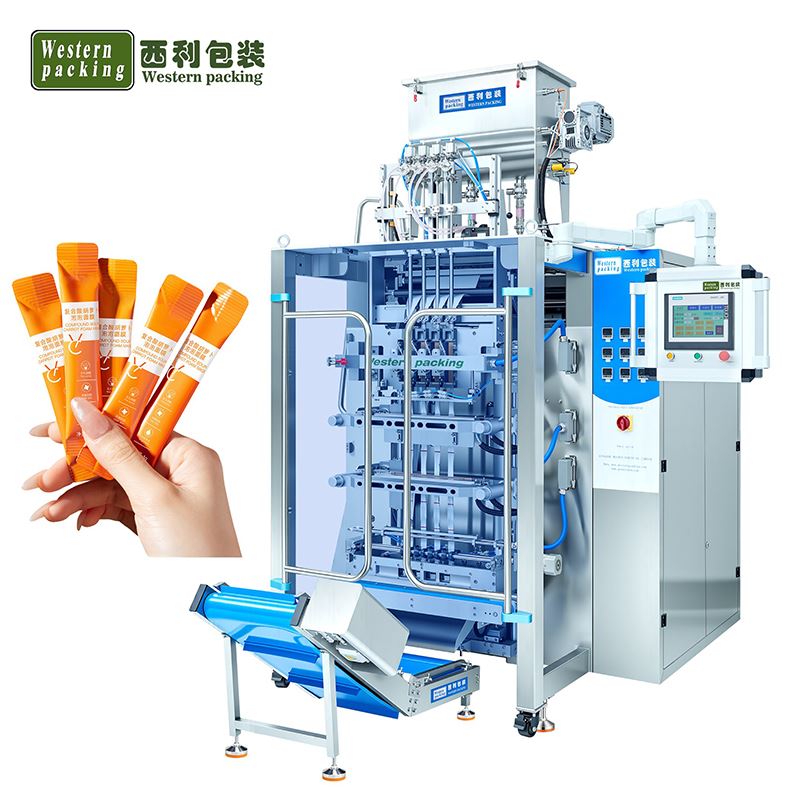

ENERGY GEL SACHET PACKAGING MACHINE
This energy gel sachet packaging machine can continuously complete the entire process, including packaging film feeding, pouch forming, precise filling, four-side sealing, and finished product cutting. The equipment is optimized to address common issues with liquid products such as dripping, unstable filling, and contaminated sealing. Through a stable feeding system and precision metering mechanism, it ensures consistent pouch volume, secure sealing, and a neat appearance for each pouch.
This machine is suitable for packaging various free-flowing liquid products, such as juices, beverages, honey, sauces, edible oils, dairy products, shampoos, shower gels, and disinfectants. The five-row, simultaneous operation design offers higher production efficiency compared to ordinary single-row packaging equipment, making it particularly suitable for food factories, beverage factories, daily chemical companies, and OEM manufacturers that require continuous, high-volume production of small-sized liquid packaging.
WORKING PRINCIPLE
Continuous packaging is achieved through steps such as automatic film feeding, precise filling, heat sealing, and bag cutting. During operation, the packaging film is fed, positioned, and formed into five rows of bags by the film feeding, positioning, and forming mechanisms. Five filling systems simultaneously inject liquid into the bags according to the set capacity. The bags are then sealed by a four-sided heat sealing mechanism, and finally, the cutter automatically cuts and outputs the finished bags. The entire process is controlled by a PLC system, achieving high-speed, stable, and continuous automated liquid packaging.
