Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of sauce sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable sauce sachet packing machine made in China here from our factory.
DETAILED DISPLAY
A stable support structure secures the packaging film rolls, coupled with a tension adjustment mechanism, ensuring uniform tension during film transport.
01
Materials are temporarily stored in a storage area before entering the filling system. Agitation, anti-sedimentation, or heat preservation functions can be added according to product requirements.
02
For liquids prone to bubble formation, the filling method is optimized to reduce the impact of bubbles on metering accuracy.
03

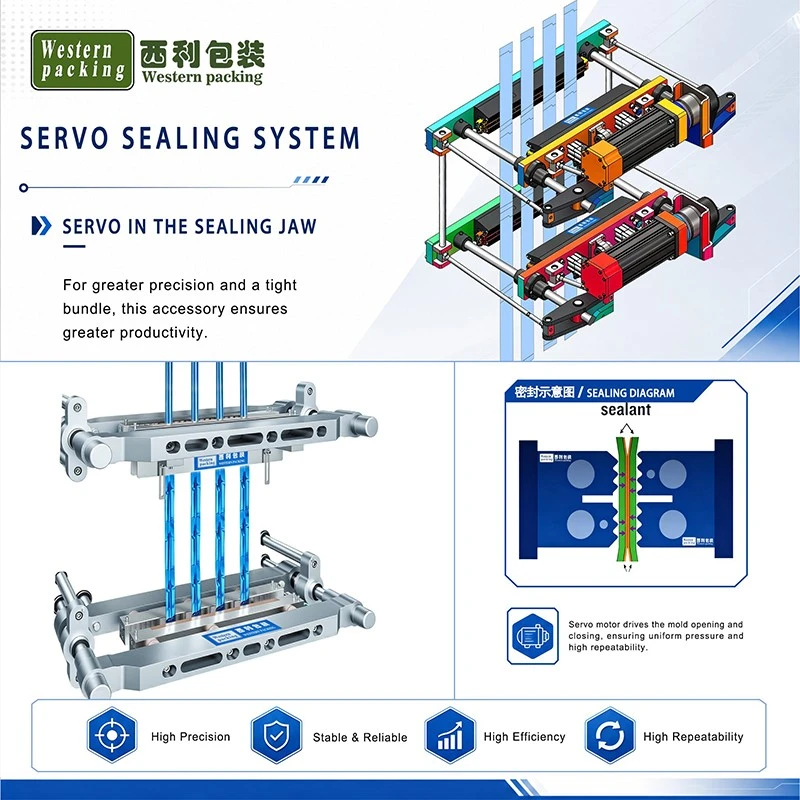

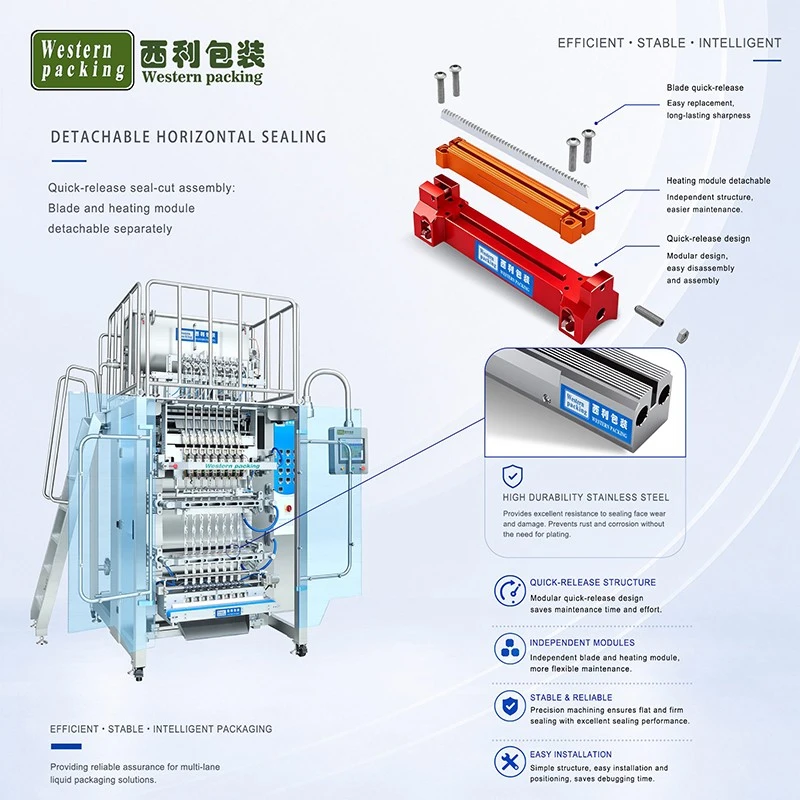

The sauce sachet packing machine uses a precision drive to control the sealing and cutting actions, ensuring neat edges on each pouch.
04
Hot Tags: sauce sachet packing machine, China sauce sachet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Sauce Sachet Packing Machine |
|||
|
Model |
WP-480Y |
WP-680Y |
WP-880Y |
WP-1080Y |
|
Capacity |
40-50 cycles per min |
|||
|
Dosage |
1-30g/30-70g |
|||
|
Size |
(L)30-160mm(W)25-100mm |
|||
|
Power |
2700W |
3300W |
3500W |
4000W |
|
Weight |
350kg |
450kg |
550kg |
650kg |
|

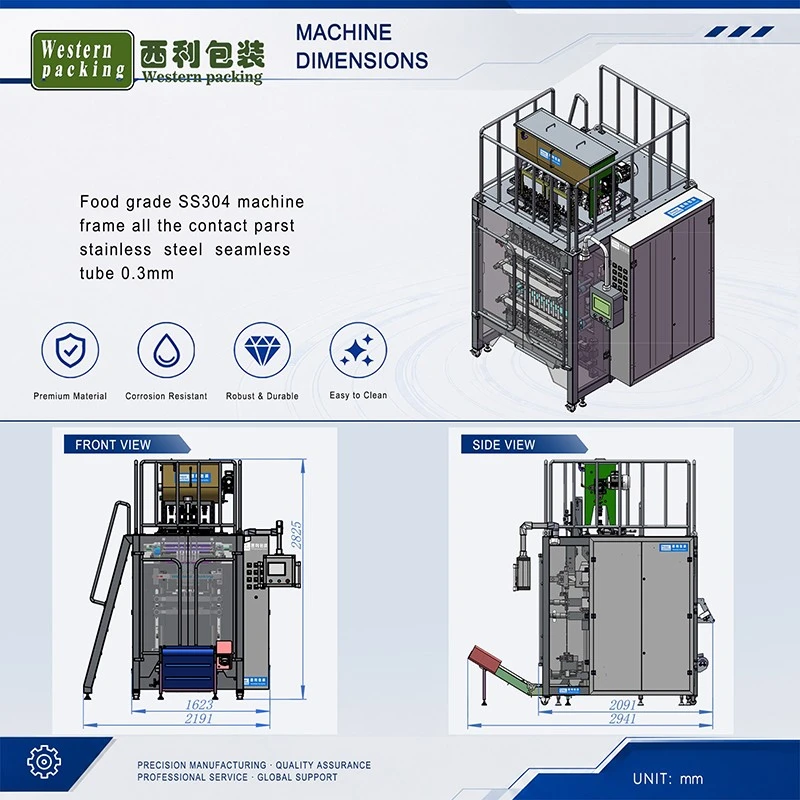

Dimension(L*W*H) |
1100*1050*2100mm |
1200*1100*2350mm |
1300*1200*2450mm |
1440*1300*2550mm |
SAUCE SACHET PACKING MACHINE
This five-lane 4-side-seal sauce sachet packing machine can simultaneously complete the entire packaging process, including five rows of pouch production, precise metering and filling, four-side sealing, and pouch cutting and output.
The equipment adopts a multi-channel synchronous operation structure, forming multiple independent pouches in one pass, significantly increasing output per unit time. It is suitable for liquid product manufacturers requiring continuous production and stable packaging results.
This machine is mainly used for packaging various fluid products such as beverages, juices, dairy beverages, sauces, honey, shampoos, shower gels, disinfectants, skin lotions, agricultural liquids, and pharmaceutical liquids.
PRODUCT FEATURES
1. Adaptable to varying liquid viscosities: By changing the pump body and piping configuration, it can meet the packaging needs of various liquids such as aqueous solutions, emulsions, syrups, and sauces.
2. High stability during continuous operation: The equipment adopts an automatic tension control and synchronous drive system, reducing problems such as film jamming and film misalignment during high-speed operation.
3. Simple parameter adjustment: Packaging speed, filling volume, sealing temperature, and other parameters can be modified via a touch screen, reducing operator training costs.
