Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of liquid stick pack machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable liquid stick pack machine made in China here from our factory.
DETAILED DISPLAY
The hopper's internal structure facilitates cleaning and can be configured with insulation or stirring functions according to production needs.
01

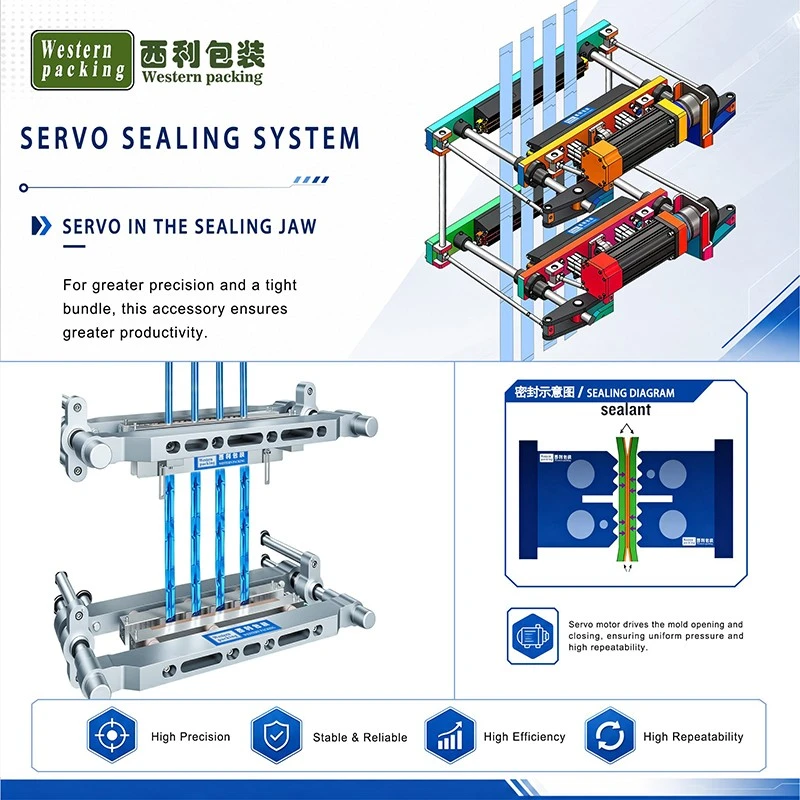

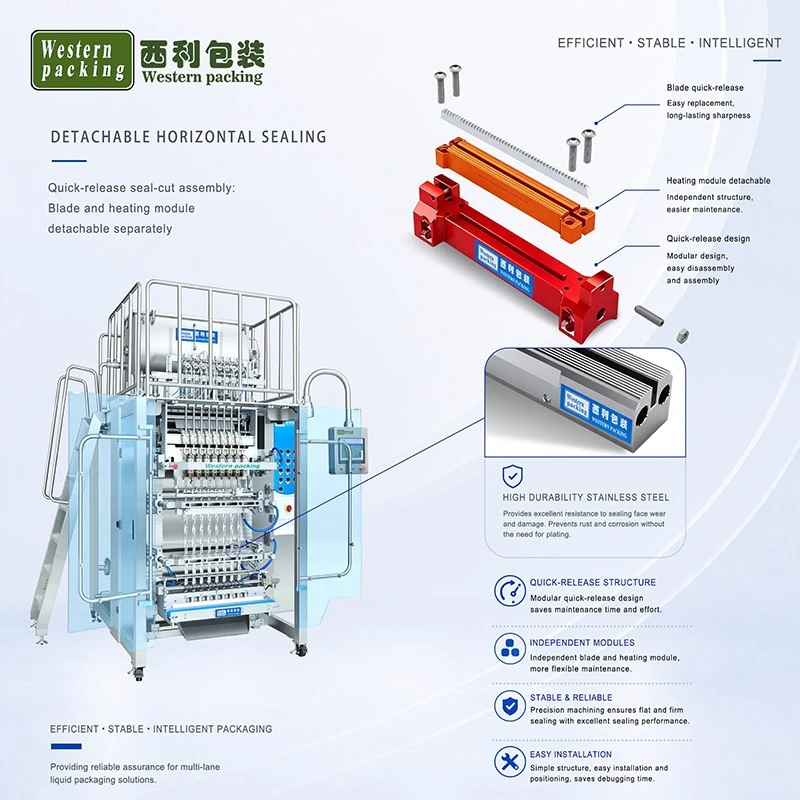

During horizontal sealing, the bag's sides are clamped tightly to ensure a flat sealing area while accurately controlling the cutting position.
02
The longitudinal sealing device forms a back seal on the bag, and stable heating and pressure control make the seal more secure.
03
The liquid stick pack machine is equipped with a filling anti-backflow structure to reduce liquid backflow and leakage, keeping the equipment's interior clean.
04
Hot Tags: liquid stick pack machine, China liquid stick pack machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Liquid Stick Pack Machine |
||
|
Model |
WP-480YB |
WP-680YB |
WP-880YB |
|
Capacity |
200-350 cycles per min |
||
|
Dosage |
3-50g |
||
|
Size |
(L)30-160mm(W)15-50mm |
||
|
Power |
4200W |
||
|
Weight |
680kg |
||
|

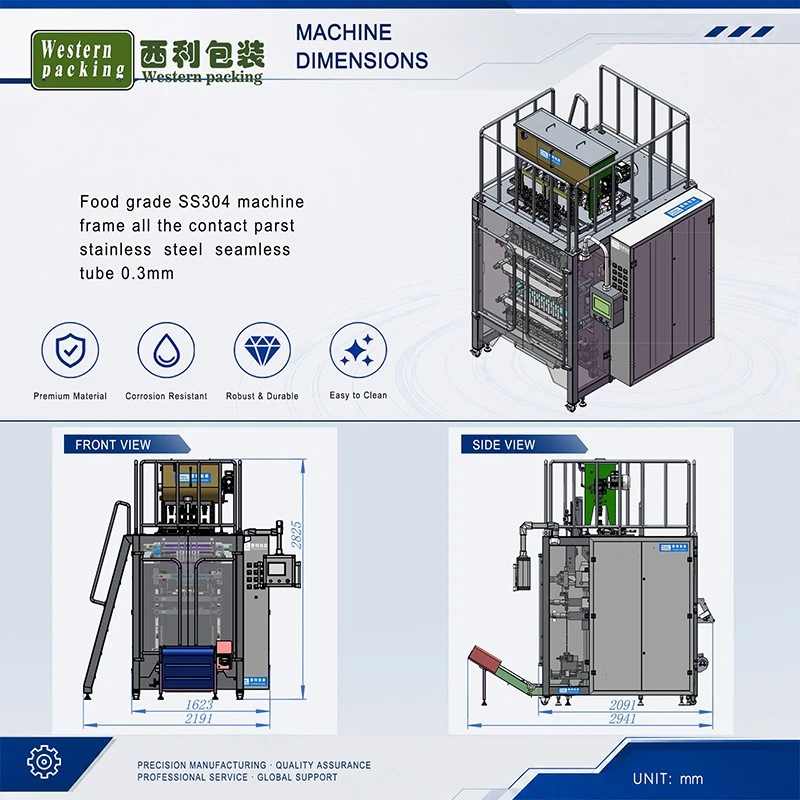

Dimension(L*W*H) |
1200*950*2300mm |
||
LIQUID STICK PACK MACHINE

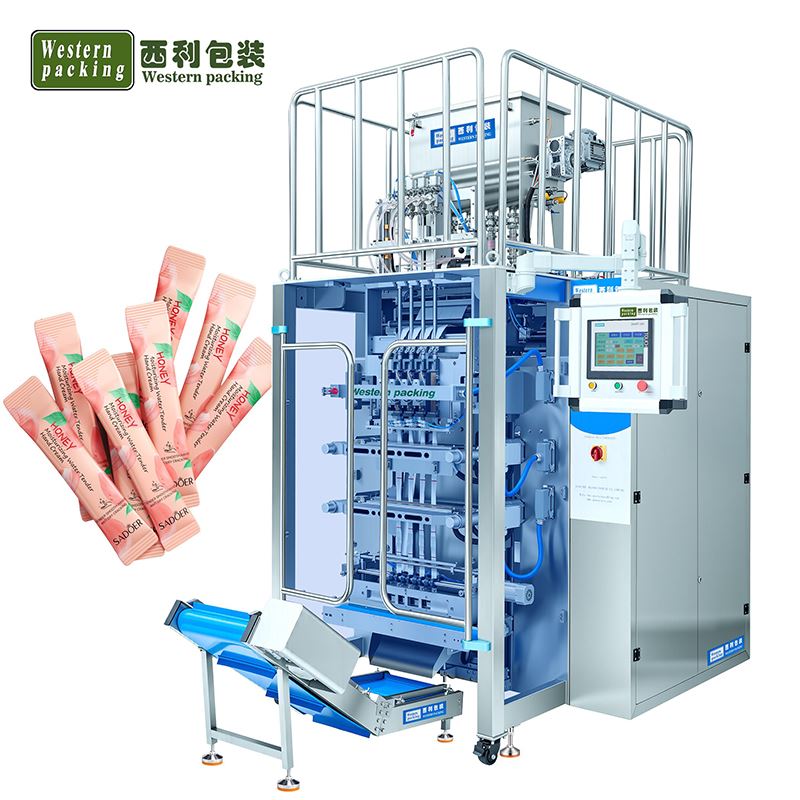

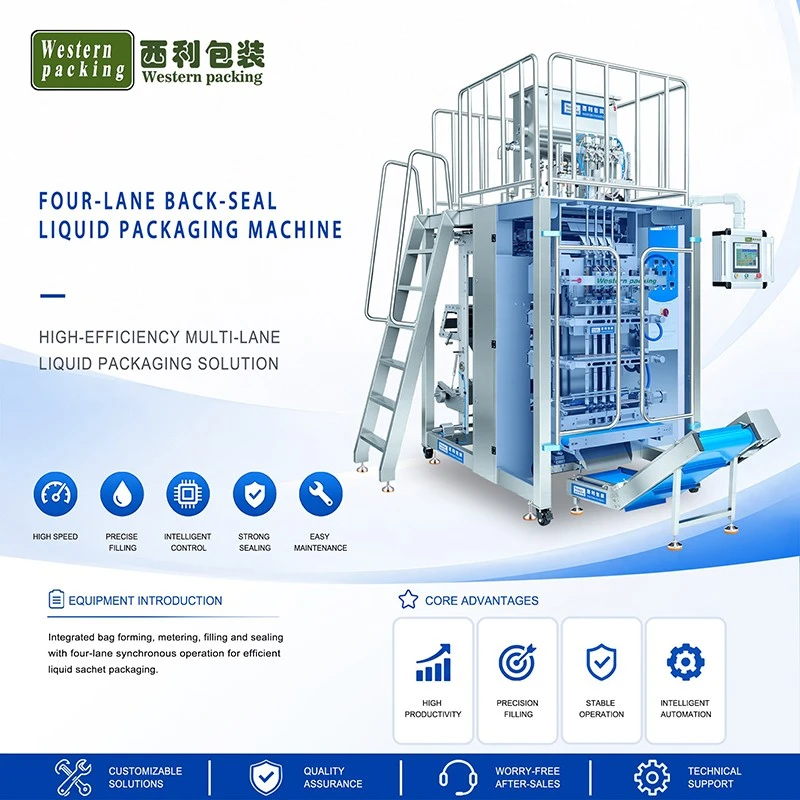

The multi-lane liquid stick pack machine is a continuous packaging equipment integrating packaging film conveying, bag shape making, liquid metering, automatic filling, sealing and cutting.
The machine adopts a modular design, with each packaging channel having independent forming, filling and sealing mechanisms working in tandem, allowing multiple bags to be produced simultaneously. No manual intervention is required for individual bag operation; simply set the packaging parameters in advance to continuously output standardized finished products.
PRODUCT ADVANTAGES
Leap in Production Capacity: Taking an 8-line machine as an example, production speeds can reach hundreds of bags per minute, easily handling large-scale orders.
Labor Savings and Cost Reduction: One person can operate multiple machines simultaneously, reducing reliance on human resources; precise filling reduces material waste, resulting in long-term cost savings.
Smooth and Low-Noise Operation: The entire machine uses high-quality servo motors and precision transmission components, resulting in low operating noise, minimal vibration, and durability.
Easy Connection to Subsequent Packaging Processes: The finished product output position can be connected to conveying, cartoning, and boxing equipment according to production needs, facilitating the establishment of a complete automated packaging line.
