Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of honey sachet packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable honey sachet packaging machine made in China here from our factory.
DETAILED DISPLAY

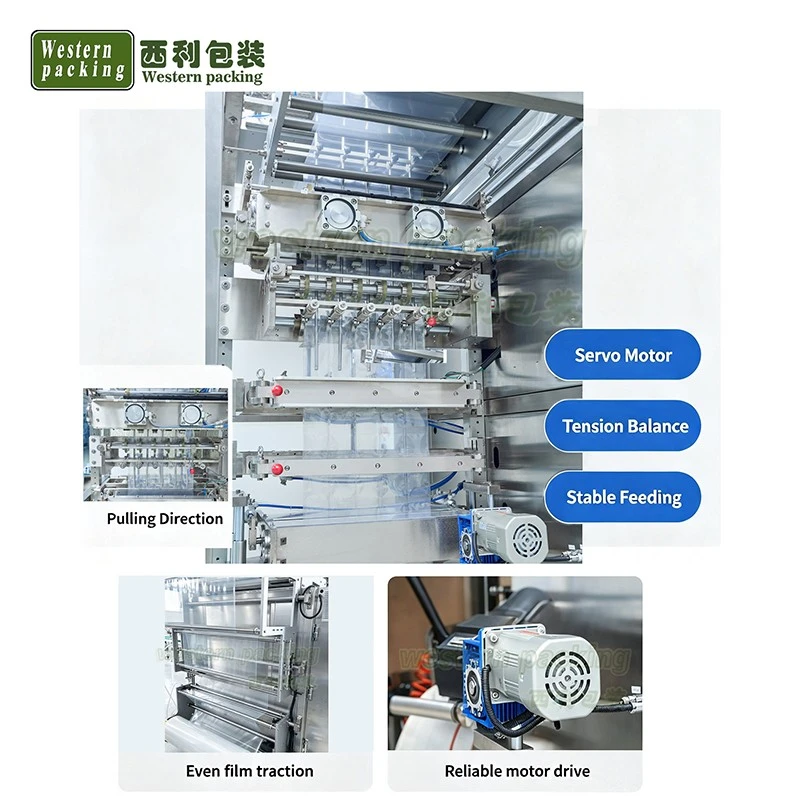

Multiple stainless steel guide rollers guide the film smoothly into the forming section, reducing friction and keeping the film running in a straight line.
01
Photoelectric sensors detect printed marks on the packaging film and send signals to the control system to automatically correct the film position, thereby ensuring precise cutting and consistent packaging bag appearance.
02

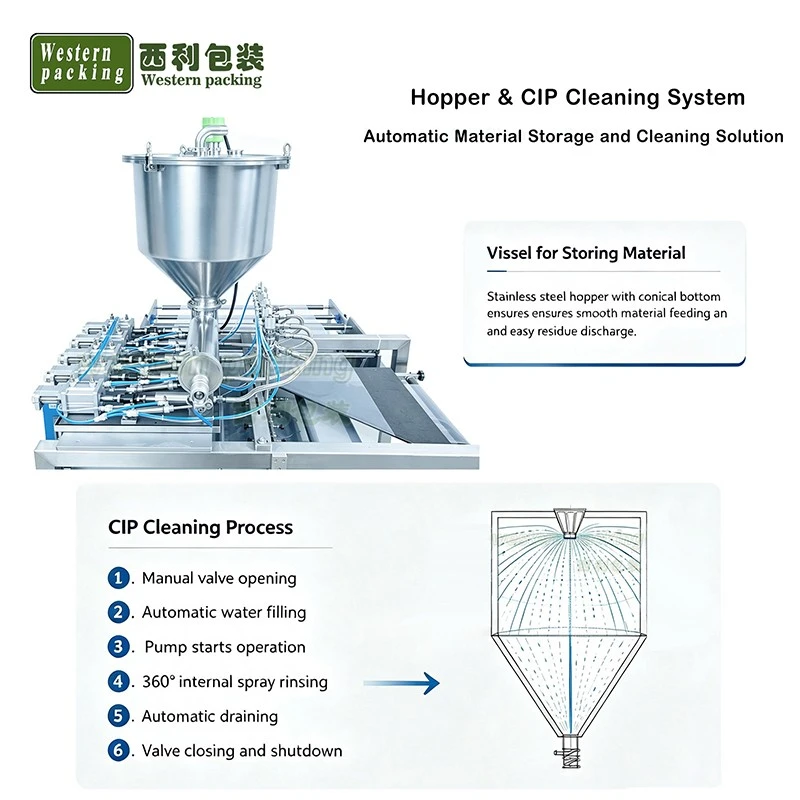

The nozzle features an anti-drip design, reducing liquid residue after filling, preventing contamination of the sealed area, and improving packaging cleanliness.
03
The honey sachet packaging machine horizontal sealing complete the top and bottom sealing of each sachet. The sealing surface design ensures even pressure distribution across four lanes.
04
Hot Tags: honey sachet packaging machine, China honey sachet packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Honey Sachet Packaging Machine |
||
|
Model |
WP-480YB |
WP-680YB |
WP-880YB |
|
Capacity |
200-350 cycles per min |
||
|
Dosage |
3-50g |
||
|
Size |
(L)30-160mm(W)15-50mm |
||
|
Power |
4200W |
||
|
Weight |
680kg |
||
|

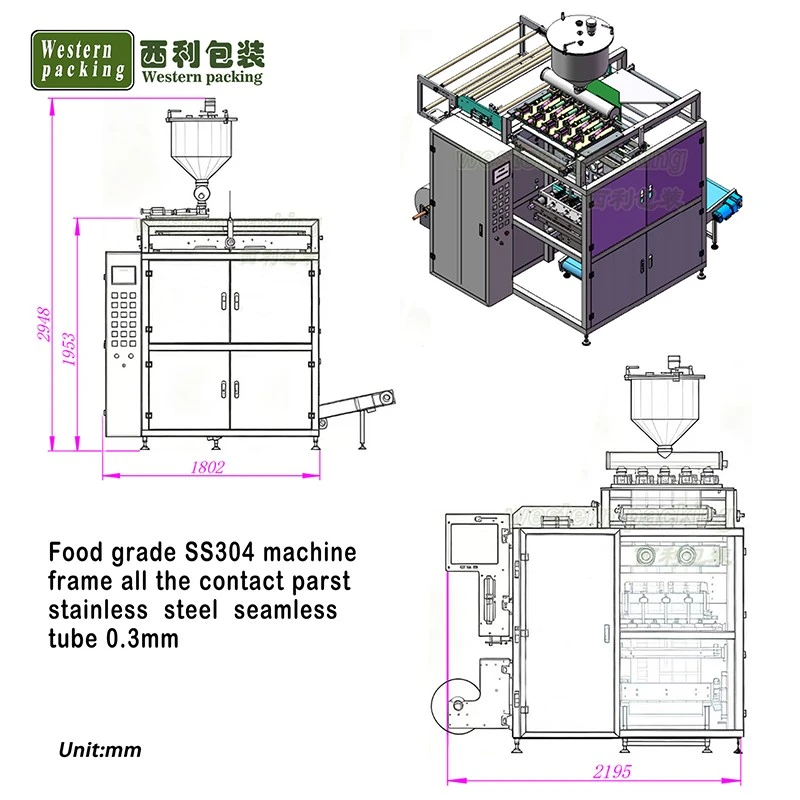

Dimension(L*W*H) |
1200*950*2300mm |
||

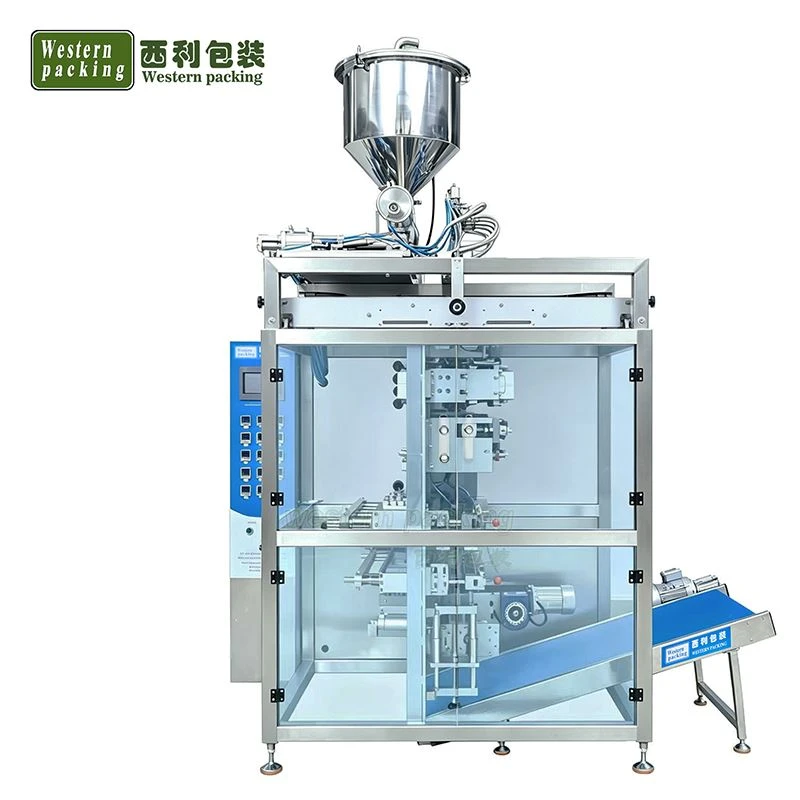

HONEY SACHET PACKAGING MACHINE

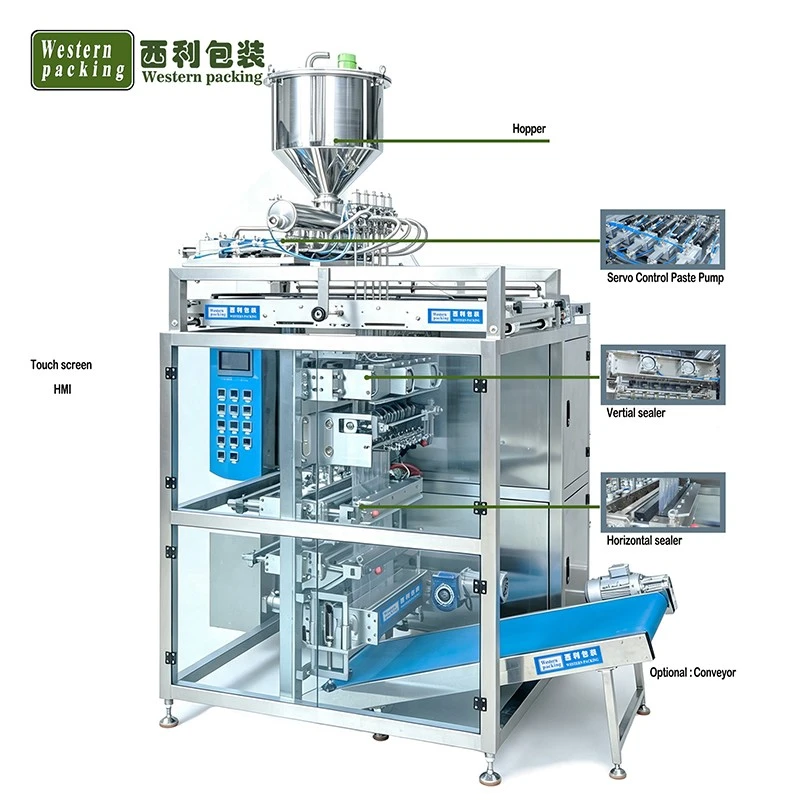

Unlike traditional single-line pouch packaging machines, this honey sachet packaging machine employs a four-lane working structure, producing multiple pouches in each sealing cycle. The machine automatically completes film feeding, pouch making, liquid metering, filling, sealing, cutting, and output processes without frequent manual intervention.
This equipment can be customized for various products, including transparent liquids, viscous liquids, foamy liquids, and products requiring agitation or circulation systems. It provides a flexible solution for a wide range of liquid packaging applications.
WORKING PRINCIPLE
The packaging film is conveyed by the unwinding mechanism and pulled under constant tension into four sets of independent forming units, where it is rolled into four independent cylindrical bags. A longitudinal heat-sealing mechanism simultaneously completes the back sealing of the four bags. A high-precision liquid filling valve descends into the bag following the mechanical sequence, injecting a measured amount of liquid. After filling, the valve retracts and prevents dripping. Then, the upper and lower horizontal sealing modules close, completing the sealing of the top of the bag. Finally, the bags are simultaneously cut, and the individual finished products fall onto the discharge conveyor belt.
