Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of shampoo sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable shampoo sachet packing machine made in China here from our factory.
DETAILED DISPLAY
The frame adopts an integrated welded structure and is equipped with reinforced support points, which can reduce vibration during high-speed molding, filling, sealing and cutting processes.
01

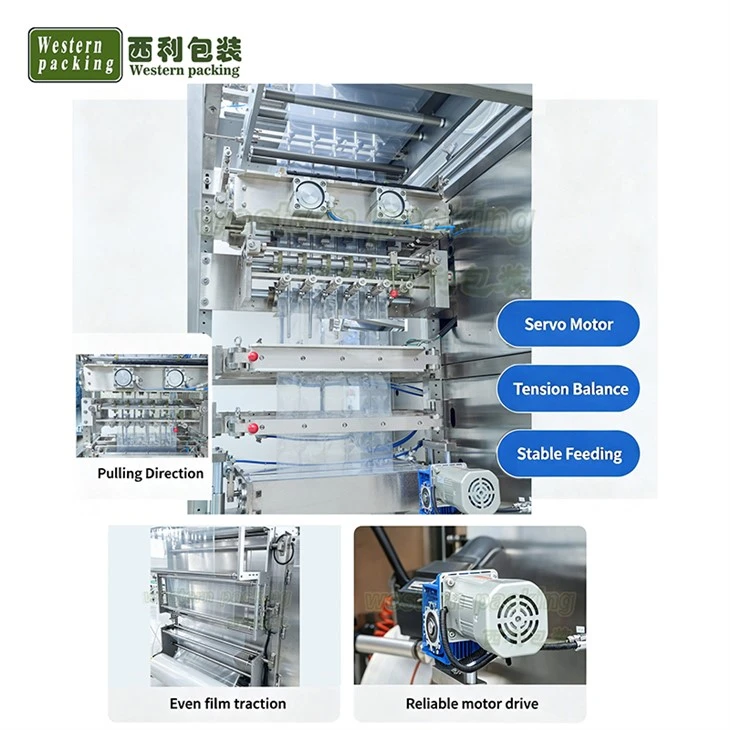

The film guide roller device is precisely installed to ensure the film remains centered during transport. This prevents film shifting, uneven packaging bag edges, incorrect label placement, and irregular seal alignment.
02

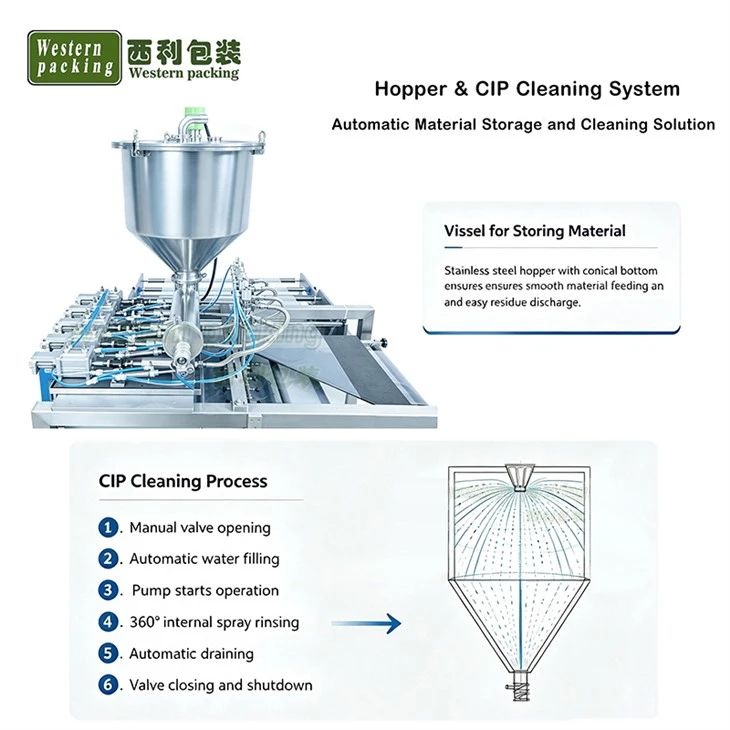

The shampoo sachet packing machine is equipped with two independent hoppers to prevent the two materials from mixing before filling.
03
A temperature sensor monitors the temperature in real time and automatically adjusts the heating output. This prevents: poor sealing, film scorching, and uneven sealing strength.
04
Hot Tags: shampoo sachet packing machine, China shampoo sachet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Shampoo Sachet Packing Machine |
|
Model |
WP-880Y-4 |
|
Capacity |
25-35 pcs/min-line |
|
Dosage |
1-20g |
|
Size |
(L)30-150mm(W)70-110mm |
|
Power |
4500W |
|
Weight |
750kg |
|

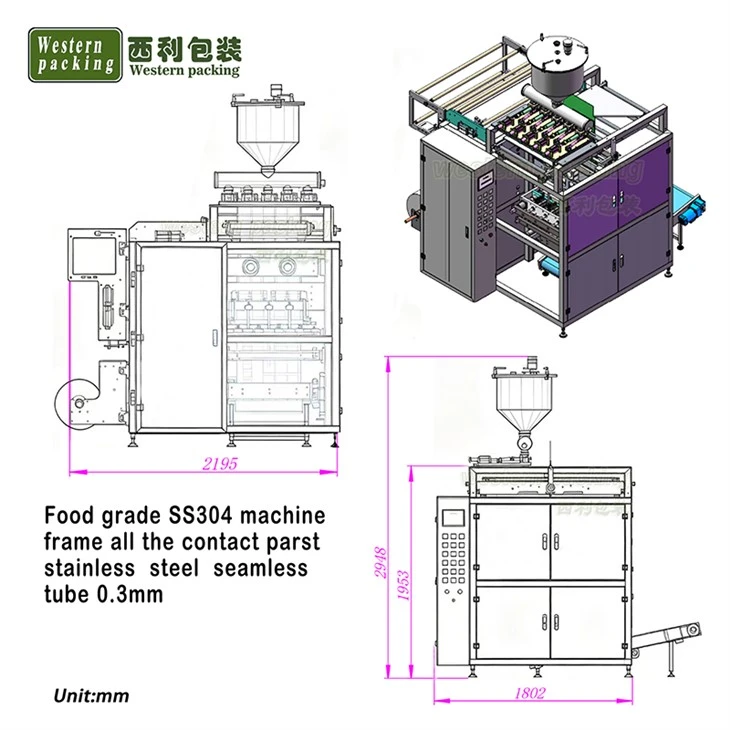

Dimension(L*W*H) |
1797*1750*2313mm |
SHAMPOO SACHET PACKING MACHINE

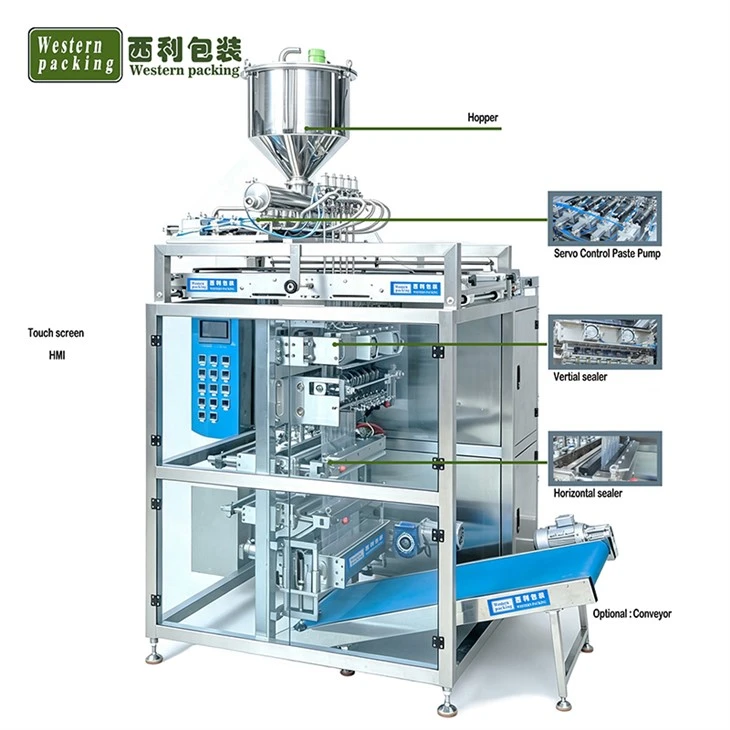

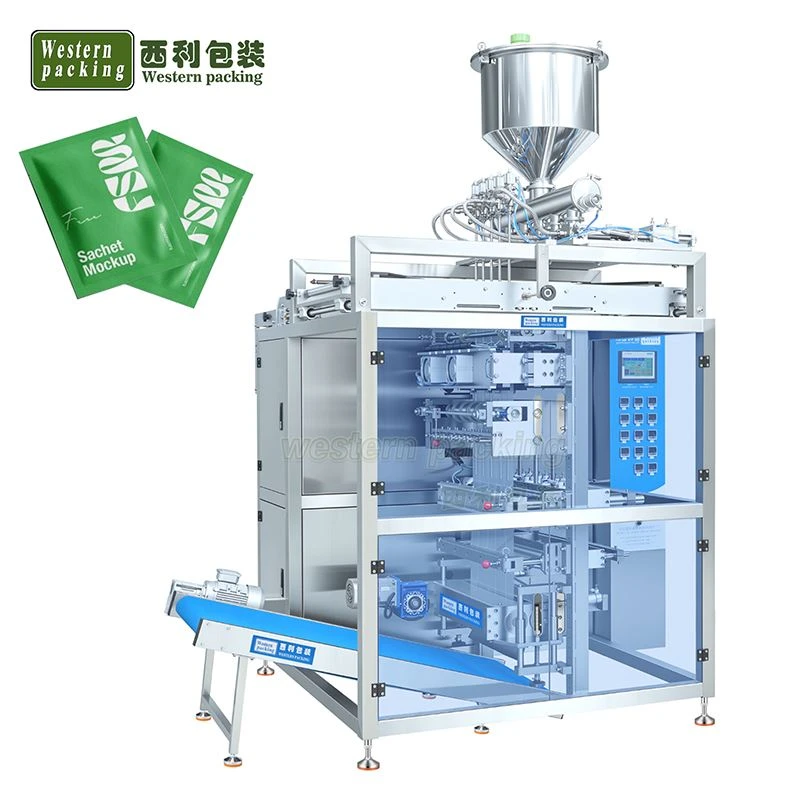

This dual-material, irregularly shaped shampoo sachet packing machine packages two different liquid ingredients into a single irregularly shaped bag. It is widely used for packaging shampoos, conditioners, hair care products, shower gels, lotions, cosmetic samples, and other personal care liquid products. It enables combination packaging of shampoo + conditioner, shampoo + hair serum, or mixed packaging of different formulas.
The equipment uses a roll-film forming process, eliminating the need for pre-made bags and automatically completing the dual-material separation filling and irregularly shaped bag production. The entire machine is constructed of SUS304 stainless steel, with 316L anti-corrosion treated material contact parts, making it suitable for weakly acidic and weakly alkaline dyeing and conditioning materials. Dual metering systems are independently controlled, allowing for different filling ratios. Bag type, capacity, temperature, and speed are adjustable with a single button, ensuring fully automated operation.
WORKING PRINCIPLE
The packaging film is fed into the forming station via photoelectric correction and servo traction; the middle longitudinal seal separates the bag into two independent chambers on the left and right; dual metering pumps inject agent A (hair dye) and agent B (hydrogen peroxide) into the two chambers respectively; then the upper horizontal seal, irregular shape punching, easy-tear pressing, and batch number printing are completed; finally, the finished bag is cut to the specified length.
