Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of sauce pouch packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable sauce pouch packaging machine made in China here from our factory.
DETAILED DISPLAY

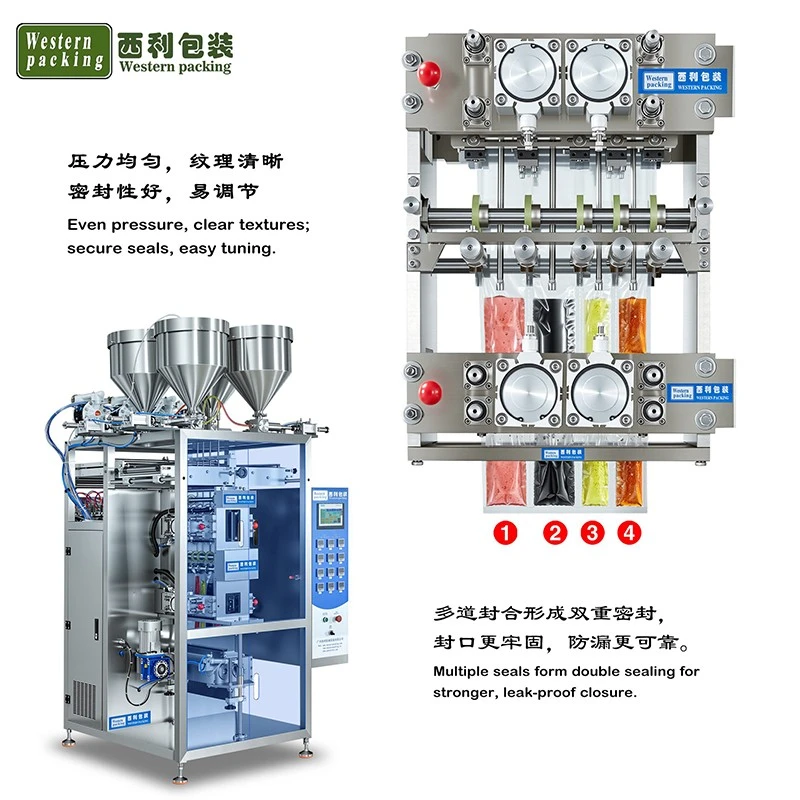

An independent temperature control system monitors sealing temperature changes in real time and automatically maintains stable heating based on film type.
01
A high-precision cutting assembly precisely cuts continuous packaging bags, ensuring uniform product size and neat, burr-free edges.
02
A PLC intelligent control system centrally controls filling, film feeding, sealing, and bag cutting, achieving automated operation of the entire machine.
03
The sauce pouch packaging machine electrical control cabinet centrally houses control components, with a clear wiring layout for easy equipment maintenance and fault diagnosis.
04
Hot Tags: sauce pouch packaging machine, China sauce pouch packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Sauce Pouch Packaging Machine |
||
|
Model |
WP-480YS |
WP-680YS |
WP-880YS |
|
Capacity |
30-40 cycles per min |
||
|
Dosage |
1-5-20-40g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
2700W |
3300W |
3600W |
|
Weight |
550kg |
650kg |
880kg |
|

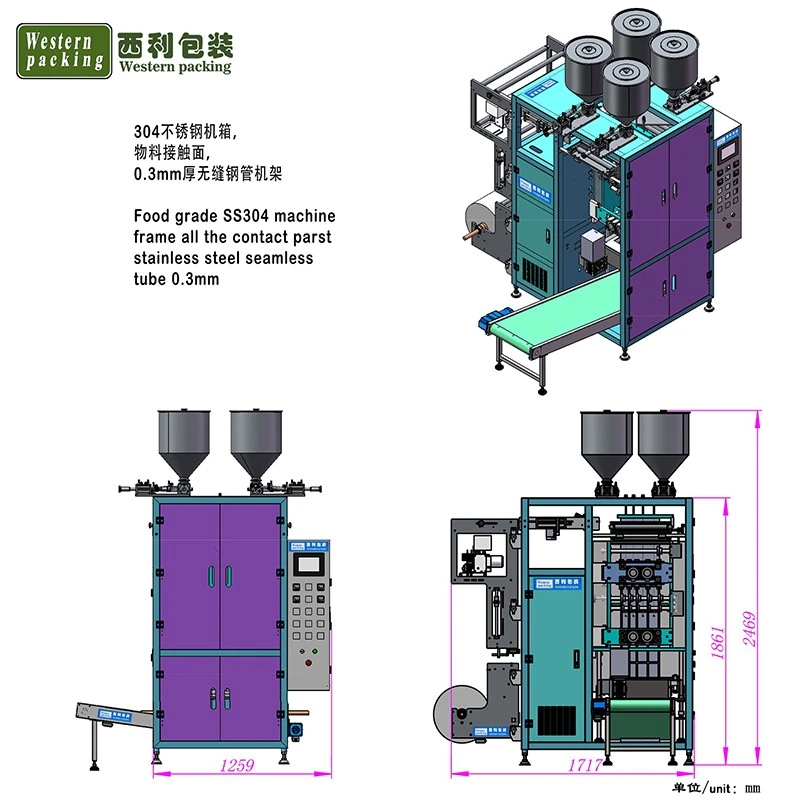

Dimension(L*W*H) |
1100*850*2100mm |
1200*950*2350mm |
1300*1050*2450mm |
SAUCE POUCH PACKAGING MACHINE

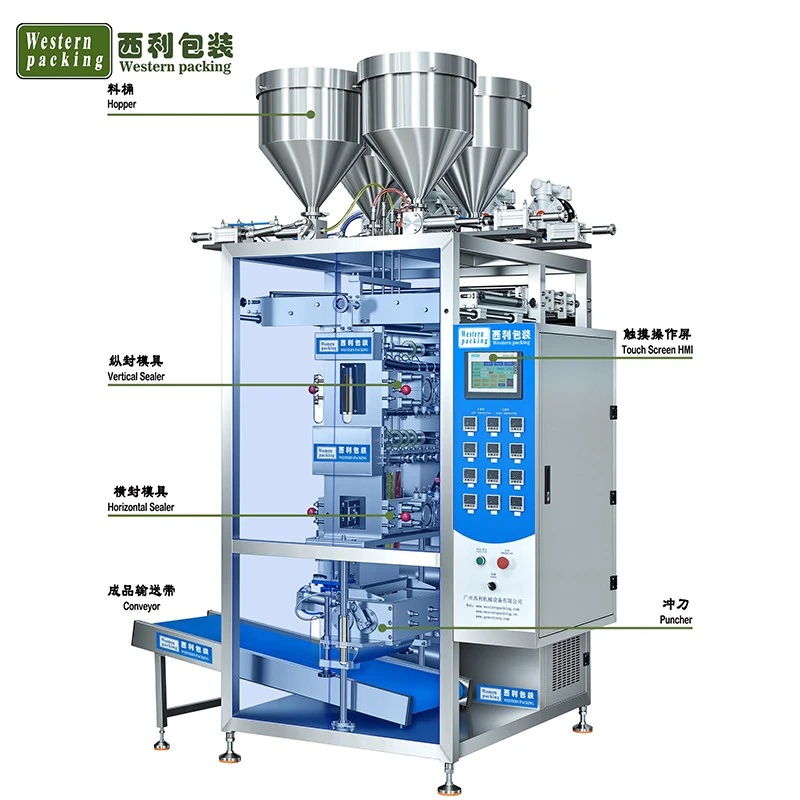

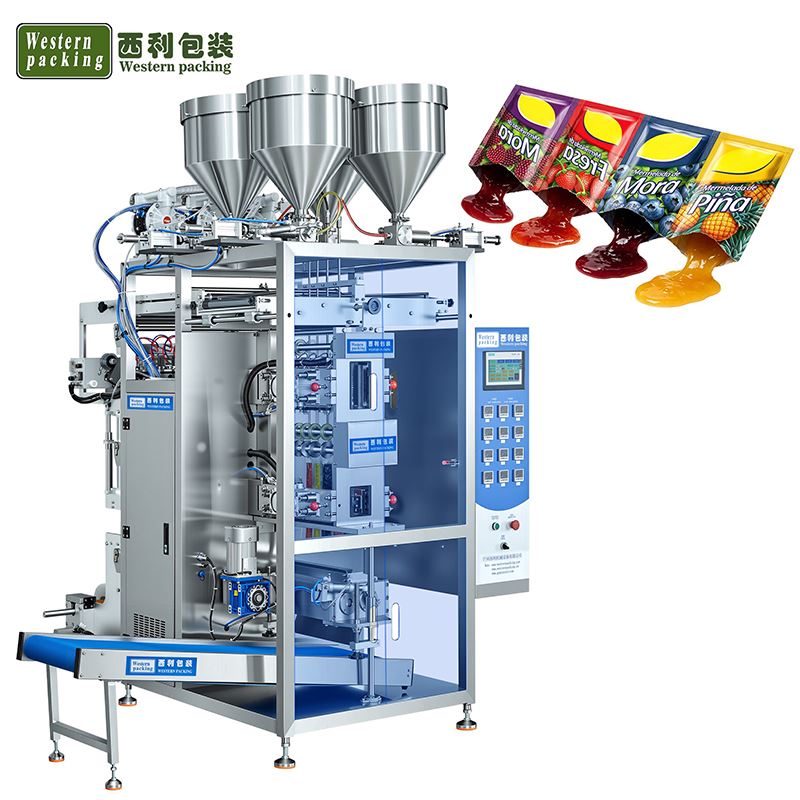

This sauce pouch packaging machine integrates all processes—unwinding, forming, longitudinal sealing, bottom sealing, filling, top sealing, easy-tear cutting, and fixed-length cutting—into one unit, completing the entire packaging process from roll film to finished small bags in a single machine.
Applicable materials include low- to medium-viscosity liquids such as soy sauce, edible oil, liquid seasonings, mouthwash, skincare samples, oral liquids, and eye drops, as well as mixed liquids containing suspended particles. By selecting different types of filling pumps, it can also be adapted to high-viscosity sauces or liquid products containing small particles. The equipment has wide applicability in small bag packaging scenarios in the food, daily chemical, and pharmaceutical industries.
WORKING PRINCIPLE

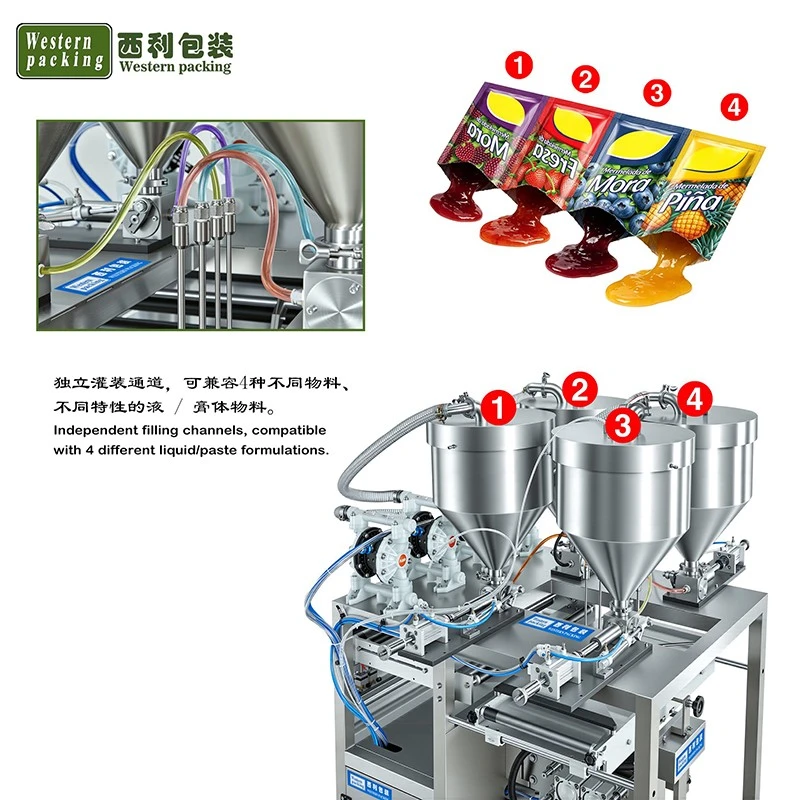

During operation, the packaging film is first precisely conveyed by an automatic correction and photoelectric positioning system, and then formed into individual bags by a forming mechanism. Liquid material is pumped into the feeding pipe through a metering pump, and rapid filling is completed within the set capacity range. After filling, the heat sealing system simultaneously seals the four sides of the bag, forming a sealed four-side bag. Finally, an automatic cutter completes the cutting and output of the finished product.
