Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of multilane jelly stick packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable multilane jelly stick packing machine made in China here from our factory.
DETAILED DISPLAY
Can be configured with a heated storage tank. For products whose viscosity increases as temperature decreases, this prevents the material from thickening and affecting filling speed, maintaining a stable liquid state throughout the production process.
01
Optimized backflow prevention structure for controlling the liquid after delivery stops reduces backflow and dripping, keeping the equipment clean.
02
Multiple filling nozzles operate simultaneously, each with independent valve control, ensuring consistent filling accuracy across different channels.
03
The multilane jelly stick packing machine uses a quick-installation structure to secure packaging film rolls, facilitating easy replacement of different packaging materials and improving film changing efficiency.
04
Hot Tags: multilane jelly stick packing machine, China multilane jelly stick packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Multilane Jelly Stick Packing Machine |
||
|
Model |
WP-480YB |
WP-680YB |
WP-880YB |
|
Capacity |
200-350 cycles per min |
||
|
Dosage |
3-50g |
||
|
Size |
(L)30-160mm(W)15-50mm |
||
|
Power |
4200W |
||
|
Weight |
680kg |
||
|

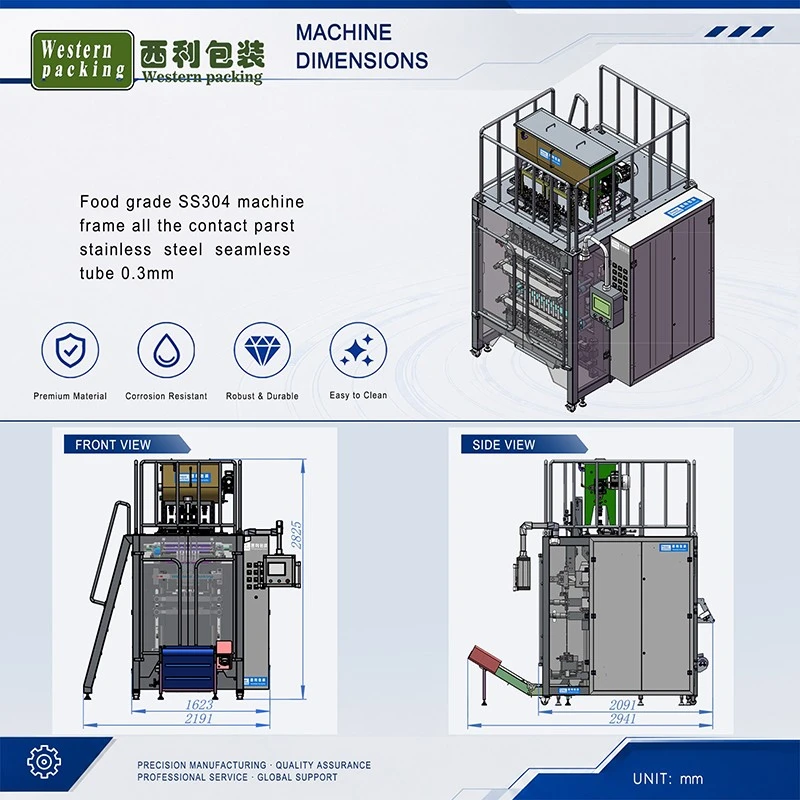

Dimension(L*W*H) |
1200*950*2300mm |
||

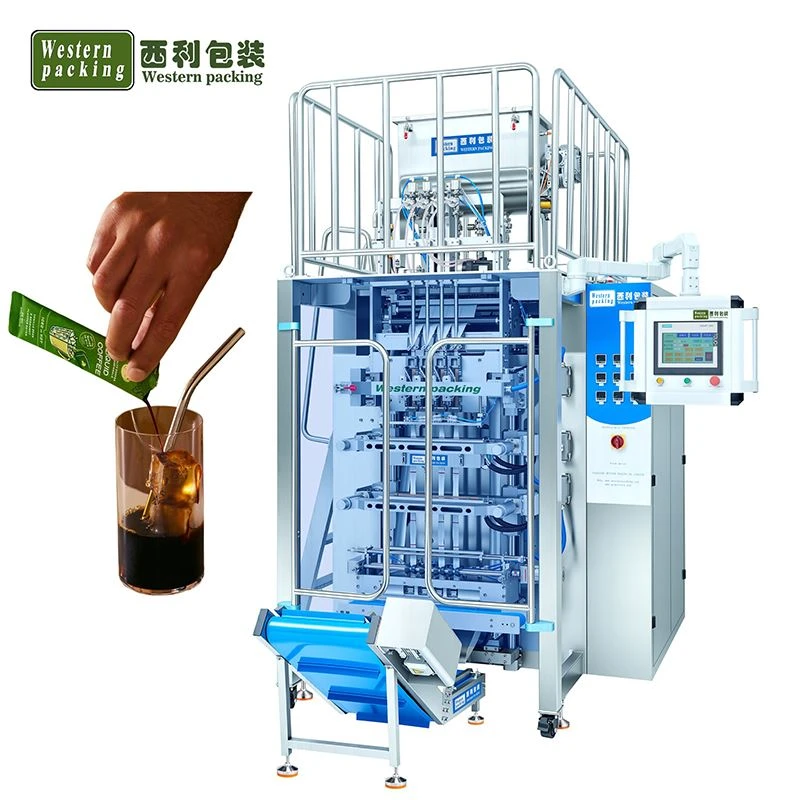

MULTILANE JELLY STICK PACKING MACHINE

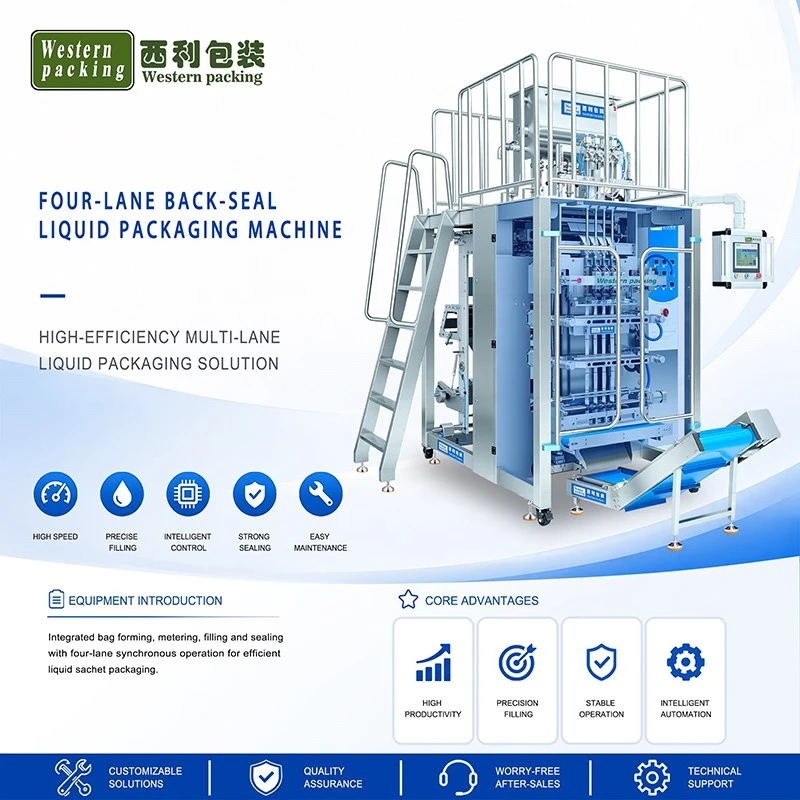

The multilane jelly stick packing machine employs a multi-row independent packaging unit design, simultaneously producing multiple strip bags within a limited space. Compared to traditional single-channel packaging methods, the multi-row structure significantly improves packaging efficiency while maintaining consistency in capacity, sealing quality, and dimensional appearance for each bag.
For jelly products, which have a certain viscosity, slow flow rate, and are prone to residue buildup, the equipment utilizes a dedicated liquid conveying structure in the filling section. Through stable feeding and precise control, the filling process is smoother, reducing liquid residue and contamination of the sealing area.
The equipment is suitable for food factories, beverage manufacturers, jelly processing companies, and other production scenarios requiring automated small-bag packaging. Bag length, capacity, and production speed can be adjusted according to different packaging specifications.
WORKING PRINCIPLE
After the equipment starts operating, the packaging film roll is installed at the film feeding shaft and continuously conveyed to the packaging area via the feeding rollers.
After passing through the guiding system, the packaging film enters the multi-row film separating area. The equipment automatically distributes the film path according to the set bag width and transforms the flat film into multiple continuous strip bag structures through the forming mechanism.
After bag forming is complete, the longitudinal sealing device heat-seals each row of bags to form a stable back seal structure. Subsequently, the filling system simultaneously injects liquid material into each bag according to preset parameters.

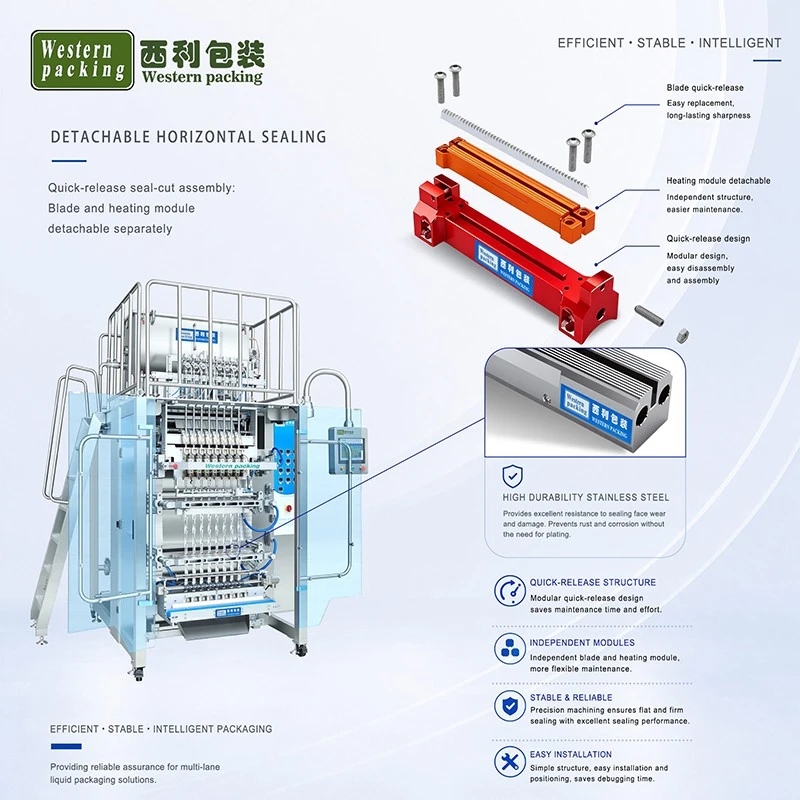

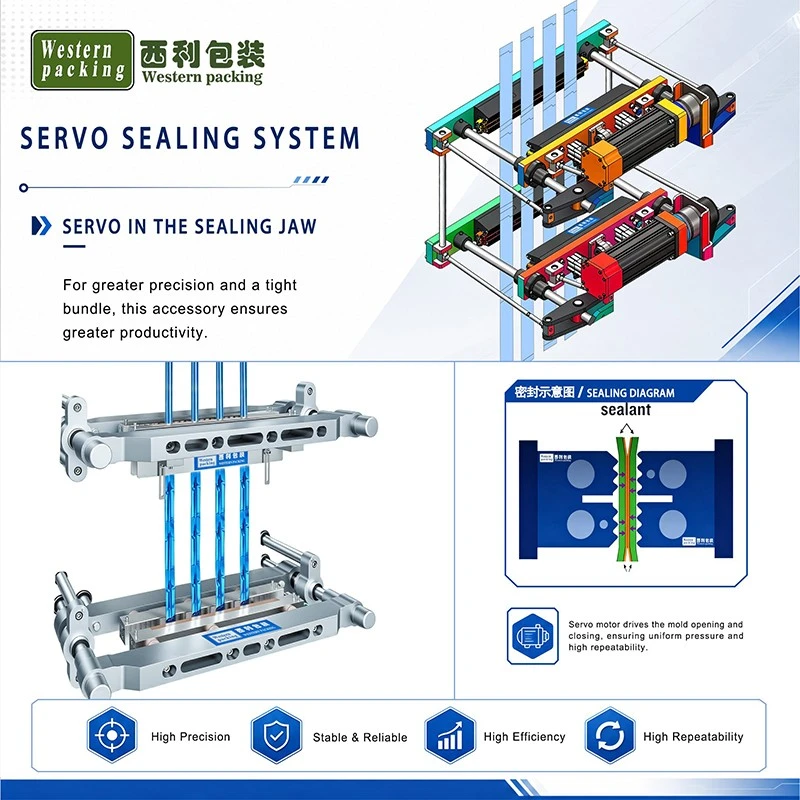

After filling, the equipment enters the transverse sealing stage. By precisely controlling the sealing pressure and heating time, the bag opening is sealed. Simultaneously, the cutting mechanism cuts the continuous packaging strip into individual small bags according to the set length.
