Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of jelly packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable jelly packing machine made in China here from our factory.
DETAILED DISPLAY
The entire machine is constructed of 304 stainless steel, ensuring rust and corrosion resistance. The frame structure has been mechanically optimized for stable operation at high speeds.
01
It utilizes an independent servo motor drive with synchronous belt transmission, replacing the traditional gear structure. This results in more stable tension control, and bag length adjustment can be completed digitally without mechanical adjustment.
02

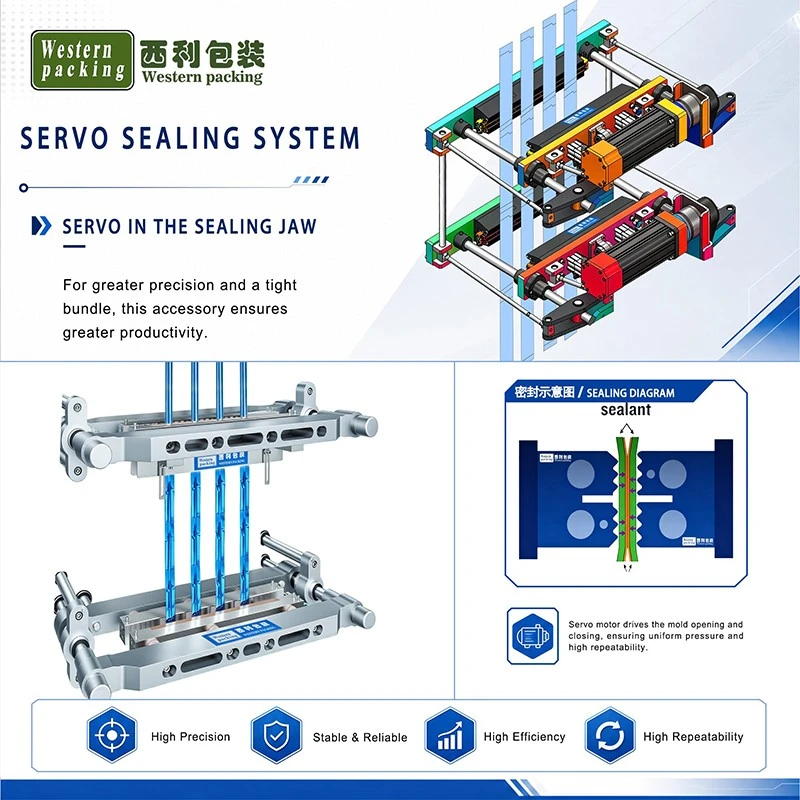

The vertical and horizontal sealing blade holders are made of a special material with excellent thermal conductivity, wear resistance, and deformation resistance. The blade holder surface is treated with a Teflon anti-stick coating to effectively prevent film adhesion and ensure a smooth seal.
03
The jelly packing machine filling nozzle is designed with anti-drip and anti-stripping functions, automatically drawing back the nozzle upon cutting to ensure a clean bag opening and superior sealing effect.
04
Hot Tags: jelly packing machine, China jelly packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Jelly Packing Machine |
||
|
Model |
WP-480YS |
WP-680YS |
WP-880YS |
|
Capacity |
30-40 cycles per min |
||
|
Dosage |
1-5-20-40g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
2700W |
3300W |
3600W |
|
Weight |
550kg |
650kg |
880kg |
|

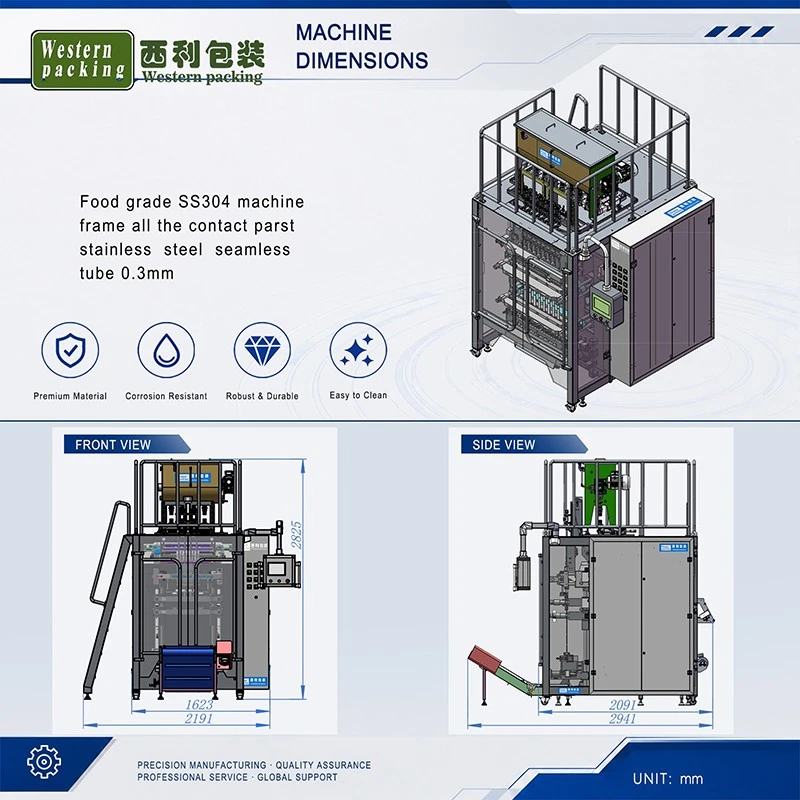

Dimension(L*W*H) |
1100*850*2100mm |
1200*950*2350mm |
1300*1050*2450mm |
JELLY PACKING MACHINE

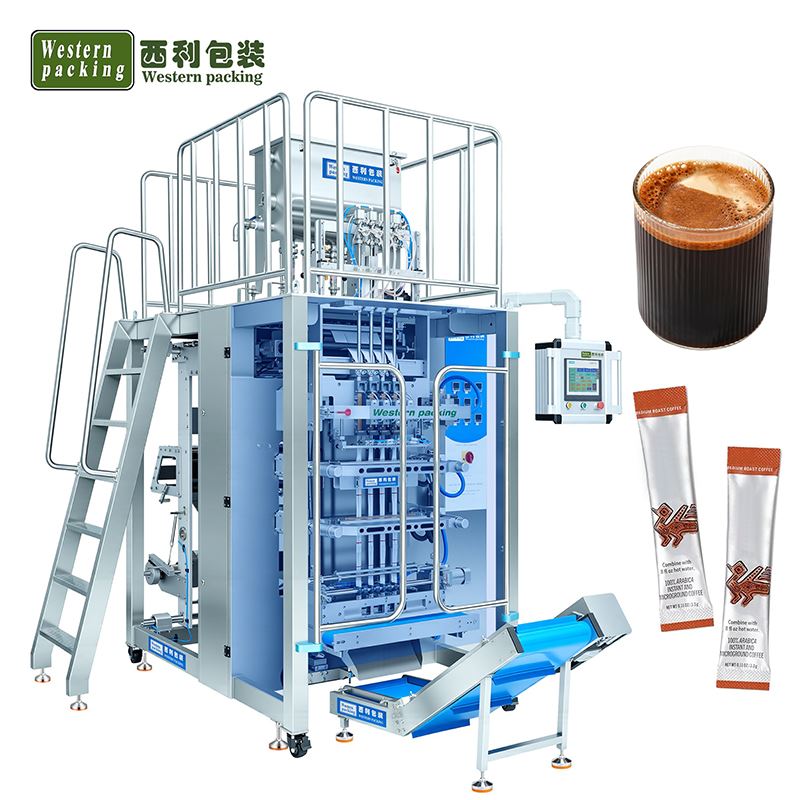

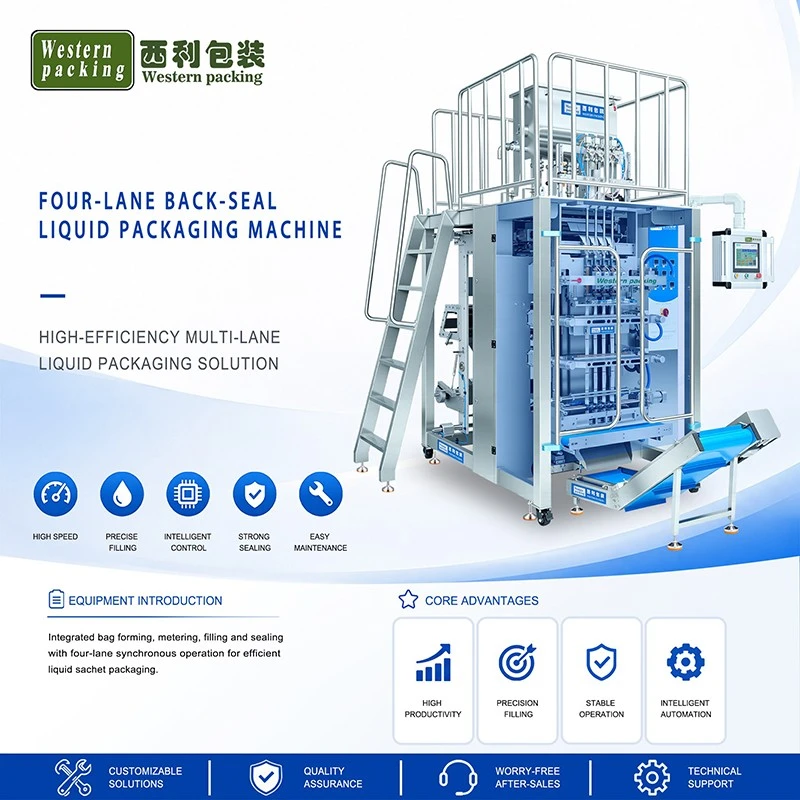

This jelly packing machine integrates bag making, filling, sealing, cutting, and counting into one unit, achieving a fully automated process from roll film to finished bag. The equipment supports various configurations including 4, 6, 8, and 10 rows, and can be flexibly customized to meet production capacity requirements. Its unique liquid filling system ensures high-precision quantitative filling even at high speeds, and combined with superior heat-sealing technology, it ensures the airtightness of each bag.
WORKING PRINCIPLE
Film Material Conveying and Correction: The packaging film roll is clamped by an air-expanding shaft, conveyed by a servo traction mechanism, and automatically corrected by photoelectric sensors to ensure precise film positioning.
Bag Forming: The flat film material is folded by a forming device and wrapped around the filling tube. It is then heat-sealed by a longitudinal sealing device to form a continuous bag shape.
Quantitative Filling: Material enters a precision plunger pump or peristaltic pump system through a high-level hopper. Under PLC command, the pump precisely measures the liquid and injects it into the pre-formed small bags below through the filling tube.

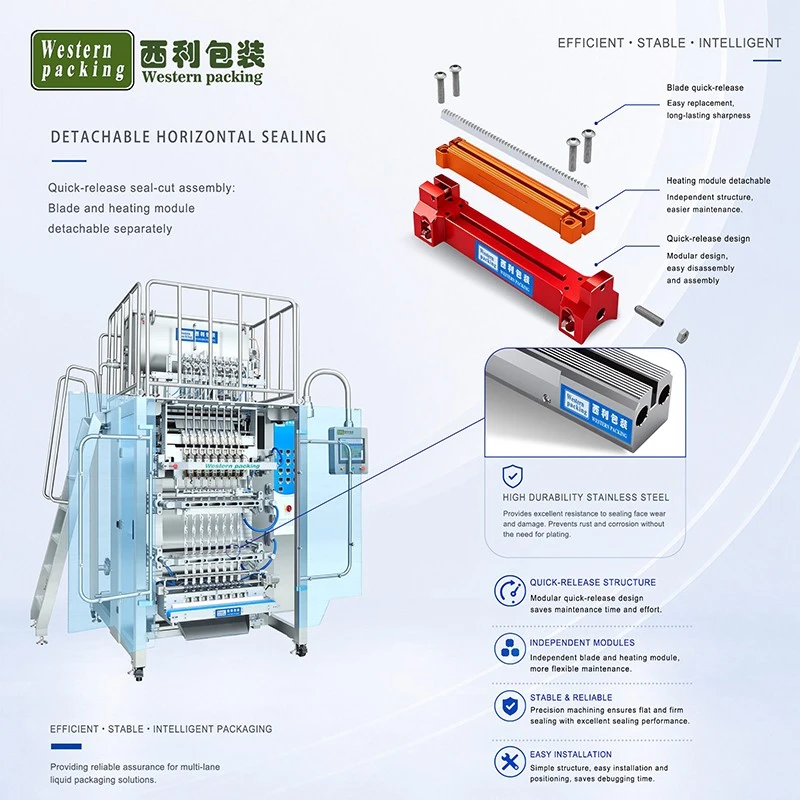

Horizontal Sealing and Cutting: After filling, the horizontal sealing device heat-seales the bag opening, and an easy-tear device makes a cut. Finally, a cutter cuts the continuous bag roll into individual small finished bags.
Finished Product Output: The cut finished bags are output via a conveyor belt to the next process.
