Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of liquid sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable liquid sachet packing machine made in China here from our factory.
DETAILED DISPLAY
The optimal sealing effect can be achieved by adjusting the pressure of packaging films of different thicknesses, avoiding deformation caused by excessive pressure or leakage caused by insufficient pressure.
01
The liquid sachet packing machine cutter features a wear-resistant blade design, ensuring precise cutting and minimizing burrs.
02
The finished product conveyor belt automatically transports products after bag cutting. The conveyor speed is synchronized with the packaging speed and can be connected to counting or boxing processes.
03
The equipment operating area is equipped with a transparent safety shield. This facilitates operators' observation of the operating status and reduces safety risks during operation.
04
Hot Tags: liquid sachet packing machine, China liquid sachet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Liquid Sachet Packing Machine |
||
|
Model |
WP-680Y |
WP-880Y |
WP-1080Y |
|
Capacity |
25-45 cycles per lane per min |
||
|
Dosage |
1-30g/30-70g |
||
|
Size |
(L)160-450mm(W)35-60mm |
||
|
Power |
3300W |
3500W |
4000W |
|
Weight |
650kg |
850kg |
1050kg |
|

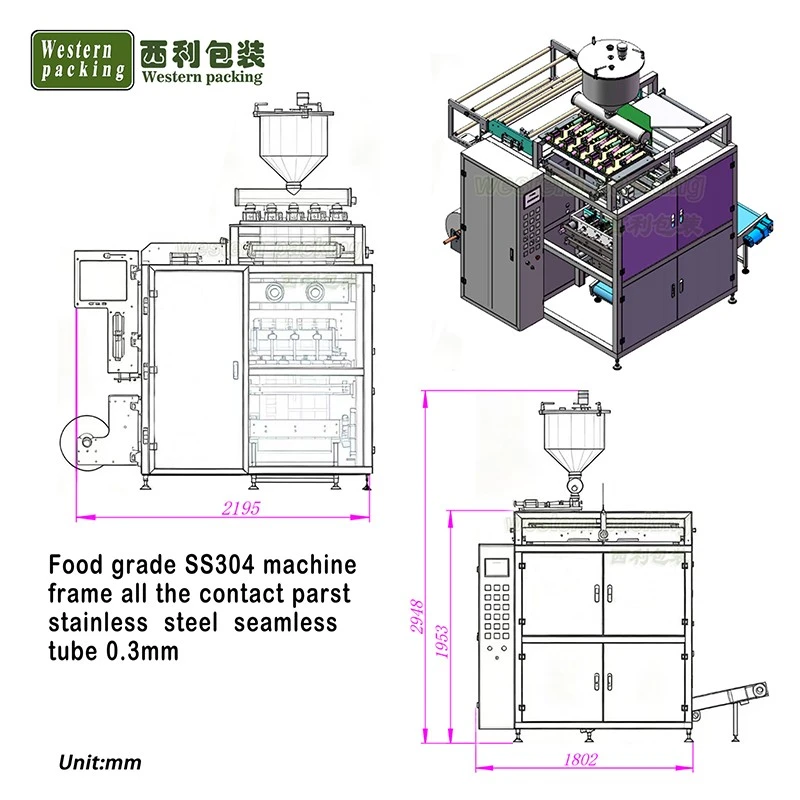

Dimension(L*W*H) |
1200*1100*2350mm |
1300*1200*2450mm |
1400*1300*2550mm |
LIQUID SACHET PACKING MACHINE

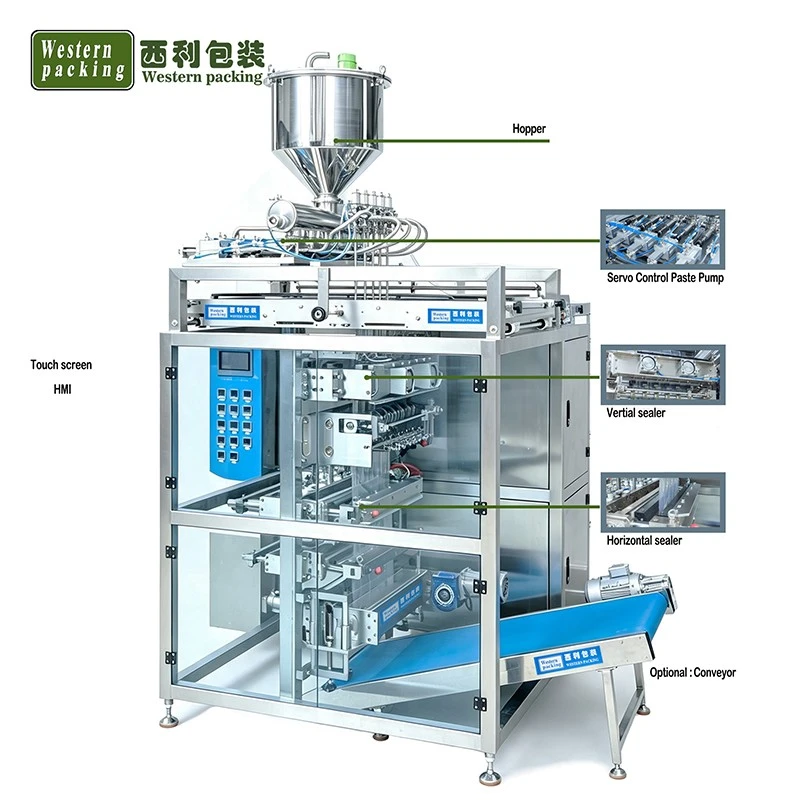

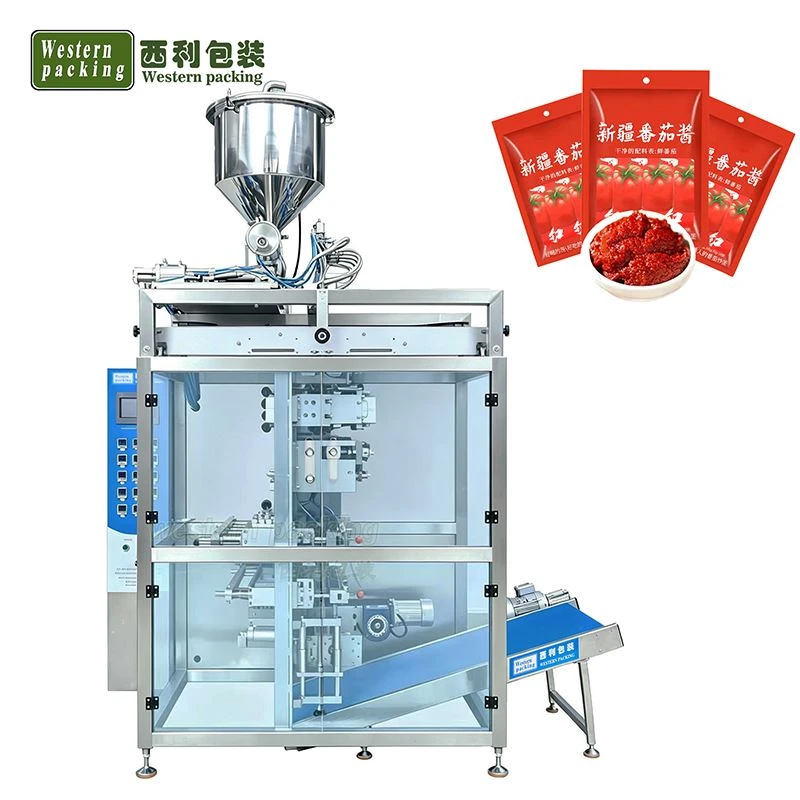

The multi-lane liquid sachet packing machine is a high-speed, automated packaging equipment designed for drinking water, fruit juice beverages, and functional liquids. The machine employs a multi-row continuous bag-making structure, simultaneously cutting a roll of packaging film into multiple long packaging channels, and automatically completing forming, quantitative filling, longitudinal sealing, transverse sealing and cutting, and finished product output.
Compared to traditional single-lane liquid pouch packaging equipment, the multi-lane structure can produce more packaging bags in the same amount of time, significantly improving production efficiency. It is particularly suitable for beverage factories, bottled water alternative packaging production lines, food service supply chains, and companies processing large volumes of liquid products.
PRODUCT FEATURES

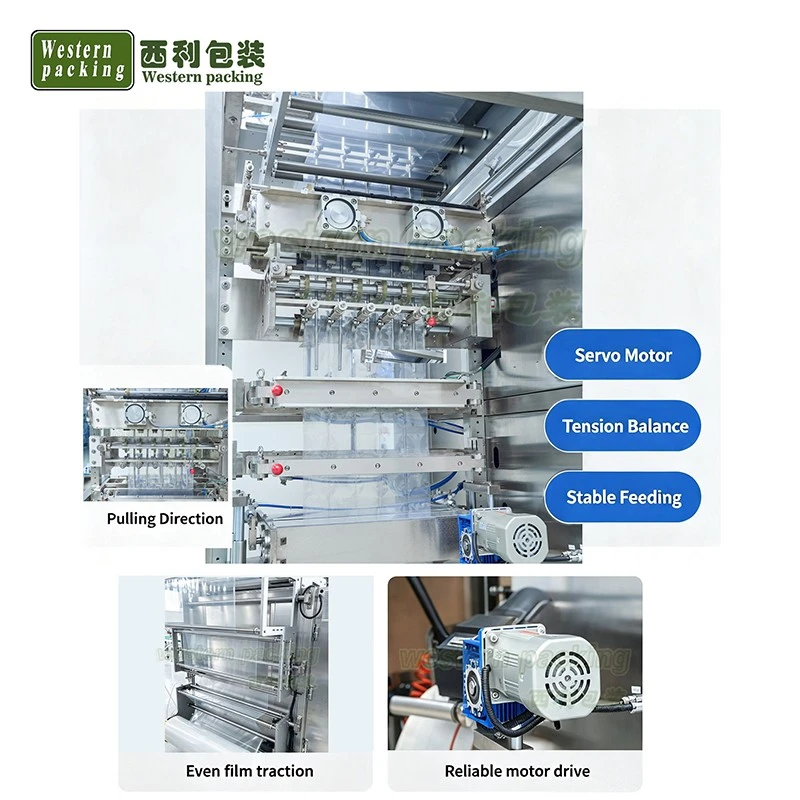

1. Dedicated Strip Bag Forming System: The equipment is equipped with forming components designed specifically for long strip bags, enabling the packaging film to stably form a regular bag shape. During the forming process, the film material is subjected to uniform stress, reducing problems such as bag skewing and inconsistent dimensions.
2. High-Speed Liquid Filling Mechanism: Utilizing a continuous liquid filling method, filling parameters are adjusted according to product capacity requirements. The filling process is fast and stable, meeting the packaging needs of everything from small-capacity drinking water to large-capacity liquid products.
3. Anti-Drip Filling Design: The filling system is optimized for the characteristics of water-based liquids. After filling, the nozzle quickly returns to its original position, reducing liquid residue that could affect sealing quality and improving the finished product yield.
