Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of multilane sauce sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable multilane sauce sachet packing machine made in China here from our factory.

DETAILED DISPLAY

The vertical sealing mechanism forms the longitudinal sealing edge of the packaging bag through continuous heating and pressure. Sealing temperature and pressure can be independently adjusted according to different composite films.

01

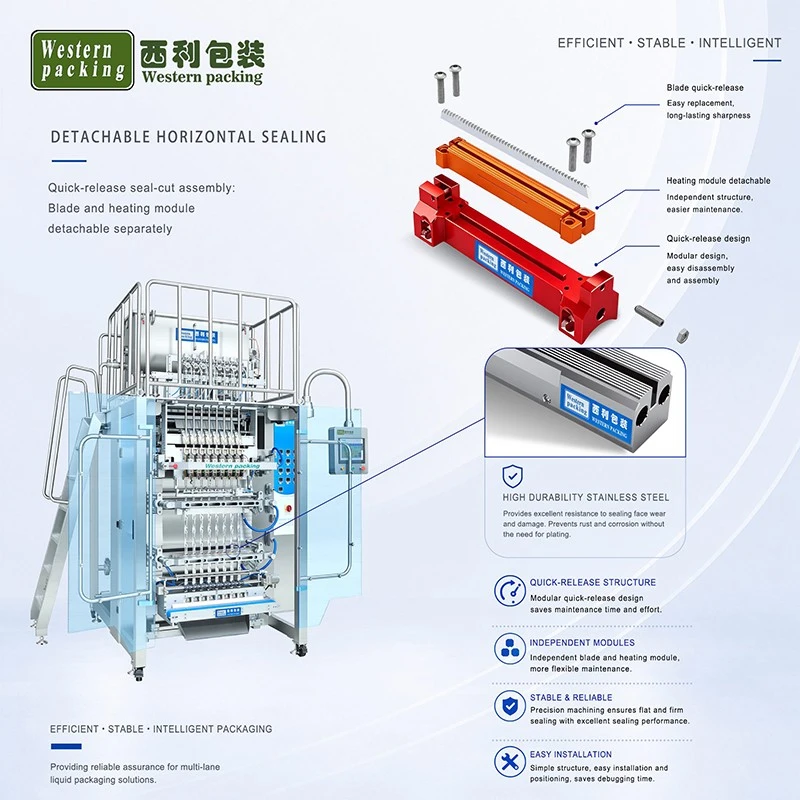

The horizontal sealing unit completes the top and bottom sealing of each packaging bag. It uses controllable heating elements and a pressure regulating mechanism to ensure uniform sealing lines on all packaging channels.

02

The multilane sauce sachet packing machine cutting system cuts the continuous strip of packaging bags into individual bags after sealing. Different blade designs can be equipped according to customer requirements.

03

The filling section can be equipped with a sealing valve and leak-proof design to prevent liquid dripping after filling.

04

Hot Tags: multilane sauce sachet packing machine, China multilane sauce sachet packing machine manufacturers, suppliers, factory

MACHINE PARAMETERS

Name	Multilane Sauce Sachet Packing Machine
Model	WP-480YS	WP-680YS	WP-880YS
Capacity	30-40 cycles per min
Dosage	1-5-20-40g
Size	(L)30-160mm(W)25-80mm
Power	2700W	3300W	3600W
Weight	550kg	650kg	880kg

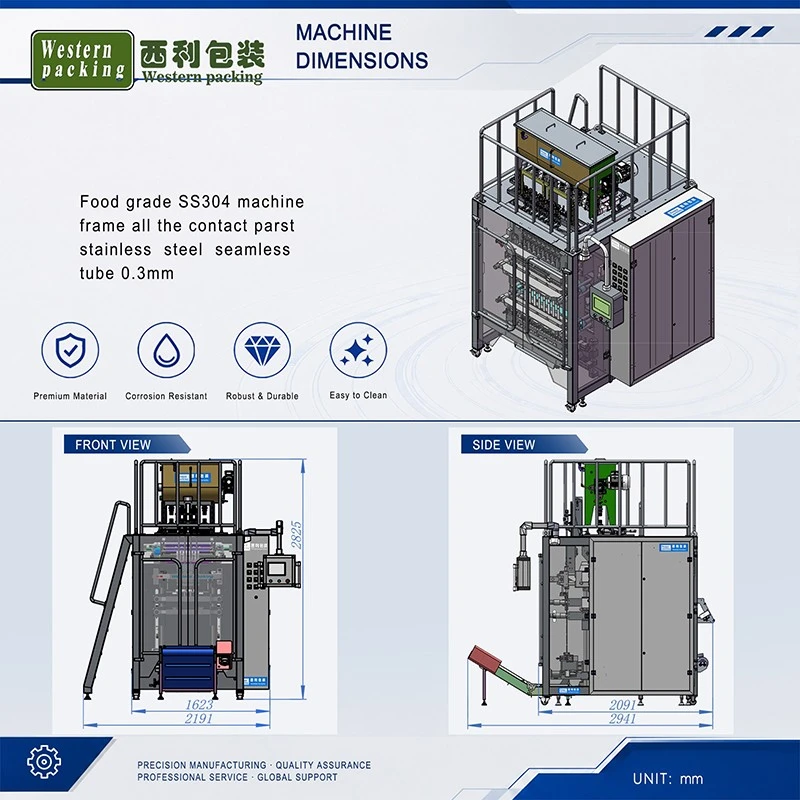

*Dimension(LWH)*	11008502100mm	12009502350mm	130010502450mm

MULTILANE SAUCE SACHET PACKING MACHINE

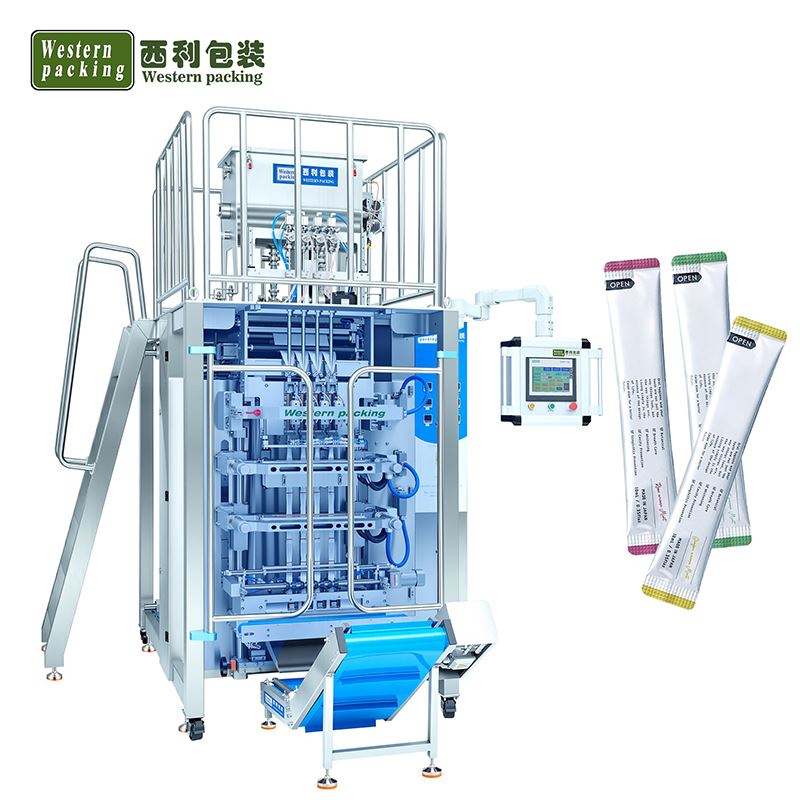

This multilane sauce sachet packing machine employs a three-side seal packaging structure, forming pre-cut packaging film into small bags through three-way heat sealing. Liquid products are precisely filled into each bag via a multi-channel filling system, and finally, the bags are sealed to complete the packaging.

Depending on product characteristics, this equipment can be configured with different liquid filling systems, including piston pumps for medium-viscosity products, gear pumps for stable flow control, and customized filling solutions for special liquids. Multiple packaging channels operate simultaneously, improving production efficiency while reducing manual packaging costs.

PRODUCT FEATURES

1. Consistent Packaging Quality: Automated control of the filling, sealing, and cutting processes ensures consistency in bag size, filling volume, and seal appearance.

2. Reduced Product Waste: A precision metering system minimizes filling deviations, helping to reduce liquid waste and improve production cost control.

3. Wide Product Adaptability: By changing the filling components, this machine can handle liquids with different properties, from low-viscosity beverages to thicker cosmetic gels.

4. Reduced Labor Requirements: The fully automated process reduces manual operation in film loading, filling, sealing, and cutting processes, improving overall production efficiency.
