Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of powder sachet packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable powder sachet packaging machine made in China here from our factory.
DETAILED DISPLAY
An agitation device can be installed inside the hopper; its low-speed rotation breaks up powders prone to clumping or bridging, ensuring a consistent supply of uniform material to the metering system.
01
Servo-driven film-pulling rollers precisely control the transport speed of the packaging film, ensuring uniform bag lengths and minimizing film misalignment.
02

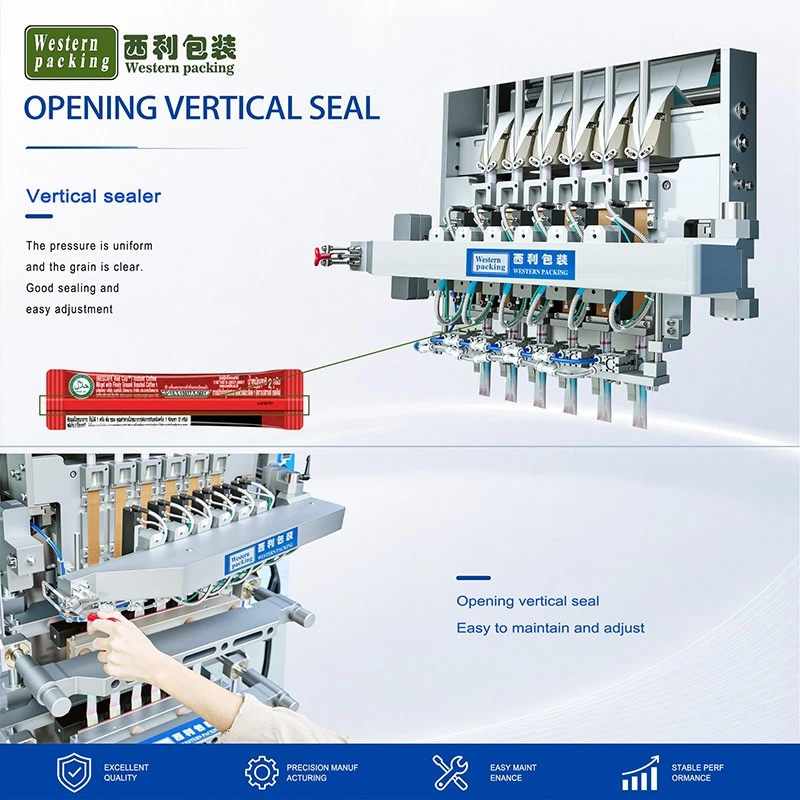

Independent heating modules are used for the powder sachet packaging machine's horizontal and vertical sealing units, allowing for separate temperature adjustments to accommodate composite packaging films of varying thicknesses and materials.
03
Finished products are automatically discharged via a conveyor belt and can be directly linked to downstream equipment-such as cartoning machines and checkweighers-to achieve full-line automation.
04
Hot Tags: powder sachet packaging machine, China powder sachet packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Powder Sachet Packaging Machine |
||
|
Model |
WP-680F |
WP-880F |
WP-1080F |
|
Capacity |
35-60 cycles per min |
||
|
Dosage |
1-5-20-40g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
3300W |
3600W |
4200W |
|
Weight |
600kg |
860kg |
1200kg |
|
Dimension(L*W*H) |
110*850*2100mm |
1200*950*2350mm |
1300*1050*2450mm |
POWDER SACHET PACKAGING MACHINE

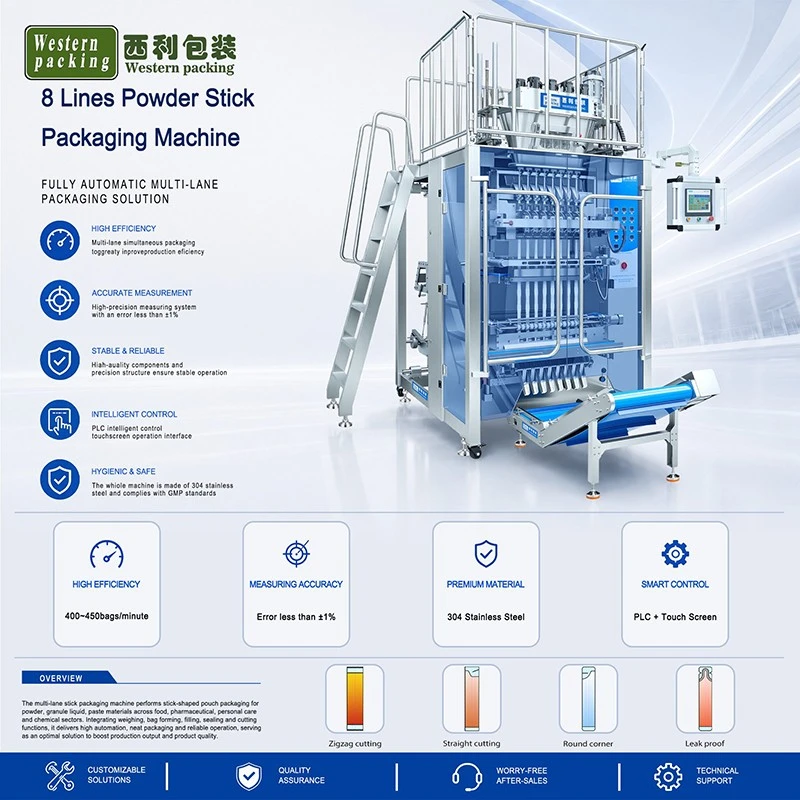

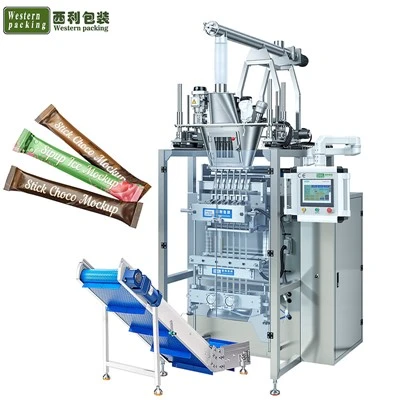

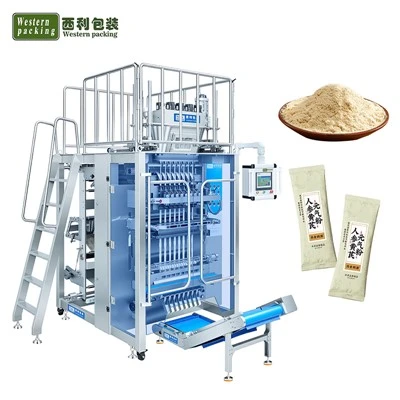

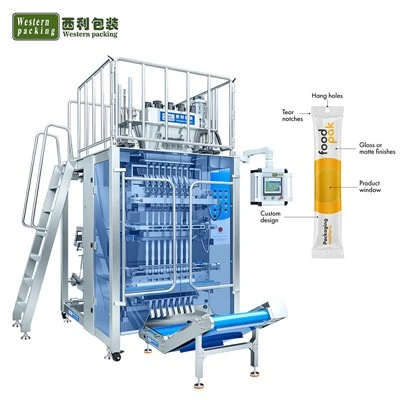

This fully automatic powder sachet packaging machine is designed for both free-flowing and non-free-flowing powders, catering to packaging needs in industries such as food (milk powder, coffee powder, seasonings), pharmaceuticals (medicinal powders, health supplements), chemicals (pesticides, additives), and cosmetics. The equipment automates the entire process-including bag forming, metering, filling, sealing, cutting, and counting-and supports various sachet styles, such as 3-side seal, 4-side seal, and back seal.
WORKING PRINCIPLE

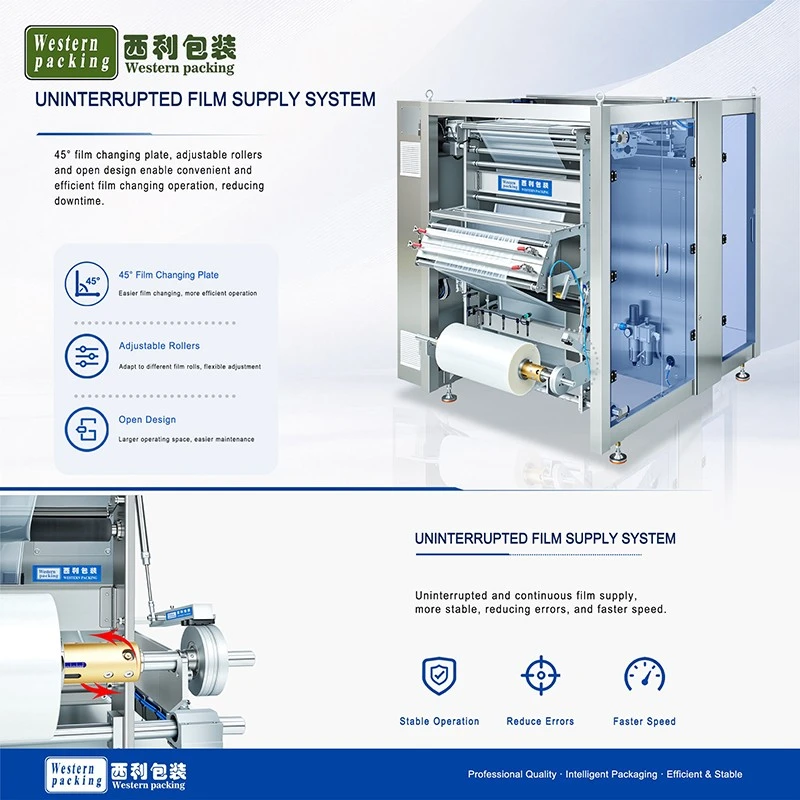

1. Packaging film is fed from the film rack, passes over guide rollers into the forming assembly, and is shaped into a tubular form;
2. The longitudinal sealing mechanism heat-seals the side of the bag at a constant temperature and pressure;
3. The film-pulling mechanism advances the film by a preset length to determine the bag length;

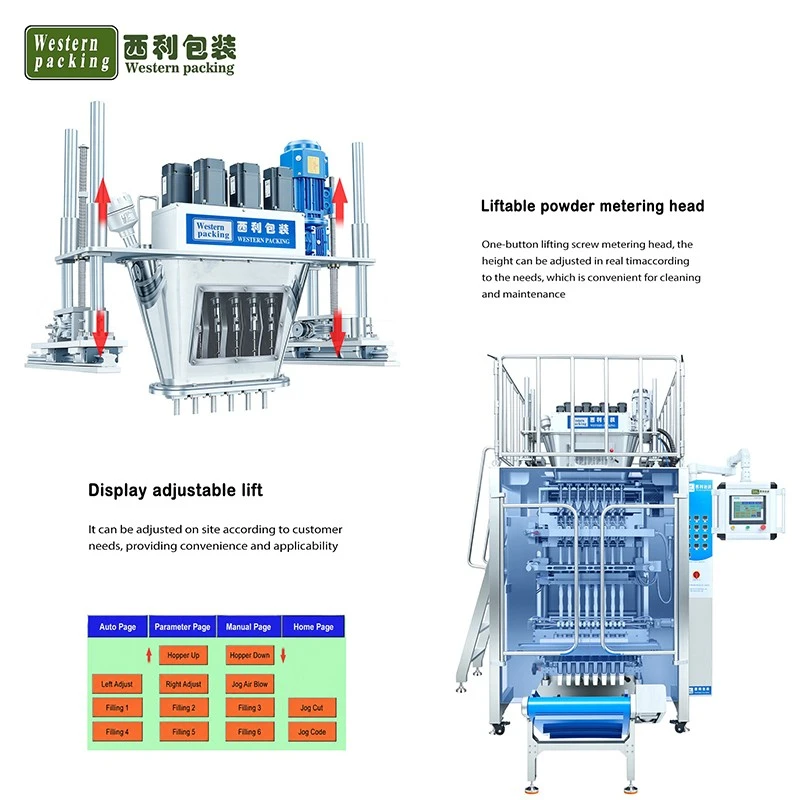

4. Material in the hopper is agitated before entering the auger filler, where a servo motor drives the auger to dispense a fixed dosage;

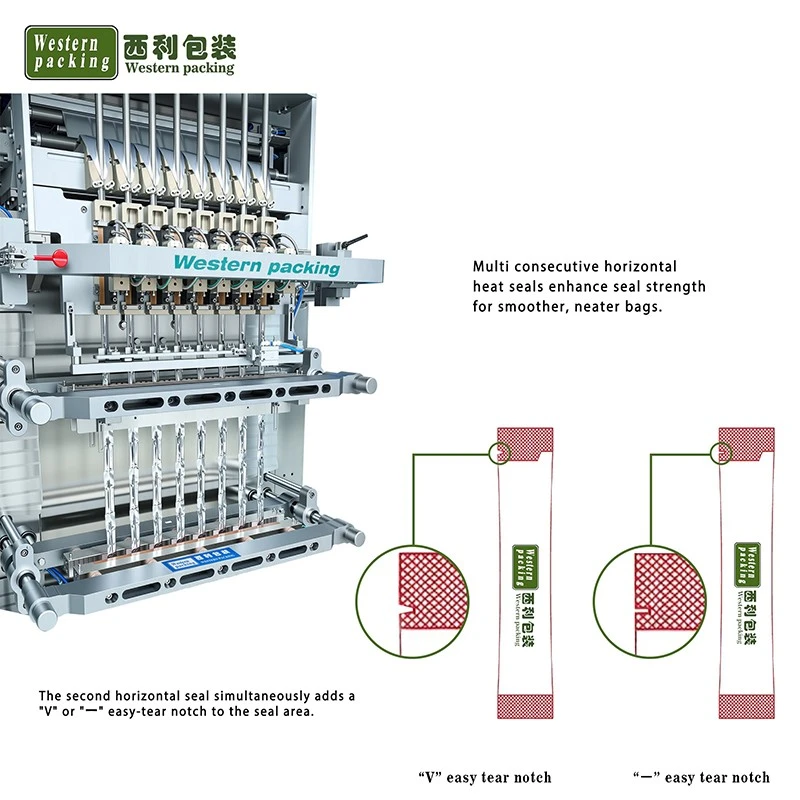

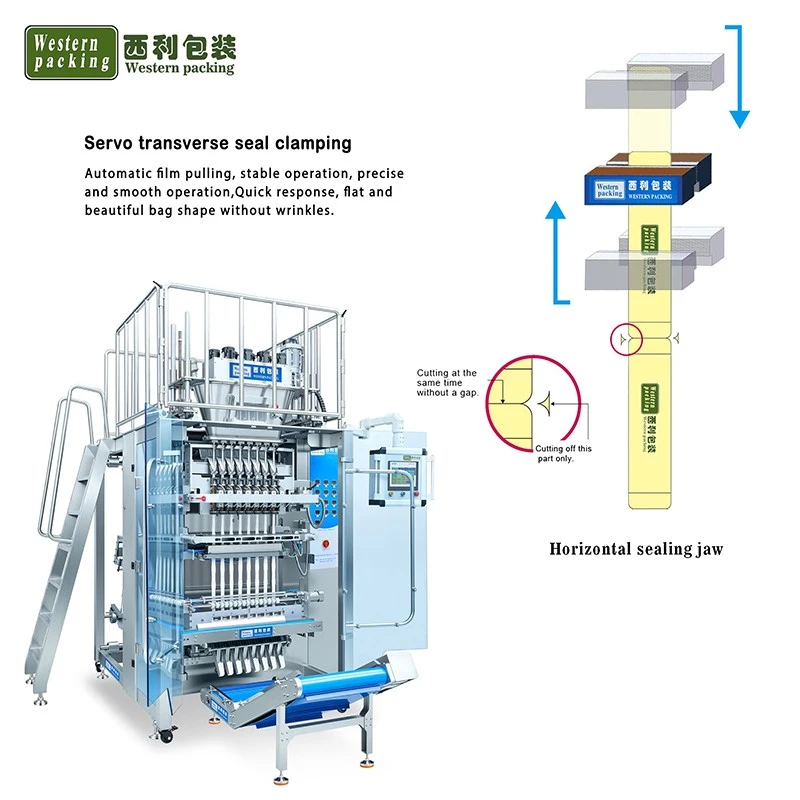

5. After the powder drops into the formed bag, the transverse sealing mechanism performs heat sealing and cutting;
6. Finished bags are discharged via a conveyor belt, while the control system monitors temperature, film position, operating speed, and fault signals in real-time, maintaining a closed-loop process.
