Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of fully automatic powder packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable fully automatic powder packing machine made in China here from our factory.
DETAILED DISPLAY
01.
The forming unit utilizes high-precision manufacturing to ensure smooth folding of the packaging film, resulting in neater bag edges and reduced frictional resistance.
01
02.
The filling nozzle is centrally positioned, concentrating the product flow to minimize powder adhesion in the sealing areas and ensure cleaner seals.
02
03.

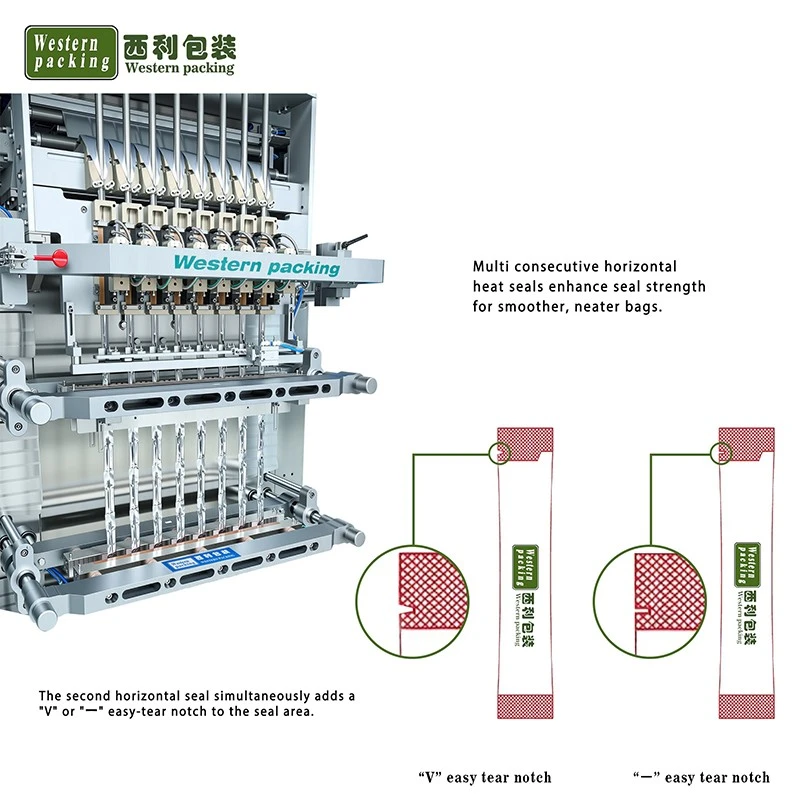

The fully automatic powder packing machine's horizontal-sealing are made from wear-resistant alloy and provide uniform heating, creating strong, flat top and bottom seals.
03
04.
The cutting blade severs the film precisely along the center of the seal, producing a clean cut free from burrs, connected bags, or trailing strands.
04
05.

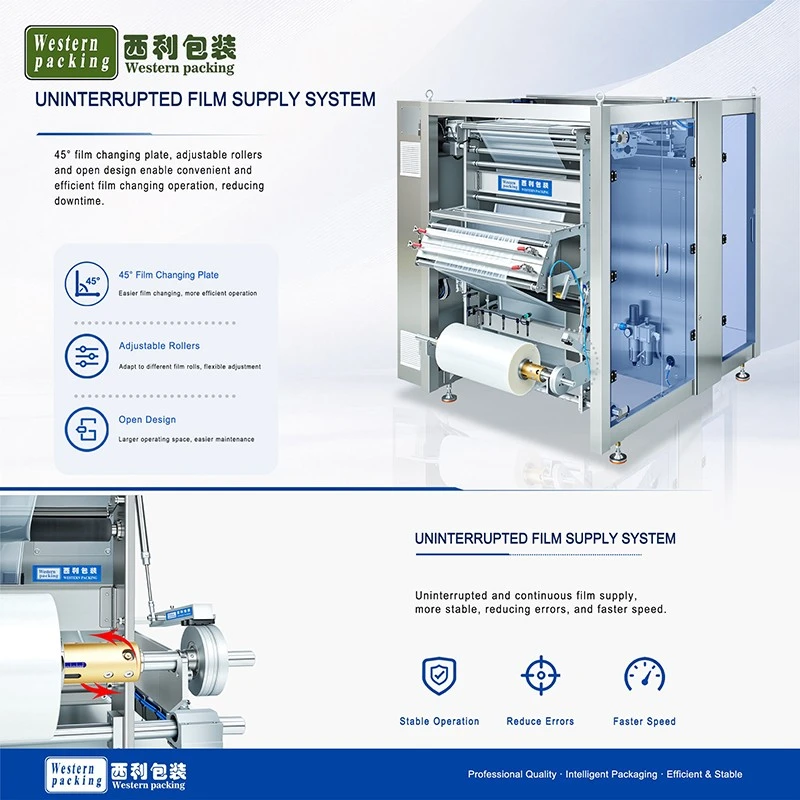

Film tension is balanced in real-time to prevent the material from becoming too loose or too tight, thereby avoiding bag length errors and seal misalignment.
05
Hot Tags: fully automatic powder packing machine, China fully automatic powder packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Fully Automatic Powder Packing Machine |
|
Model |
WP-50F |
|
Capacity |
40-60 bags per min |
|
Filling Range |
1-30g |
|
Size |
(L)30-160mm(W)25-100mm |
|
Power |
1100W |
|
Voltage |
200V/50-60Hz |
|
Weight |
220kg |
|
Dimension(L*W*H) |
625*800*1650mm |
FULLY AUTOMATIC POWDER PACKING MACHINE
Three-side seal packaging places high demands on the coordination between bag forming and edge sealing; consequently, the fully automatic powder packing machine employs a multi-mechanism synchronized operation to ensure the bag remains stable throughout the forming process.
Upon entering the equipment, the packaging film first passes through a film-guiding assembly for alignment before entering the forming zone to take shape.
After being metered by a screw mechanism, the powder enters the bag through a centrally positioned filling nozzle. Maintaining an optimal gap between the filling nozzle and the bag opening minimizes powder scattering and seal contamination, thereby enhancing seal quality.

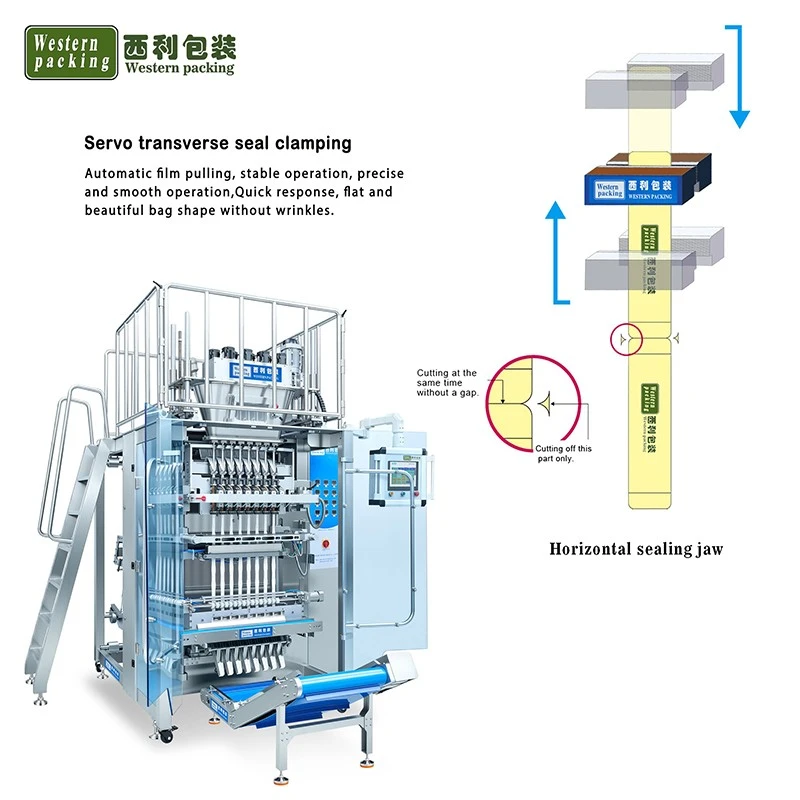

The transverse sealing mechanism simultaneously seals the top of the current bag and forms the bottom of the next, enabling continuous cyclic production. A servo system coordinates the various mechanisms, synchronizing film pulling, edge sealing, filling, and cutting to ensure packaging stability.
KEY FEATURES
1. Single-lane operation ensures excellent synchronization and minimizes issues such as connected bags, skewed cutting, film wrinkling, or tracking errors.
2. Three-side sealed bags offer superior sealing integrity, meeting requirements for moisture resistance, dust protection, and powder leakage prevention.
3. The short film path ensures uniform tension, preventing film stretching or deformation.
4. Its compact footprint makes it suitable for standalone operation or integration into small-scale production lines.
