Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of multi lane powder packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable multi lane powder packing machine made in China here from our factory.
DETAILED DISPLAY

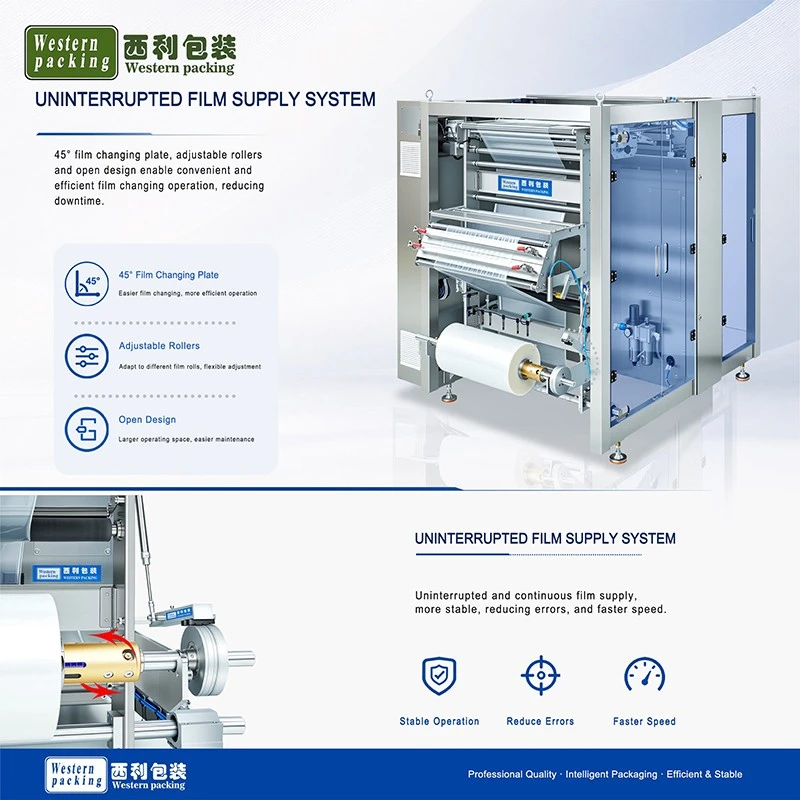

An automatic film feeding system continuously releases film material, while a tension control device maintains stable film delivery.
01
Photoelectric sensors continuously monitor the packaging film position, automatically adjusting to prevent slight film misalignment and ensuring accurate printing, sealing lines, and bag cutting.
02
Different sized forming units are designed for different bag widths to fold the flat packaging film into continuous bags, ensuring uniform bag dimensions and reducing deformation during bag formation.
03
The multi lane powder packing machine can control the powder output based on the number of rotations of screws of different sizes to convey materials, thereby achieving precise filling within different metering ranges.
04
Hot Tags: multi lane powder packing machine, China multi lane powder packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Multi Lane Powder Packing Machine |
||
|
Model |
WP-480FB |
WP-680FB |
WP-880FB |
|
Bag style |
standard stick pack, round-corner stick,any other irregular shaped stick |
||
|
Capacity |
100-200 bags per min |
||
|
Filling range |
1-50g |
||
|
Size |
(L)50-150mm(W)15-50mm |
||
|
Power |
4200W |
||
MULTI LANE POWDER PACKING MACHINE

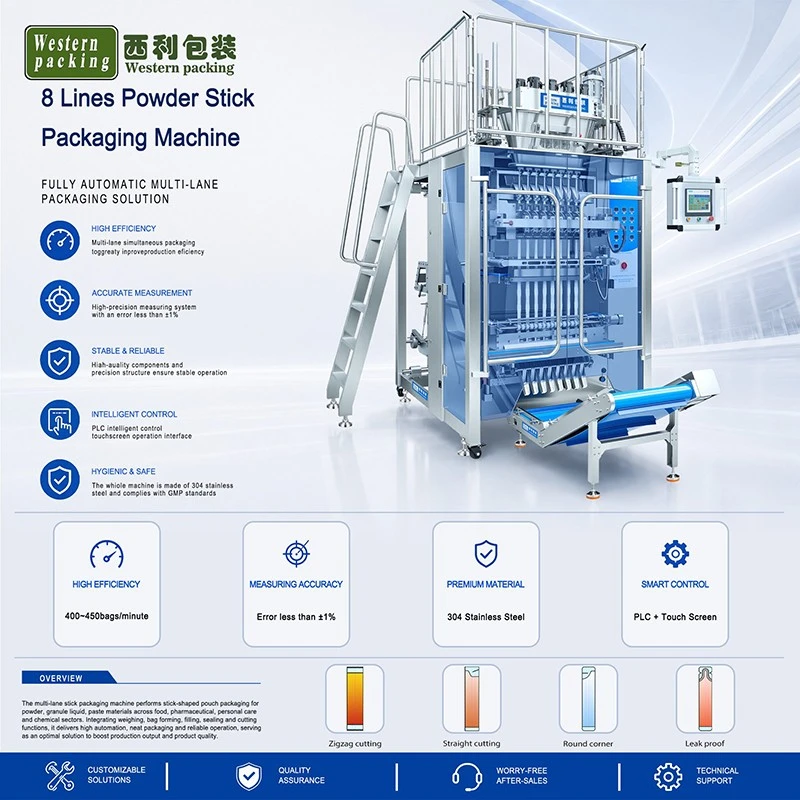

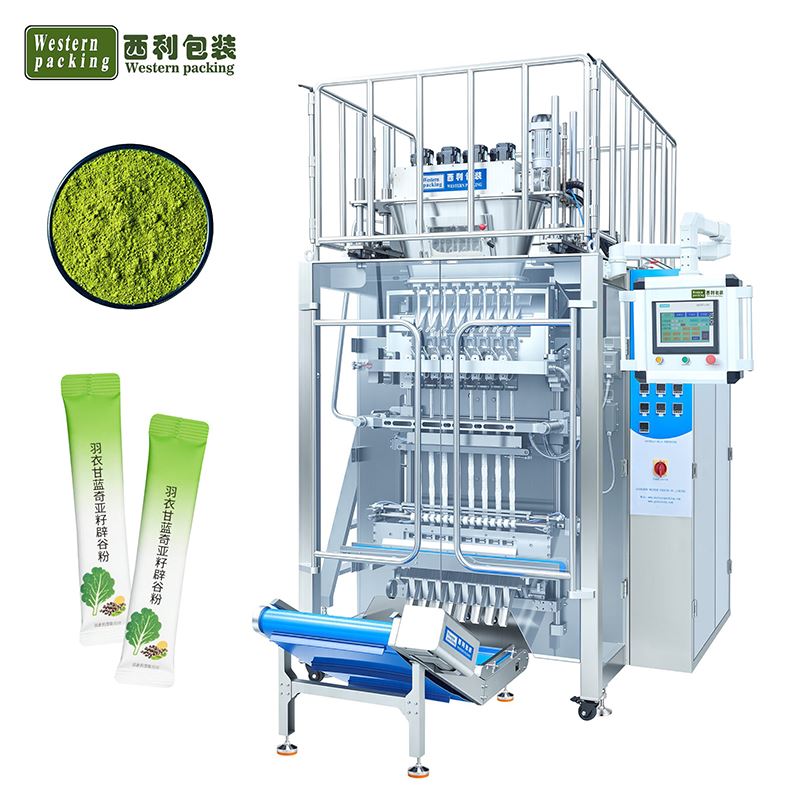

The multi lane powder packing machine adopts an 8-lane synchronous operation structure, capable of producing 8 lanes of pouches simultaneously. The entire process, from packaging film feeding, pouch forming, powder metering, filling, sealing to finished product cutting, is fully automated.
This machine is optimized to address common issues with powder products, such as unstable feeding, dust generation, weight errors, and powder trapping during sealing. A screw metering system controls the powder filling amount in each pouch, combined with a stable film feeding and heat-sealing structure, ensuring consistent packaging results for every lane of pouches.
WORKING PRINCIPLE
During operation, the packaging film is first mounted on the film feeding shaft and then fed into the bag-making area via an automatic film feeding mechanism.

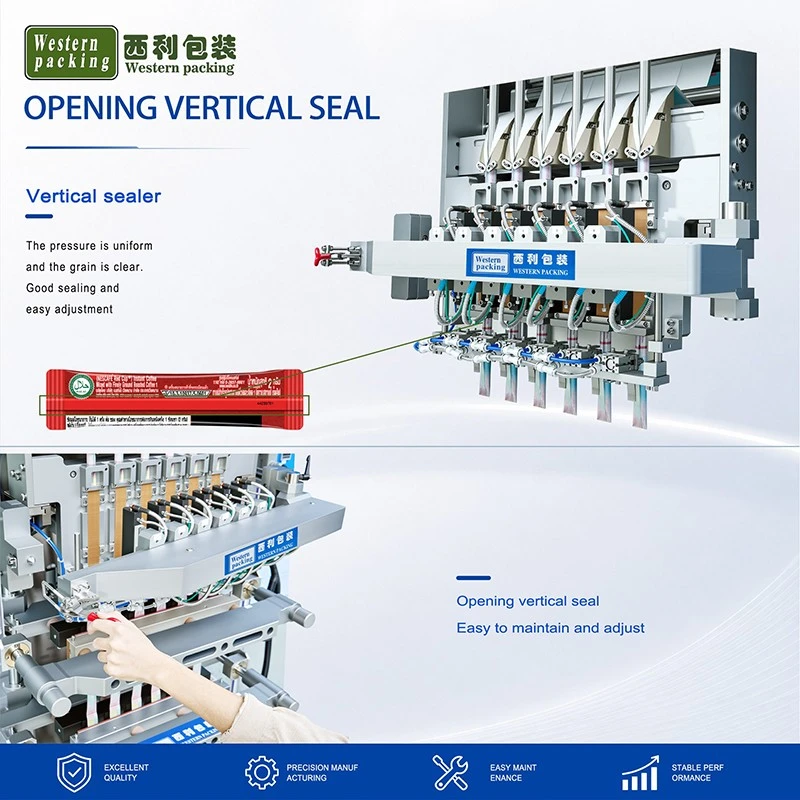

The forming unit folds the flat film into a continuous bag, followed by a back-sealing system to seal the bag.
Simultaneously, powder from the upper hopper enters the screw metering mechanism. The screw rotates according to set parameters, feeding a fixed weight of powder into each packaging bag.

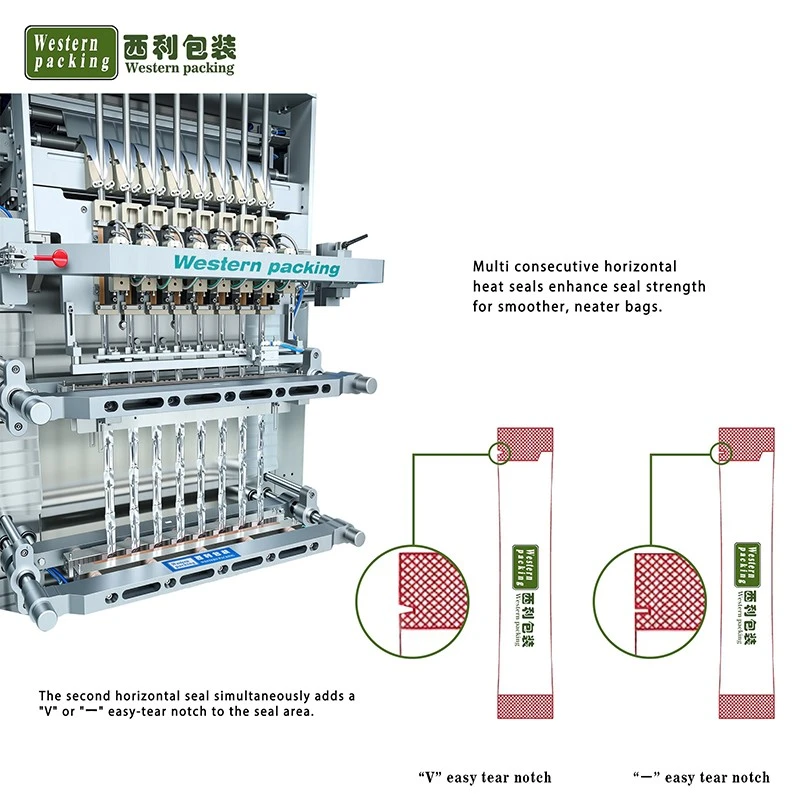

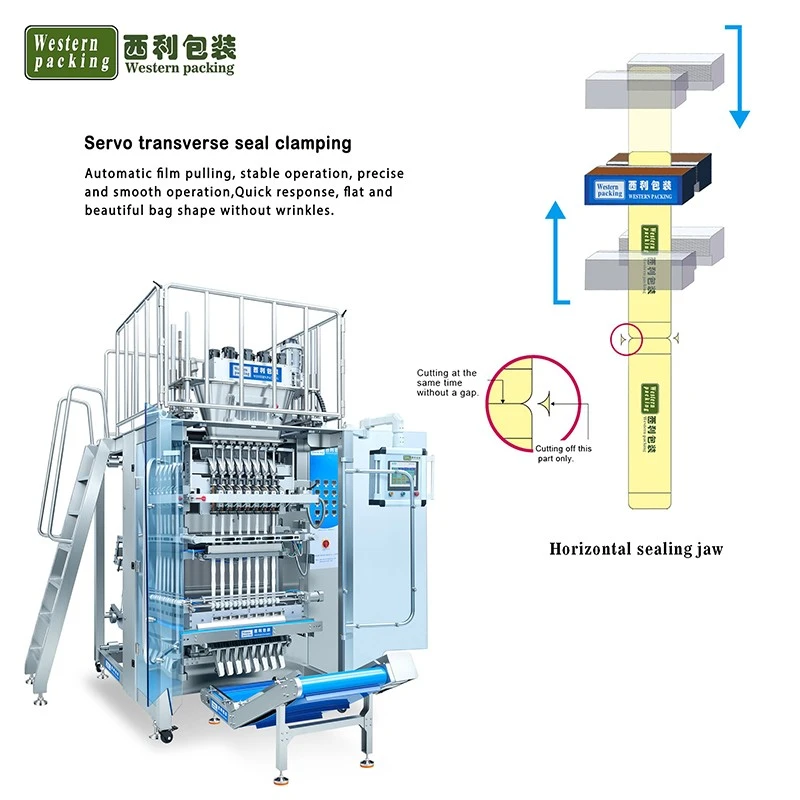

After filling, a horizontal sealing mechanism heat-seals the bag opening, and a cutter cuts the bag to a set length.
Finally, the continuously produced packaging bags are divided into individual rounded-corner pouches and conveyed out via a conveyor mechanism.
