Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of powder packaging equipment in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable powder packaging equipment made in China here from our factory.
DETAILED DISPLAY
01.
The storage hopper stores powder to be packaged. Its conical design allows the powder to naturally converge into the metering area. Hopper capacity can be customized to production needs, and a stirring device can be added to prevent powder bridging.
01
02.
The screw is the core metering component, rotating to move the powder. Different screw specifications correspond to different packaging weights and can be adjusted for fine, light, and high-density powders.
02
03.

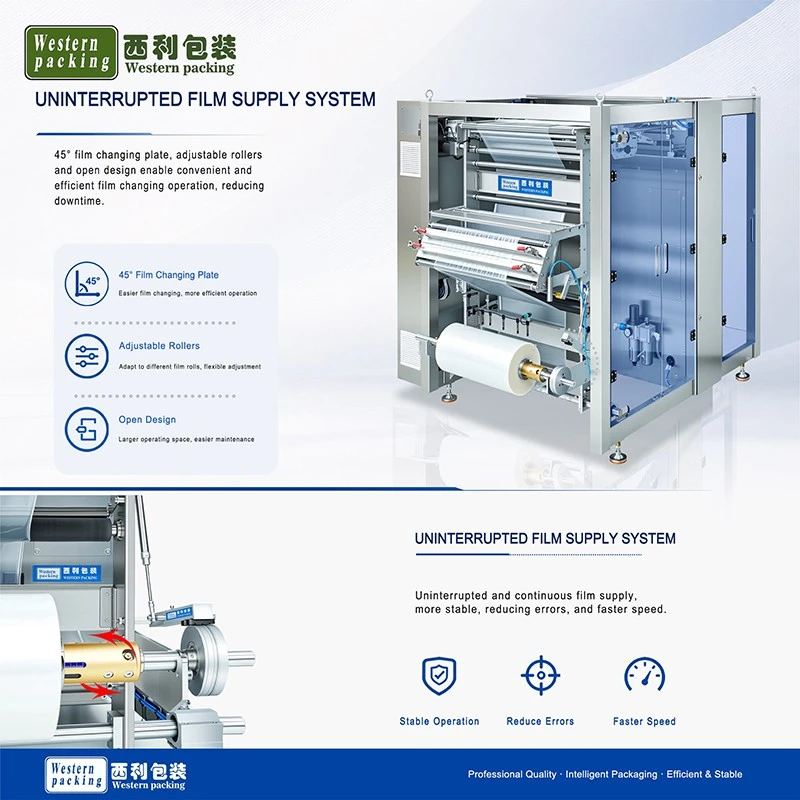

The powder packaging equipment forming unit folds the film roll into a bag. Parameter dimensional design ensures stable bag width, resulting in more accurate sealing.
03
04.
Photoelectric sensors detect the color mark position on the packaging film in real time and provide feedback to the control system for automatic adjustment, ensuring consistent cutting positions for each bag.
04
05.

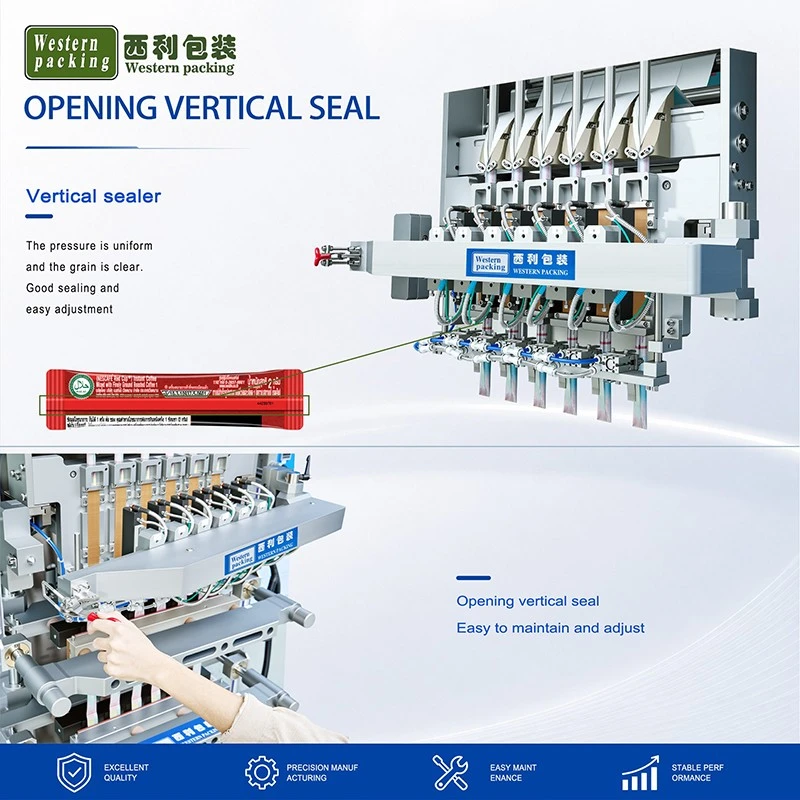

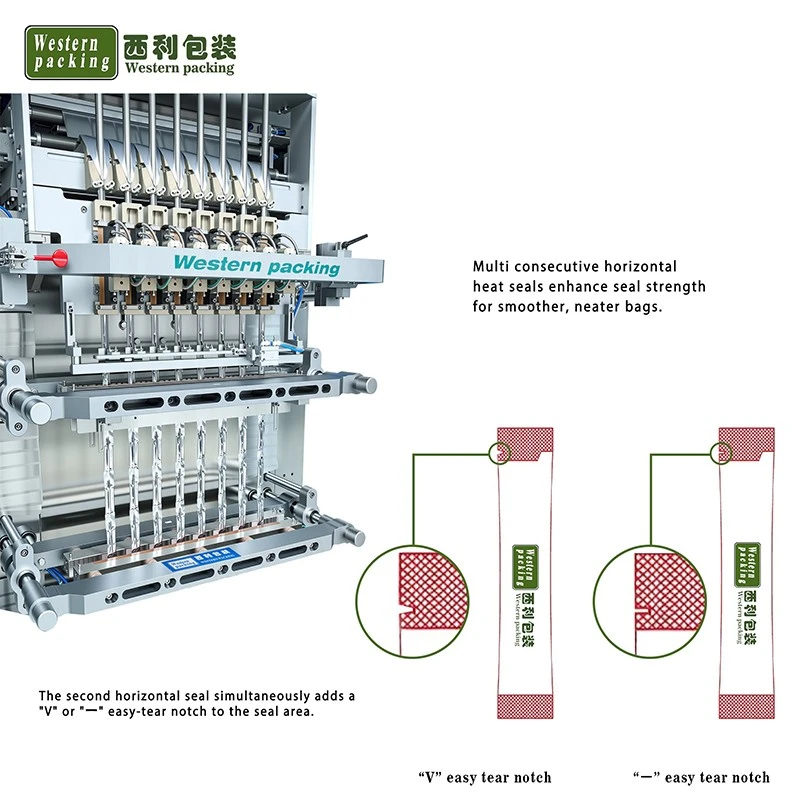

The horizontal and vertical sealing structures employ independent heating structures. Dual temperature and pressure control keeps the bag opening flat and secure, suitable for long-term continuous operation.
05
Hot Tags: powder packaging equipment, China powder packaging equipment manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Powder Packaging Equipment |
||
|
Model |
WP-480FB |
WP-680FB |
WP-880FB |
|
Bag Style |
standard stick pack, round-corner stick, or any other irregular-shaped stick |
||
|
Capacity |
100-200 bags per min |
||
|
Filling Range |
1-50 g |
||
|
Size |
(L)50-150mm(W)15-50mm |
||
|
Power |
4200W |
||
|
Weight |
880kg |
||
|
Dimension |
850*1050*2350mm(L*W*H) |
||
POWDER PACKAGING EQUIPMENT
Powder products typically have characteristics such as fine particle size, easy moisture absorption, and poor flowability, placing higher demands on the stability and metering accuracy of packaging equipment. Powder pouch packaging machines, through a dedicated powder metering structure and sealed feeding design, enable the equipment to adapt to the packaging production of various types of powders.
The main body of the powder packaging equipment consists of a film feeding system, a bag forming mechanism, a screw metering system, a filling system, longitudinal and transverse sealing mechanisms, an electrical control system, and a finished product conveying section. Each functional module operates independently, while simultaneously being coordinated and controlled by a PLC system to achieve high-speed continuous packaging.
Whether it's food products like coffee powder and protein powder, or fine powders like pharmaceutical powder and personal care powder, it can provide stable packaging results, helping companies upgrade from manual packaging to automated production.
KEY FEATURES
1. The equipment uses a dedicated powder screw assembly, achieving precise feeding by controlling the screw speed and stop position. The screw features a detachable design, facilitating the change of specifications for different powders.
2. It can be equipped with a vacuum feeder to achieve automatic powder replenishment, reducing powder scattering during the conveying process.

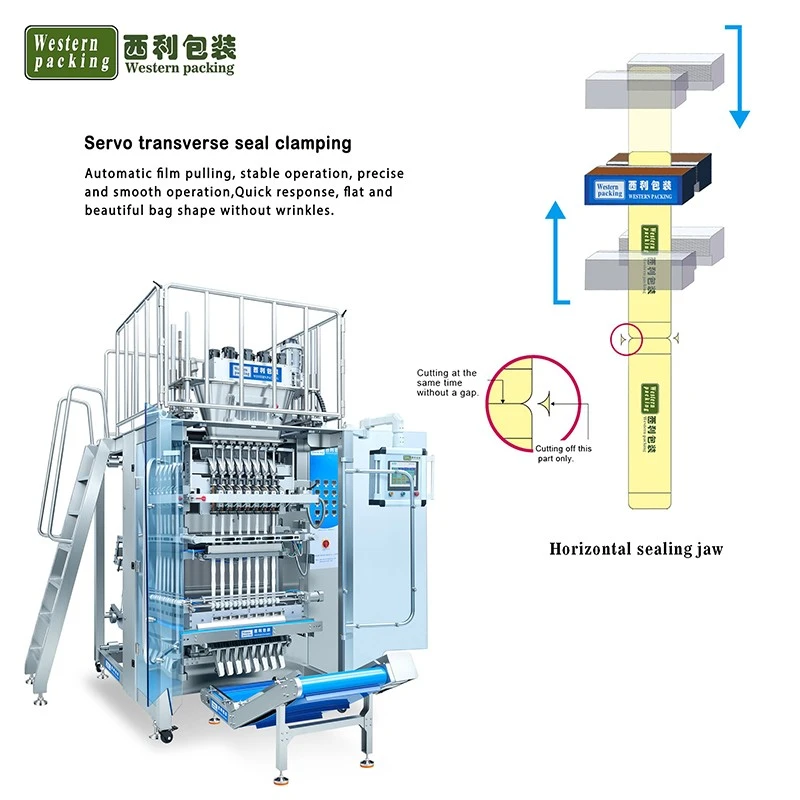

3. The packaging length is controlled by a servo-driven film stretching system, and the bag length parameters can be adjusted according to different products, improving the efficiency of packaging specification switching.
