Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of food powder packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable food powder packaging machine made in China here from our factory.
DETAILED DISPLAY
01.
The metering system is driven by a high-response servo motor, enabling rapid starting, stopping, and speed adjustments during operation. Compared to standard motors, servo drives enhance metering repeatability and minimize inertial errors during high-speed operation.
01
02.

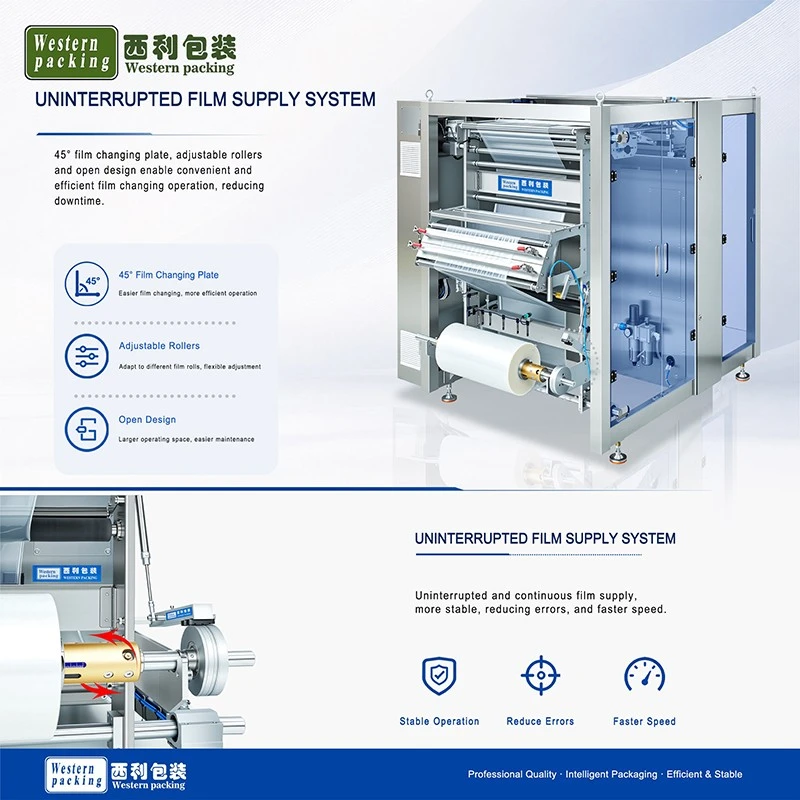

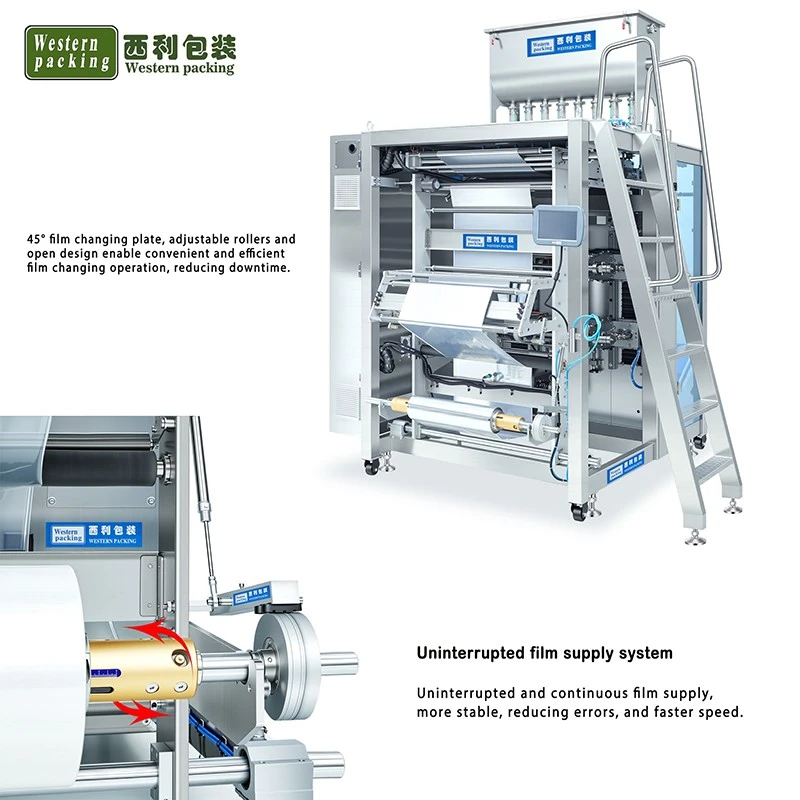

The film unwinding stand features an adjustable tensioning mechanism compatible with film rolls of varying widths and weights. A quick-lock shaft design facilitates easy roll changes, thereby reducing downtime.
02
03.
Multiple guide rollers ensure the smooth movement of the packaging film. Precision-machined rollers minimize friction and scratching while maintaining stable film alignment and preventing drift.
03
04.
A high-sensitivity photoelectric sensor automatically detects registration marks on the film, adjusting the film-pulling length in real-time to ensure the printed pattern remains accurately positioned.
04
05.
The food powder packaging machine forming unit is precision-machined from a single piece of stainless steel; its smooth inner surface minimizes resistance against the packaging film.
05
Hot Tags: food powder packaging machine, China food powder packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Food Powder Packaging Machine | ||
|
Model |
WP-480FS |
WP-680FS |
WP-880FS |
|
Capacity |
30-40 cycles per min |
||
|
Dosage |
1-50g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
5800W |
7800W |
8800W |
|
Weight |
680kg |
880kg |
1080kg |
|
Dimension(L*W*H) |
1100*850*2100mm |
1200*950*2350mm |
1300*1050*2450mm |
FOOD POWDER PACKAGING MACHINE

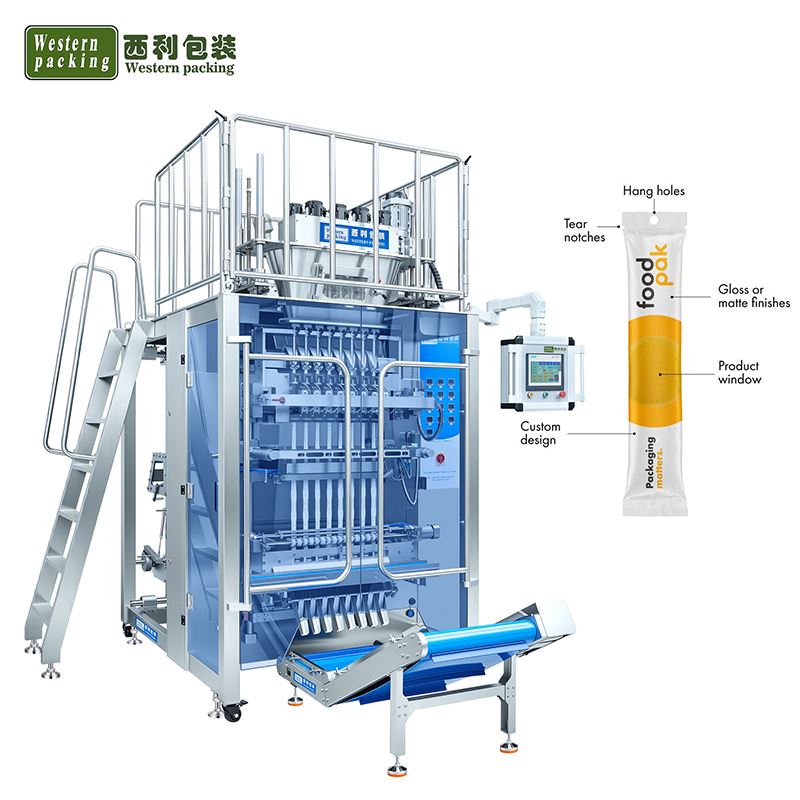

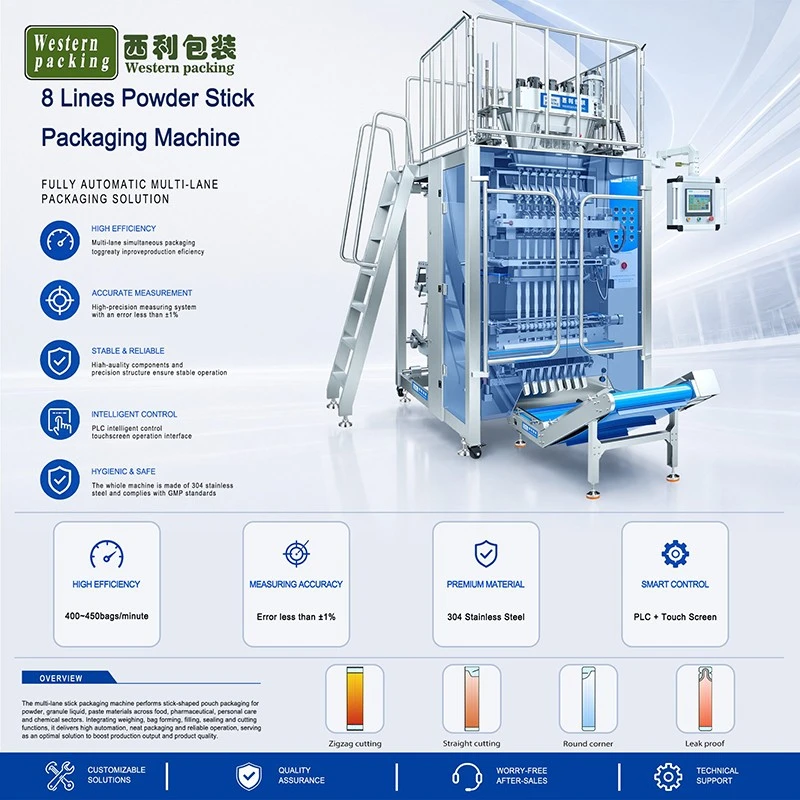

This food powder packaging machine is an integrated vertical form-fill-seal (VFFS) and cutting system designed for powder packaging. It utilizes a modular mechanical structure and multi-axis servo coordinated control to execute packaging film feeding, bag forming, auger-based volumetric filling, heat sealing, easy-tear notch creation, fixed-length cutting, and finished product discharge. The main frame is constructed from SUS304 stainless steel, and product-contact areas feature a quick-disassembly design free of dead zones, ensuring stable single-bag packaging performance for dry powders, fine powders, and lightweight powders with varying flow characteristics. Operational sequencing is centrally managed by a PLC, while closed-loop position and temperature controls ensure high repeatability across all actuating mechanisms.
PRODUCT ADVANTAGES
1. Stable precision: Servo positioning error is ≤±0.5mm; bag length consistency is excellent, and seal positioning remains accurate without deviation.

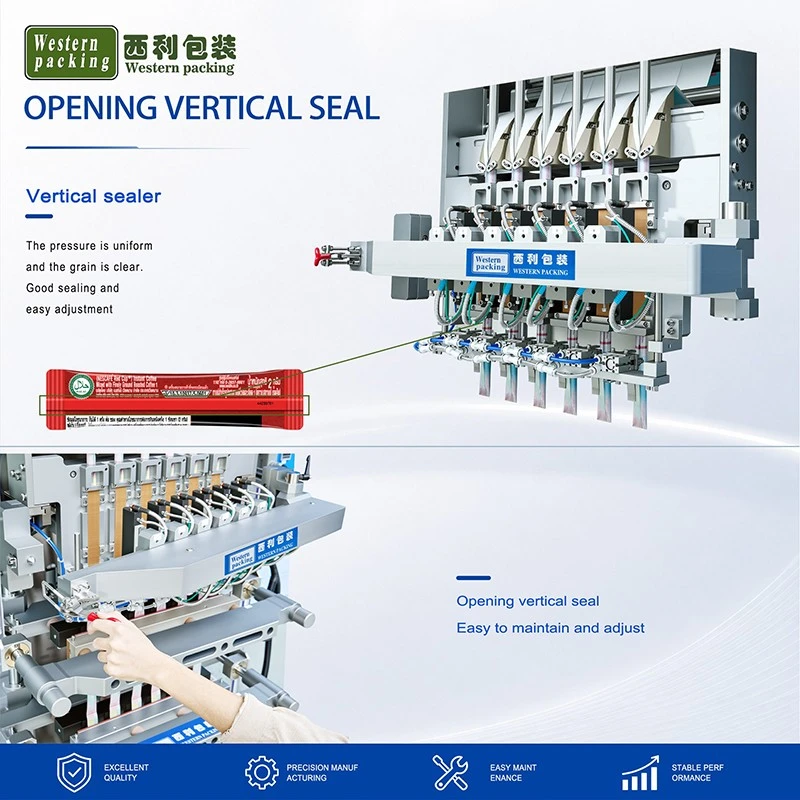

2. Reliable sealing: High flatness of the sealing surfaces and uniform pressure ensure consistent, continuous sealing without weak spots or leaks.
3. Efficient format changes: Within a specific film width range, bag length and fill volume can be adjusted simply by modifying parameters.
4. Low failure rate: Sensors and actuators meet imported industrial-grade standards, ensuring continuous operation without frequent downtime.
