Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of coffee powder stick pack machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable coffee powder stick pack machine made in China here from our factory.
DETAILED DISPLAY
The servo-driven auger filling unit works in tandem with the servo drive system to achieve precise auger-based volumetric filling. Auger specifications can be selected based on the filling range and powder characteristics.
01

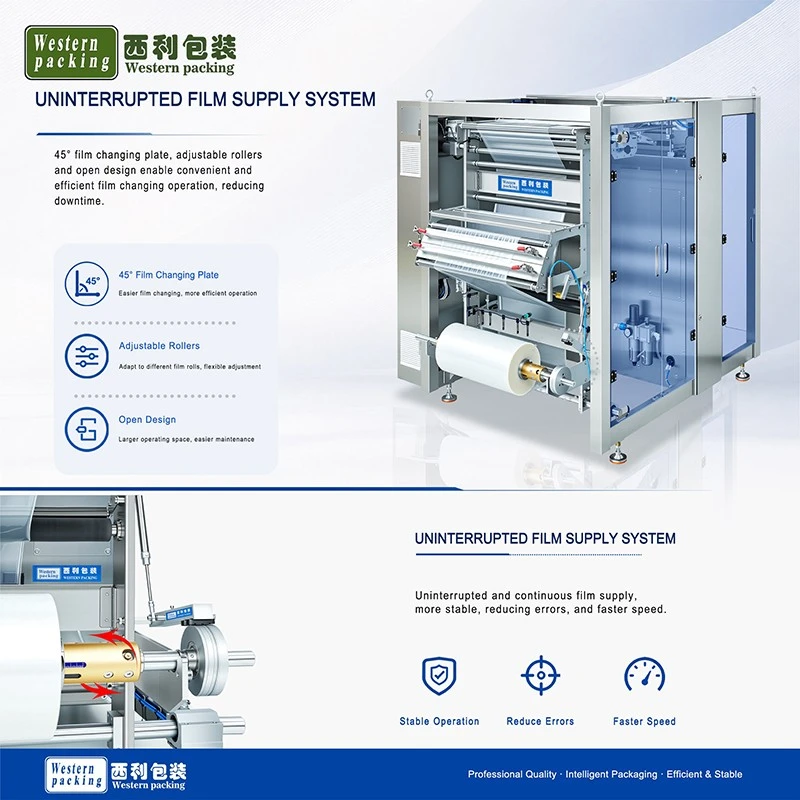

The film-pulling mechanism utilizes dual synchronous belts driven by a servo motor to ensure smooth film transport, precise bag length, and minimal slippage.
02

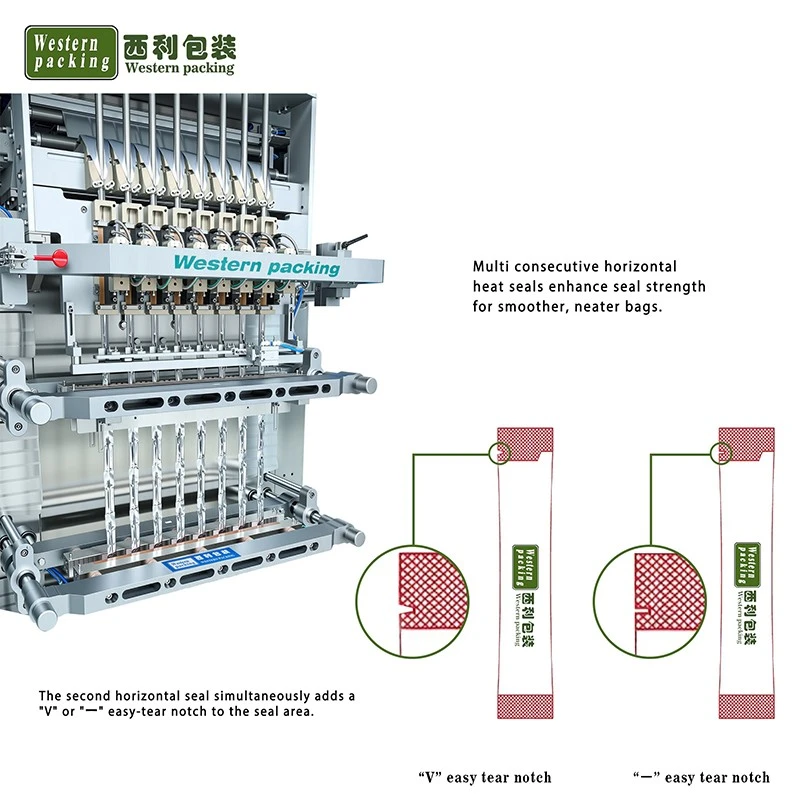

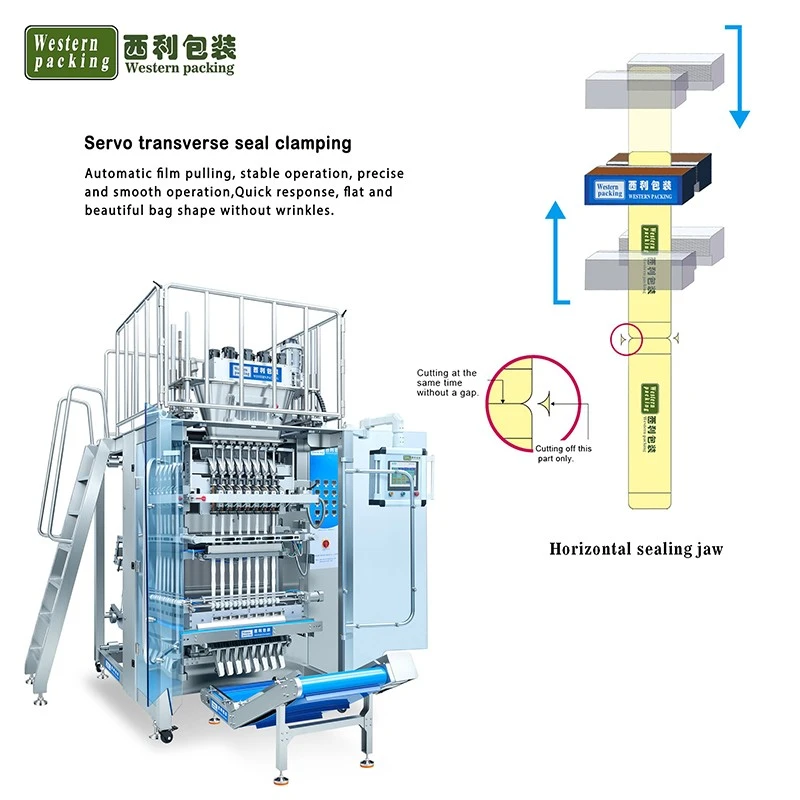

A pneumatic cutting device featuring a high-strength blade neatly separates the bags after sealing, producing clean edges and effectively minimizing burrs.
03
The machine is equipped with safety guards and an emergency stop switch. Opening the safety door automatically halts operation, ensuring operator safety during maintenance and cleaning.
04
Hot Tags: coffee powder stick pack machine, China coffee powder stick pack machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Coffee Powder Stick Pack Machine |
||
|
Model |
WP-480FS |
WP-680FS |
WP-880FS |
|
Capacity |
30-40 cycles per min |
||
|
Dosage |
1-50g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
5800W |
7800W |
8800W |
|
Weight |
680kg |
880kg |
1080kg |
|
Dimension(L*W*H) |
1100*850*2100mm |
1200*950*2350mm |
1300*1050*2450mm |
COFFEE POWDER STICK PACK MACHINE

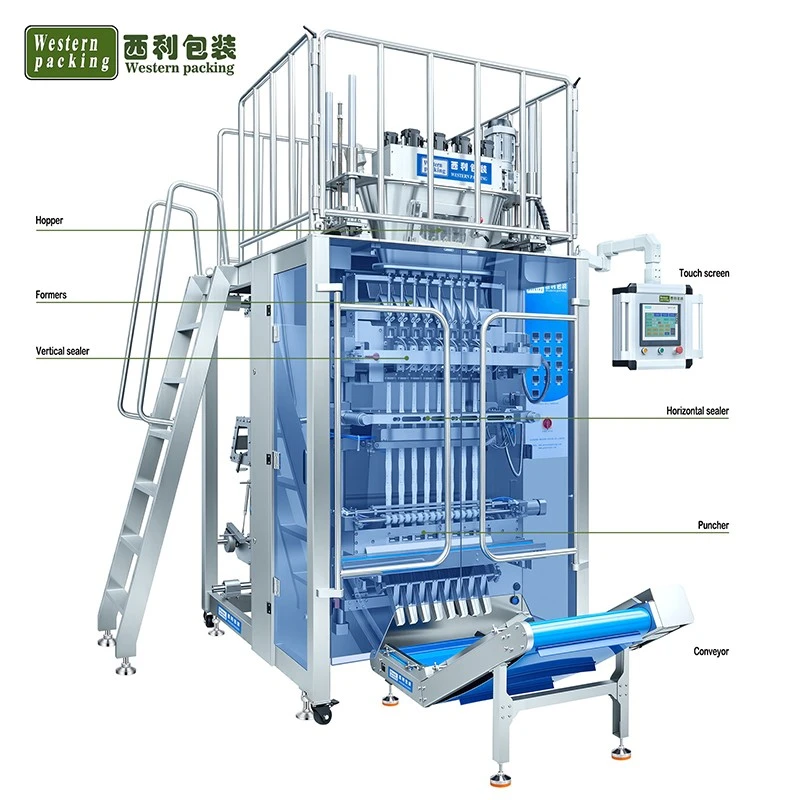

The Coffee Powder Stick Pack Machine utilizes a vertical three-side-seal bag-forming system and features a servo-driven auger filling mechanism positioned directly above the fill tube. This layout minimizes the powder drop distance, ensuring smooth product flow into the bag while reducing material accumulation around the filling zone. Although the filling system, sealing assembly, and film transport mechanism operate independently, they are synchronized via a PLC control system to ensure precision in every packaging cycle.
The machine frame is constructed from heavy-duty stainless steel and features an open design, allowing operators quick access to critical components for cleaning, adjustment, or part replacement.
The equipment allows for flexible configuration of augers, forming collars, sealing widths, coding devices, and feeding systems based on specific product characteristics and packaging specifications. This modular setup enables a single machine platform to handle a wide range of powder products while consistently maintaining high packaging quality.
KEY FEATURES
Specialized Three-Side Seal Structure: The three-side seal sachet design ensures uniform seal width, straight edges, and a neat, attractive appearance.
Independent Servo-Driven Auger Filling System: The filling auger is driven by a dedicated servo motor, allowing for precise adjustment of fill weight and maintaining consistent dosing accuracy for powders with varying bulk densities.
Integrated HMI: Operators can adjust fill weight, bag length, sealing temperature, production speed, and alarm parameters via the PLC touchscreen; multiple packaging recipes can be stored to facilitate rapid product changeovers.
