Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of turmeric powder packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable turmeric powder packaging machine made in China here from our factory.
DETAILED DISPLAY

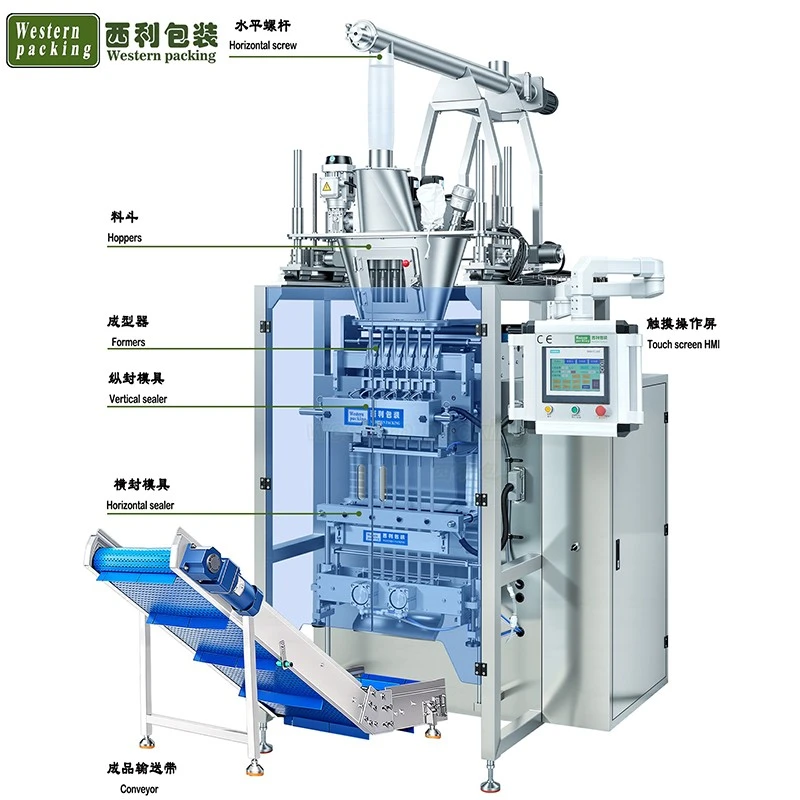

The forming unit features a precision-polished stainless steel forming surface with accurate angles, ensuring the folded bag body remains centered and aligned.
01

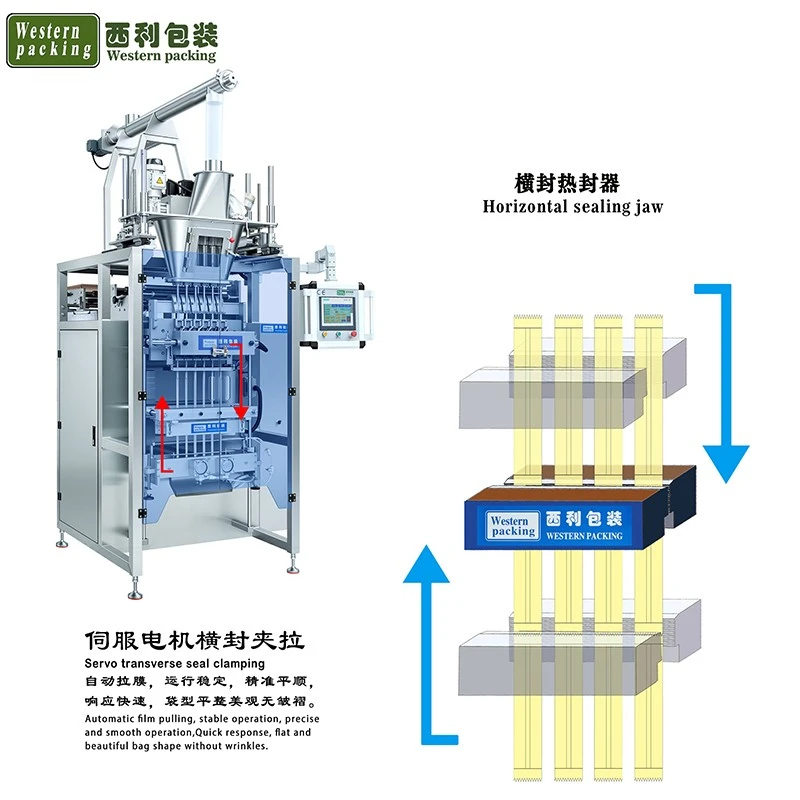

The vertical sealing block employs a symmetrical left-right structure, providing uniform heating and adjustable pressure for stable, synchronized sealing on both sides.
02
It automatically adjusts the packaging film tension, minimizing bag length variations caused by film stretching or shrinking and enhancing continuous production stability.
03
The turmeric powder packaging machine can be equipped with an easy-tear cutting mechanism at the edge sealing position.
04
Hot Tags: turmeric powder packaging machine, China turmeric powder packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Turmeric Powder Packaging Machine |
|
Model |
WP-50F |
|
Capacity |
40-60 bags per min |
|
Filling Range |
1-30g |
|
Size |
(L)30-160mm(W)25-100mm |
|
Power |
1100W |
|
Voltage |
200V/50-60Hz |
|
Weight |
220kg |
|
Dimension(L*W*H) |
625*800*1650mm |
TURMERIC POWDER PACKAGING MACHINE
Four-side seal packaging requires not only secure seals but also symmetry and flatness across the bag's four corners. Consequently, this turmeric powder packaging machine features an optimized packaging path, starting from the very point of film transport.
Upon entering the machine, the packaging film follows a consistent trajectory thanks to a stable transport system; the bag body remains flat and straight before reaching the sealing zone, preventing film sway from compromising seal quality. Following powder filling, the sealing mechanism pauses briefly before applying pressure, allowing the material inside to settle naturally; this minimizes the risk of powder entrapment in the seal area and enhances sealing reliability.
WORKING PRINCIPLE
Packaging film is fed into the forming area by the film-feeding mechanism and shaped into a bag under the guidance of the guiding assembly; a four-side sealing mechanism then completes the bottom and side seals. Subsequently, a servo-driven auger dosing system precisely conveys the powder to the filling nozzle based on the preset weight, allowing the material to drop evenly into the bag. Once filling is complete, the top sealing mechanism heat-seals the bag opening, while a cutter separates the finished bag from the next packaging cycle. The entire process is centrally coordinated by a PLC control system, synchronizing film feeding, dosing, filling, sealing, and cutting operations to ensure consistent bag dimensions, smooth edges, and reliable seals.
