Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of automatic powder sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable automatic powder sachet packing machine made in China here from our factory.
DETAILED DISPLAY

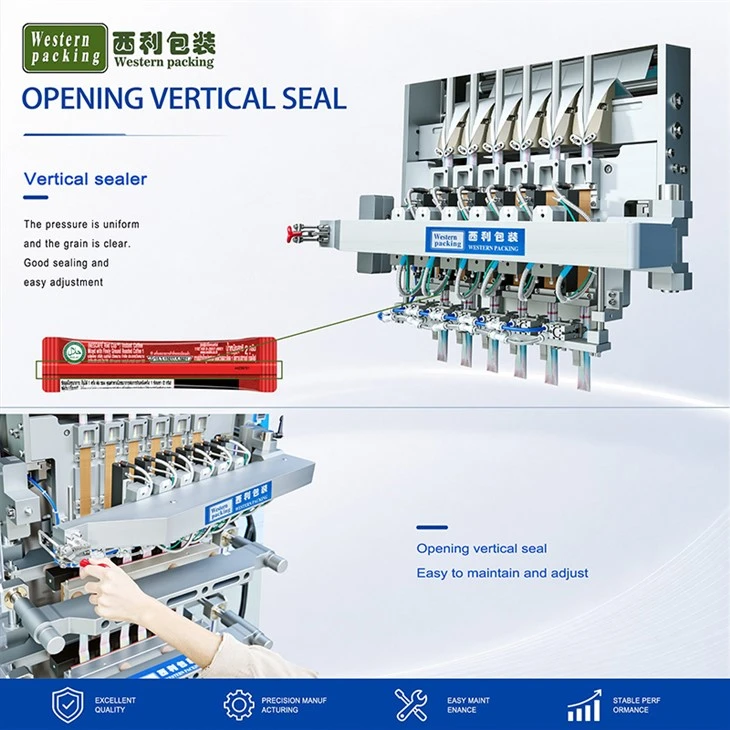

The longitudinal back-sealing device uses continuous heating to seal the back of the packaging bag, resulting in a clear and stable seal.
01

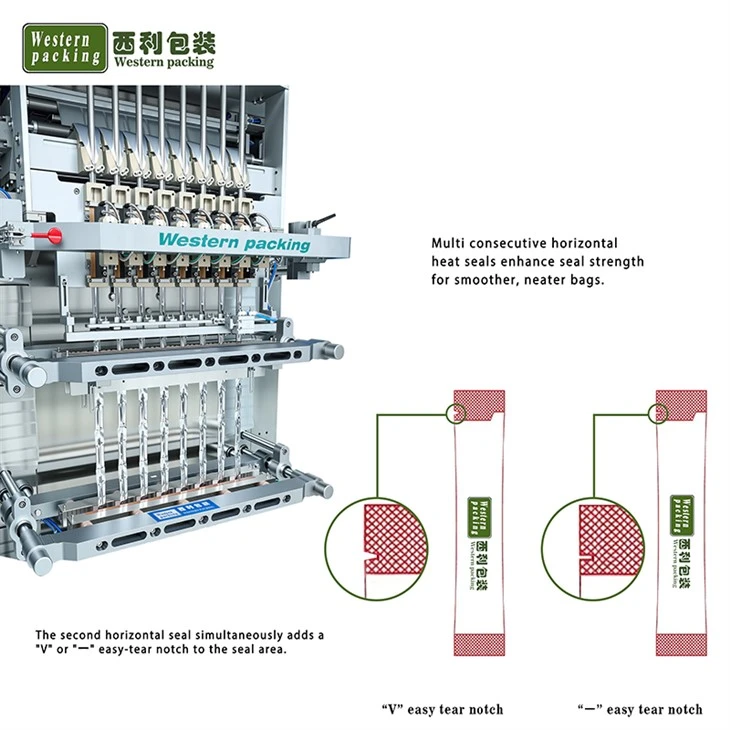

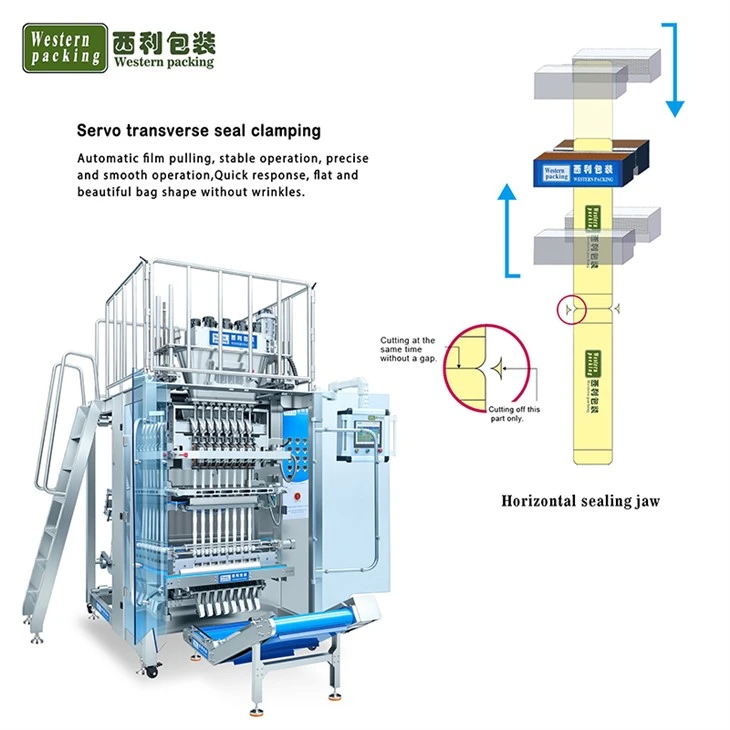

The transverse heat-sealing mechanism seals the bag opening and bottom, ensuring a secure seal through pressure regulation.
02
A waste film recycling mechanism can be equipped to automatically collect waste film generated during bag cutting, improving the cleanliness of the equipment's working area.
03

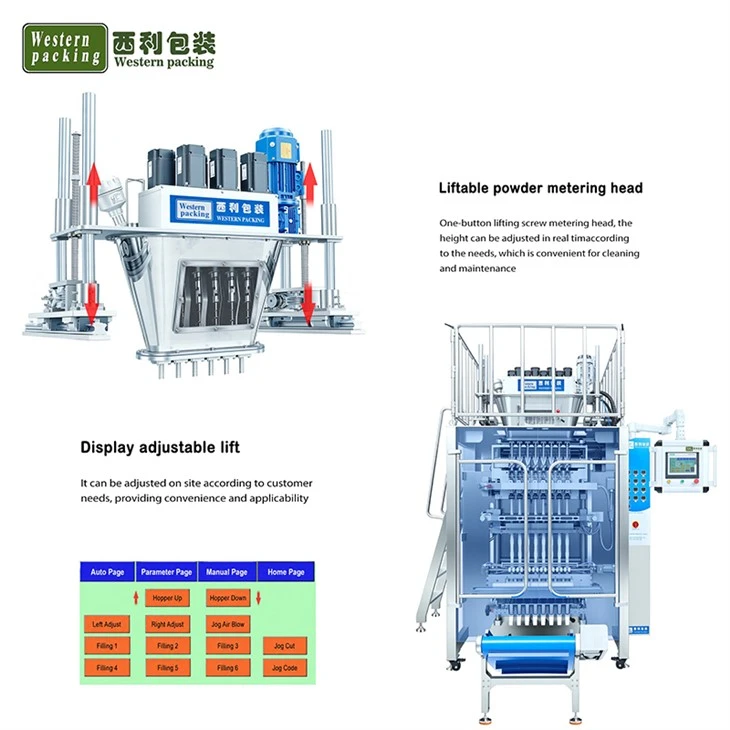

The automatic powder sachet packing machine's servo drive system controls key actions such as metering, film feeding, and sealing, improving operational accuracy and repeatability.
04
Hot Tags: automatic powder sachet packing machine, China automatic powder sachet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Automatic Powder Sachet Packing Machine |
||
|
Model |
WP-480FB |
WP-680FB |
WP-880FB |
|
Bag style |
standard stick pack, round-corner stick,any other irregular shaped stick |
||
|
Capacity |
100-200 bags per min |
||
|
Filling range |
1-50g |
||
|
Size |
(L)50-150mm(W)15-50mm |
||
|
Power |
4200W |
||

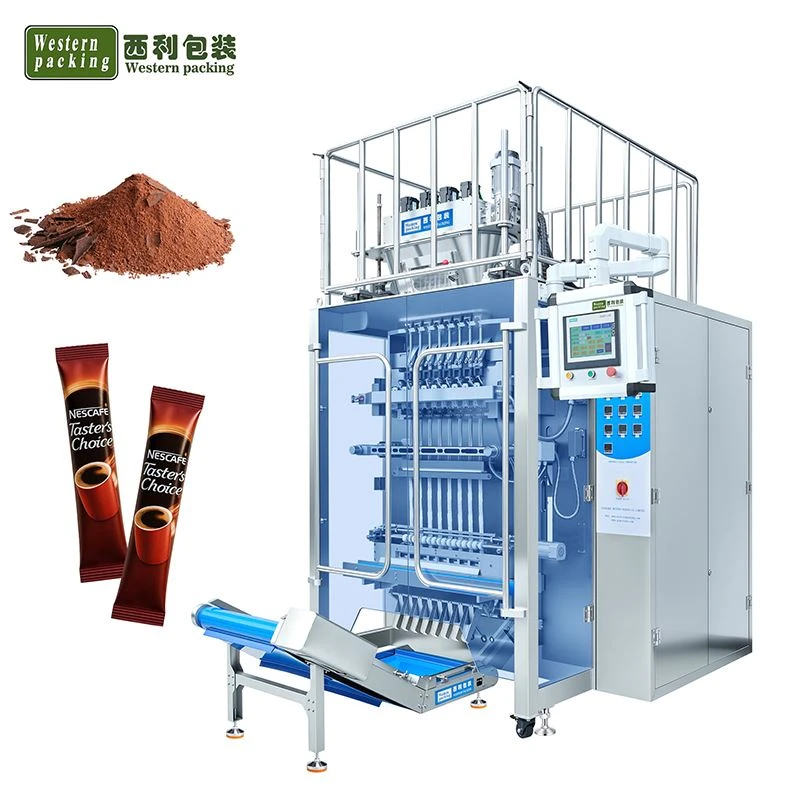

AUTOMATIC POWDER SACHET PACKING MACHINE

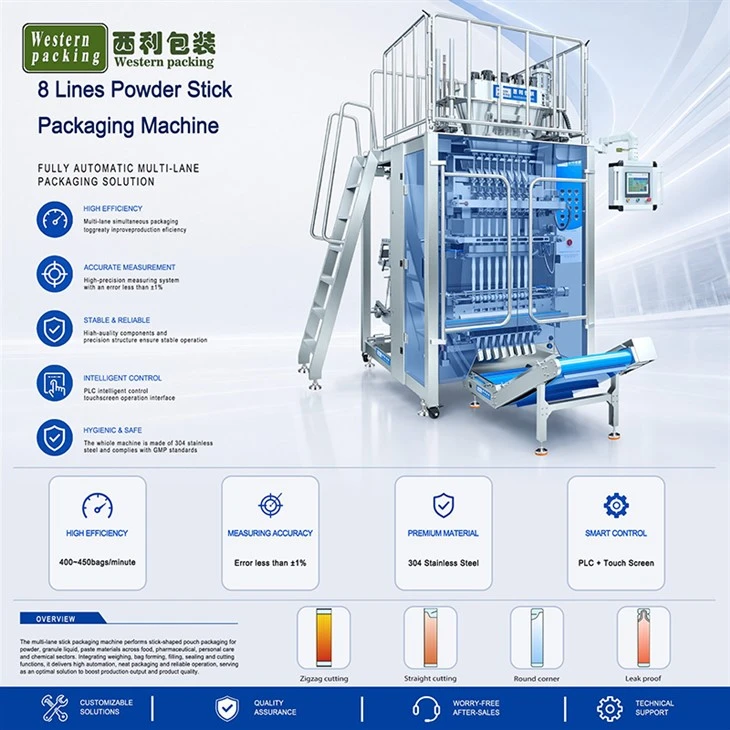

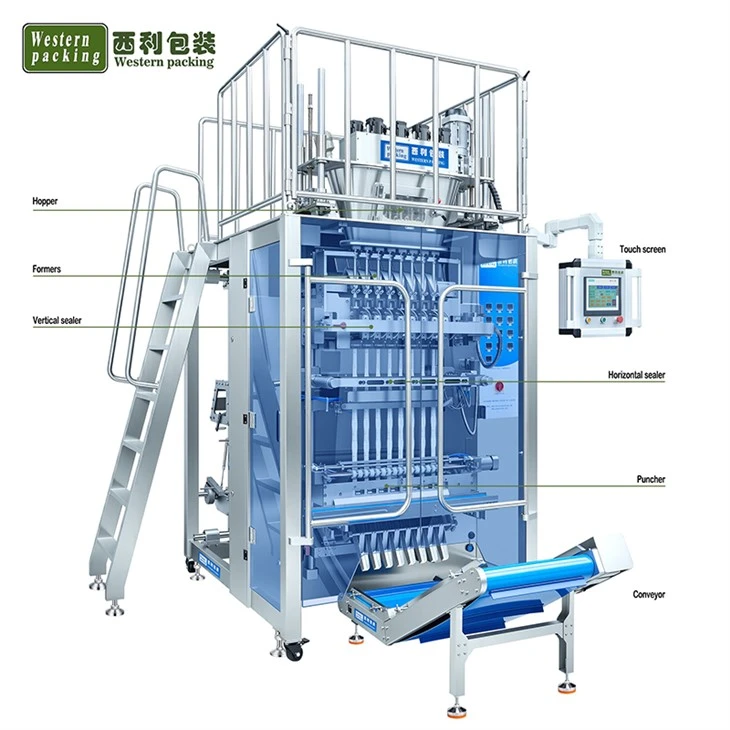

The 8-lane rounded-corner automatic powder sachet packing machine achieves fully automated operation from packaging film conveying to finished bag output through multiple independent metering systems, a continuous bag-making system, a back-seal mechanism, and a rounded-corner bag-cutting device.
The machine is designed specifically for small-sized powder strip bag packaging, addressing common problems in powder packaging such as unstable feeding, dust generation, inconsistent bag shapes, weak seals, and insufficient production efficiency.
The equipment adopts a modular design, with each functional unit working independently. Metering methods, feeding speeds, and sealing parameters can be adjusted according to different powder characteristics to meet the continuous production needs of the food, pharmaceutical, daily chemical, and chemical industries.
PRODUCT ADVANTAGES
1. Precision with No Cumulative Errors: Unlike multiple machines producing in separate rows simultaneously, this machine completes sealing and cutting of all rows at the same time, eliminating cumulative bag length deviations caused by phase differences between multiple units.
2. Reduced Operational Requirements: The main packaging process is automated, reducing manual intervention; only material replenishment and parameter monitoring are required.
3. Sealing Strength and Appearance Consistency: Sealing pressure is controllable, resulting in minimal deviation. Finished bags exhibit high consistency in corner radius, transparent and wrinkle-free back seal overlaps, good bag flatness, and full, straight bags after filling.
