Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of spice packaging equipment in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable spice packaging equipment made in China here from our factory.
DETAILED DISPLAY
Single-lane film-pulling rubber rollers with dual-roller clamping ensure stable film feeding without slipping or drifting.
01

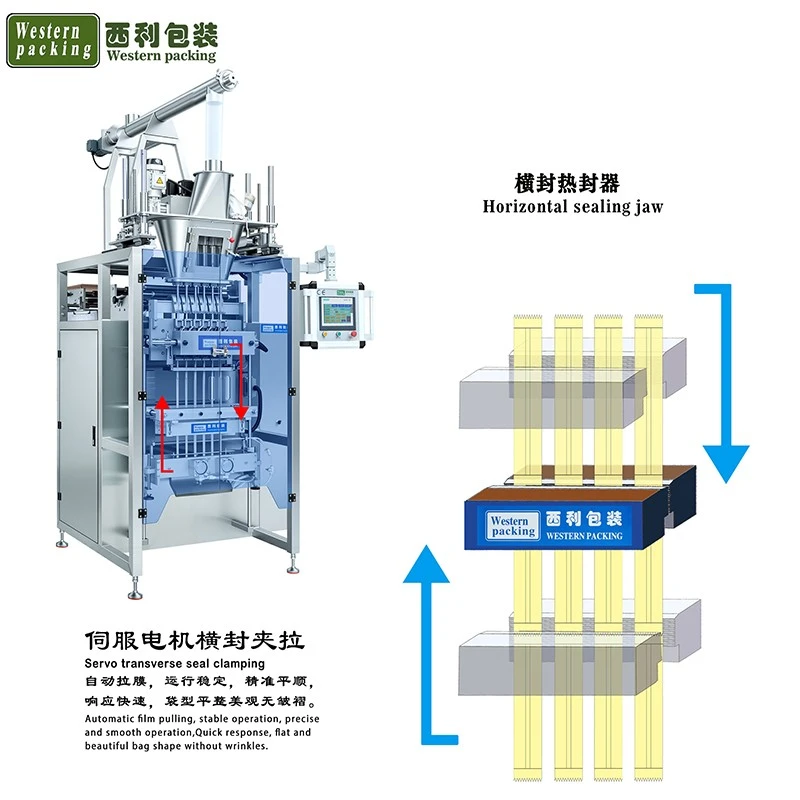

The spice packaging equipment horizontal sealing and cutting unit integrates sealing and cutting functions; it produces flat seals with consistent strength and clean, neat cuts.
02
Wear-resistant synchronous film-pulling belts paired with servo drives ensure precise film feeding, making the system suitable for high-speed continuous production.
03
The electrical control cabinet features an independent heat dissipation layout and organized wiring, with a protection rating suitable for operation in dusty environments.
04
Hot Tags: spice packaging equipment, China spice packaging equipment manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Spice Packaging Equipment |
|
Model |
WP-100FB |
|
Capacity |
40-60 bags per min |
|
Filling Range |
1-30g |
|
Size |
(L)30-160mm(W)25-100mm |
|
Power |
1100W |
|
Voltage |
220V/50-60Hz |
|
Weight |
410kg |
SPICE PACKAGING EQUIPMENT

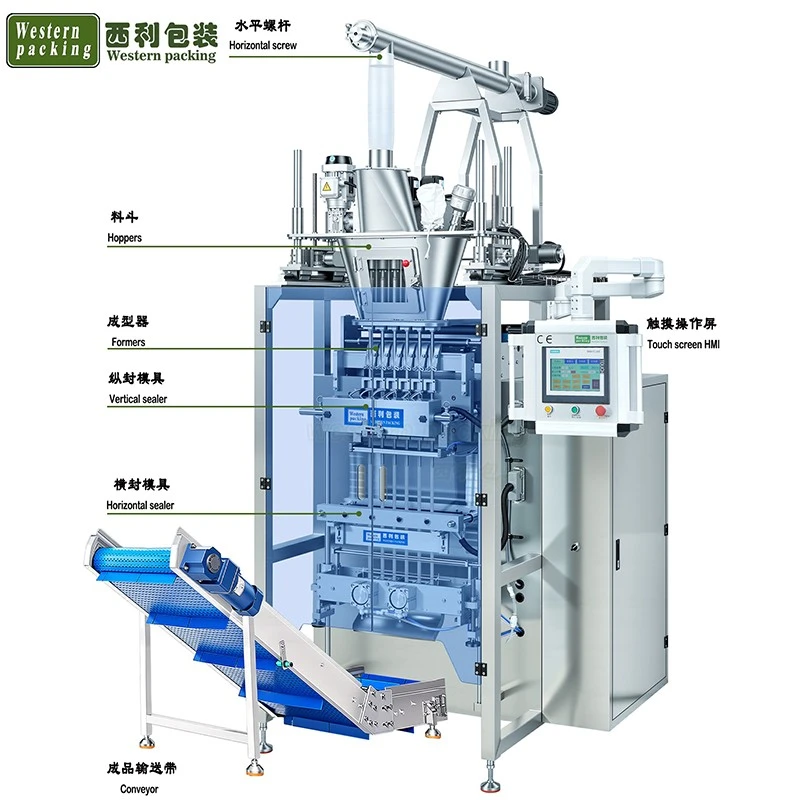

In a single-lane spice packaging equipment, the packaging film does not require multi-lane slitting; instead, it feeds directly into a single-lane forming unit to create the stick pack. This results in more stable film transport and effectively minimizes issues such as film drift and bag width deviations.
Equipped with a single auger dosing system driven by an independent servo motor—eliminating the need for multi-lane synchronization—the machine ensures higher precision for small-dose packaging (e.g., 1g, 2g, or 5g).
For production lines requiring frequent product changeovers, the single-lane machine allows for quick adjustments—involving only one forming unit, one auger, and one set of sealing dies—thereby significantly reducing downtime compared to multi-lane equipment.
It is an ideal choice for enterprises with lower output requirements or those conducting trial production runs.
WORKING PRINCIPLE
Packaging film is fed via the film-unwinding mechanism to a single-lane forming unit, where it is folded into a tubular shape and back-sealed. Powder is precisely metered by a screw dosing system and filled into the bag through a filling tube; subsequently, a cross-sealing mechanism seals the bag opening, and a cutter automatically severs the finished product at the preset length. The entire system operates continuously under PLC control, coordinating processes such as film unwinding, film pulling, metering, sealing, and cutting; the single-lane packaging configuration effectively enhances packaging stability and metering accuracy.
