Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of spice powder packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable spice powder packing machine made in China here from our factory.
DETAILED DISPLAY

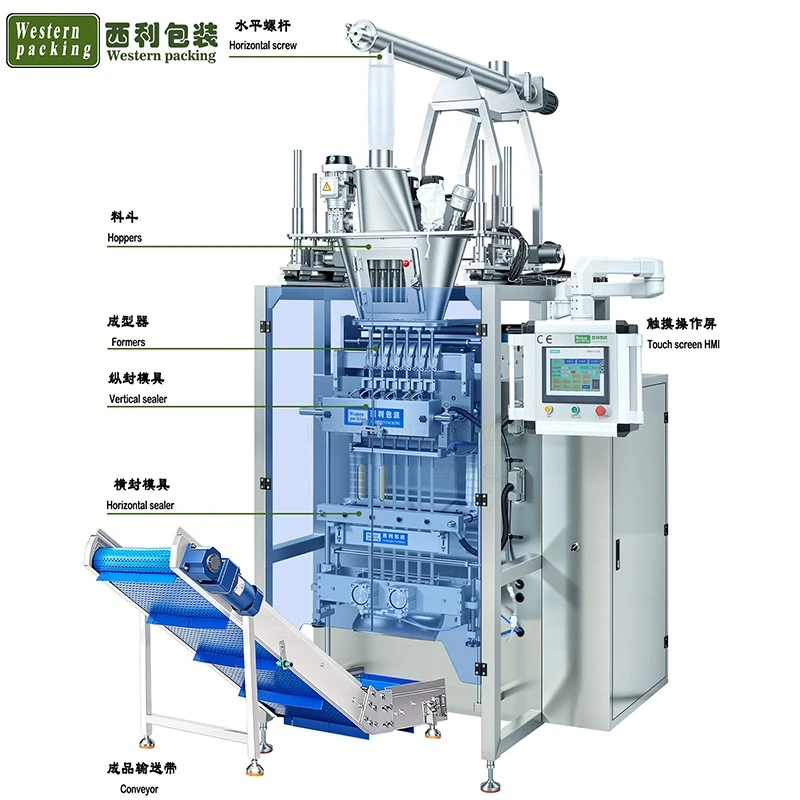

The top features a large-capacity storage design, allowing for a continuous supply of powder raw materials. The hopper structure facilitates observation of remaining material and easy daily cleaning.
01
Each packaging channel is equipped with a corresponding discharge outlet, ensuring accurate powder entry into the appropriate bag and minimizing material deviation.
02
Sensors monitor the packaging film position in real time, automatically correcting any film misalignment to ensure neat bag edges.
03
The spice powder packing machine uses mechanical adjustment of the sealing knife pressure to achieve a uniform sealing effect for packaging materials of varying thicknesses.
04
Hot Tags: spice powder packing machine, China spice powder packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Spice Powder Packing Machine |
||
|
Model |
WP-680F |
WP-880F |
WP-1080F |
|
Capacity |
35-60 cycles per min |
||
|
Dosage |
1-5-20-40g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
3300W |
3600W |
4200W |
|
Weight |
600kg |
860kg |
1200kg |
|
Dimension(L*W*H) |
110*850*2100mm |
1200*950*2350mm |
1300*1050*2450mm |

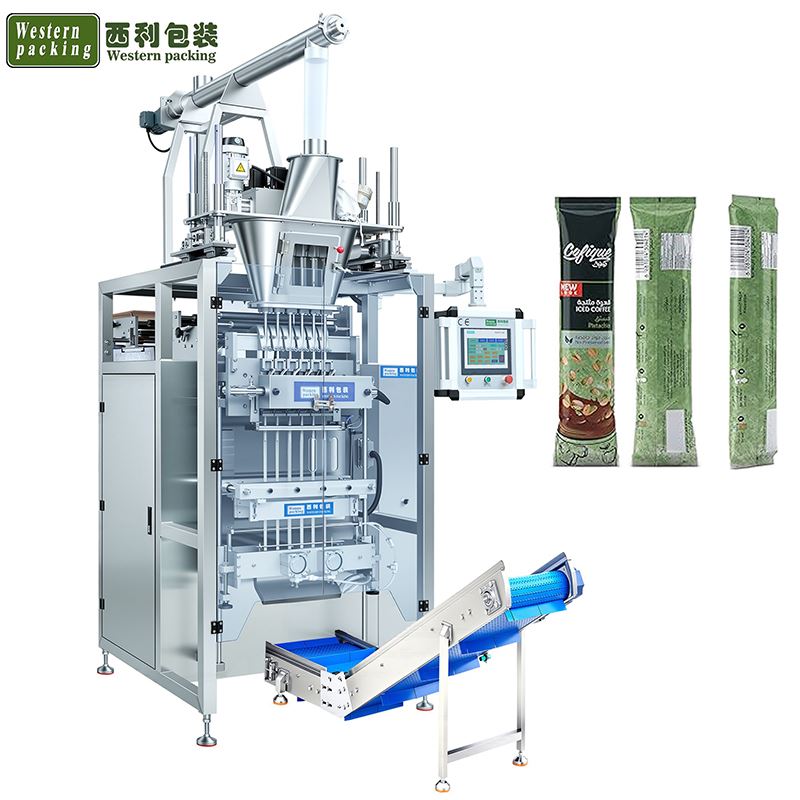

SPICE POWDER PACKING MACHINE
This spice powder packing machine is designed with "multi-lane parallel operation and intelligent control" as its core concept. It features a compact structure and small footprint, yet its production capacity is several times that of traditional single-row packaging machines. The entire machine adopts a high-rigidity mechanical frame, coupled with a PLC and touchscreen human-machine interface, making operation simple. Whether it's small doses of pharmaceutical powder or large doses of meal replacement powders and seasonings, this equipment can provide stable, aesthetically pleasing, and well-sealed finished products, effectively improving the automation level and production efficiency of the packaging workshop.
WORKING PRINCIPLE
The equipment operates based on a continuous automated process of "film supply—bag making—filling—sealing—cutting":
Film Supply and Forming: The roll composite film is drawn into the forming unit by a traction device. The bag making unit folds the flat film into shape and seals it longitudinally (back seal) or transversely (three/four sides) to form a continuous bag.
Metering and Filling: A high-precision servo screw meter accurately fills each bag with powder material according to a preset weight.

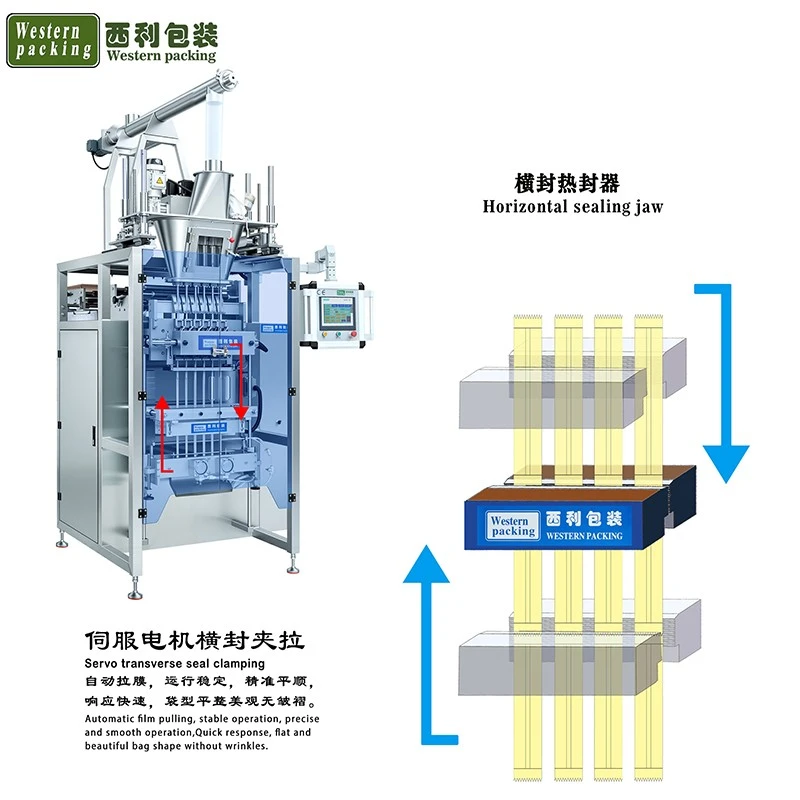

Sealing and Cutting: After filling, the bags are sealed by a transverse sealing mechanism and finally cut into individual small bags by a cutting blade according to a set length.
Synchronous Control: All actions are coordinated by a PLC through various servo motors, cylinders, and sensors to ensure precise synchronization of bag making, filling, and sealing cycles even at high speeds.
