Name: China Customized Packing Machine For Chilli Powder Manufacturers Suppliers Factory - Western Packing
Brand: Western Packing
SKU: 313791525

Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of packing machine for chilli powder in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable packing machine for chilli powder made in China here from our factory.

DETAILED DISPLAY

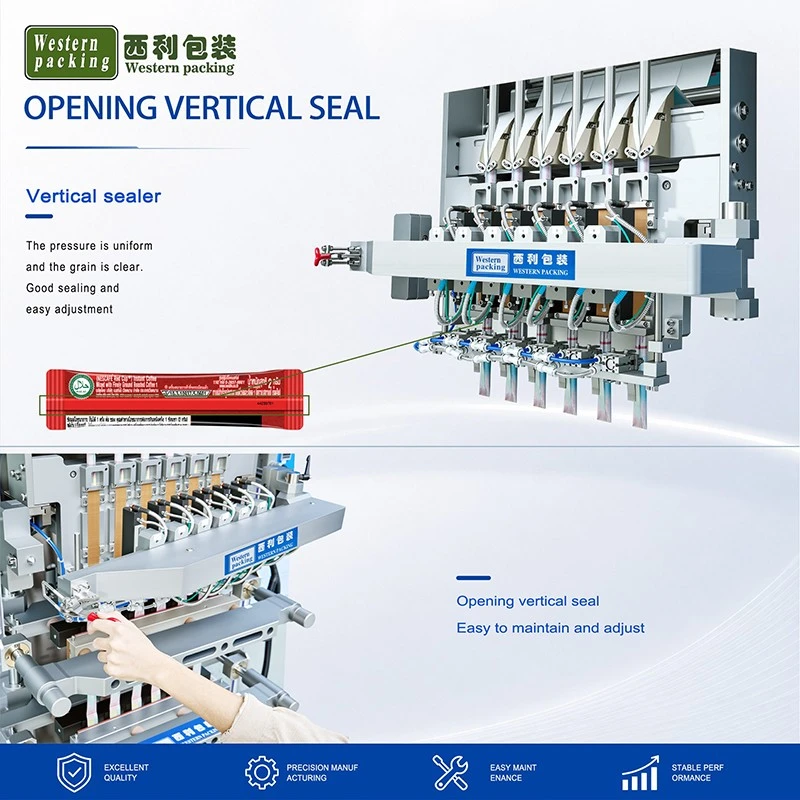

The longitudinal sealing assembly employs a continuous heat-sealing method, ensuring the back seal of the package remains flat. The sealing pressure is adjustable to suit various film thicknesses, guaranteeing a secure seal and a neat appearance.

01

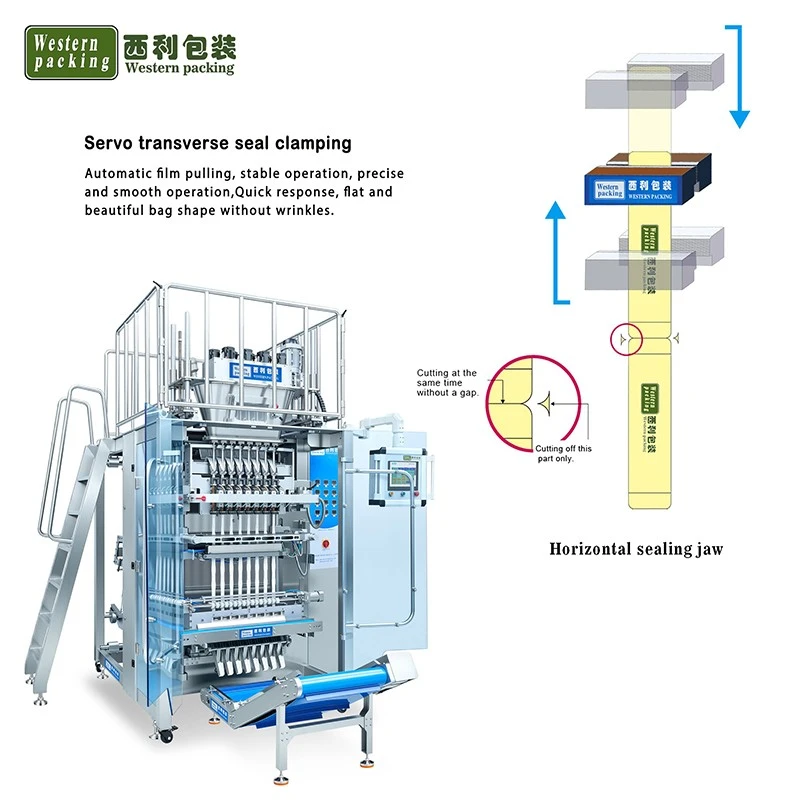

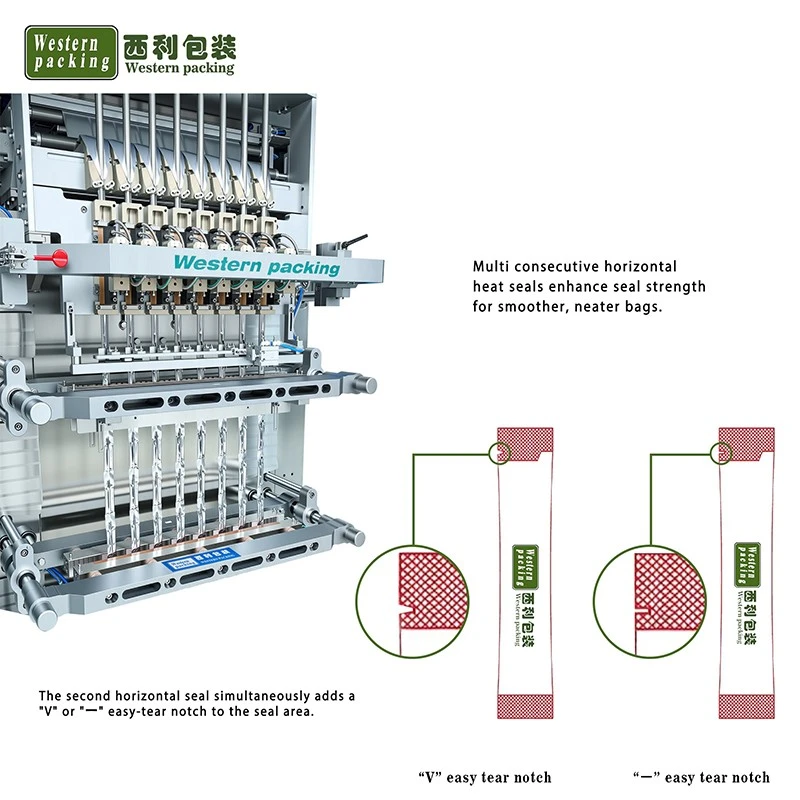

The transverse sealing feature an integrated heating structure with wear-resistant surfaces, ensuring uniform heat distribution. An independent temperature control system allows for separate temperature settings for the left and right, resulting in stronger seals and compatibility with various composite film materials.

02

The packing machine for chilli powder cutting blade is made of high-hardness alloy, ensuring a clean cut without burrs. Options include straight, serrated, or rounded-corner blades depending on the bag style, with support for easy-tear notch designs.

03

A PLC centrally controls all operating mechanisms, coordinating metering, film pulling, sealing, and cutting actions in real-time. The touchscreen interface allows for the storage of multiple product recipes, eliminating the need to reconfigure all parameters when switching products.

04

Hot Tags: packing machine for chilli powder, China packing machine for chilli powder manufacturers, suppliers, factory

MACHINE PARAMETERS

Name	Packing Machine For Chilli Powder
Model	WP-480FB	WP-680FB	WP-880FB
Bag Style	standard stick pack, round-corner stick, or any other irregular-shaped stick
Capacity	100-200 bags per min
Filling Range	1-50 g
Size	(L)50-150mm(W)15-50mm
Power	4200W
Weight	880kg
Dimension	85010502350mm(LWH)

PACKING MACHINE FOR CHILLI POWDER

When packaging powdered products, factors such as target weight, bag dimensions, and material characteristics influence equipment configuration. To address this, the packing machine for chilli powder features a modular design, allowing for the rapid adjustment or replacement of key components.

The dosing unit accommodates different target weights through interchangeable auger screws; the bag-forming unit adapts to various bag widths by simply swapping the forming collar; the sealing unit offers independent temperature and pressure controls to suit packaging films of varying thicknesses and materials; and the feeding system supports manual, auger, or vacuum feeding options based on production requirements.

Parameters for all adjustments can be saved via the touchscreen, eliminating the need for machine recalibration when switching products and significantly reducing changeover times.

MAIN FEATURES

Interchangeable Auger Assembly: Components such as the auger and discharge nozzle can be quickly swapped to accommodate different packaging weights without replacing the entire dosing system.

Quick-Release Forming Assembly: Features a positioning pin and locking mechanism, allowing for easy disassembly and reassembly when changing bag widths, thereby reducing format changeover time.

Independent Temperature-Controlled Sealing: Temperatures for the horizontal and vertical sealing are set independently, enabling compatibility with various packaging materials such as PET/PE, OPP/CPP, and aluminum foil laminates.
