Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of protein powder stick packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable protein powder stick packing machine made in China here from our factory.
DETAILED DISPLAY
Each column is equipped with an independent powder conveying outlet, allowing powder to be metered and directly fed into the corresponding bag.
01
A packaging film mounting assembly is located at the rear of the equipment to secure packaging film rolls of varying widths. The film feeding shaft employs a stable support structure to ensure concentricity during film roll rotation.
02

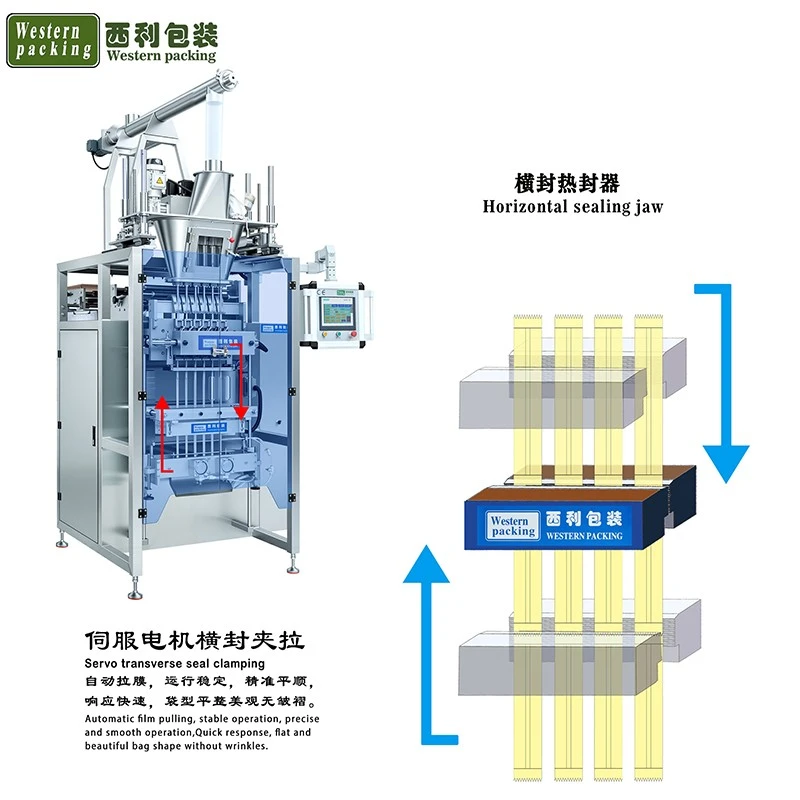

Each heating zone is equipped with an independent temperature control module. The sealing temperature can be adjusted according to the packaging film material to achieve optimal heat sealing results for different materials.
03
The bag-cutting mechanism of the protein powder stick packing machine is installed after the sealing area and is used to automatically separate continuous packaging bags. The blades are made of wear-resistant materials, ensuring precise cutting and maintaining uniform length for each bag.
04
Hot Tags: protein powder stick packing machine, China protein powder stick packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Protein Powder Stick Packing Machine |
||
|
Model |
WP-480FS |
WP-680FS |
WP-880FS |
|
Capacity |
30-40 cycles per min |
||
|
Dosage |
1-50g |
||
|
Size |
(L)30-160mm(W)25-80mm |
||
|
Power |
5800W |
7800W |
8800W |
|
Weight |
680kg |
880kg |
1080kg |
PROTEIN POWDER STICK PACKING MACHINE

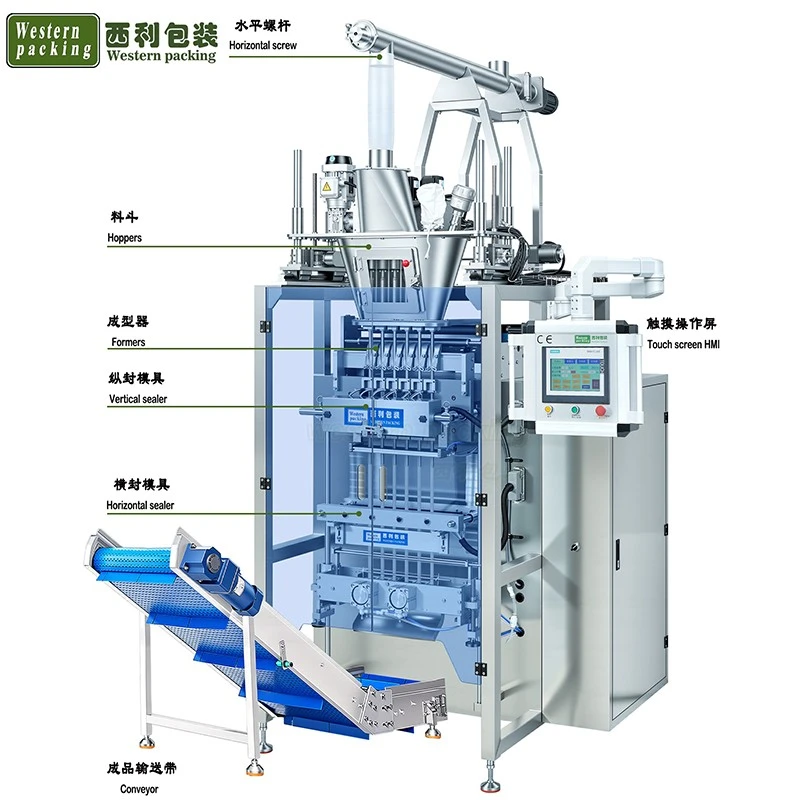

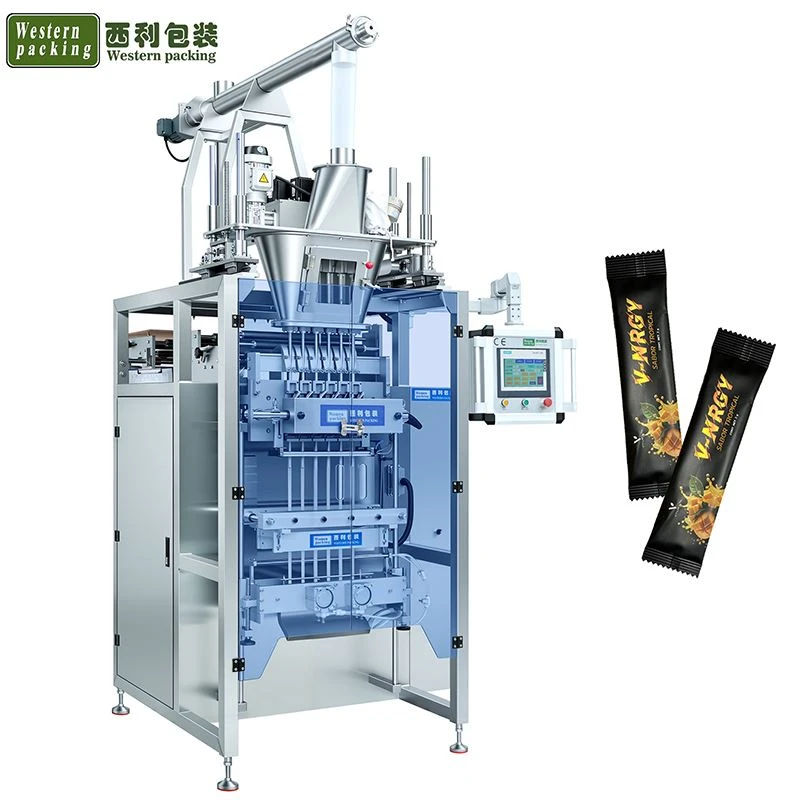

The multi-lane protein powder stick packing machine is an automated packaging equipment developed to meet the needs of small-sized, high-efficiency packaging of powder products. The machine adopts a multi-channel parallel packaging structure, capable of simultaneously producing multiple pouches. It integrates powder feeding, precise metering, film forming, material filling, heat sealing, cutting, and finished product output into a continuous workflow.
The machine supports three common pouch types: back-seal bags, three-side-seal bags, and four-side-seal bags. Different packaging effects can be selected based on the product's sales positioning. Back-seal packaging is more suitable for products requiring high-speed production and economical packaging; three-side-seal packaging has a mature structure and is suitable for food, trial packs, and single-use packaging; four-side-seal packaging offers a flatter, more three-dimensional shape, enhancing product display.
The machine is optimized to address packaging challenges such as powder material scattering, adhesion, and unstable feeding. Through a precise metering mechanism and stable conveyor control, it ensures consistent packaging weight and appearance across different batches of products.
APPLICATION AREAS
Food powders: milk powder, coffee powder, cocoa powder, flavoring powder, sugar powder, flour, soup base powder.
Nutritional and health products: protein powder, meal replacement powder, vitamin powder, powdered drinks.
Pharmaceutical and daily chemical products: medicinal powder, disinfectant powder, cleaning powder, chemical auxiliary powders.
