Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of automatic liquid pouch packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable automatic liquid pouch packing machine made in China here from our factory.
DETAILED DISPLAY
The pneumatic expansion shaft uses pneumatic expansion to firmly lock the membrane core, preventing the membrane roll from slipping or shifting during high-speed operation. It can speed up membrane changing and improve membrane feeding stability.
01
When a deviation occurs, the correction mechanism will adjust the film position in real time to reduce waste caused by inaccurate bag making or cutting errors.
02

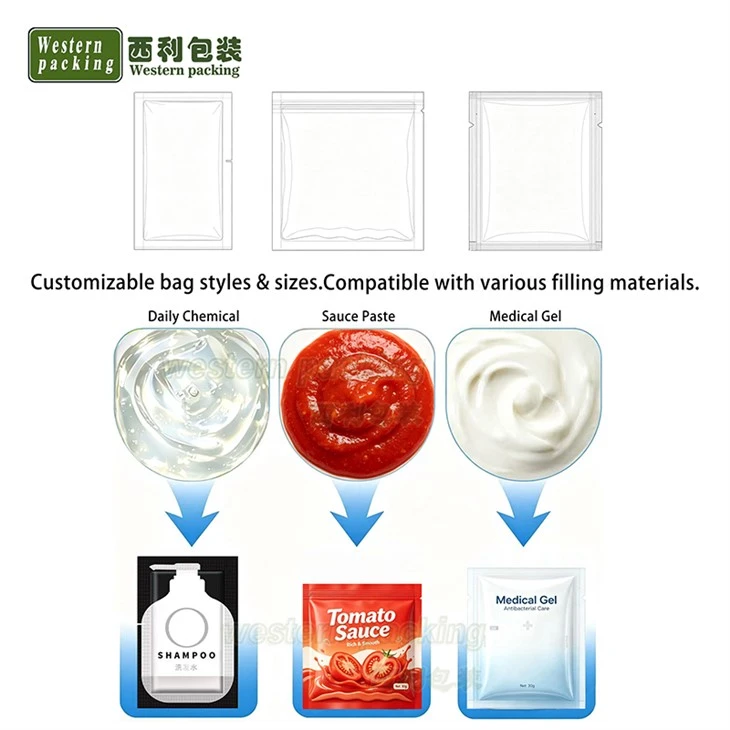

The automatic liquid pouch packing machine cutting blade separates the individual pouches after sealing. Different cutting shapes can be customized according to customer requirements.
03

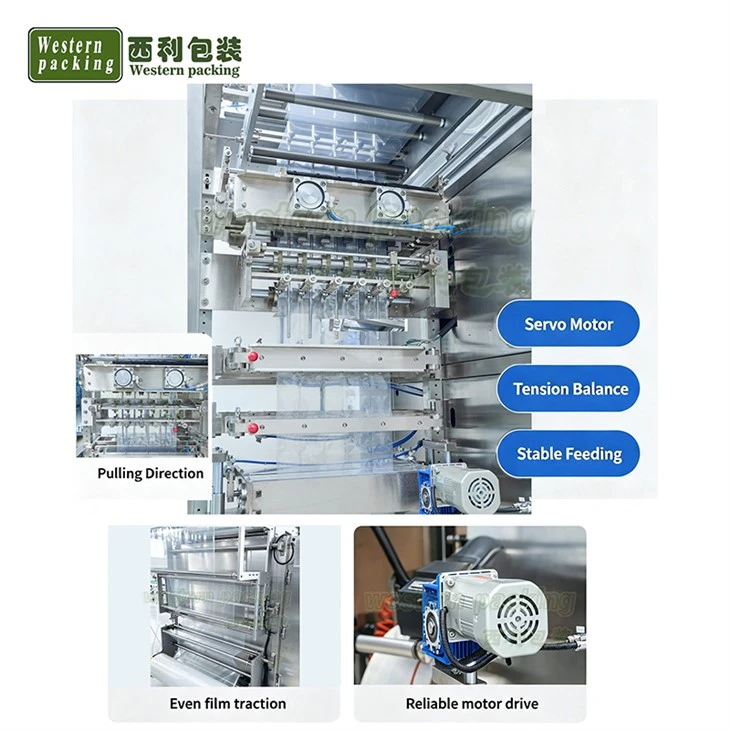

Servo motors precisely control the film conveying length, improving the consistency of packaging bag dimensions and reducing material waste.
04
Hot Tags: automatic liquid pouch packing machine, China automatic liquid pouch packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Automatic Liquid Pouch Packing Machine |
||
|
Model |
WP-480YB |
WP-680YB |
WP-880YB |
|
Capacity |
200-350 cycles per min |
||
|
Dosage |
3-50g |
||
|
Size |
(L)30-160mm(W)15-50mm |
||
|
Power |
4200W |
||
|
Weight |
680kg |
||
|

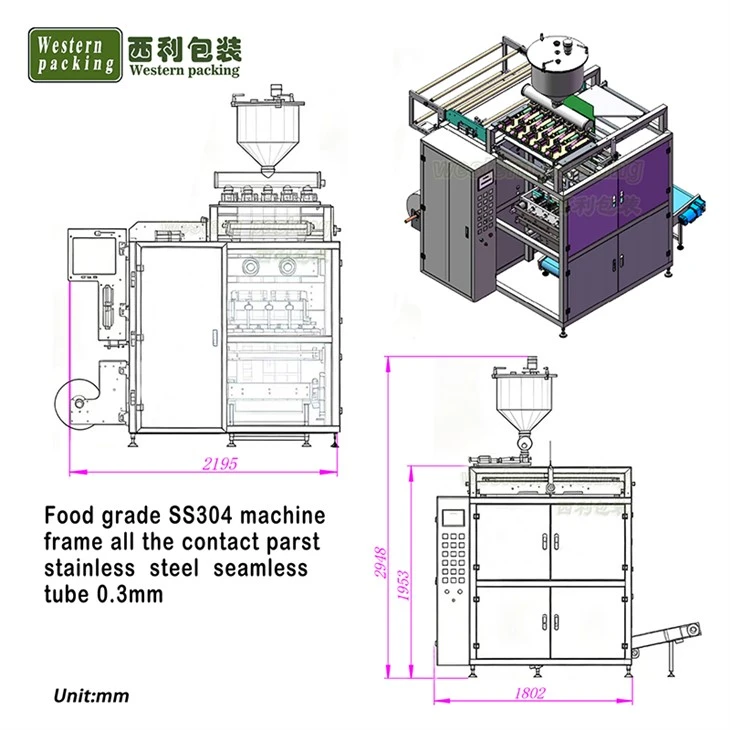

Dimension(L*W*H) |
1200*950*2300mm |
||
AUTOMATIC LIQUID POUCH PACKING MACHINE

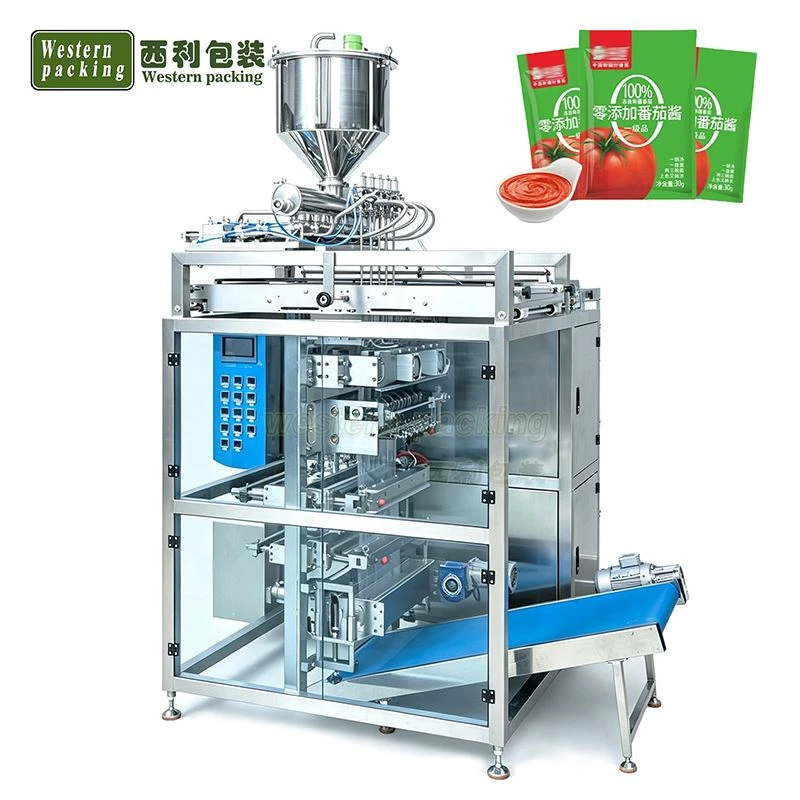

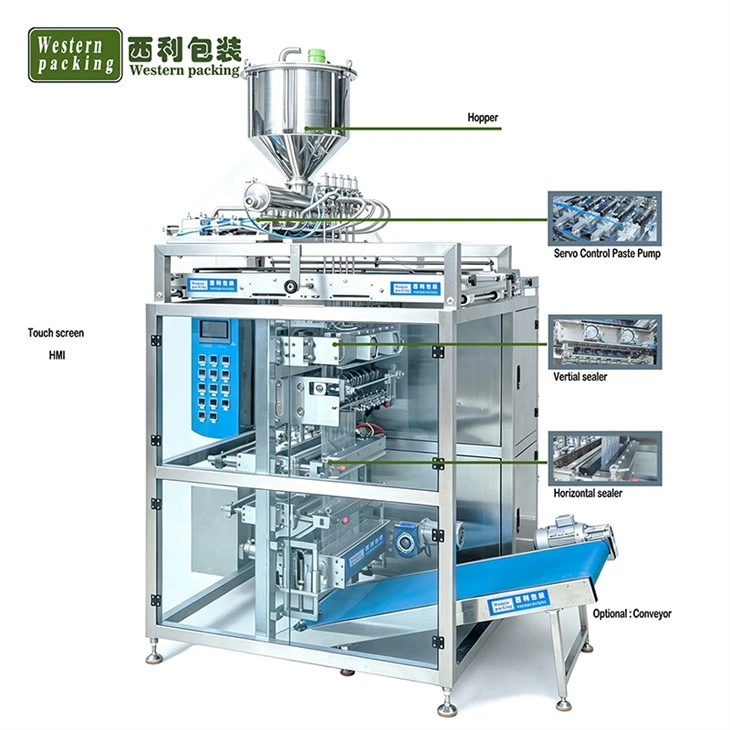

This automatic liquid pouch packing machine employs a multi-channel vertical packaging structure. The packaging film is pulled out by the forming system, forming four continuous channels for small bags. Each channel is equipped with a precise liquid filling system to ensure accurate filling volume. During operation, the liquid is filled into the formed bag, followed by continuous back sealing and cross sealing to complete the packaging of a single small bag. By selecting appropriate pumps and filling components, this machine is suitable for liquid products of various viscosities.
PRODUCT FEATURES
1. Four rows of machines operate synchronously in parallel, with precise timing matching across multiple channels, achieving four times the production capacity of a single row machine.
2. An integrated anti-drip filling valve structure prevents liquid dripping and contamination of the seal and machine body during shutdown and lifting processes.
3. The heat sealing system features an independent PID temperature control module, with separate temperature control for vertical and horizontal sealing zones, adaptable to different film materials.
4. The servo traction system digitally sets the bag length, eliminating the need to replace mechanical parts; bag length parameters can be directly adjusted on the screen.
