Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of granule stick sachet packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable granule stick sachet packaging machine made in China here from our factory.
DETAILED DISPLAY
Employs a continuous heating vertical sealing structure for stable sealing of the packaging film's back. Sealing pressure and temperature are adjustable to accommodate packaging films of different thicknesses.
01

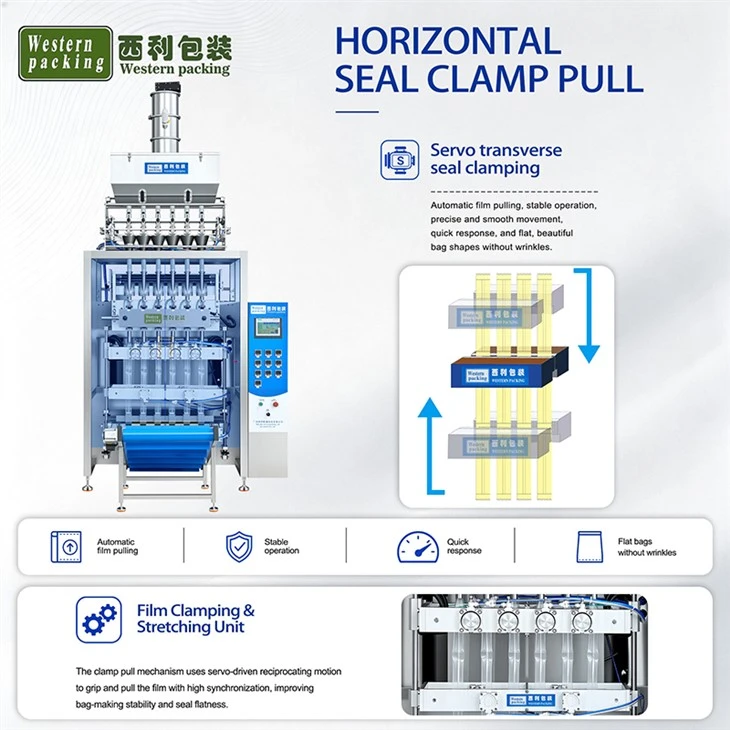

The granule stick sachet packaging machine horizontal sealing mechanism completes bag mouth sealing and bag body shaping. Servo control achieves precise clamping and pulling actions, improving sealing consistency during high-speed operation.
02
To address the issue of some packaging films sticking together after being heated, the sealing area has been optimized to improve stability during continuous operation.
03
The electrical control system is centrally installed in a separate control cabinet with a clear internal wiring layout, facilitating inspection and maintenance. It primarily controls the main unit's operating speed, temperature parameters, membrane conveying length, alarm prompts, and production counting.
04
Hot Tags: granule stick sachet packaging machine, China granule stick sachet packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Granule Stick Sachet Packaging Machine |
|
Model |
WP-880K-6 |
|
Capacity |
35-50 cycles/min |
|
Filling Range |
0.5-5g |
|
Size |
(L)50-160mm(W)25-100mm |
|
Power |
3200W |
|
Voltage |
220V/380V 50-60Hz |
|
Weight |
850kg |
|

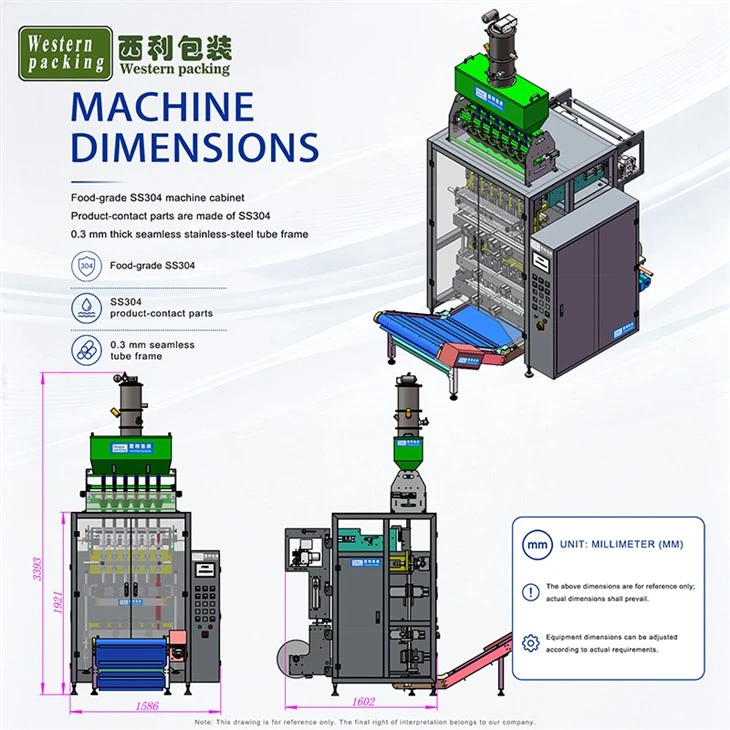

Dimension(L*W*H) |
1730*750*2550mm |
GRANULE STICK SACHET PACKAGING MACHINE

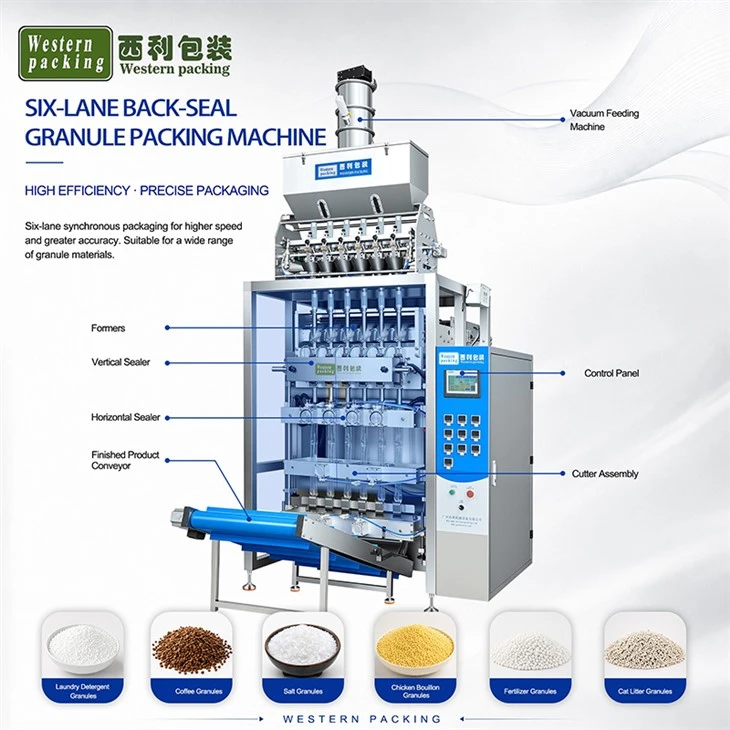

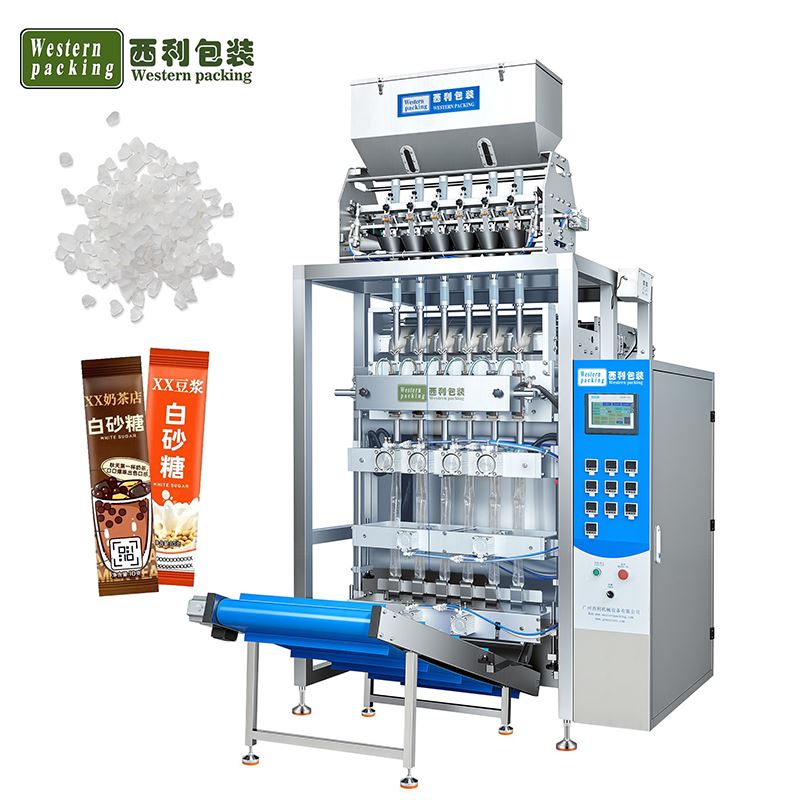

The granule stick sachet packaging machine adopts a vertical automatic packaging structure, processing roll film into individual packaging bags and automatically filling and sealing granular materials.

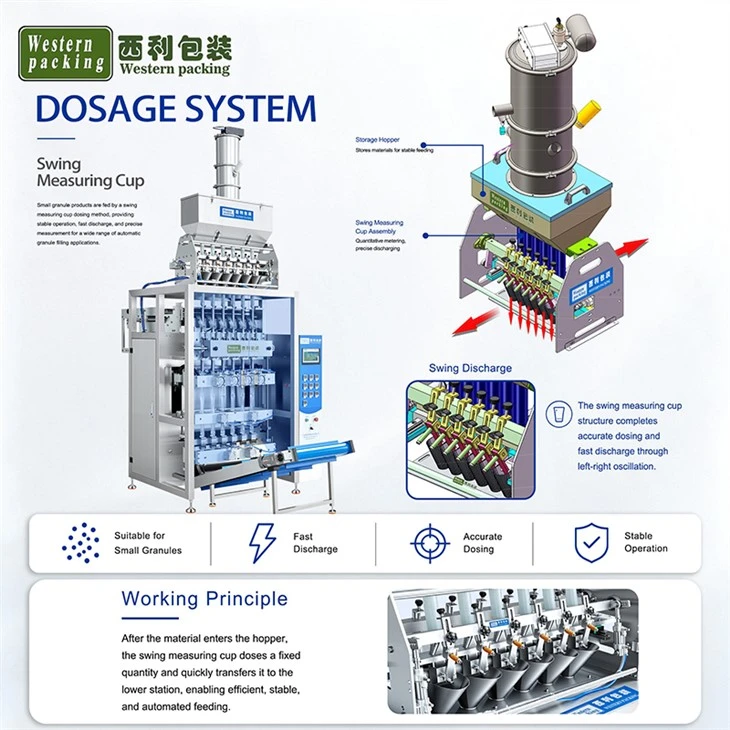

The upper part of the machine is the material supply area, equipped with a measuring cup system according to different particle characteristics; the middle part is the bag forming and filling area, where the film is accurately folded by a forming device to maintain consistent bag dimensions; the lower part is the sealing and finished product output area, where heat sealing and cutting mechanisms complete the final packaging.
Compared to manual filling methods, this equipment can maintain a stable weight for each bag of product, while reducing personnel contact with materials and improving the cleanliness of the production environment. It is suitable for cold chain consumable manufacturers with high requirements for packaging consistency.
APPLICATION SCOPE
1. Food Industry: Packaging for white sugar strips, salt strips, chicken essence, MSG granules, pepper powder granules, spice granules, sesame seeds, crushed peanuts, crushed nuts, chocolate chips, and candy granules.
2. Beverage Industry: Packaging for instant coffee granules, tea granules, milk tea powder/granule mixtures, vitamin granules, and solid beverage granules.
3. Daily Chemical Industry: Packaging for laundry detergent granules, cleaning agent granules, dehumidifier granules, and aromatherapy granules.
