Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of salt sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable salt sachet packing machine made in China here from our factory.
DETAILED DISPLAY

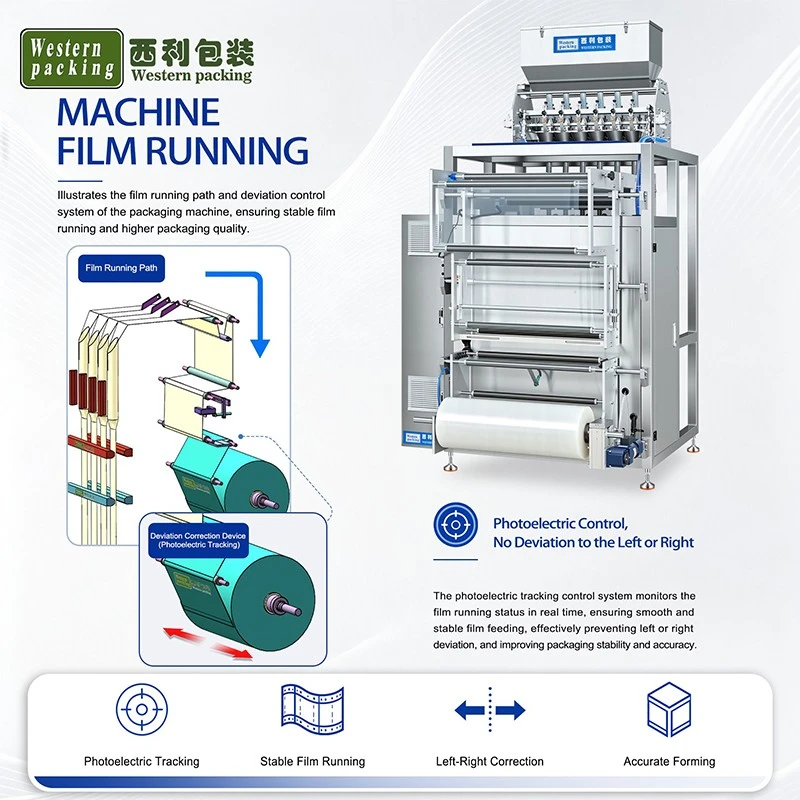

Employs an air-expansion shaft-type film feeding structure for convenient and quick installation and replacement of packaging film rolls. Combined with a tension adjustment device, it ensures stable film feeding during the process, preventing bag length errors caused by film tension variations.
01
A dedicated forming device designed according to bag width dimensions ensures smooth folding and shaping of the packaging film. The forming channel is precision-machined to reduce film running resistance and ensure bag shape stability during high-speed operation.
02

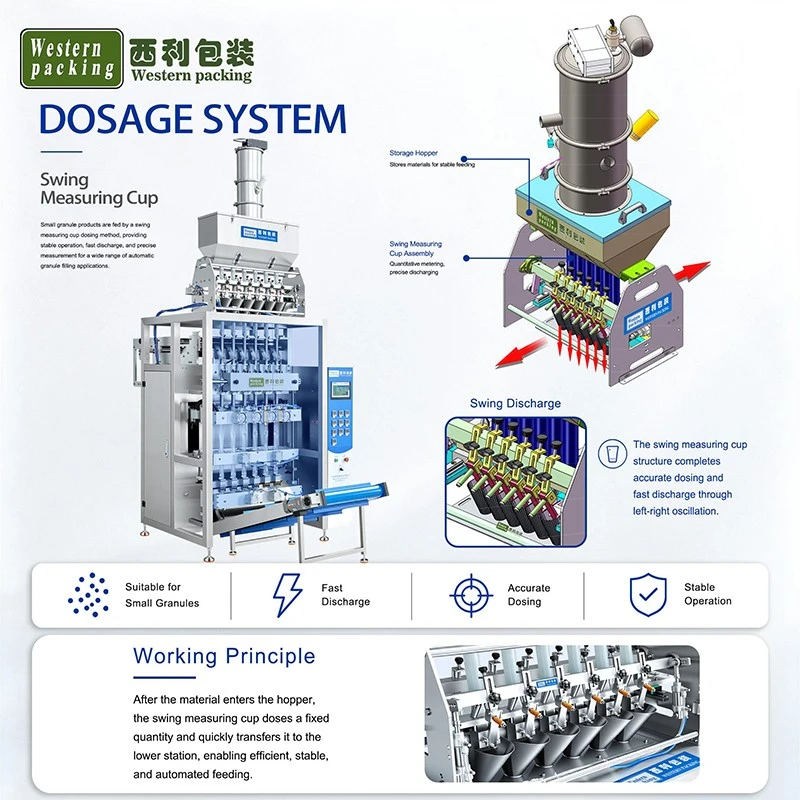

The salt sachet packing machine uses a measuring cup-type metering structure, controlling the filling weight by adjusting the measuring cup's capacity. The measuring cup assembly is easy to disassemble and can be quickly replaced according to different packaging specifications.
03
Employs a high-precision cutting structure for automatic cutting according to the set bag length. The cutter operates stably, producing clean cuts. Standard or irregularly shaped cutters can be configured as needed.
04
Hot Tags: salt sachet packing machine, China salt sachet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Salt Sachet Packing Machine |
|
Model |
WP-880K-6 |
|
Capacity |
35-50 cycles/min |
|
Filling Range |
0.5-5g |
|
Size |
(L)50-160mm(W)25-100mm |
|
Power |
3200W |
|
Voltage |
220V/380V 50-60Hz |
|
Weight |
850kg |
|
Dimension(L*W*H) |
1730*750*2550mm |

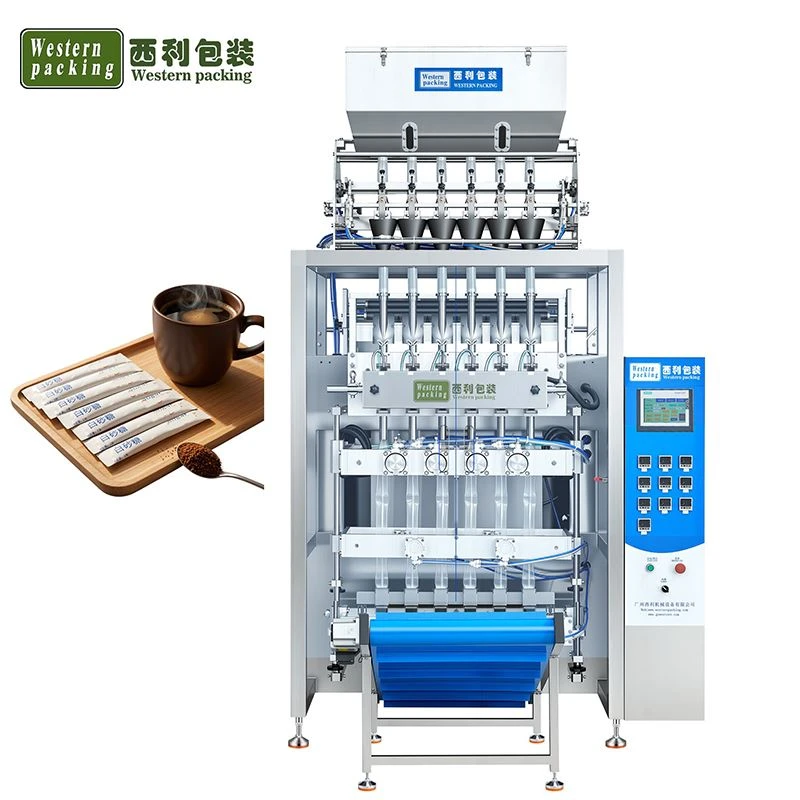

SALT SACHET PACKING MACHINE

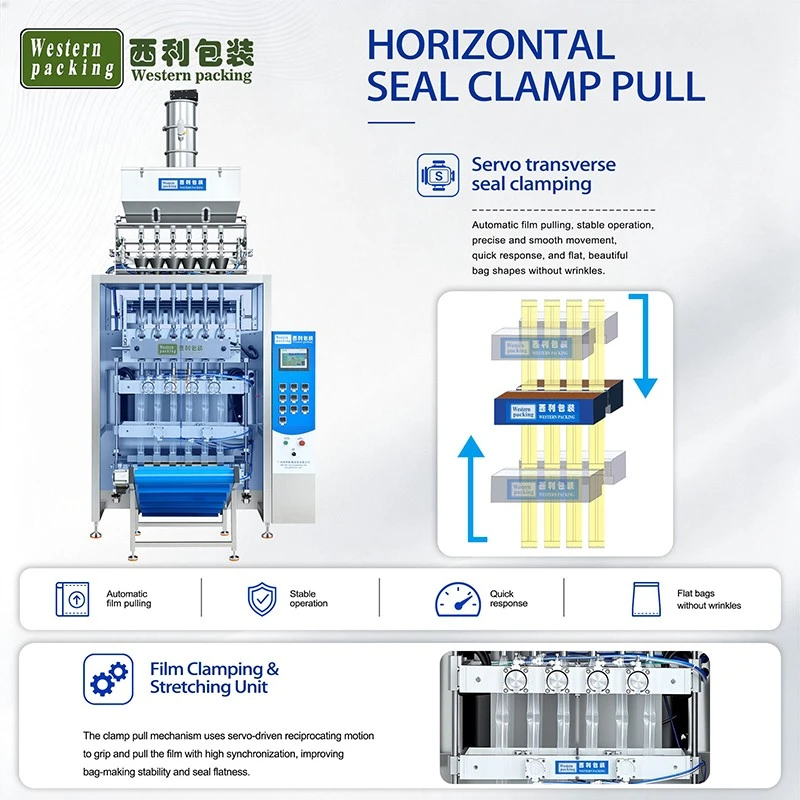

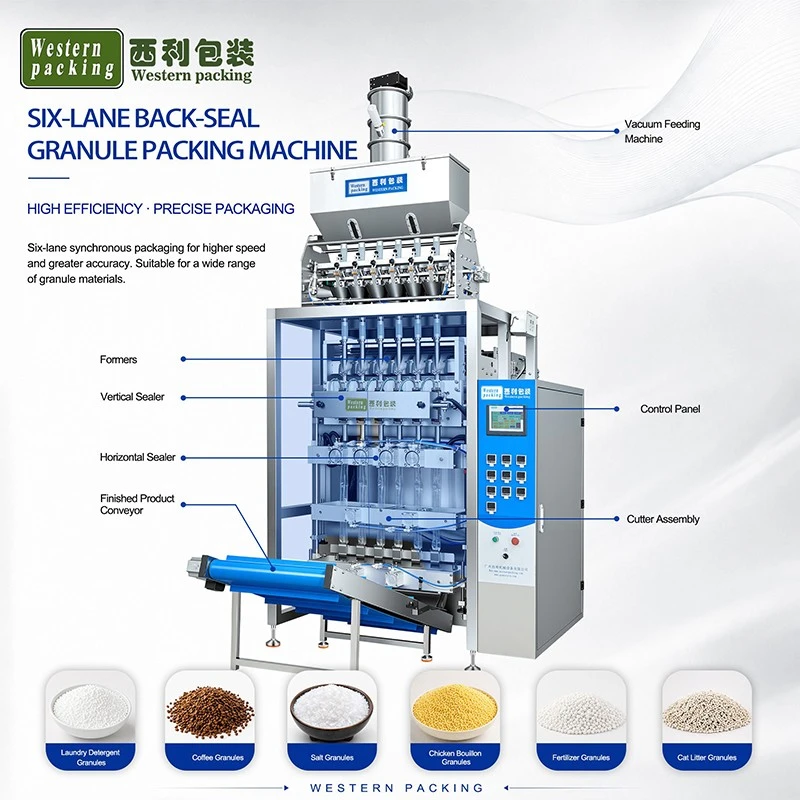

The salt sachet packing machine adopts a modular structure, dividing the packaging process into multiple independent steps: film feeding, bag formation, granule metering, precise filling, sealing, and finished product output. An automated control system coordinates the actions of each mechanism, ensuring that each package completes production according to set parameters.
Regarding material handling, the equipment is equipped with a measuring cup system suitable for granular materials, based on the characteristics of absorbent granules and ice pack materials, ensuring consistent filling weight across different batches. Simultaneously, multi-row models can achieve simultaneous operation of multiple packaging units, increasing output per unit time.
In terms of packaging quality control, the equipment is equipped with automatic alignment, temperature control, and servo film feeding functions, ensuring uniform bag size, smooth seals, and improved leak-proof performance during product transportation.
PRODUCT ADVANTAGES
1. High-precision packaging, reduced material waste: The precise metering system minimizes weight deviation per bag, ensuring more stable packaging weight and reducing material waste caused by overfilling.
2. Strong continuous operation capability: The equipment adopts an automated operation mode, enabling long-term continuous production, reducing manual intervention, improving production efficiency, and is suitable for industrial mass production.
3. Easy to clean and maintain: Material contact parts are made of food-grade stainless steel, and the structural design reduces material residue, facilitating daily cleaning and maintenance.
4. Supports customized configurations: Different numbers of rows, metering methods, and auxiliary equipment configurations can be customized according to customer packaging weight, bag size, production speed, and material characteristics.
