Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of multi lane sugar sachet packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable multi lane sugar sachet packaging machine made in China here from our factory.
DETAILED DISPLAY

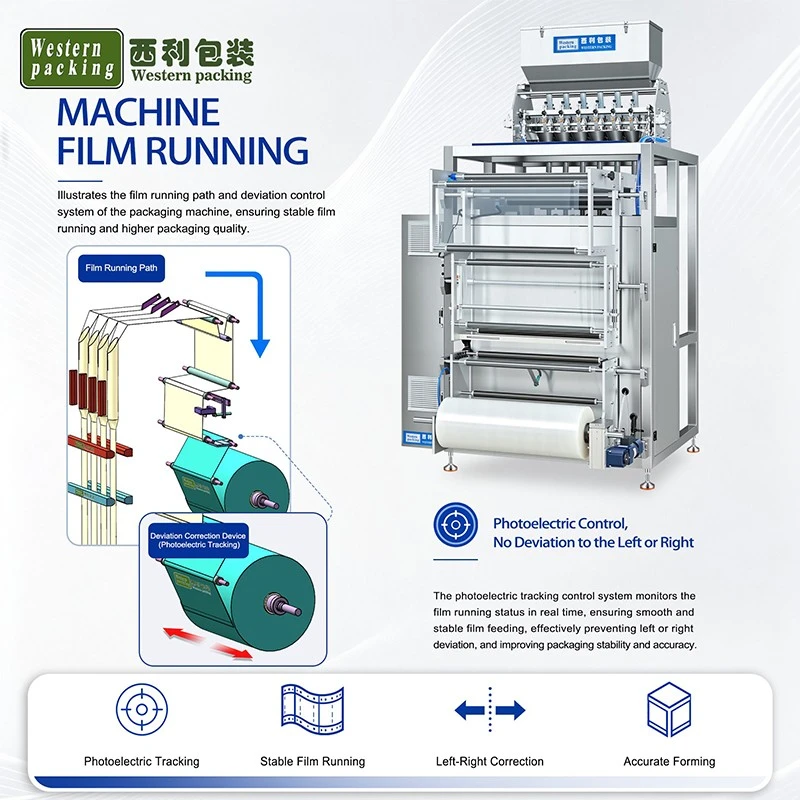

High-precision photoelectric sensors detect printed color marks on the packaging film. Automatically identify the film's position and adjust the film material's running direction in real time.
01
Precision forming molds control bag dimensions, ensuring consistent width and length for each row of bags. Customization of different bag sizes is supported.
02
The multi lane sugar sachet packaging machine vertical sealing system uses continuous heating and sealing. Sealing temperature can be independently adjusted according to the film material.
03

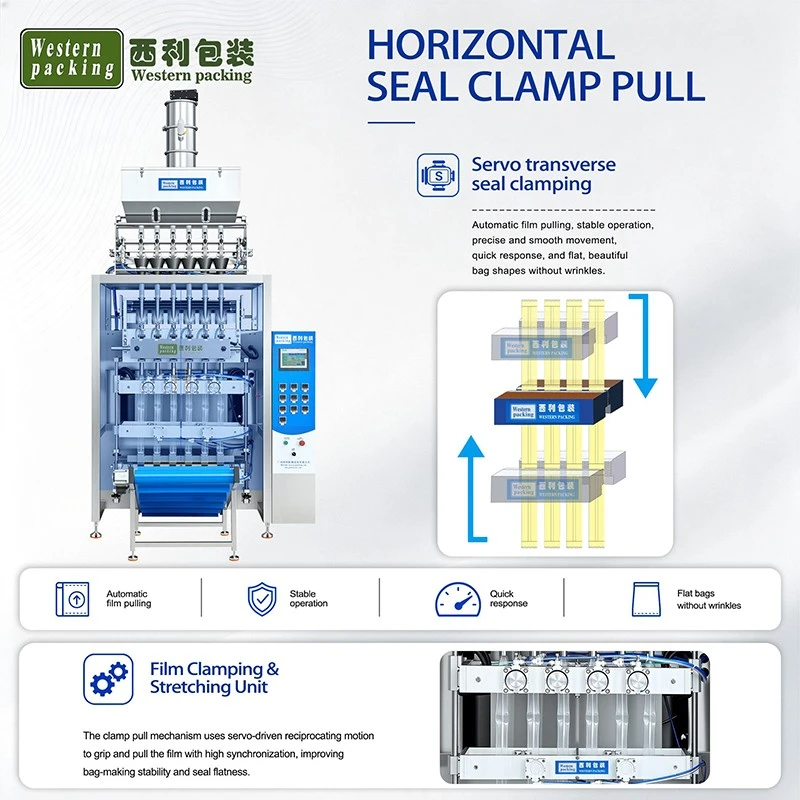

The horizontal sealing unit seals the top and bottom edges of the packaging bag. It employs a precise pressure control structure, resulting in uniform seal width and a neat appearance. Sealing parameters can be adjusted according to product requirements.
04
Hot Tags: multi lane sugar sachet packaging machine, China multi lane sugar sachet packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Multi Lane Sugar Sachet Packaging Machine |
|||
|
Model |
WP-480K |
WP-680K |
WP-880K |
WP-1080K |
|
Capacity |
40-50 cycles per min |
|||
|
Dosage |
1-30/30-70g |
|||
|
Size |
(L)30-160mm(W)25-100mm |
|||
|
Power |
2700W |
3300W |
3500W |
4000W |
|
Weight |
350kg |
450kg |
550kg |
650kg |
|
Dimension(L*W*H) |
1100*1050*2100mm |
1200*1100*2350mm |
1300*1200*2450mm |
1400*1300*2550mm |
MULTI LANE SUGAR SACHET PACKAGING MACHINE

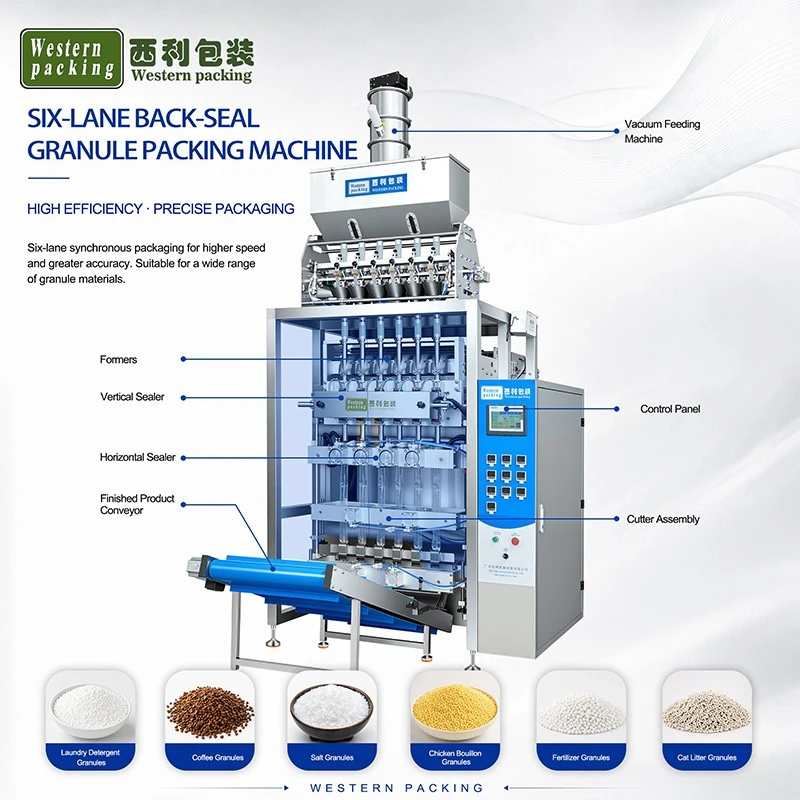

This is a fully automated, integrated machine that combines six major processes: bag making, metering, filling, sealing, cutting, and coding. Its multi-lane parallel architecture allows a single machine to achieve 3-5 times the output of a traditional single-lane machine; full servo drive enables faster specification switching; and measuring cup metering minimizes particle breakage and material waste.
For manufacturing companies whose lifeline is output, quality, and delivery, it is not only an efficiency tool but also a strategic fixed asset for improving delivery capabilities, reducing overall costs, and enhancing customer trust.
WORKING PRINCIPLE
After the multi lane sugar sachet packaging machine starts, the operator installs the roll of packaging film onto the film feeding mechanism. The system automatically releases the film material and conveys it to the forming area via guide rollers.
After positioning and detection, the packaging film enters the multi-row film separating and forming section. The equipment processes the film material into multiple independent packaging spaces according to set parameters.

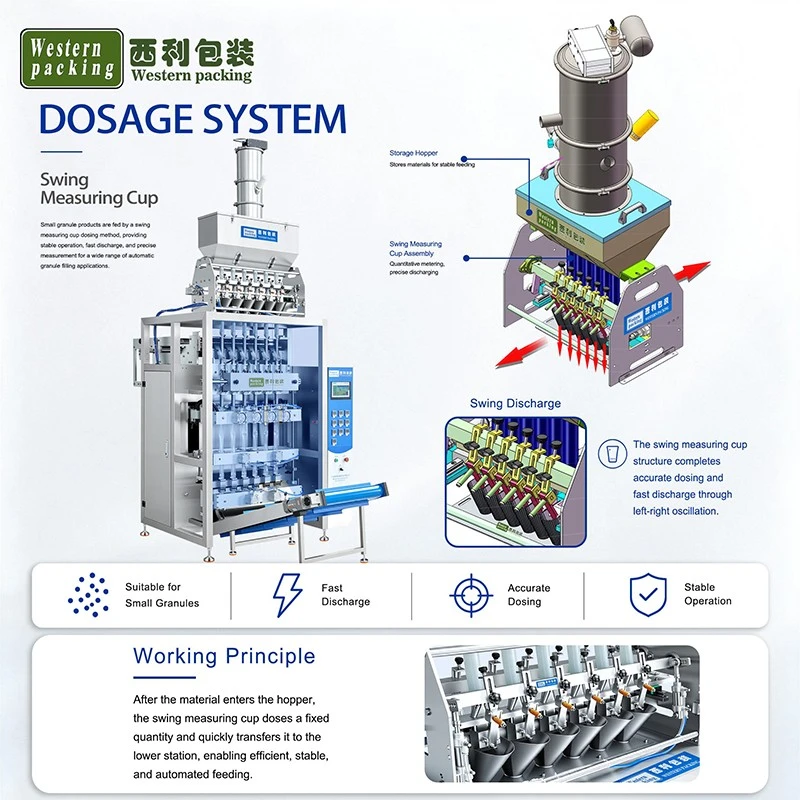

Simultaneously, granular material enters the measuring cup metering mechanism. After metering, multiple channels open simultaneously, and the material enters the corresponding bag.
The equipment then performs continuous sealing. First, the bag edge is positioned; then, a heat-sealing assembly completes the heat sealing on all four sides; finally, a cutting mechanism separates the bag into individual small bags according to set dimensions.
