Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of sugar pouch packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable sugar pouch packaging machine made in China here from our factory.
DETAILED DISPLAY
A large-capacity hopper for granular material is mounted at the top of the unit to store the product to be packaged, ensuring a stable supply for continuous, high-speed production.
01
Each packaging lane is equipped with an independent dispensing channel. Synchronized filling across lanes minimizes material interference. Configurations such as extended dispensing tubes, anti-splash structures, and anti-residue designs are available based on product characteristics.
02
The sugar pouch packaging machine forming unit converts flat packaging film into a standard bag shape. It is manufactured from wear-resistant materials to ensure a long service life.
03

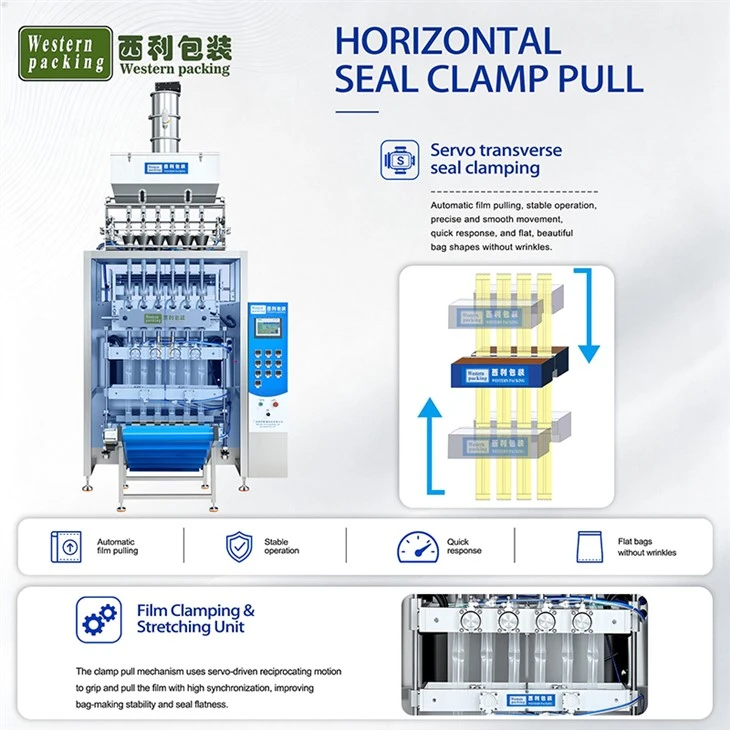

To address potential sticking issues during the high-speed heat sealing of composite films, the sealing components undergo an anti-stick treatment; this reduces film adhesion and enhances sealing stability.
04
Hot Tags: sugar pouch packaging machine, China sugar pouch packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Sugar Pouch Packaging Machine |
|||
|
Model |
WP-480K |
WP-680K |
WP-880K |
WP-1080K |
|
Capacity |
40-50 cycles per min |
|||
|
Dosage |
1-30/30-70g |
|||
|
Size |
(L)30-160mm(W)25-100mm |
|||
|
Power |
2700W |
3300W |
3500W |
4000W |
|
Weight |
350kg |
450kg |
550kg |
650kg |
|
Dimension(L*W*H) |
1100*1050*2100mm |
1200*1100*2350mm |
1300*1200*2450mm |
1400*1300*2550mm |
SUGAR POUCH PACKAGING MACHINE

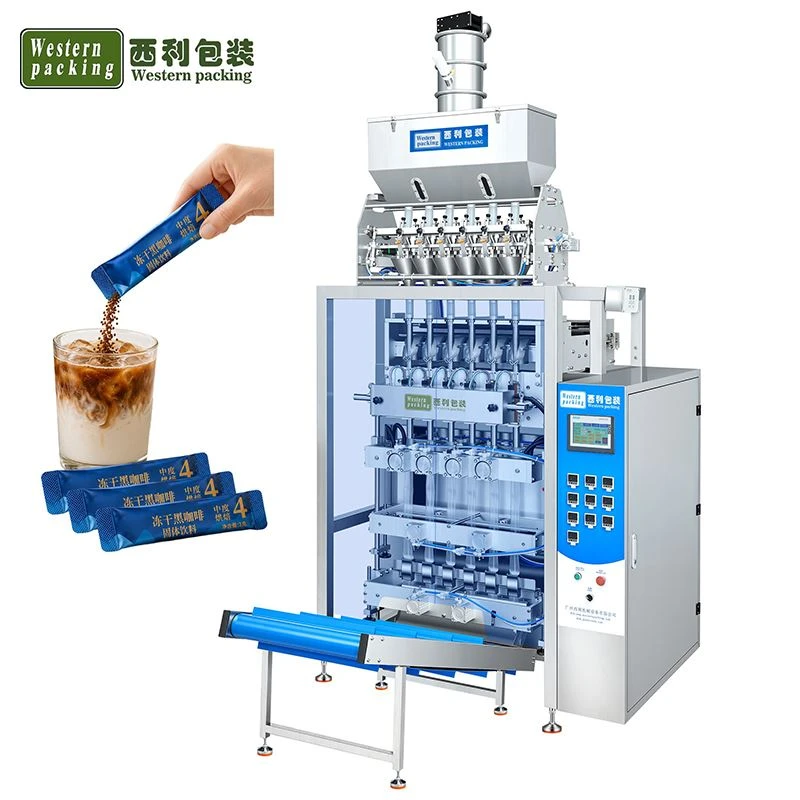

This multi-lane four-side seal sugar pouch packaging machine uses an automatic roll film feeding system, dividing the packaging film into multiple independent bags through a multi-row forming system. The core of the equipment employs a measuring cup-type metering mechanism, which adjusts the measuring cup volume to achieve precise feeding based on the density of the granule product and the packaging weight requirements.
Different structures can be selected according to product characteristics and production requirements.

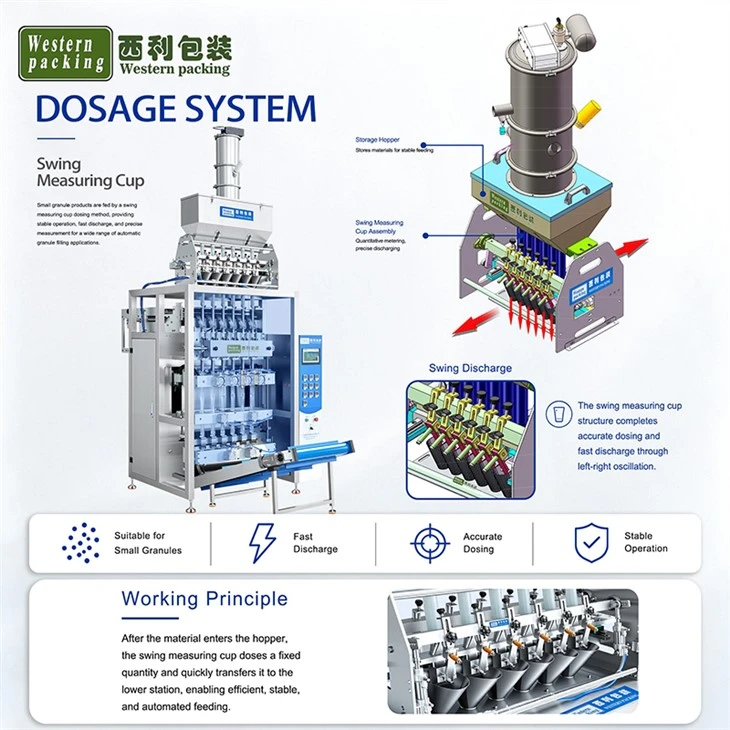

For products with stable flowability and uniform granules, the push-cup type measuring cup can achieve rapid filling through horizontal reciprocating motion; for products requiring gentler feeding and prevention of granule breakage, the swing cup structure can achieve stable metering through swinging motion.
During equipment operation, each lane corresponds to an independent metering unit, and multiple sets of measuring cups move synchronously, allowing multiple packaging bags to be filled simultaneously, increasing output per unit time.
