Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of silica gel sachet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable silica gel sachet packing machine made in China here from our factory.
DETAILED DISPLAY

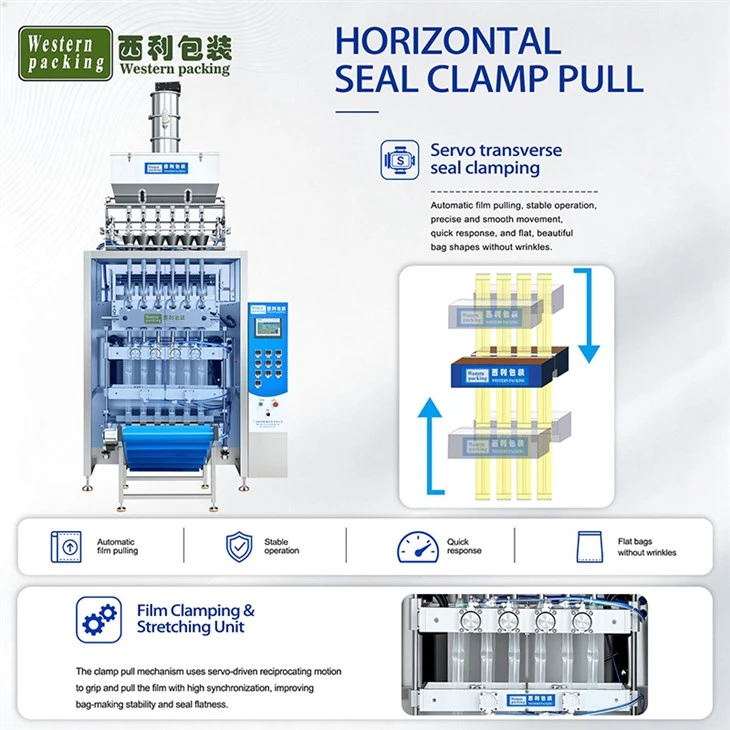

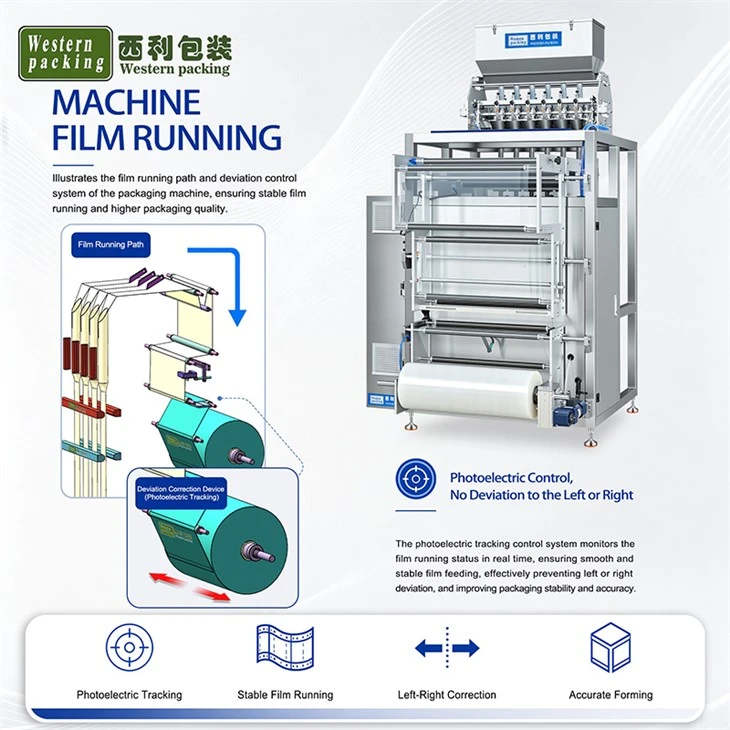

Utilizing an air-expansion shaft film-feeding structure, coupled with a tension adjustment device and guide rollers, it achieves stable film delivery, reducing film offset, wrinkling, and uneven feeding.
01

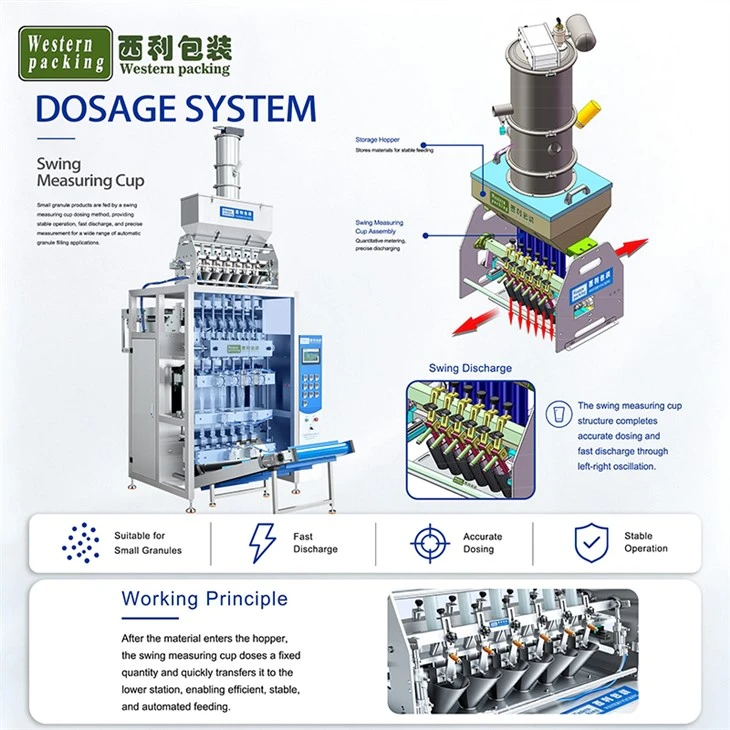

It can be equipped with different measuring cup systems to precisely control material weight, achieving stable metering during high-speed packaging and reducing material waste.
02
Each packaging column is equipped with an independent feeding channel, allowing multiple bags to be filled simultaneously and ensuring consistent feeding speeds across different channels.
03
The silica gel sachet packing machine employs precision forming components to accurately fold the flat packaging film into independent bag structures, ensuring uniform bag width, smooth forming, and adaptability to various packaging sizes.
04
Hot Tags: silica gel sachet packing machine, China silica gel sachet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Silica Gel Sachet Packing Machine |
|||
|
Model |
WP-480K |
WP-680K |
WP-880K |
WP-1080K |
|
Capacity |
40-50 cycles per min |
|||
|
Dosage |
1-30/30-70g |
|||
|
Size |
(L)30-160mm(W)25-100mm |
|||
|
Power |
2700W |
3300W |
3500W |
4000W |
|
Weight |
350kg |
450kg |
550kg |
650kg |
|

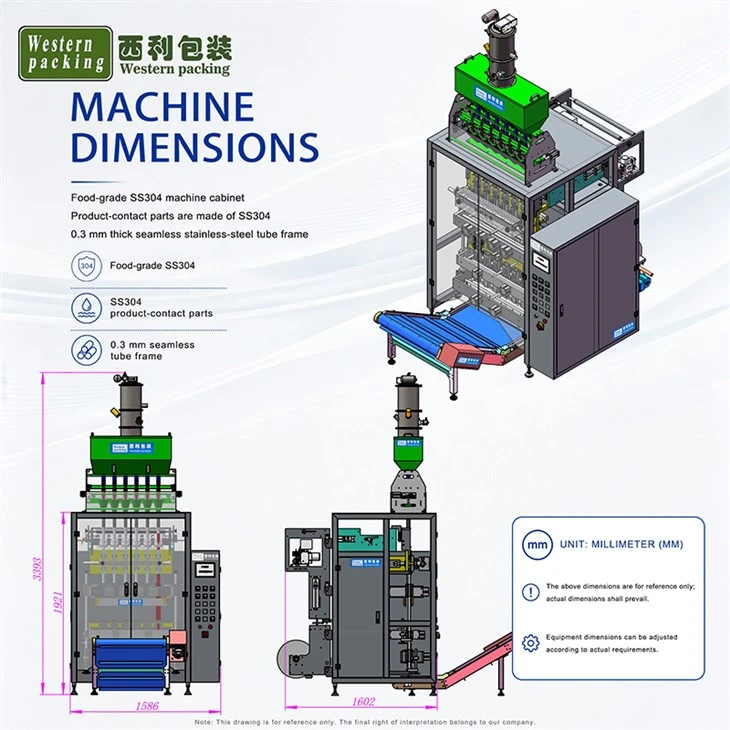

Dimension(L*W*H) |
1100*1050*2100mm |
1200*1100*2350mm |
1300*1200*2450mm |
1400*1300*2550mm |
SILICA GEL SACHET PACKING MACHINE

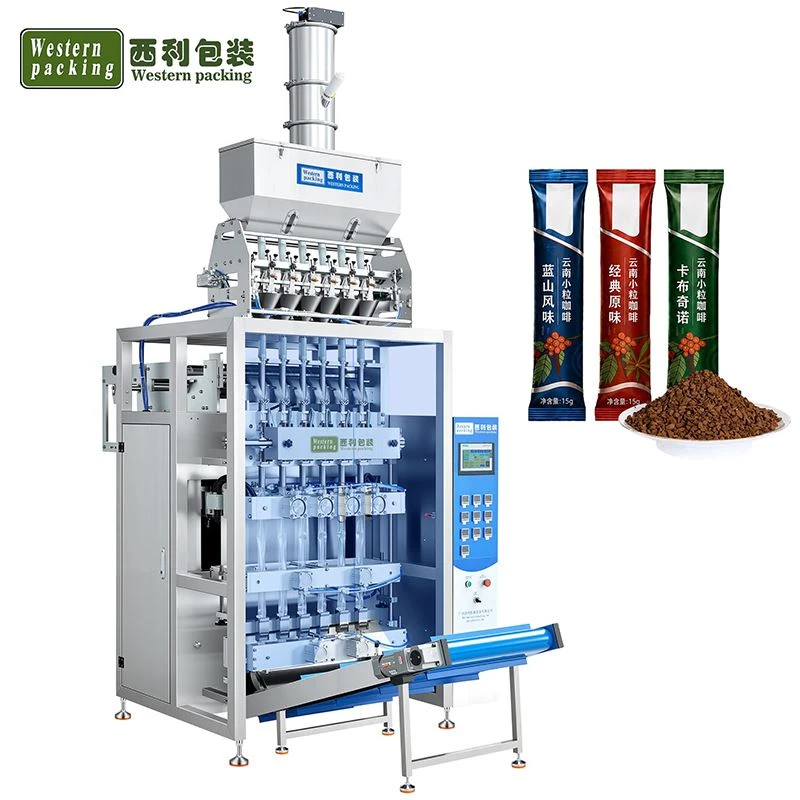

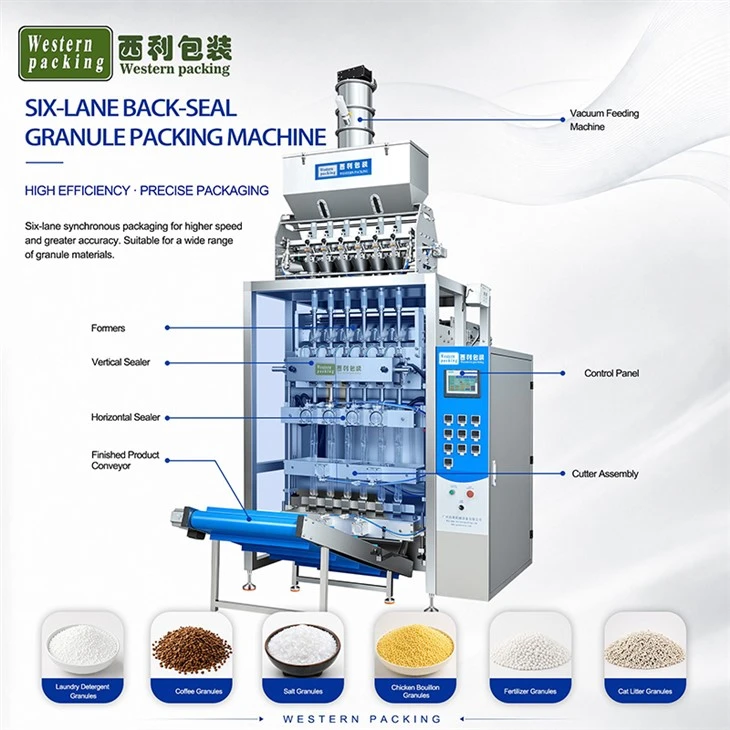

The multi-lane silica gel sachet packing machine is a continuous packaging equipment developed for high-speed automatic packaging of small-dose granular products. The equipment adopts a multi-lane synchronous packaging structure, and can be configured with different numbers of rows according to customer production capacity requirements, enabling the simultaneous production of multiple independent four-side seal pouches.
This equipment is mainly used for packaging granular products with good flowability. It controls the weight of each bag through a precise metering system, completing the entire packaging process through automatic film feeding, bag forming, quantitative filling, four-side heat sealing, bag cutting, and finished product output.
PRODUCT ADVANTAGES
1. Increased Capacity: Multi-lane parallel design, with 4-6 columns operating simultaneously, provides a stable capacity of 180-300 bags/minute. One machine is equivalent to the output of 3-5 single-column packaging machines, while requiring only one operator and occupying the same area as the machine itself.
2. Measuring Cup Measurement, Particle Breakage Rate ≤1%: Particles are measured by naturally falling into the measuring cup under their own weight, eliminating rotational shearing and extrusion grinding, resulting in a particle integrity rate of ≥99%.
3. Full Servo Drive: Parameters such as bag length and phase can be directly modified on the touchscreen without requiring replacement of gears, cams, or any other mechanical parts.
