Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of snack bottle filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable snack bottle filling machine made in China here from our factory.
DETAILED DISPLAY

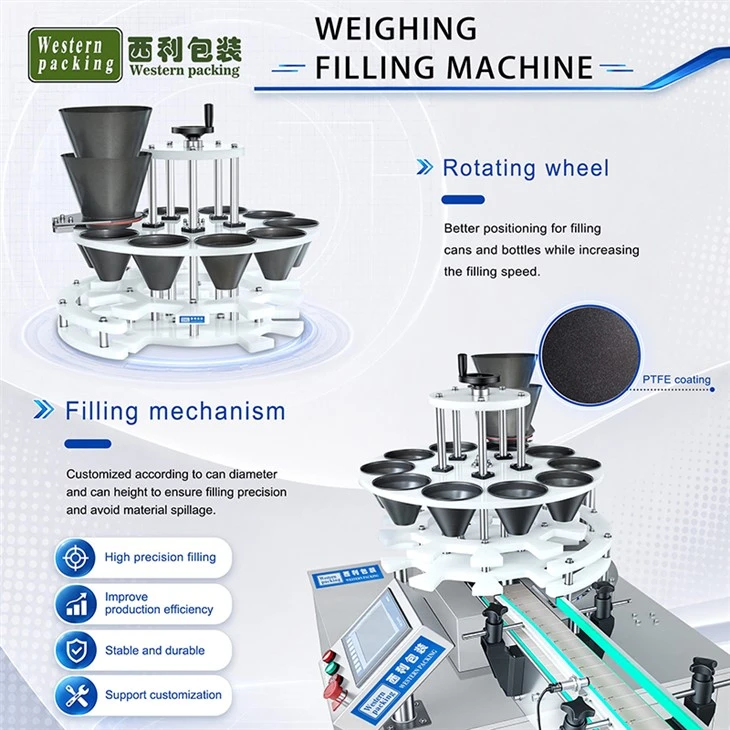

Utilizes a quick-opening and closing structure to control particle release after weighing, allowing multiple weighing hoppers to discharge simultaneously, improving filling efficiency and reducing material residue.
01
Regulates the feeding frequency through independent vibration control, ensuring that particles of different sizes and weights enter the weighing hopper evenly, while reducing particle breakage caused by excessive feeding speed.
02
The entire line's PLC control system integrates control over parameters for bottle sorting, feeding, weighing, filling, and capping processes, enabling production speed adjustment, fault alarms, and operational status monitoring.
03
The snack bottle filling machine adjusting the capping height and tightening force according to cap specifications ensures consistent sealing for each cap, preventing loose caps or over-tightening.
04
Hot Tags: snack bottle filling machine, China snack bottle filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Snack Bottle Filling Machine |
|
Filling Weight |
100-500-2000g(customizable) |
|
Weighing Range |
20-2000g |
|
Weighing Accuracy |
±1-3g |
|
Filling Speed |
30-65bottle/min |
|
Power |
380V/220V/50-60Hz |
SNACK BOTTLE FILLING MACHINE

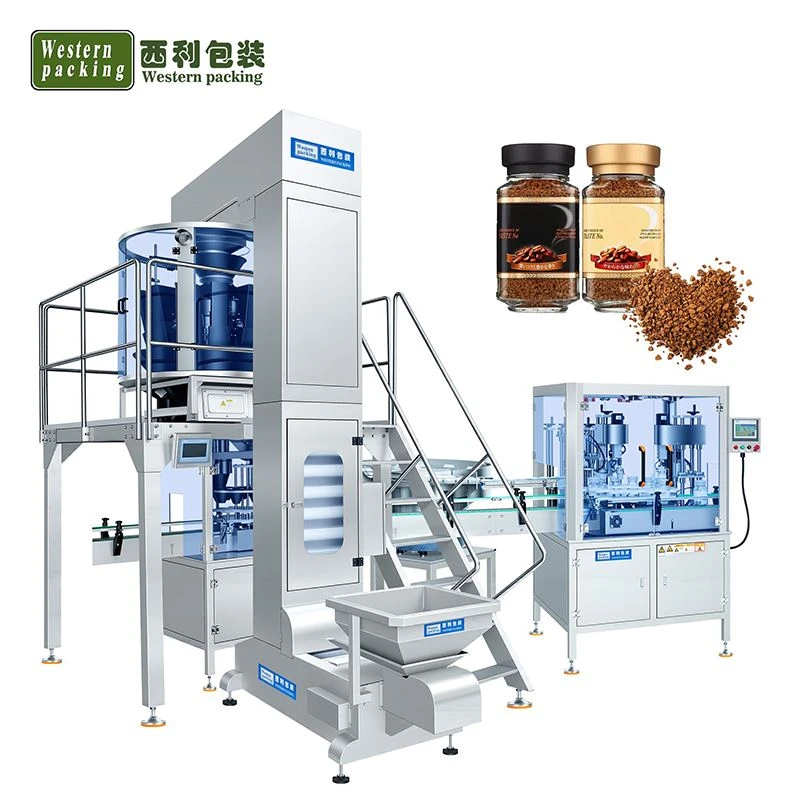

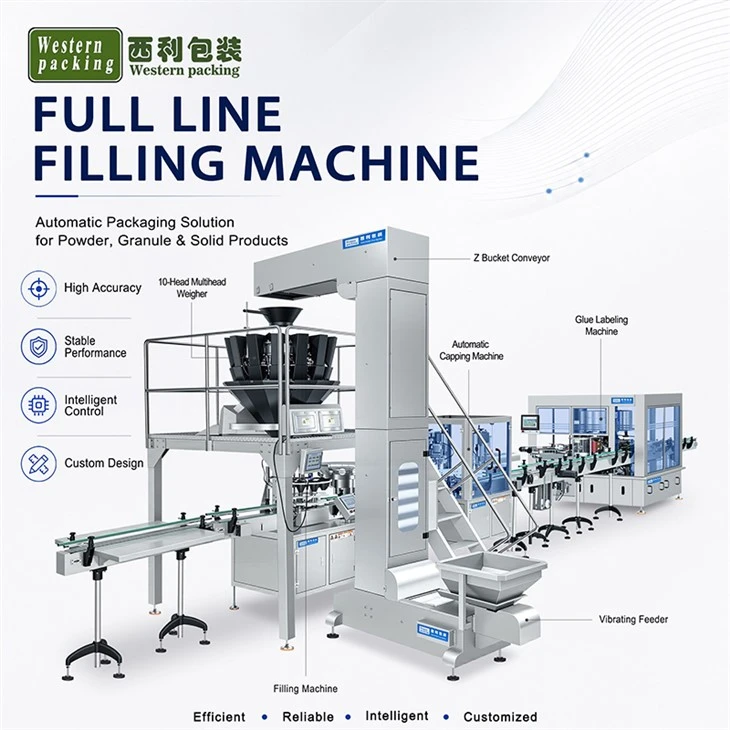

This snack bottle filling machine is primarily used for the automated bottling of granular food products. It utilizes a multi-head combined weigher for precise weighing, combined with an automatic filling and capping system to achieve stable and continuous production.

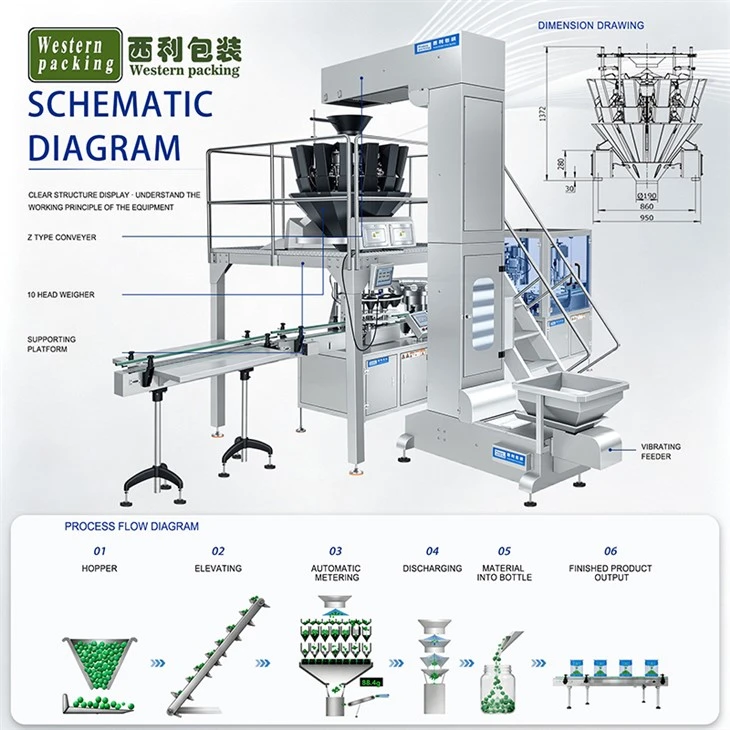

During production, granular material enters the upper storage hopper and is then evenly conveyed to multiple weighing hoppers via a vibrating feeder. Each weighing unit independently detects the material weight. The control system automatically calculates multiple hopper combinations based on the target weight and selects the combination closest to the set value for rapid dispensing.

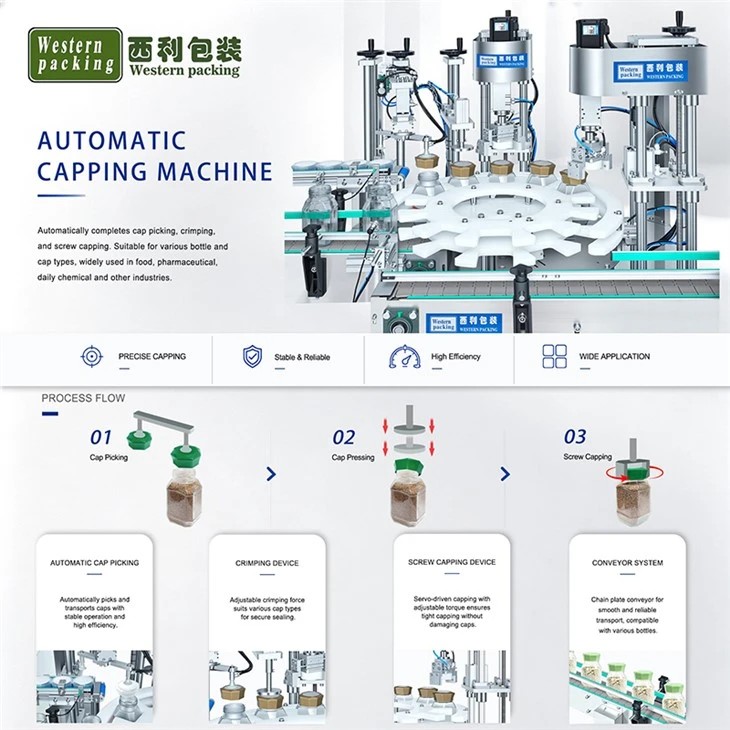

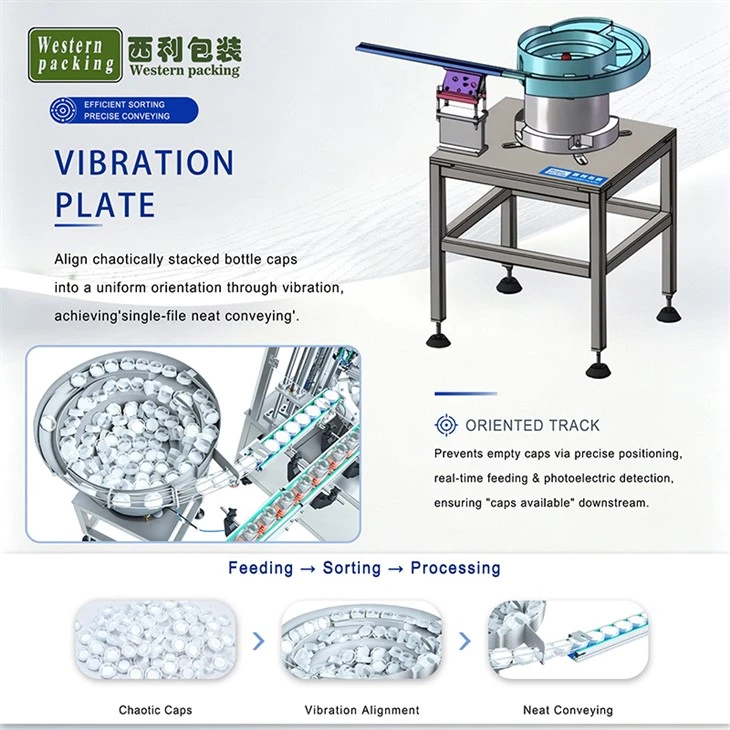

After filling, the bottles automatically enter the capping area. A cap sorting mechanism arranges the caps and conveys them to the bottle neck. The capping head locks the caps according to a set torque, ensuring a uniform sealing effect for each bottle.
PRODUCT ADVANTAGES
1. Improved Packaging Efficiency for Granular Foods: This equipment connects multiple production stages through automatic weighing, filling, and sealing, enabling continuous production and increasing output per unit time.
2. Consistent Weight for Each Bottle: The biggest challenge in granular food packaging is the significant variation in product shape and weight. The multi-head combination scale automatically compensates for these weight differences by combining multiple weighing hoppers, ensuring each bottle's weight is closer to the set target.
3. More Suitable for Long-Term Continuous Production: The equipment features an industrial-grade structural design, ensuring a stable frame, low operating noise, wear-resistant key components, and easy maintenance, making it suitable for food production environments requiring continuous operation for multiple hours daily.
