Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of cashew nut filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable cashew nut filling machine made in China here from our factory.
DETAILED DISPLAY
An automatic feeding elevator continuously transports bulk granular materials from the lower storage area to the top hopper of the multi-head scale. The conveying speed is automatically matched to the material consumption rate of the multi-head scale to maintain continuous feeding.
01
A vibrating feeding system evenly distributes the granules in the storage hopper to each weighing hopper. It employs a multi-stage vibrating feeding structure to ensure uniform material flow.
02
Multiple independent weighing units are configured, each operating independently. The weight of material in each weighing hopper is monitored in real time. Different numbers of weighing heads can be configured according to product requirements.
03
The cashew nut filling machine's weighing sensors are responsible for real-time monitoring of the weight of material in each hopper, ensuring stable metering even at high speeds.
04
Hot Tags: cashew nut filling machine, China cashew nut filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Cashew Nut Filling Machine |
|
Filling Weight |
100-500-2000g(customizable) |
|
Weighing Range |
20-2000g |
|
Weighing Accuracy |
±1-3g |
|
Filling Speed |
30-65bottle/min |
|
Power |
380V/220V/50-60Hz |
CASHEW NUT FILLING MACHINE

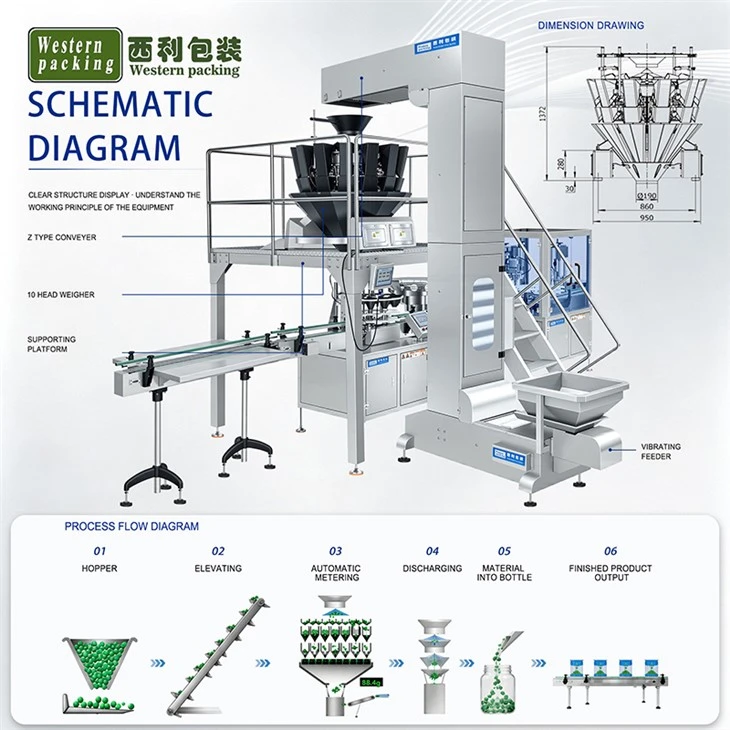

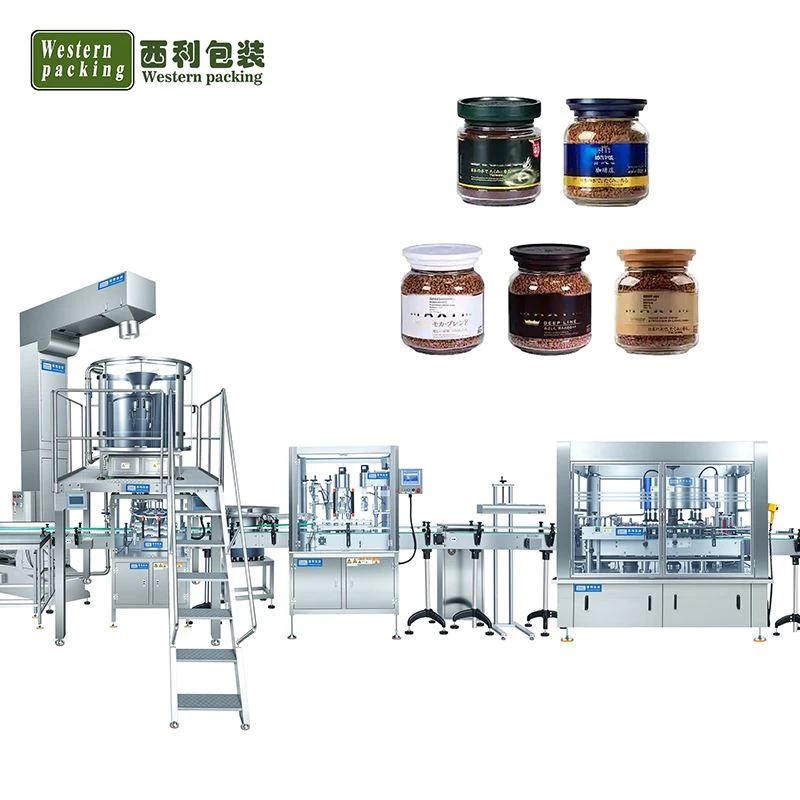

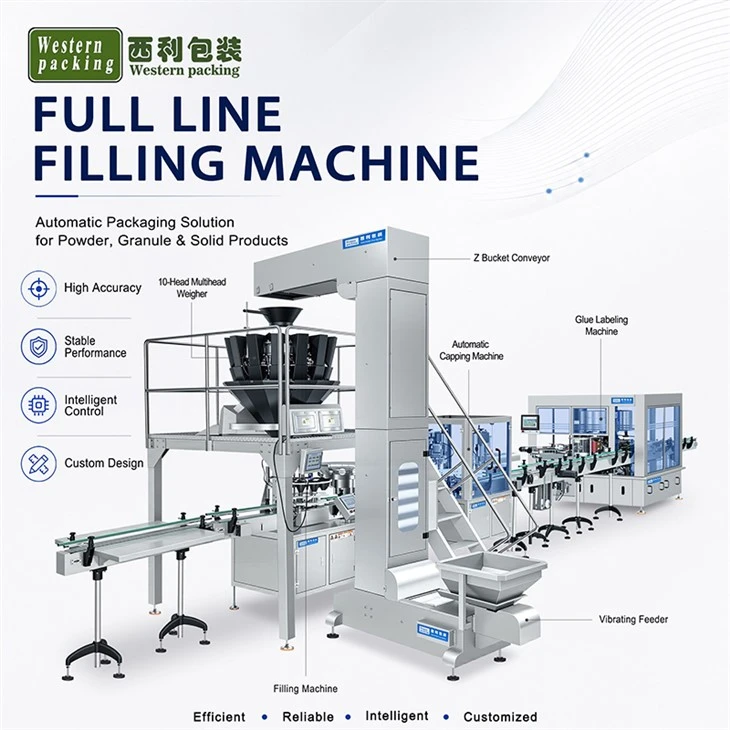

This filling line consists of modules such as a Z-type elevator, a vibrating feeder, a high-precision multi-head weighing combination scale, a filling host, and a PLC central control system.

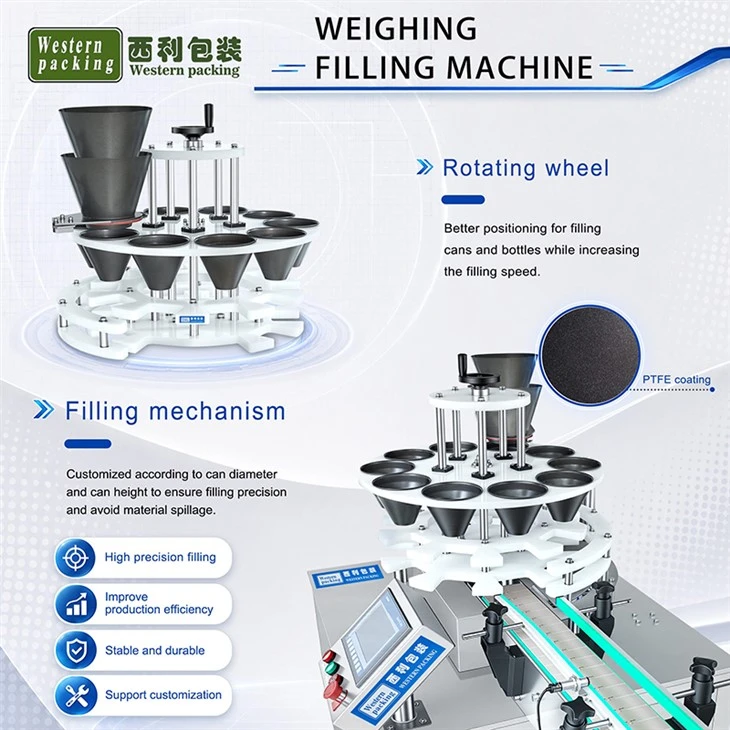

The cashew nut filling machine supports various container types, including round bottles, square bottles, irregularly shaped bottles, metal cans, and plastic cans. The multi-head scale (typically configured with 10, 14, or 20 heads) uses the "combined weighing" principle to select the closest combination of hoppers to the target weight from multiple hoppers in a very short time, achieving a balance between high speed and high precision. The filling host is equipped with container detection sensors and a lifting filling mechanism to effectively prevent material splashing and container misalignment, ensuring the stability and cleanliness of the production process.
WORKING PRINCIPLE

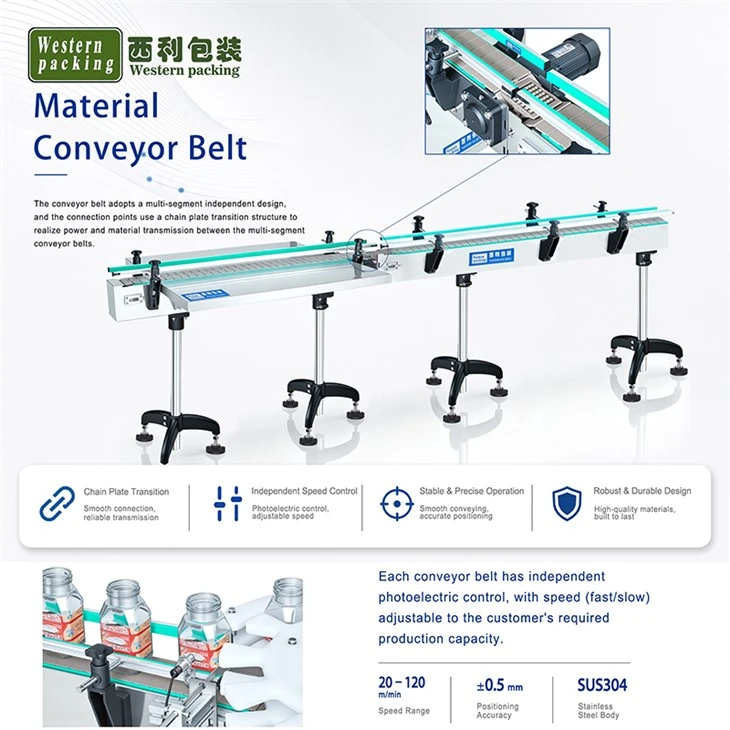

The material is vertically conveyed by a Z-shaped elevator to the top distribution plate of the multi-head scale, where it is evenly distributed to each linear vibrating feeder. The vibrating feeders then feed the material into each weighing hopper. Each weighing hopper independently senses the real-time weight and drops the material in a concentrated manner. Simultaneously, the filling machine precisely positions the bottle or can below the filling head via a conveyor belt and bottle separating mechanism. Once the photoelectric sensor detects that the container is in position, the filling head automatically rises and falls to the appropriate height, ensuring that all the material falls into the container and avoiding splashing.
