Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of freeze dried coffee filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable freeze dried coffee filling machine made in China here from our factory.
DETAILED DISPLAY
Each weighing hopper is equipped with an independent weighing sensor, which can detect material weight in real time and automatically combine the optimal weight for high-speed, accurate weighing.
01

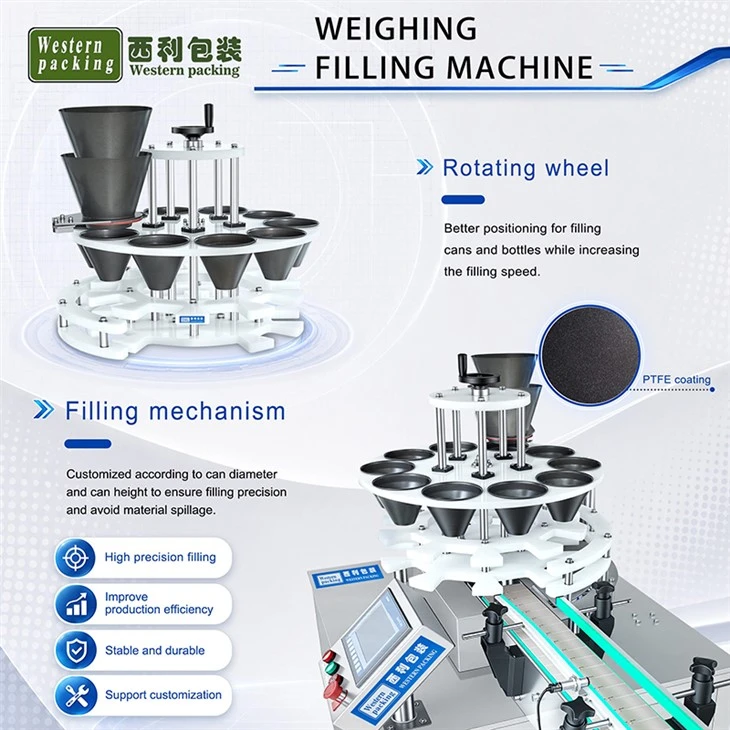

Connects the multi-head scale to the bottle neck, optimizing the feeding path to reduce particle impact during descent, minimizing breakage and splashing of fragile products such as freeze-dried coffee and nuts.
02
The freeze dried coffee filling machine photoelectric detection devices check cap installation and bottle condition, automatically identifying and rejecting abnormal products online.
03

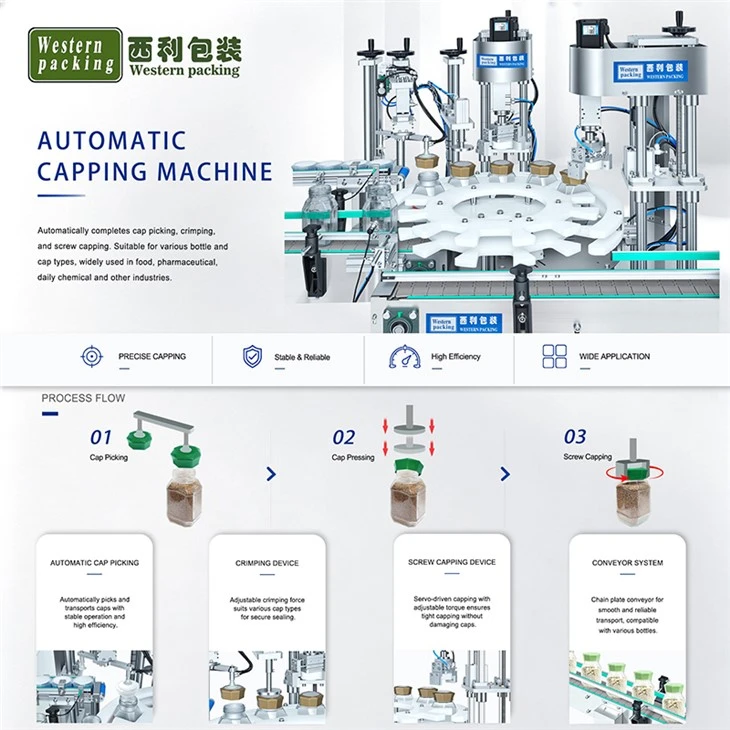

Guide rails control the direction of cap movement, accurately placing caps at the center of the bottle opening to ensure smooth capping.
04
Hot Tags: freeze dried coffee filling machine, China freeze dried coffee filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Freeze Dried Coffee Filling Machine |
|
Filling Weight |
100-500-2000g(customizable) |
|
Weighing Range |
20-2000g |
|
Weighing Accuracy |
±1-3g |
|
Filling Speed |
30-65bottle/min |
|
Power |
380V/220V/50-60Hz |

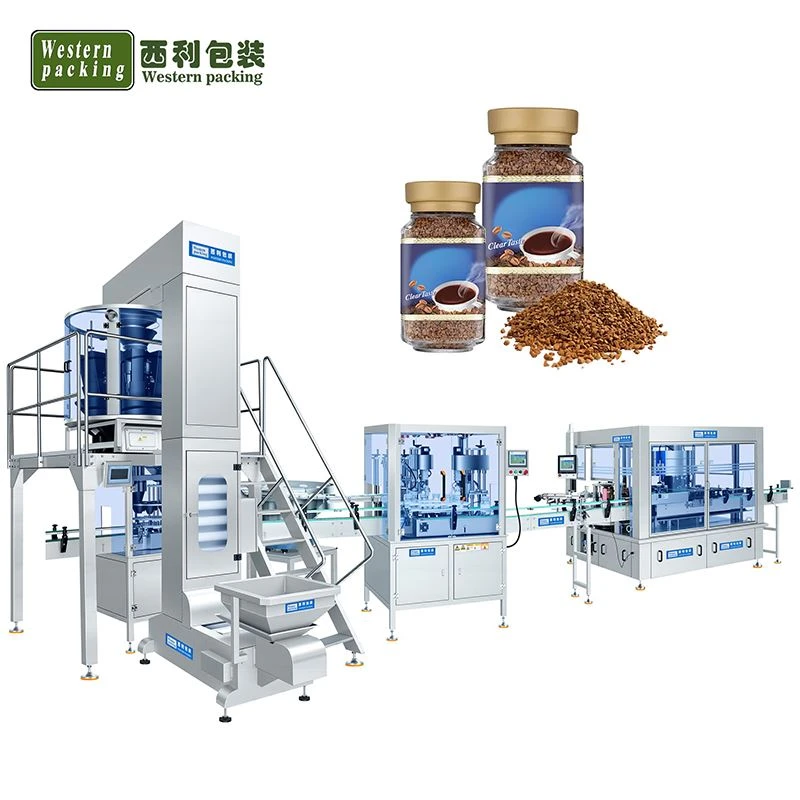

FREEZE DRIED COFFEE FILLING MACHINE

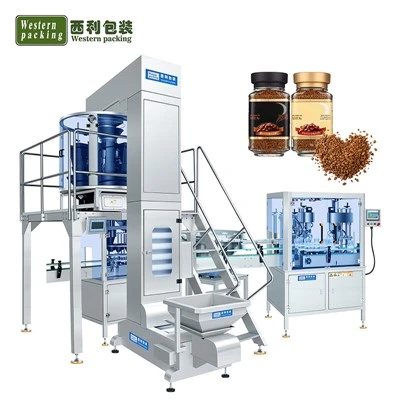

The biggest challenge in the bottling of granular food products is not simply filling the bottles, but ensuring accurate weight, intact granules, neat bottle shapes, and secure caps under high-speed production conditions. This freeze dried coffee filling machine is designed to meet these production requirements.
In the filling stage, a multi-head weighing system pre-disperses, weighs, and calculates the weight of the granules, ensuring that the weight of each product entering the bottle is closer to the target value. For granular products with significant density variations, such as nuts and freeze-dried coffee, the combined weighing method reduces single-batch measurement errors.

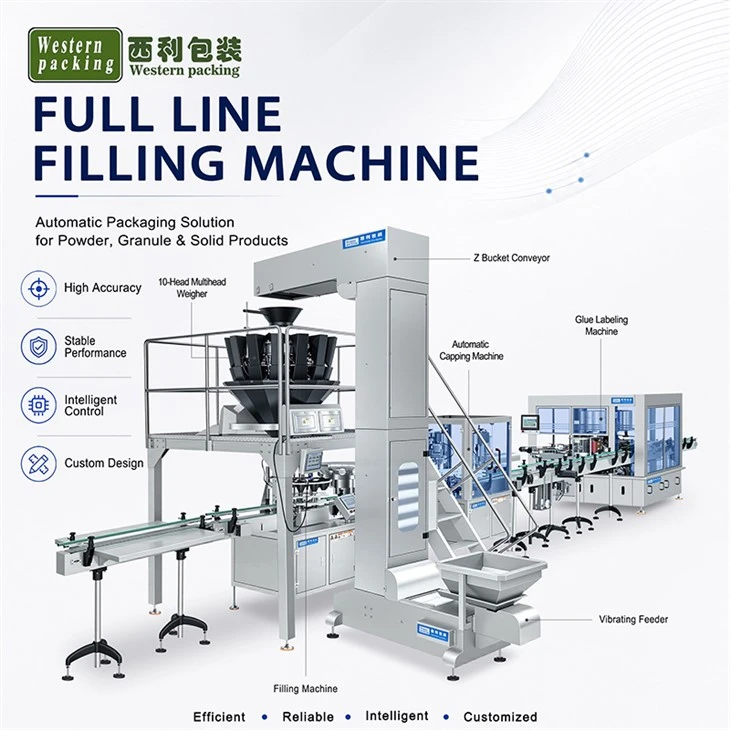

In the subsequent packaging stage, the equipment automatically arranges and tightens the bottle caps, allowing the finished bottles to directly enter the sealing process after filling, reducing intermediate manual operations and improving production line continuity.
WORKING PRINCIPLE

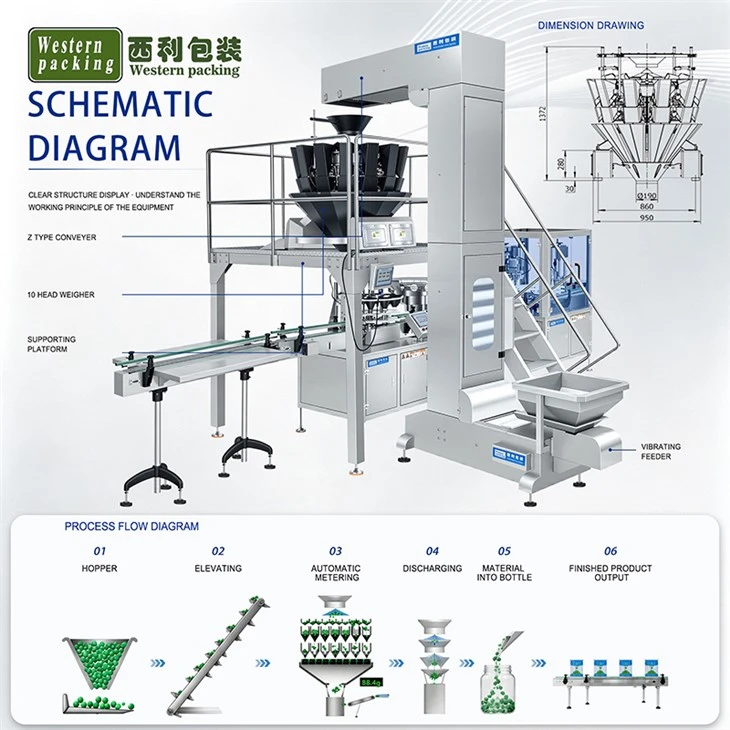

During operation, granular material first enters the top storage hopper of the multi-head scale.
The feeding system vibrates and feeds the material according to its condition, evenly distributing the granules into multiple weighing hoppers. Each weighing hopper is equipped with a high-precision load cell to monitor the current weight in real time.
When the system receives the target filling weight, the PLC control system calculates the optimal combination, for example, selecting a combination of weighing hoppers that meet the weight requirement to open simultaneously, allowing the granules to quickly enter the filling channel below.

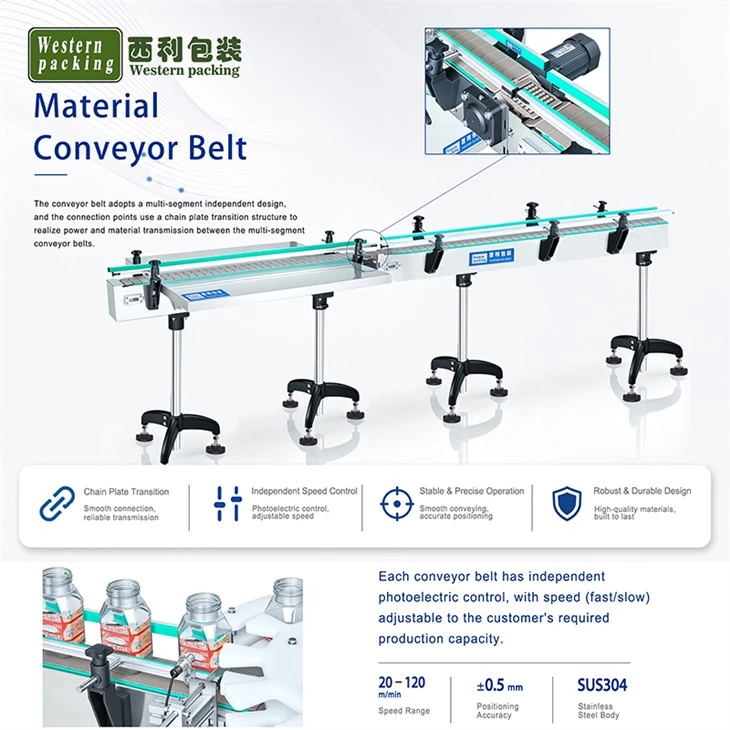

Bottles enter the filling position via a conveyor belt, where a positioning mechanism secures the bottle. After quantitative feeding, the bottles enter the capping station, finally outputting sealed bottled food.
