Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of cosmetic liquid filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable cosmetic liquid filling machine made in China here from our factory.
DETAILED DISPLAY

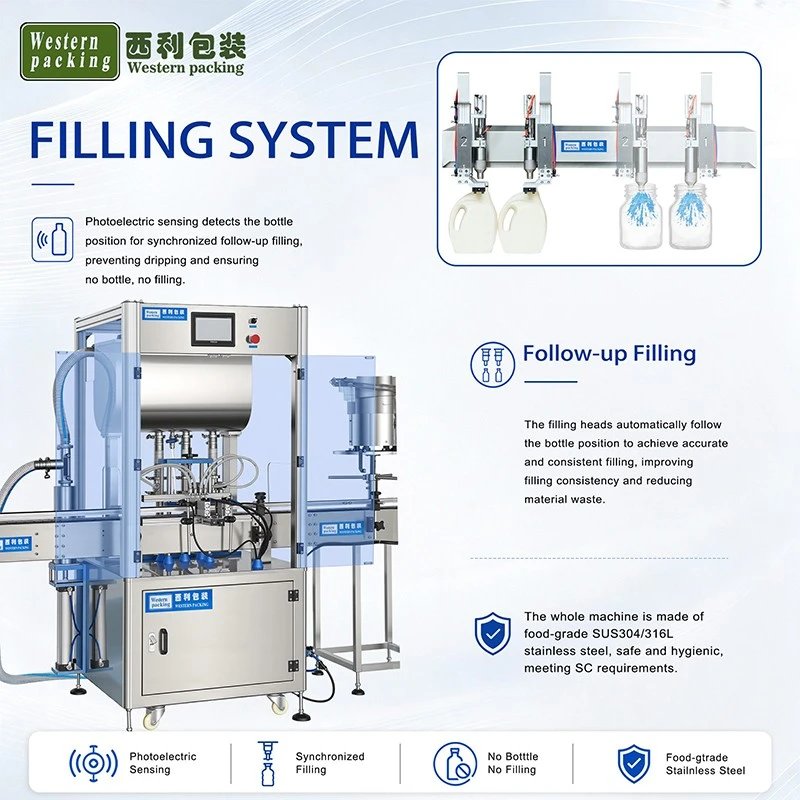

The filling nozzle is designed to fit bottle necks of various diameters; during filling, the nozzle can extend into the bottle neck and rise slowly with the liquid level, reducing foam and splashing caused by impact.
01

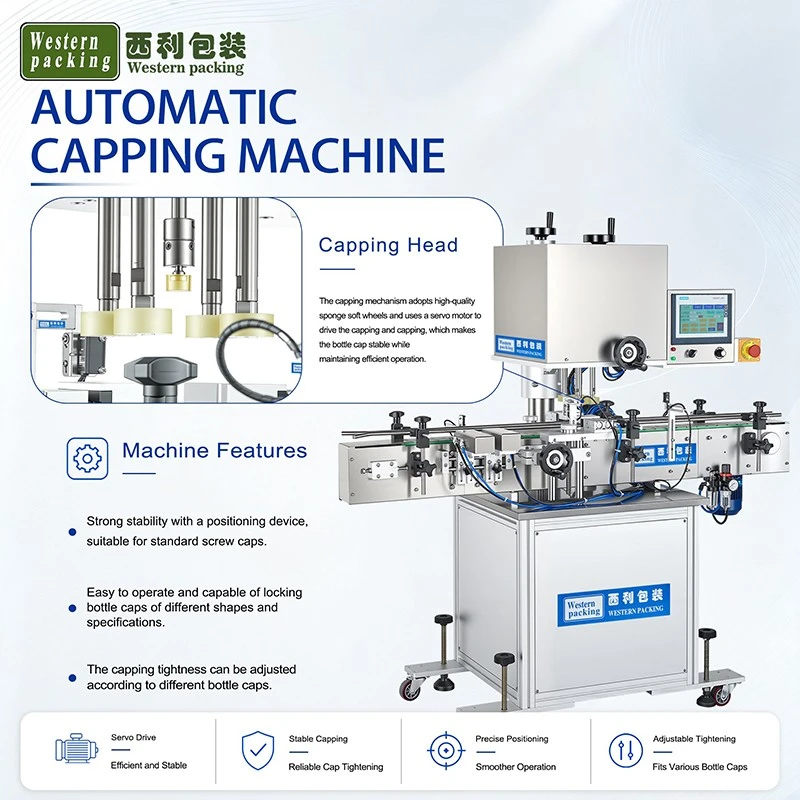

In continuous filling lines, the capping head can move synchronously with the conveyor belt, achieving "walking and rotating" without stopping, increasing the overall line speed.
02
When the bottle inlet sensor detects that no bottles have been in place for a set time, it automatically stops the filling pump and capping motor, resuming automatically once the bottles are back in place, avoiding empty filling and energy waste.
03
The cosmetic liquid filling machine is constructed of stainless steel with a smooth surface treatment for easy cleaning, making it suitable for industries with high hygiene requirements, such as food and cosmetics.
04
Hot Tags: cosmetic liquid filling machine, China cosmetic liquid filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Cosmetic Liquid Filling Machine |
|
Output power |
2000 W |
|
Voltage |
AC220V/380, 50/60 Hz |
|
Machine weight |
800 kg |
|
Productive Capacity |
1000-6000 BPH (customized) |
|
Filling Range |
50-1000 ml (Customer made available) |
COSMETIC LIQUID FILLING MACHINE

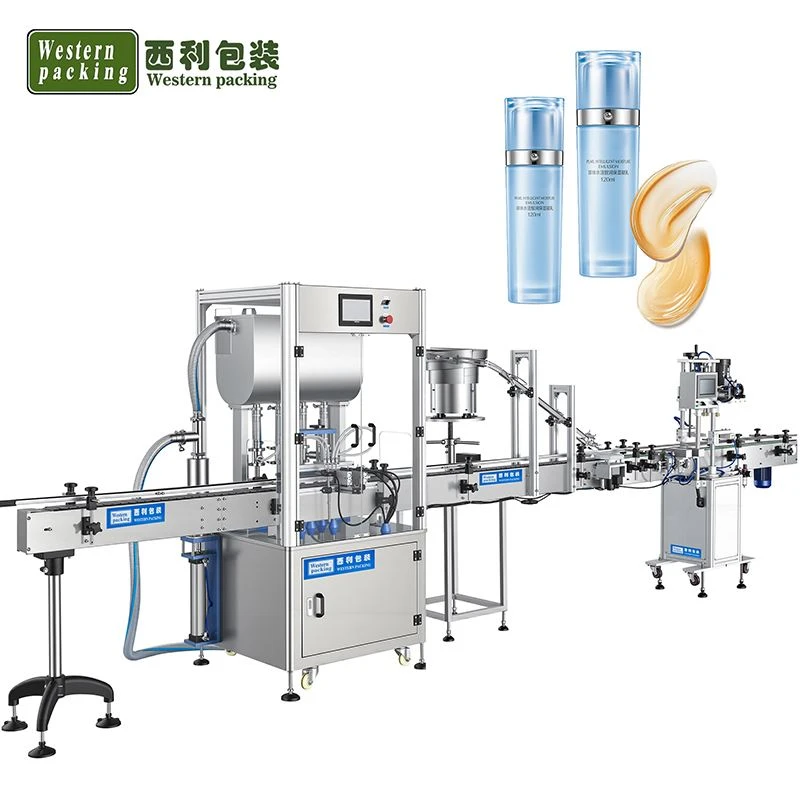

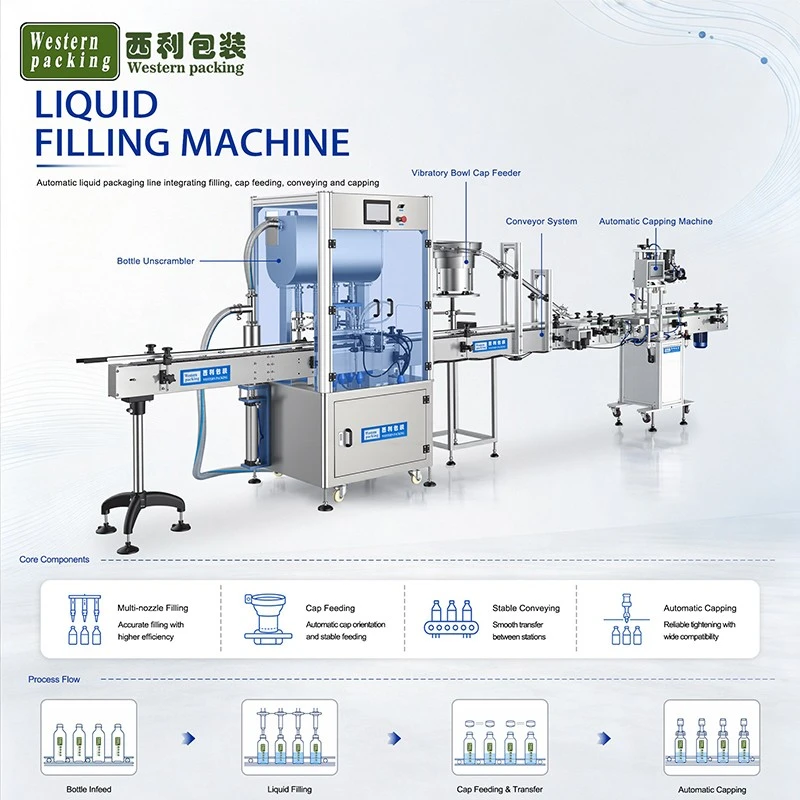

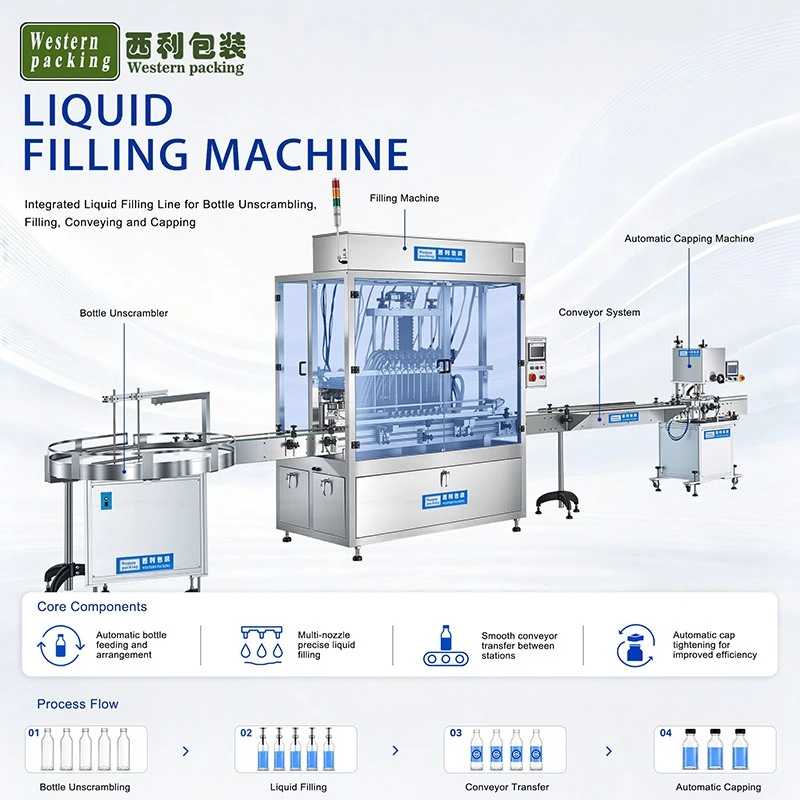

This production line features a modular design, integrating bottle feeding, quantitative filling, capping/sealing, labeling, and bottle collection into a single unit, achieving fully automated flow from empty bottles to finished products, significantly improving packaging efficiency and filling accuracy.
The cosmetic liquid filling machine main body is constructed from high-quality stainless steel, suitable for both food-grade and general industrial production environments. The equipment supports switching between multiple container sizes, allows for digital setting of filling volume, and is equipped with an anti-drip device and an automatic liquid level compensation system to ensure consistent metering during continuous operation. The entire line has a compact footprint, and the power and control systems are integrated into a unified operating platform for easy daily monitoring and maintenance.
PRODUCT FEATURES
Precisely adjustable filling volume: The touchscreen allows direct setting of the milliliter volume, and formula parameters are retrieved when switching between different specifications, eliminating the need for mechanical adjustments.

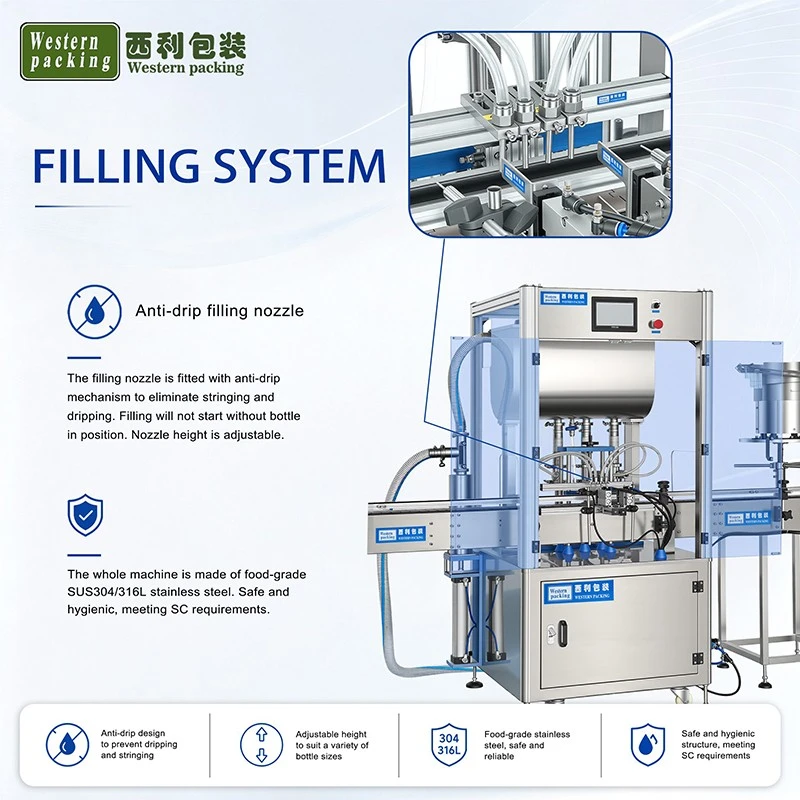

Drip-proof and spill-proof design: The filling nozzle is equipped with a back-suction device that automatically draws back residual droplets after cutting, keeping the bottle mouth and equipment clean.
Multiple safety protections: Including no-fill-if-miss, overload shutdown, low-level alarm, and access control, ensuring the safety of personnel and equipment.
