Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of nuts bottle filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable nuts bottle filling machine made in China here from our factory.
DETAILED DISPLAY
An automatic feeding system continuously transports granular materials from the low-level storage area to the upper hopper of the multi-head combined scale, reducing manual handling and frequent feeding.
01
Each weighing hopper is individually controlled to open and close, improving assembly speed. Different capacity weighing hoppers are configured according to the filling weight range.
02

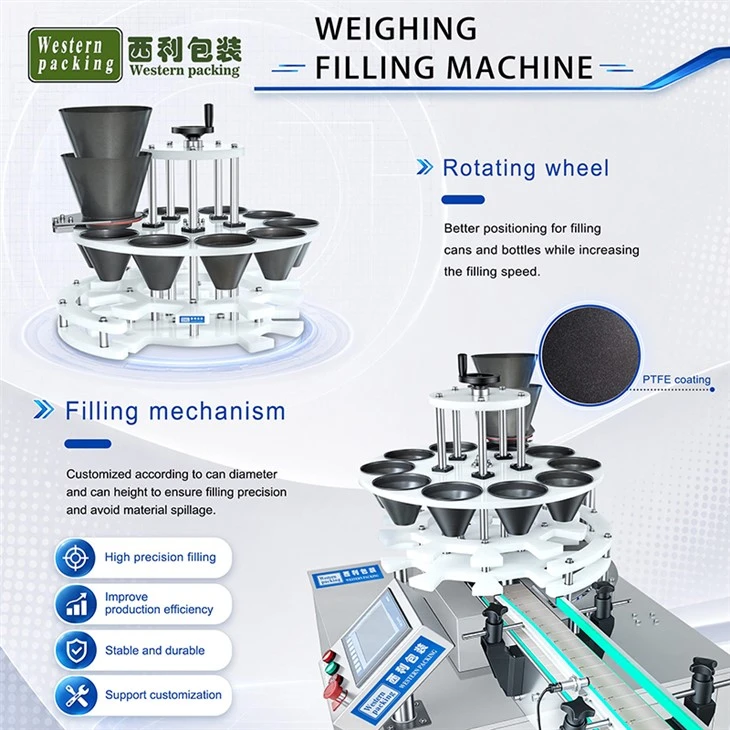

The nuts bottle filling machine's positioning mechanism ensures precise alignment between the bottle mouth and the discharge port during filling.
03
A positioning mechanism ensures precise alignment between the bottle mouth and the discharge port during filling.
04
Hot Tags: nuts bottle filling machine, China nuts bottle filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Nuts Bottle Filling Machine |
|
Filling Weight |
100-500-2000g(customizable) |
|
Weighing Range |
20-2000g |
|
Weighing Accuracy |
±1-3g |
|
Filling Speed |
30-65bottle/min |
|
Power |
380V/220V/50-60Hz |

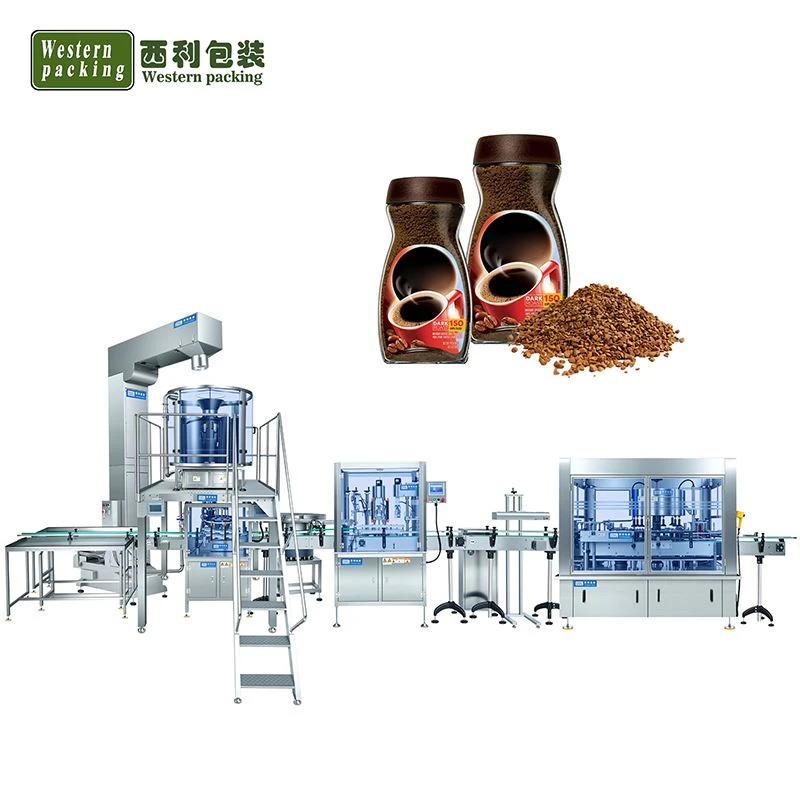

NUTS BOTTLE FILLING MACHINE

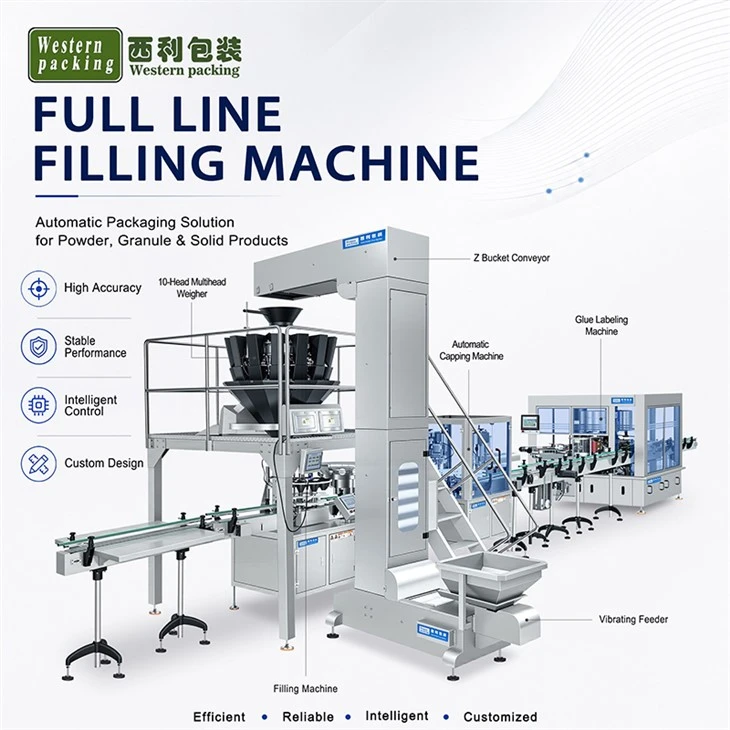

The nuts bottle filling machine is equipped with a multi-head combination scale, where each weighing hopper can independently detect materials. When producing products of different specifications, simply adjust the target weight in the control system; no complex metering components need to be replaced, allowing for quick production switching.
Compared to fixed-volume metering methods, the multi-head scale automatically adapts to weight differences between particles. For example, nuts vary in size, resulting in variations in individual weight. Traditional volumetric metering is prone to weight deviations, while the combination scale dynamically adjusts its configuration based on actual weight data, ensuring more consistent filling results each time.
The machine is suitable for industries such as food, snacks, condiments, pet food, and agricultural products, and can be used for producing small to medium-sized bottles as well as large-capacity canned products.

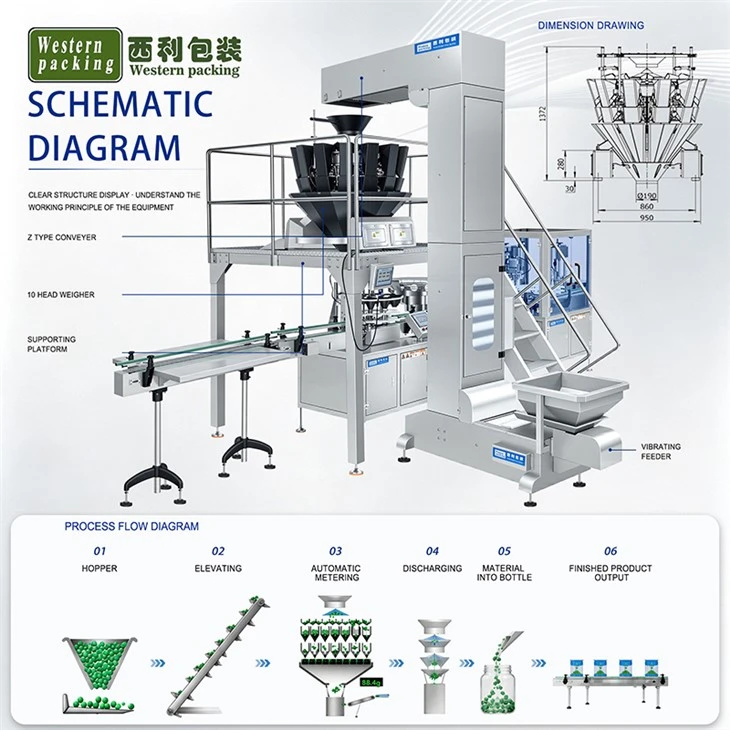

WORKING PRINCIPLE
First, the vibrating feeding mechanism evenly distributes the material into multiple weighing hoppers. Each hopper monitors the current material weight in real time and transmits the data to the control system.
The system performs high-speed calculations based on a set target weight. For example, if the target weight is 500g, the equipment automatically selects a group of hoppers containing 500g of material for dispensing.

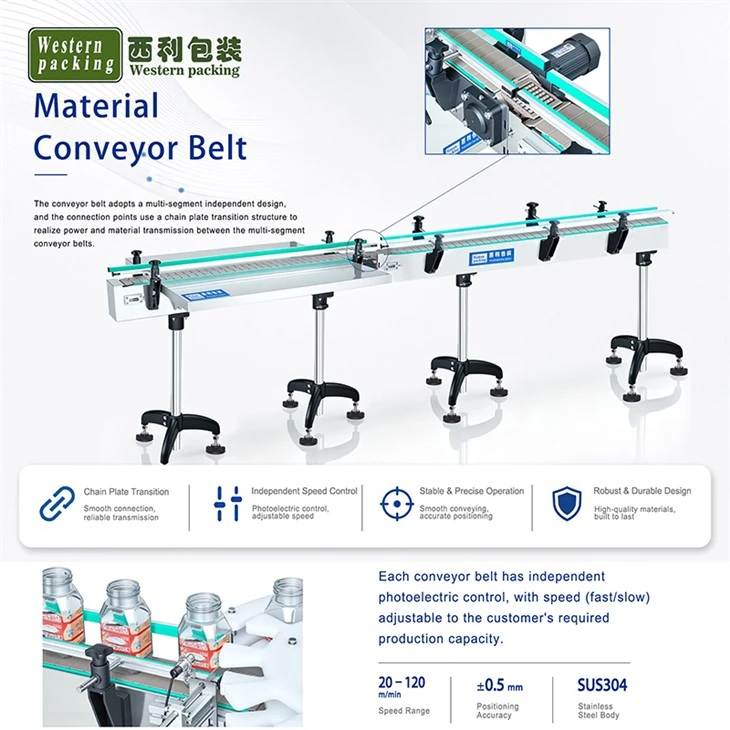

Once the bottle enters the filling position via the conveyor, the bottle detection sensor confirms its location, and the combined scale opens the corresponding dispensing gate, completing a precise bottling operation.
