Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of sugar filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable sugar filling machine made in China here from our factory.
DETAILED DISPLAY
The detection system ensures the successful completion of the filling process for each bottle. If no bottle is detected, the system automatically stops feeding to prevent material waste.
01

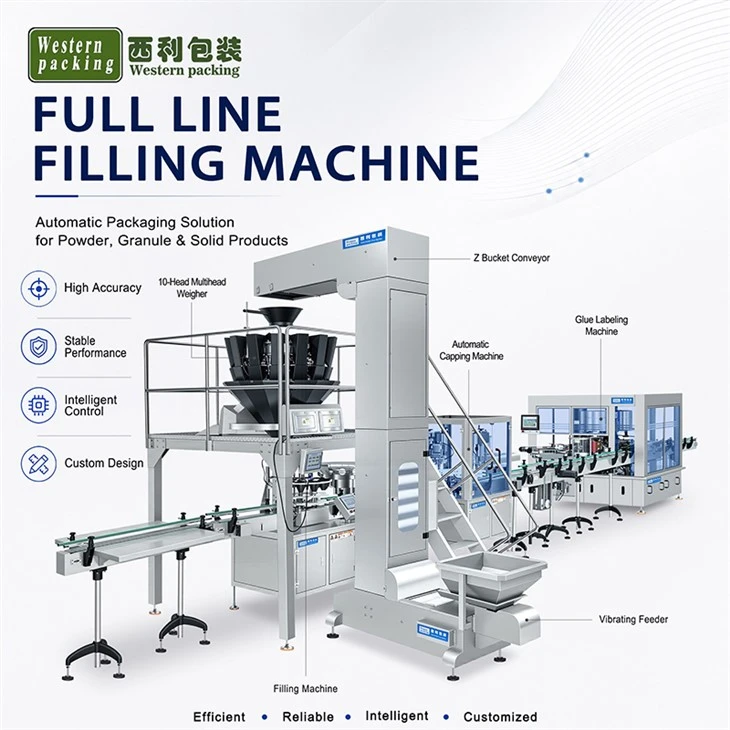

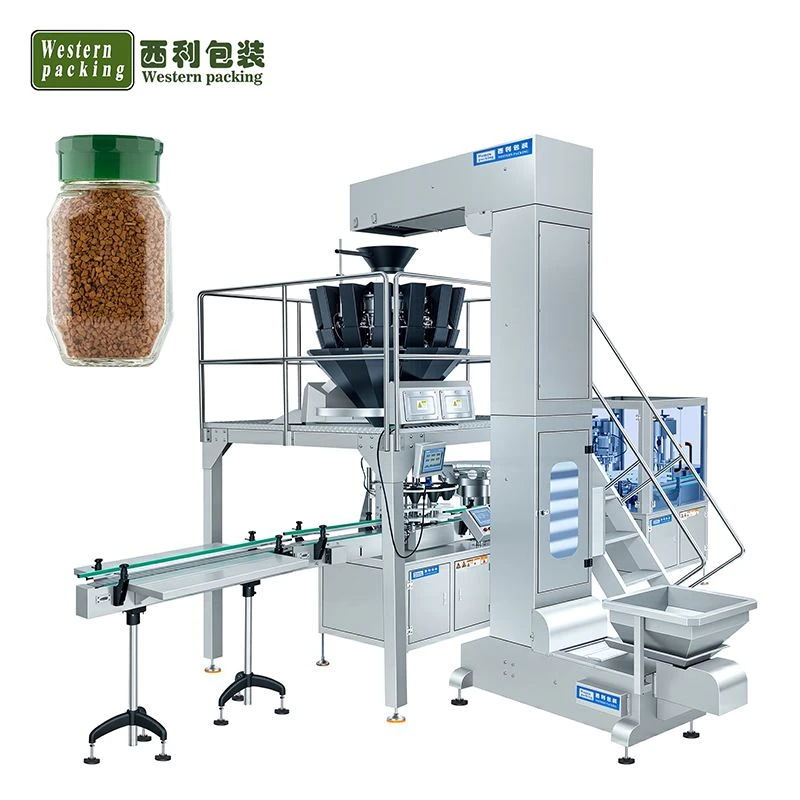

The Z-type bucket elevator transports granular products from a lower position to the multi-head weighing storage hopper. The feed rate can be matched to the filling speed.
02
The sugar filling machine is constructed of food-grade SUS304 stainless steel, reducing the risk of corrosion and contamination. Key components such as the weighing hoppers and feeding trays can be disassembled for cleaning.
03
The granules are evenly distributed to each weighing channel via a vibrating plate, preventing some weighing hoppers from running low on material.
04
Hot Tags: sugar filling machine, China sugar filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Sugar Filling Machine |
|
Filling Weight |
100-500-2000g(customizable) |
|
Weighing Range |
20-2000g |
|
Weighing Accuracy |
±1-3g |
|
Filling Speed |
30-65bottle/min |
|
Power |
380V/220V/50-60Hz |
SUGAR FILLING MACHINE

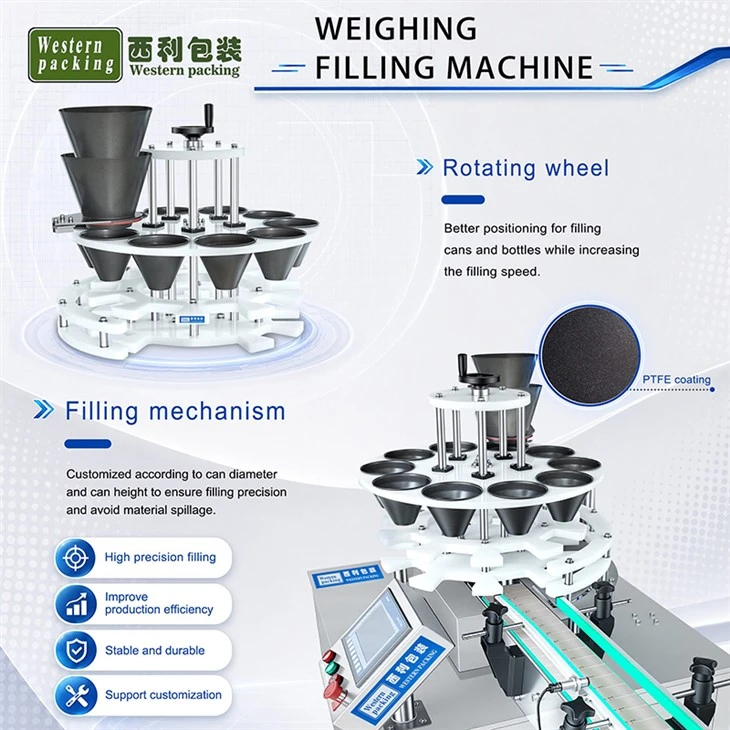

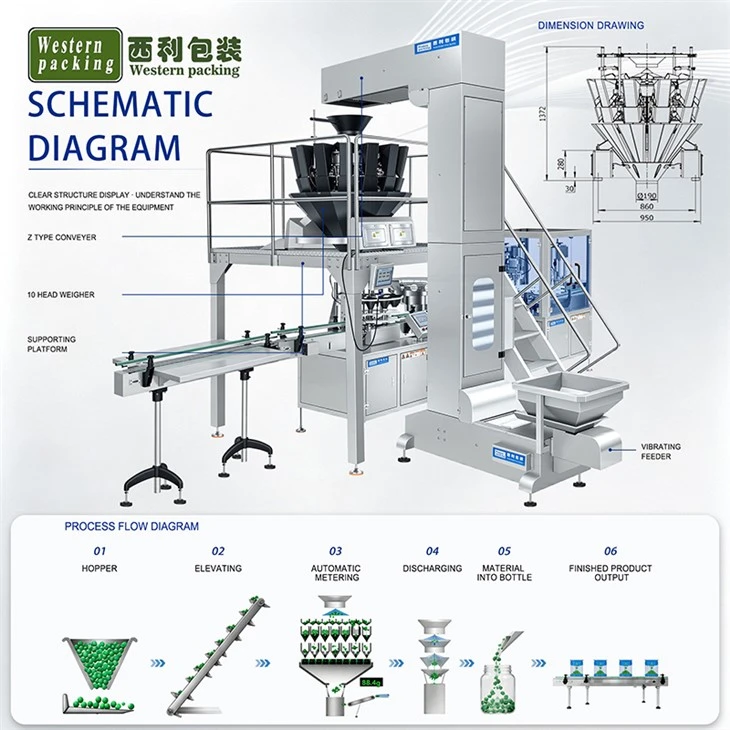

During operation, granular material first enters the top storage hopper, where a vibrating feeding system evenly distributes it into multiple weighing hoppers. Each weighing hopper is equipped with an independent weighing sensor to monitor the current weight data in real time.

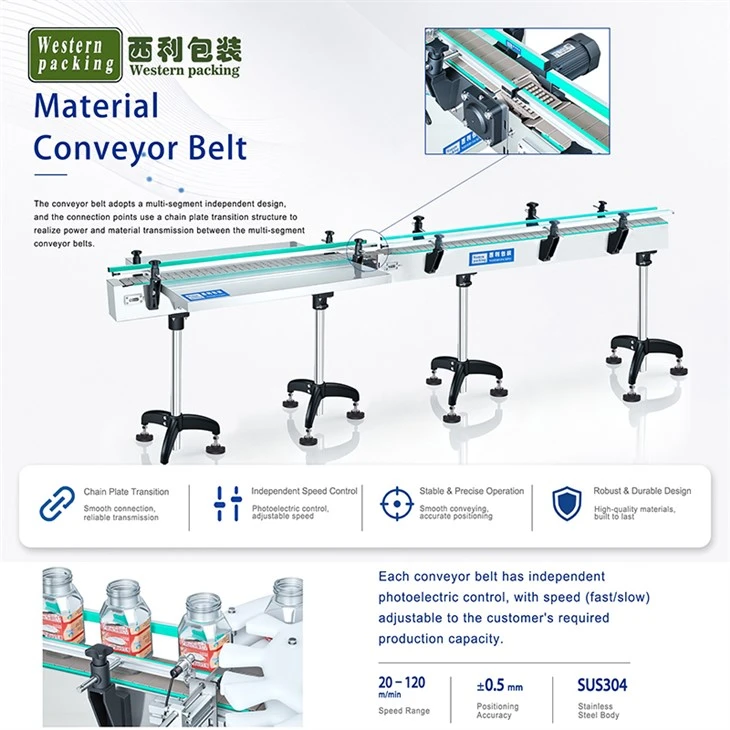

During bottling, bottles are automatically conveyed into the filling area. Once the sensor detects the bottle's arrival, the system activates the feeding mechanism to precisely dispense the weighed granular material into the bottle. After filling, the bottles are transported to the next process, achieving continuous automated production.
The sugar filling machine can be adjusted according to different product characteristics. For example, for fragile nuts, the feeding speed can be reduced and the drop height optimized; for granules with poor flowability, the vibrating feeding time can be increased to improve feeding stability.
PRODUCT ADVANTAGES
1. Reduce Raw Material Waste: For high-value products such as nuts, coffee beans, and health supplement granules, filling weight control directly impacts production costs. Multi-head scales use intelligent combination calculations to reduce product loss caused by overfilling.
2. Improve Production Consistency: Manual weighing is easily affected by operating speed, leading to weight differences between different bottles. Automatic weighing systems operate according to uniform parameters, ensuring more stable weights for each bottle.
3. Suitable for Long-Term Continuous Operation: The entire machine adopts an industrialized structural design, with key components optimized for durability. A stable feeding system, multi-head weighing structure, and automatic control system can meet the continuous production needs of food factories.
