Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of granular filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable granular filling machine made in China here from our factory.
DETAILED DISPLAY
The automatic bottle unscrambler automatically organizes randomly piled empty bottles into a uniform orientation and continuously transports them to the filling station.
01

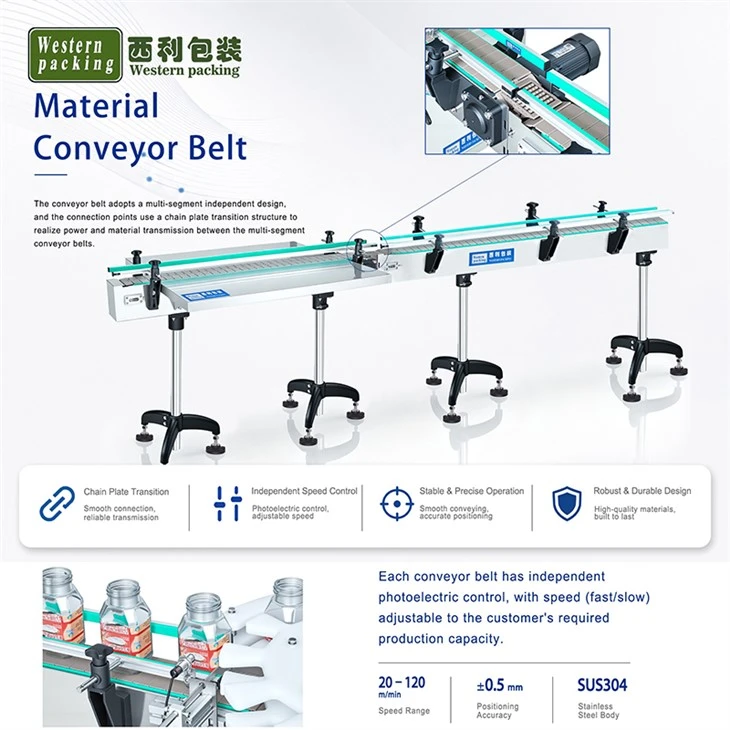

The conveyor system connects the entire production line, ensuring bottles pass stably through different stations such as filling, sealing, and labeling.
02

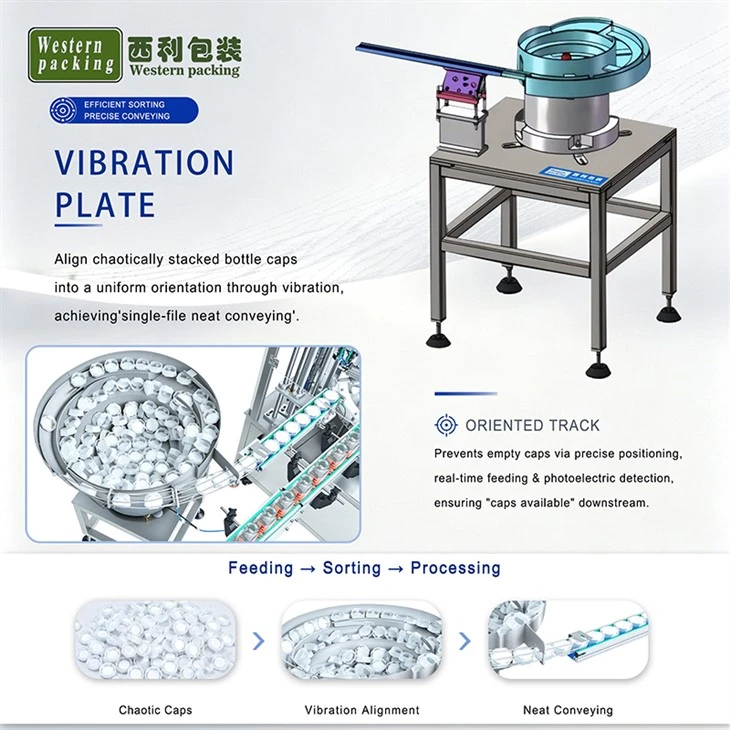

The vibrating feeding structure, through the cooperation of a main vibrating plate and a linear vibrating plate, ensures that the material is evenly distributed to each weighing hopper. The vibration frequency is adjusted according to particle size, weight, and flowability.
03

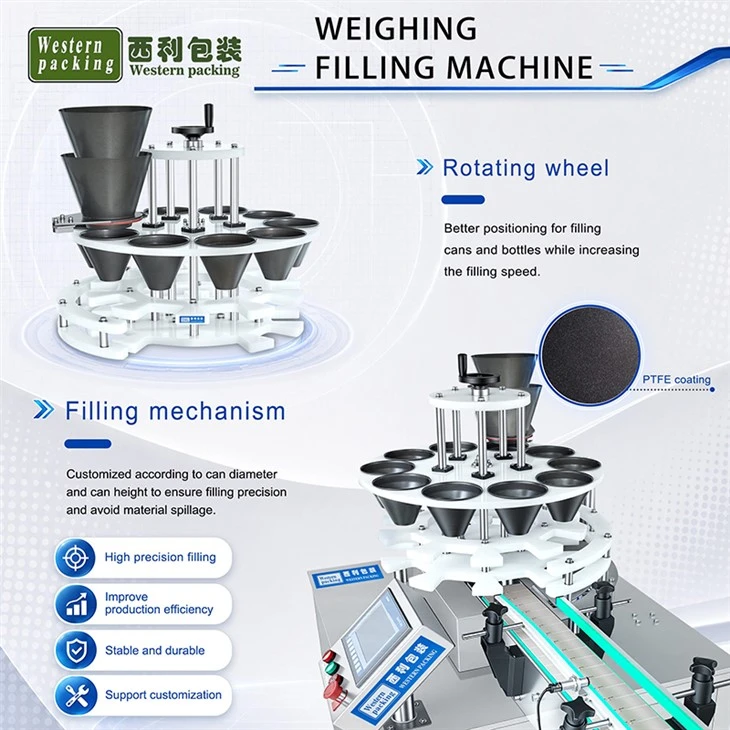

The granular filling machine feeding system features an anti-splash design, controlling the particle falling speed and reducing spillage from the bottle opening. Different sized feeding nozzles can be replaced according to the bottle opening size.
04
Hot Tags: granular filling machine, China granular filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Granular Filling Machine |
|
Filling Weight |
100-500-2000g(customizable) |
|
Weighing Range |
20-2000g |
|
Weighing Accuracy |
±1-3g |
|
Filling Speed |
30-65bottle/min |
|
Power |
380V/220V/50-60Hz |
GRANULAR FILLING MACHINE

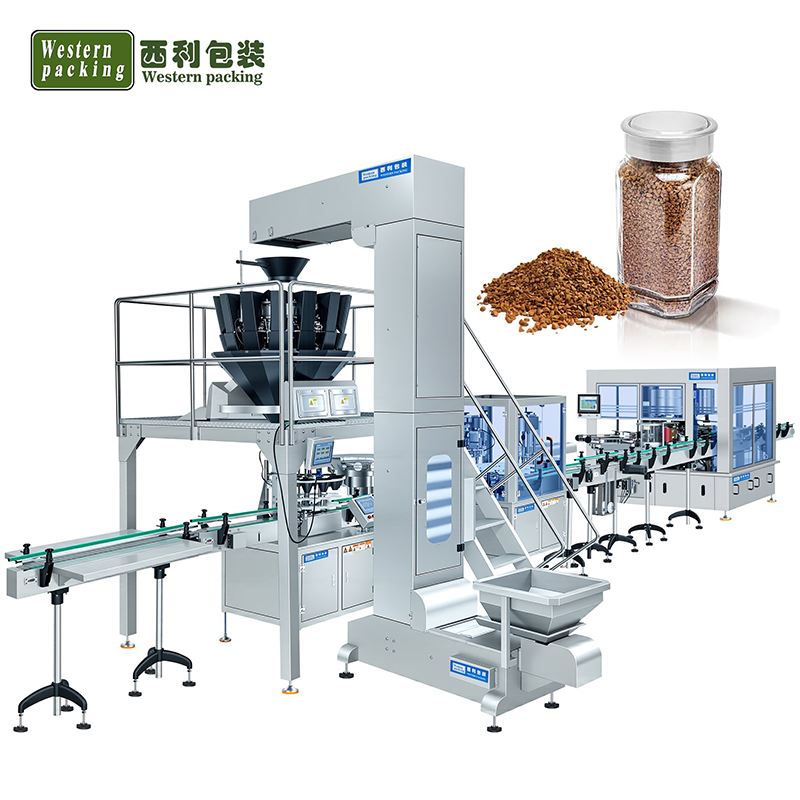

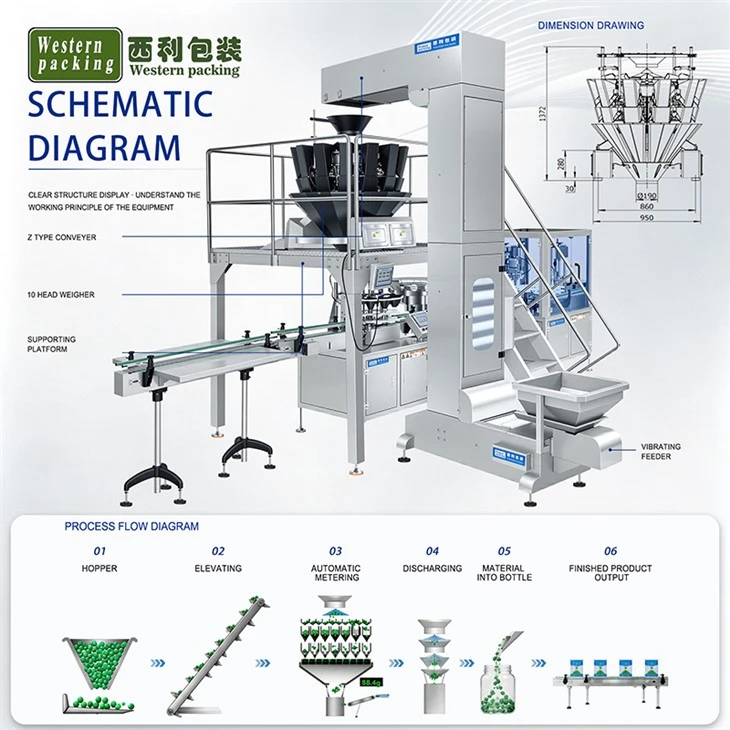

The granular filling machine is a weighing-type filling device designed for the automated bottling needs of granular products. The core of the equipment utilizes a multi-head combined weighing system, simultaneously weighing materials through multiple independent weighing hoppers.
Compared to traditional measuring cups, the multi-head weigher does not rely on material volume for calculations, effectively reducing weight deviations caused by differences in particle size, shape, and density. It is particularly suitable for irregularly shaped granular products such as nuts, candies, coffee beans, pet snacks, grains, and flavoring granules.

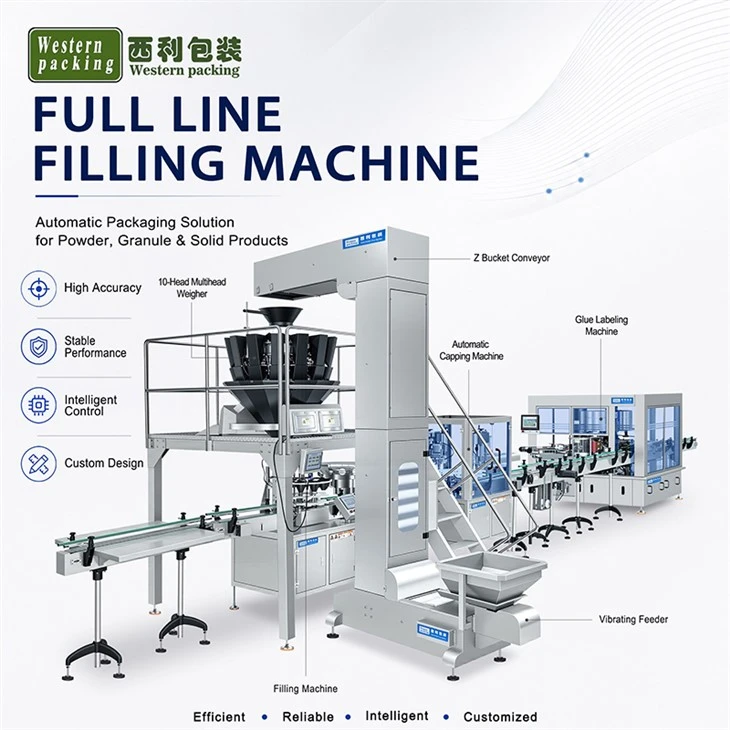

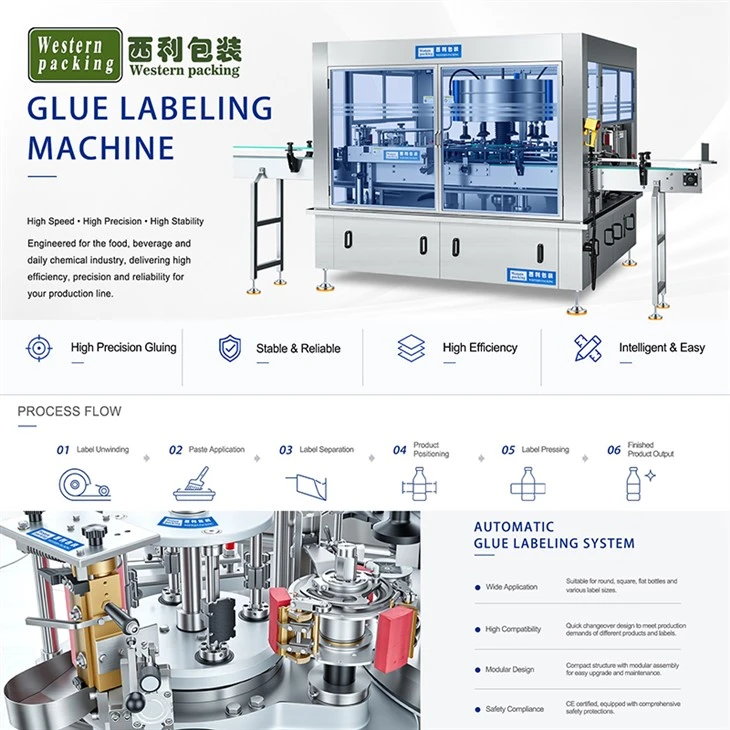

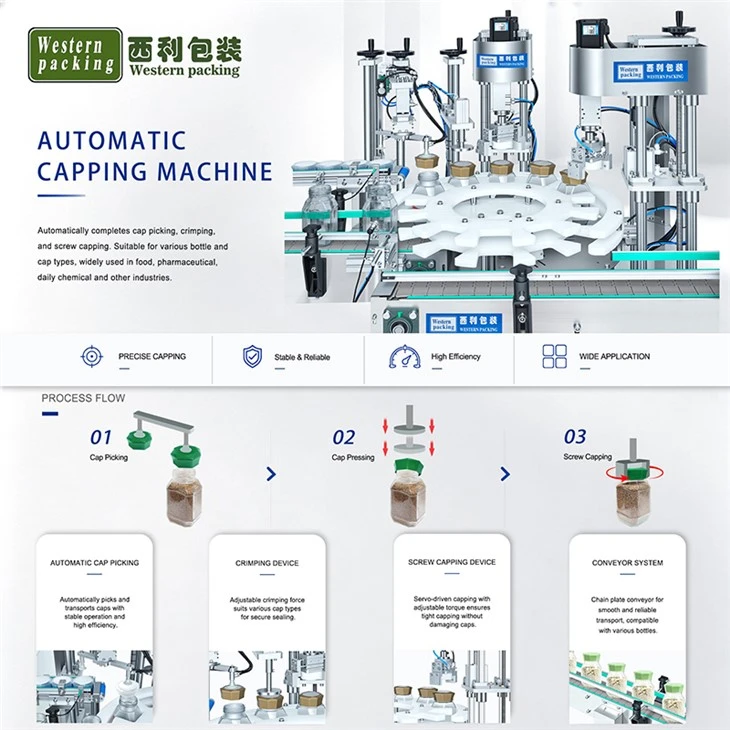

The machine integrates automatic feeding, vibration dispensing, electronic weighing, precise dispensing, bottle positioning, and conveying control. It connects to downstream equipment such as automatic bottle unscramblers, capping machines, sealing machines, and labeling machines to form a complete automated bottling production line.
PRODUCT FEATURES
1. Adaptable to various granular materials: The multi-head scale uses a weighing method, unaffected by changes in material volume. By adjusting the vibration feeding parameters, it can adapt to materials with different flowability.
2. Compatible with multiple bottle types: The equipment's conveying system can be adjusted according to different bottle types. Adjustable conveyor rail width, filling height, and bottle positioning are available.
3. Highly efficient and automated production: Automatic feeding → weighing calculation → quantitative dispensing → bottle conveying
