Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of lotion liquid filling machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable lotion liquid filling machine made in China here from our factory.
DETAILED DISPLAY
Employs a stable, automatic bottle feeding structure. Bottles are automatically arranged upon entering the equipment, eliminating the need for manual placement and improving front-end bottle feeding efficiency.
01
The storage tank is made of food-grade stainless steel with a smooth, corner-free interior. Optional stirring and heating functions prevent sedimentation of high-viscosity materials.
02

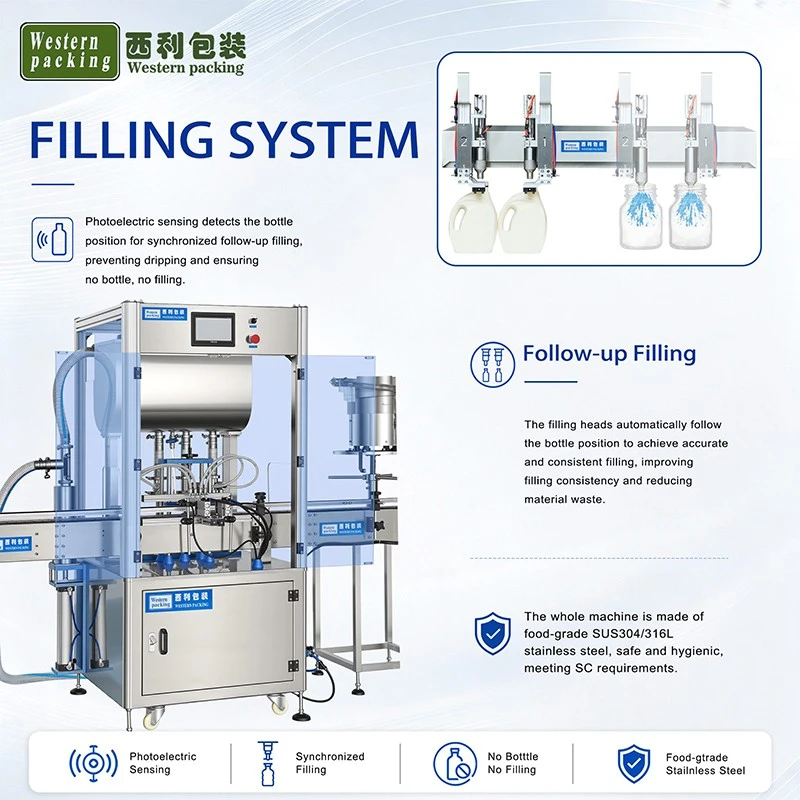

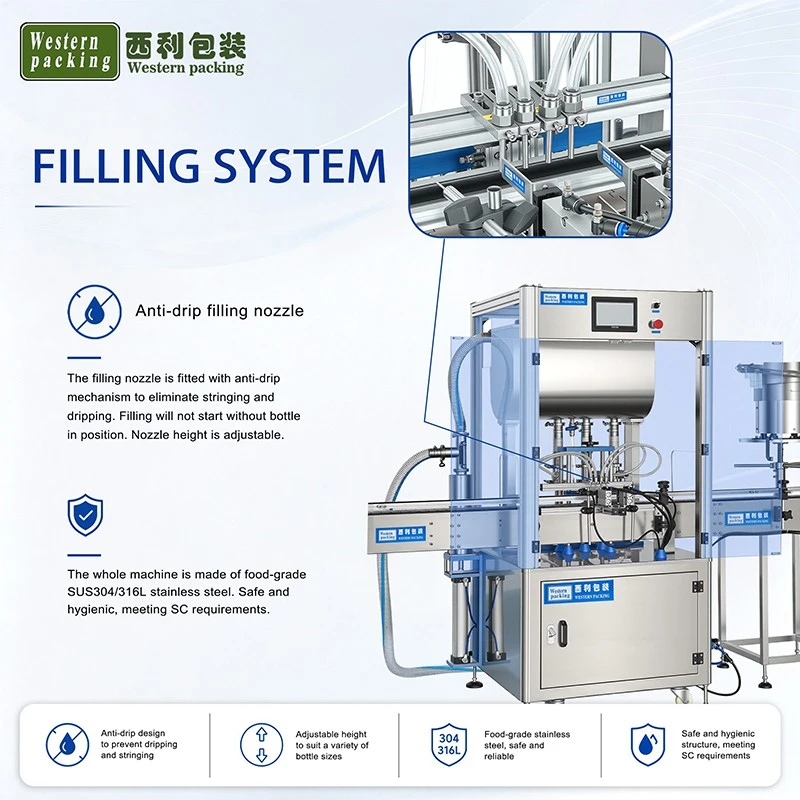

Multiple filling heads operate synchronously, increasing output per unit time. Each filling nozzle is independently adjustable.
03
The lotion liquid filling machine's filling lifting mechanism automatically adjusts the filling position according to bottle height, ensuring the filling nozzles are always at the optimal distance.
04
Hot Tags: lotion liquid filling machine, China lotion liquid filling machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Lotion Liquid Filling Machine |
|
Output power |
2000 W |
|
Voltage |
AC220V/380, 50/60 Hz |
|
Machine weight |
800 kg |
|
Productive Capacity |
1000-6000 BPH (customized) |
|
Filling Range |
50-1000 ml (Customer made available) |
LOTION LIQUID FILLING MACHINE

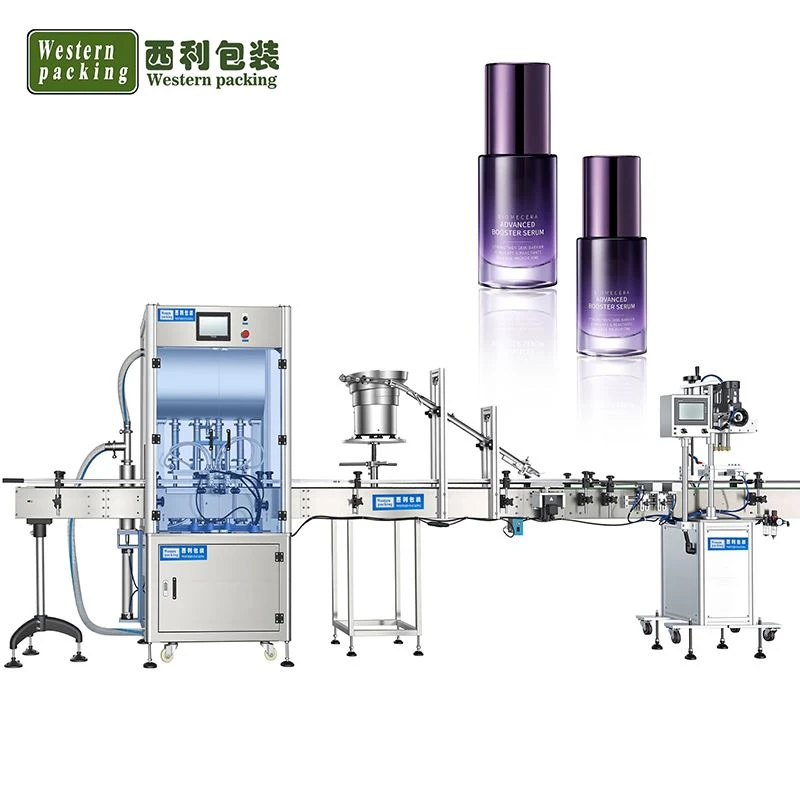

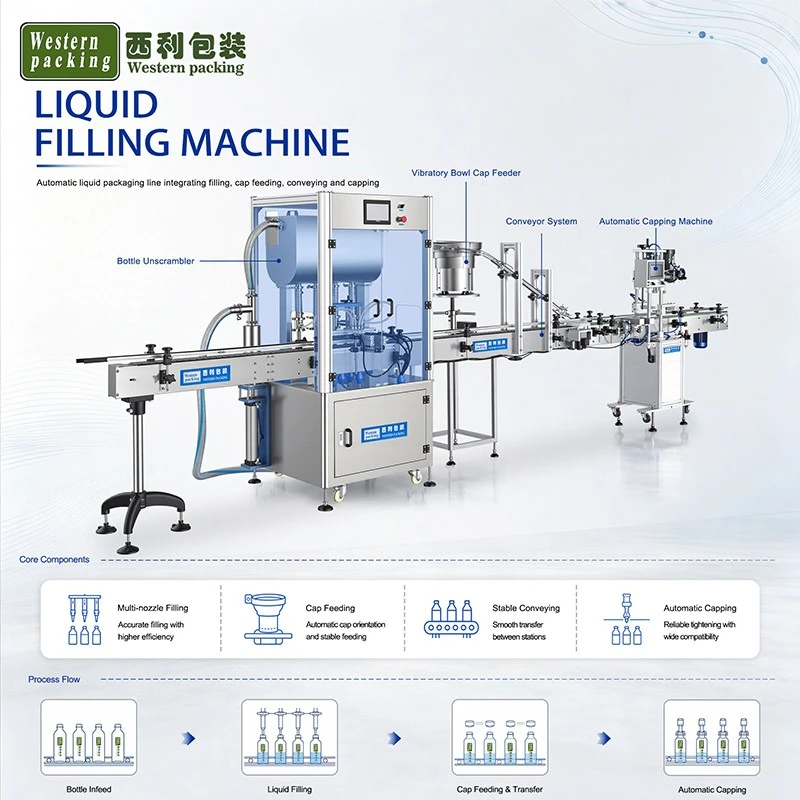

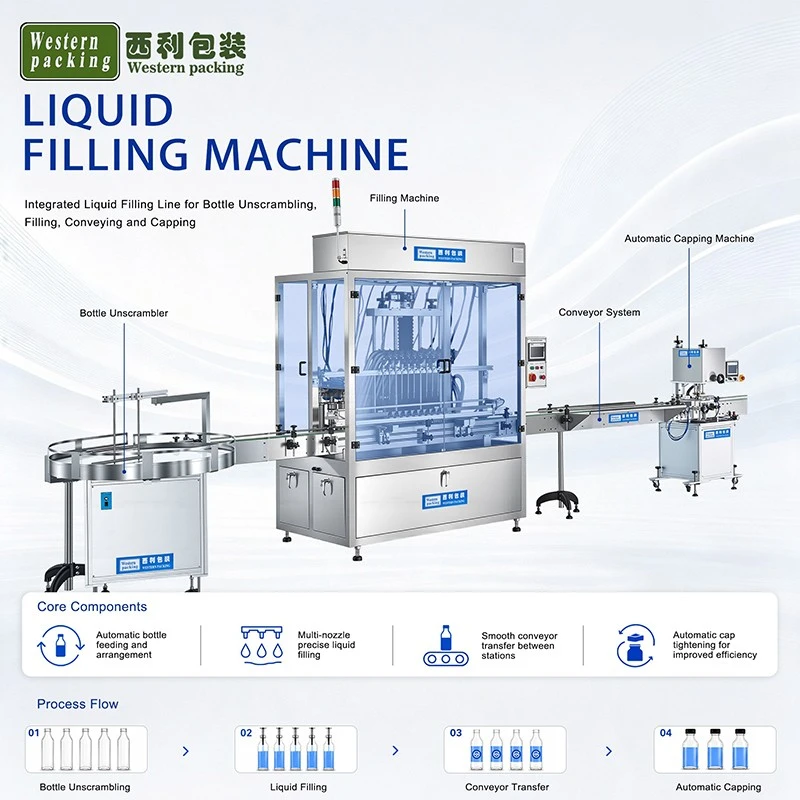

This is a fully automated bottling and packaging system specifically designed for liquid, lotion, and cream products. From the moment empty bottles enter the production line, the lotion liquid filling machine automatically completes bottle conveying, precise filling, automatic capping, screw-on capping, and finished product output, all without frequent manual operation.
This production line is particularly suitable for companies requiring stable production capacity, such as cosmetic factories, daily chemical product manufacturers, and food and condiment manufacturers.
Compared to traditional manual filling methods, this equipment reduces human error, ensuring consistency in the volume, cap tightness, and packaging appearance of each bottle, making it more suitable for mass production.
WORKING PRINCIPLE
After production begins, empty bottles automatically enter the filling area via a conveyor belt.
When a photoelectric sensor detects that a bottle has reached the designated position, a positioning device automatically secures the bottle to prevent movement and filling deviations.
The filling system, based on pre-set capacity parameters, precisely delivers material into the bottle using a metering pump.

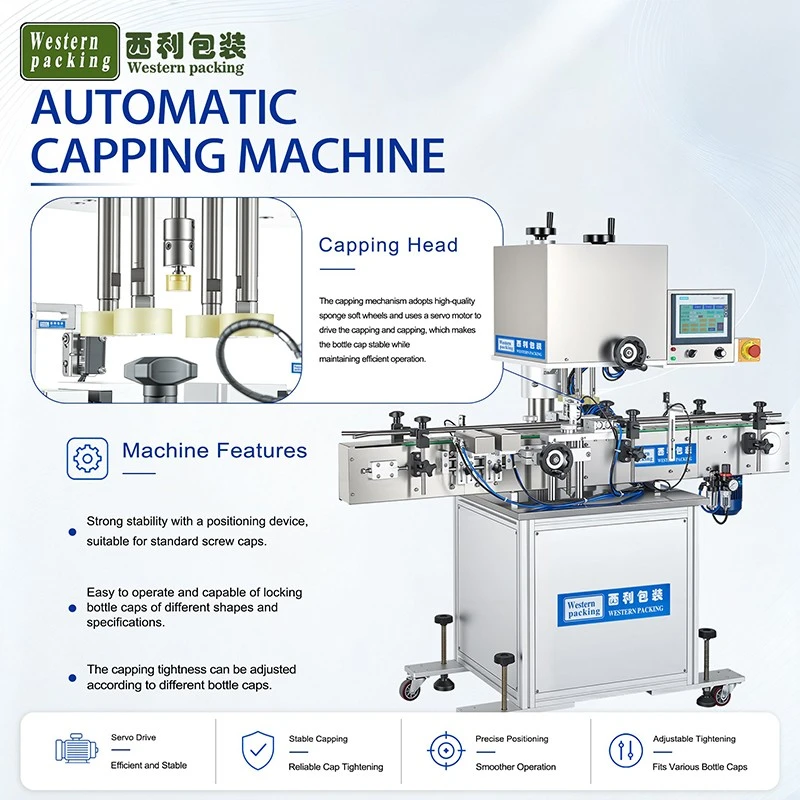

After filling, the bottles automatically enter the capping area. The cap sorting system pre-aligns the caps and conveys them to the capping position, where the capping head automatically locks them in place.
The entire process is centrally controlled by a PLC, which automatically detects missing bottles, missing caps, and abnormal shutdowns, improving the overall stability of the production line.
