Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of cream lotion filling capping machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable cream lotion filling capping machine made in China here from our factory.
DETAILED DISPLAY
A continuous conveying system smoothly feeds empty bottles into the equipment; the conveying speed can be adjusted according to the production cycle.
01

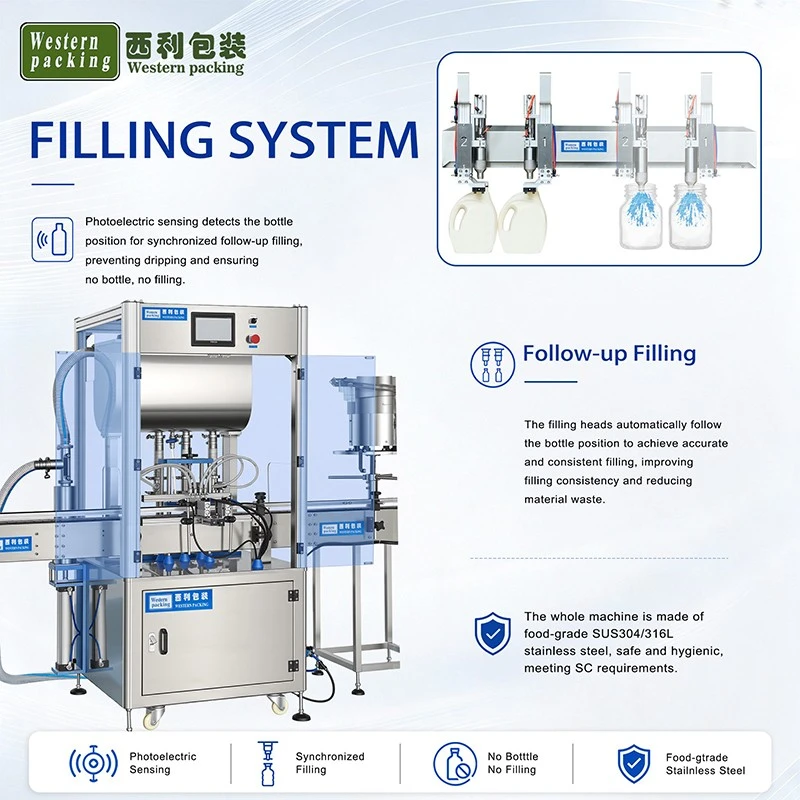

The quantitative filling pump can be configured with different pump structures based on the liquid characteristics, achieving stable delivery and accurate metering.
02

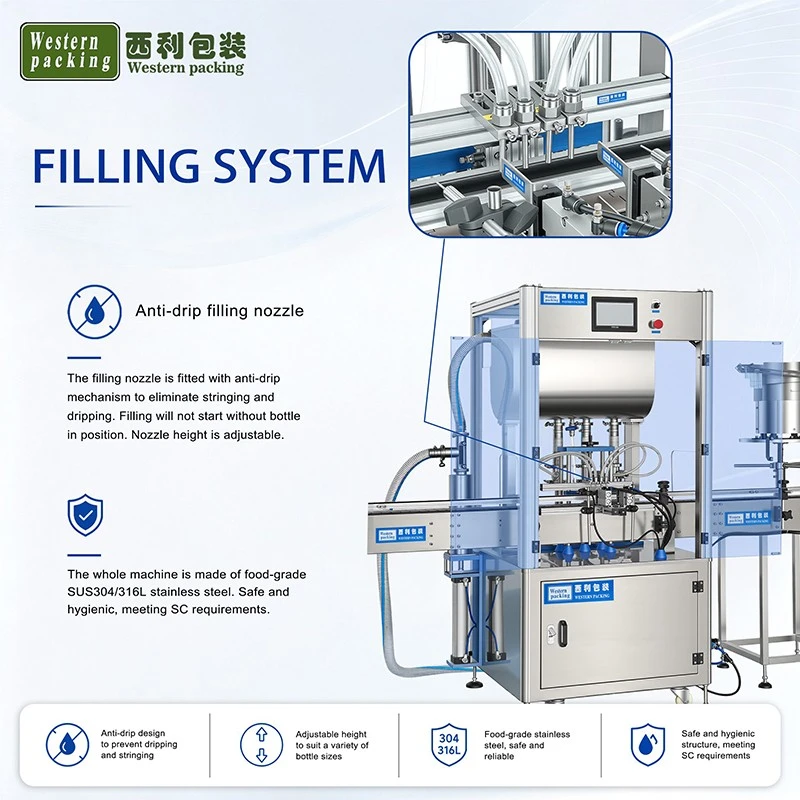

The nozzle position of the filling nozzle assembly is adjustable vertically to accommodate bottles of different heights and reduce liquid splashing.
03
The cream lotion filling capping machine's photoelectric detection sensors can detect in real time whether bottles are in place or missing, preventing erroneous operations.
04
Hot Tags: cream lotion filling capping machine, China cream lotion filling capping machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Cream Lotion Filling Capping Machine |
|
Output power |
2000 W |
|
Voltage |
AC220V/380, 50/60 Hz |
|
Machine weight |
800 kg |
|
Productive Capacity |
1000-6000 BPH (customized) |
|
Filling Range |
50-1000 ml (Customer made available) |
CREAM LOTION FILLING CAPPING MACHINE

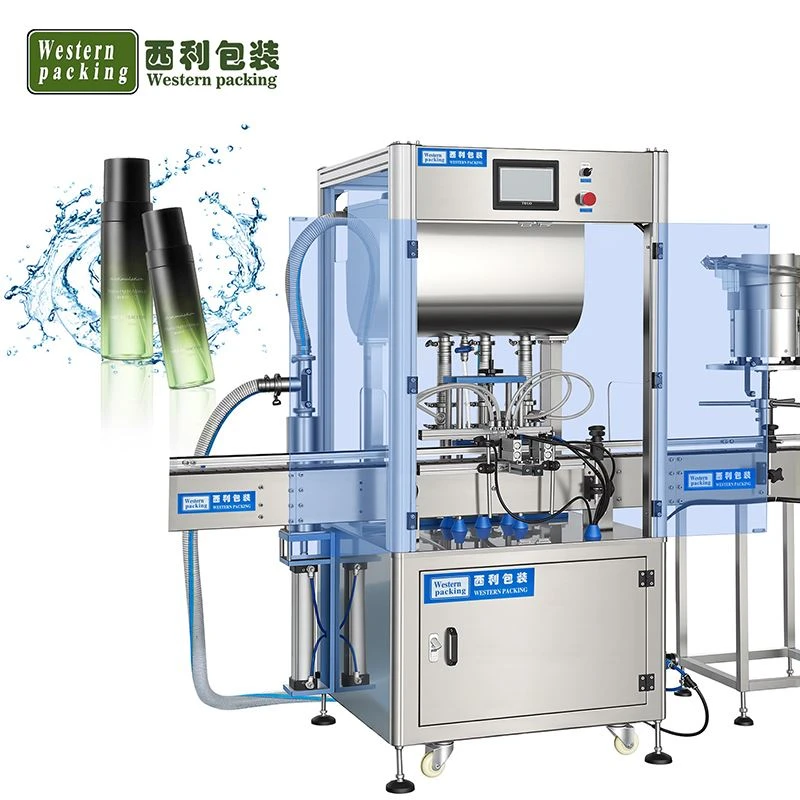

The cream lotion filling capping machine is a comprehensive packaging equipment designed for mass production of bottled products. It primarily addresses issues encountered by companies in the liquid product packaging process, such as excessive manual intervention, slow production speed, and difficulty in standardizing packaging.

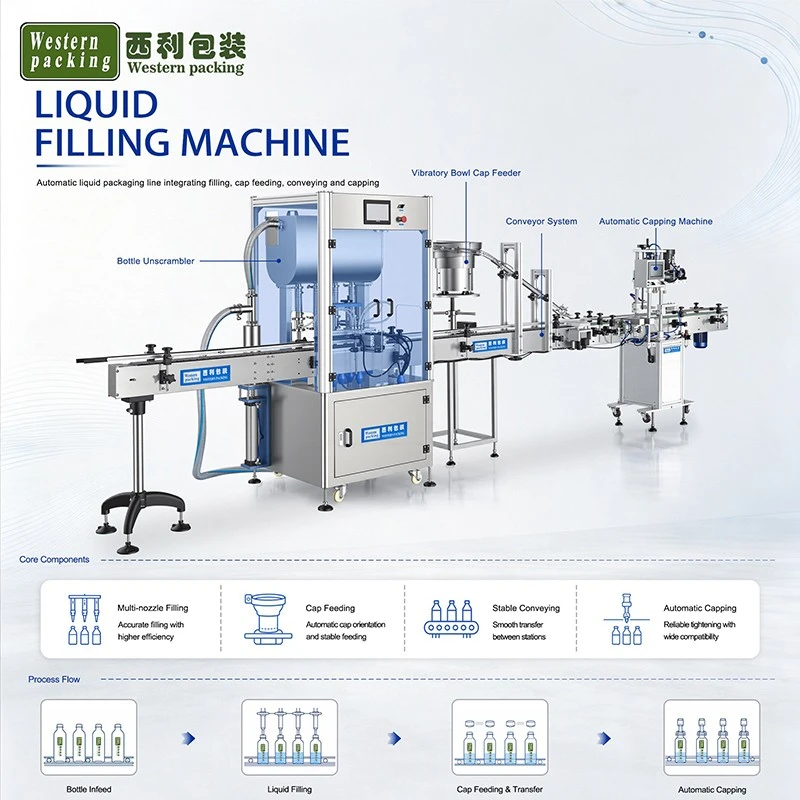

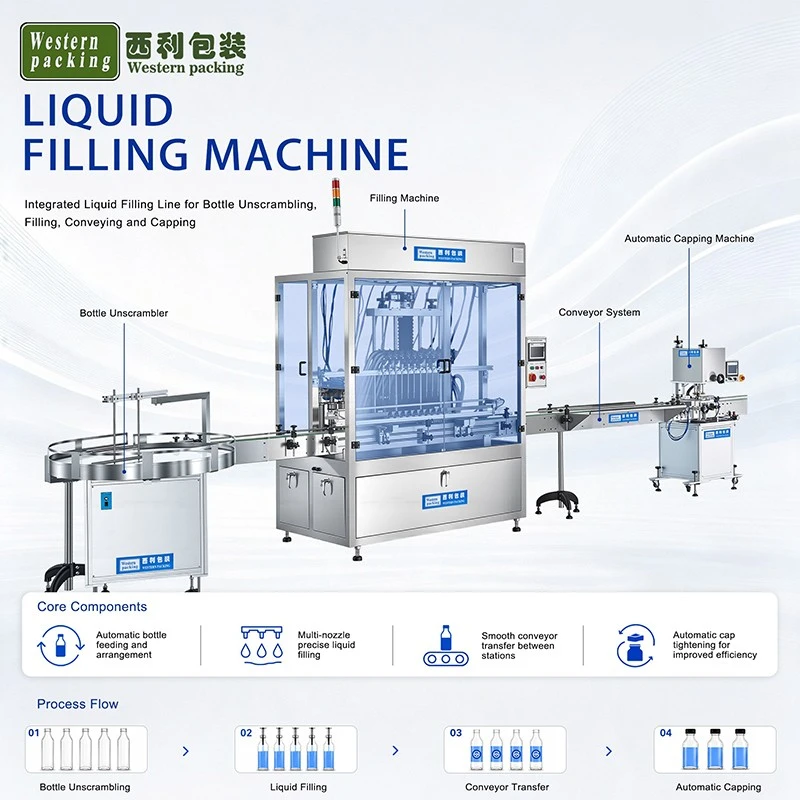

The entire system is designed around the bottled product production process, integrating automatic bottle feeding, precise quantitative filling, cap sorting, automatic capping, and conveying/output onto a single production line. Operators only need to add materials and set equipment parameters; the machine will then continuously complete the subsequent packaging tasks.
WORKING PRINCIPLE
After production begins, bottles enter the equipment via a conveyor belt.
The bottle sorting mechanism automatically adjusts the arrangement of the bottles, ensuring they enter the filling area sequentially at set intervals.
When a sensor detects a bottle has reached its designated position, a positioning device activates, securing the bottle at the filling location.
The filling system then begins operation according to the set capacity.
The equipment achieves precise liquid dispensing by controlling pump running time, flow rate, and filling speed.

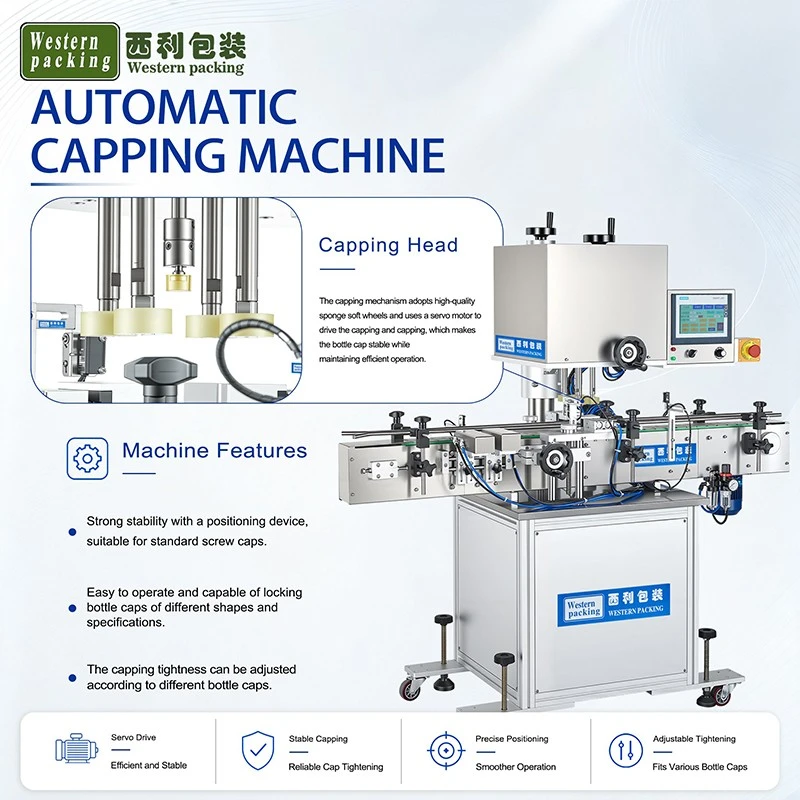

After filling, the bottles enter the automatic capping area.
The caps, pre-arranged by the cap sorting mechanism, are conveyed to the bottle neck position via a conveyor track, where the capping head descends and locks the cap.
Finally packaged products are output via a conveyor belt, ready for labeling, boxing, or the next production process.
