Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of stick bag counting packing system in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable stick bag counting packing system made in China here from our factory.
DETAILED DISPLAY
The conveyor is responsible for receiving finished small bags from the upstream packaging machine. Adjustable guide rails maintain product alignment while ensuring a smooth transition to the organizing station.
01
The counting module uses photoelectric sensors to detect each pouch individually. It verifies the product count before every loading cycle, ensuring the preset number of pouches is placed into each carton.
02
The stick bag counting packing system carton magazine stores flat cartons in a neat stack and continuously feeds them to the forming station. Adjustable guides accommodate various carton sizes.
03
Multiple servo motors independently control conveying, loading, and carton transfer operations. Motion parameters can be adjusted directly via the Human-Machine Interface (HMI) to accommodate different packaging specifications.
04
Hot Tags: stick bag counting packing system, China stick bag counting packing system manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
Stick Bag Counting Packing System |
|
Bag style |
3/4 side seal, back seal, Irregularly shaped bag and Stick sachet |
|
Product size |
According to the actual situation |
|
Sorting bag size |
10-200mm |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |
STICK BAG COUNTING PACKING SYSTEM

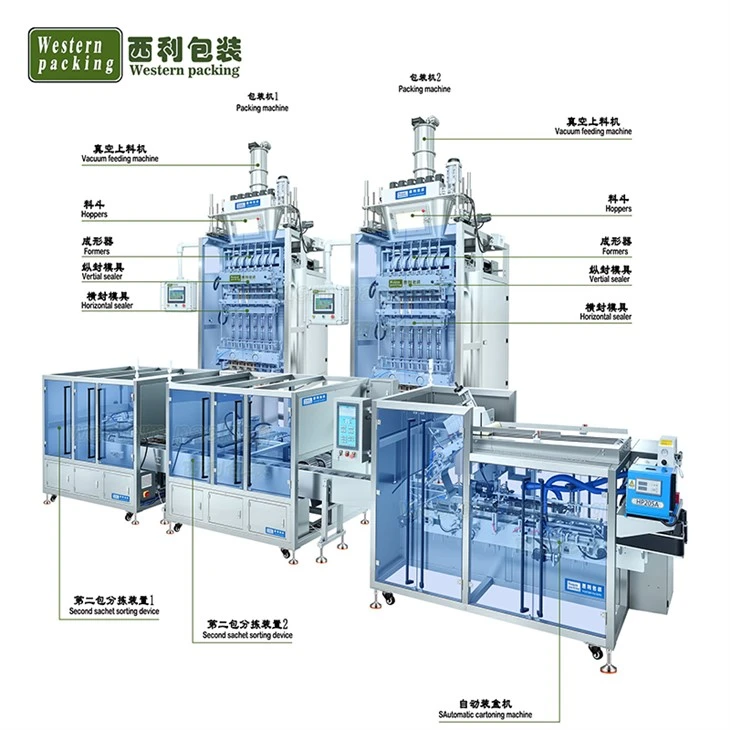

The stick bag counting packing system consists of multiple independent functional modules, including a sachet conveying system, a product alignment mechanism, a counting module, a carton feeding mechanism, a carton forming station, a cartoning device, a carton sealing unit, and a finished product discharge conveyor.
Rather than relying on a single continuous mechanical drive, the modules operate according to their respective work cycles and communicate in a coordinated manner via a PLC control system.
WORKING PRINCIPLE

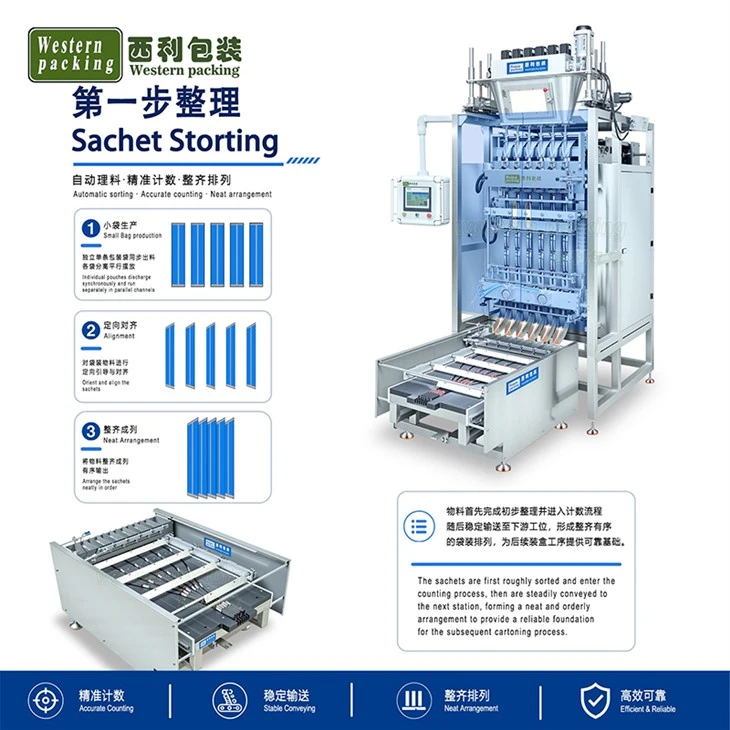

The equipment first receives finished pouches from an upstream packaging machine via an infeed conveyor.

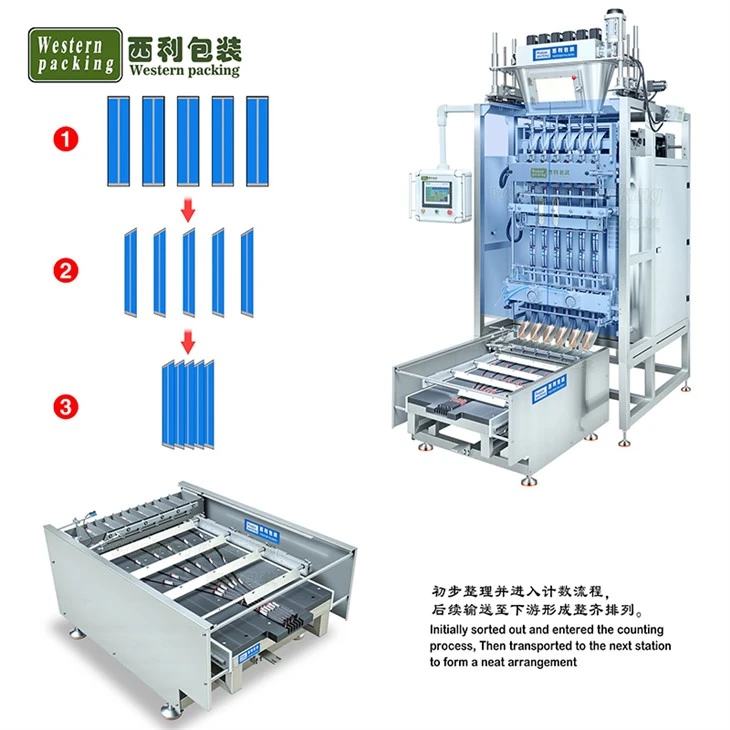

As the pouches enter the alignment zone, a guiding mechanism arranges them into an orderly sequence while a counting module monitors the quantity in real time. Once the predetermined count is reached, the grouped pouches are staged at the loading position.

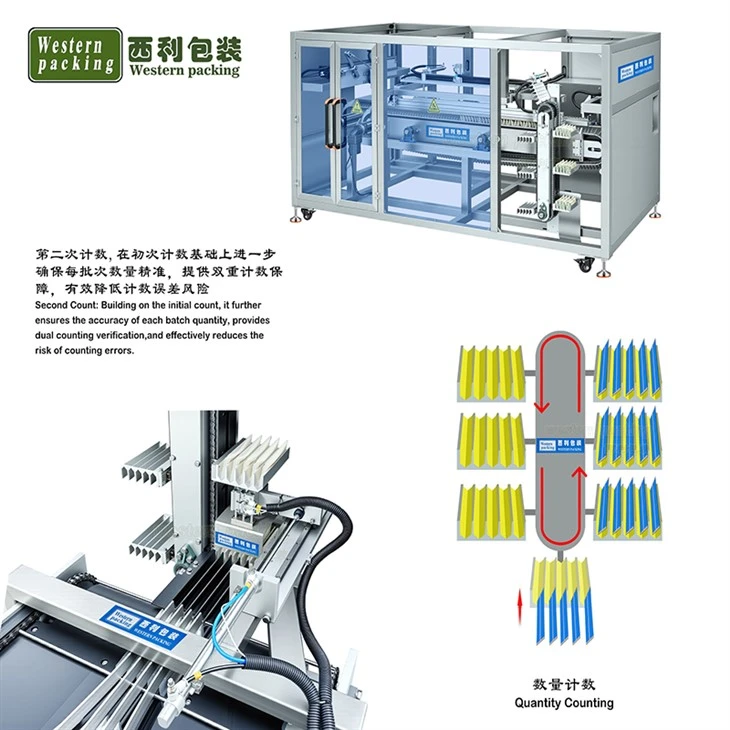

A second count is then performed; this dual-counting process ensures accuracy.

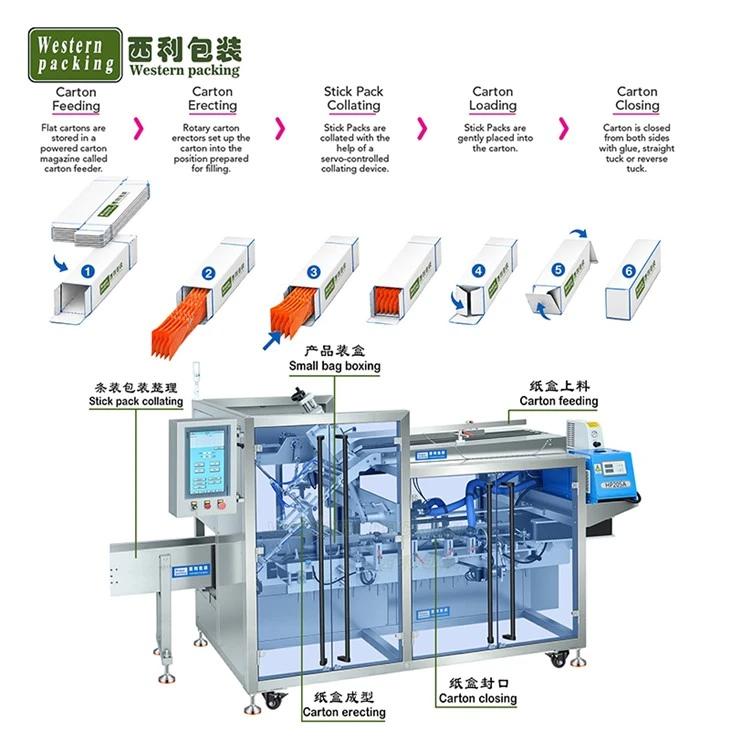

Next, a cartoning mechanism transfers a flat carton from the magazine to the forming station. Once the carton is fully erected and positioned, the loading unit inserts the group of pouches into it.

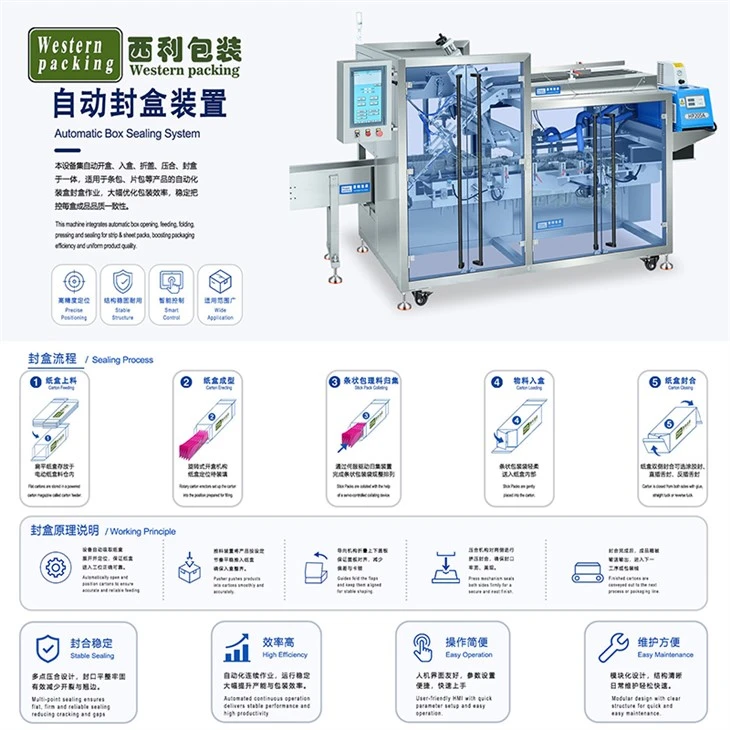

The loaded carton is then conveyed directly to the flap-folding station before finally exiting the equipment via the discharge conveyor.
