Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of stick bag cartoning machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable stick bag cartoning machine made in China here from our factory.
DETAILED DISPLAY

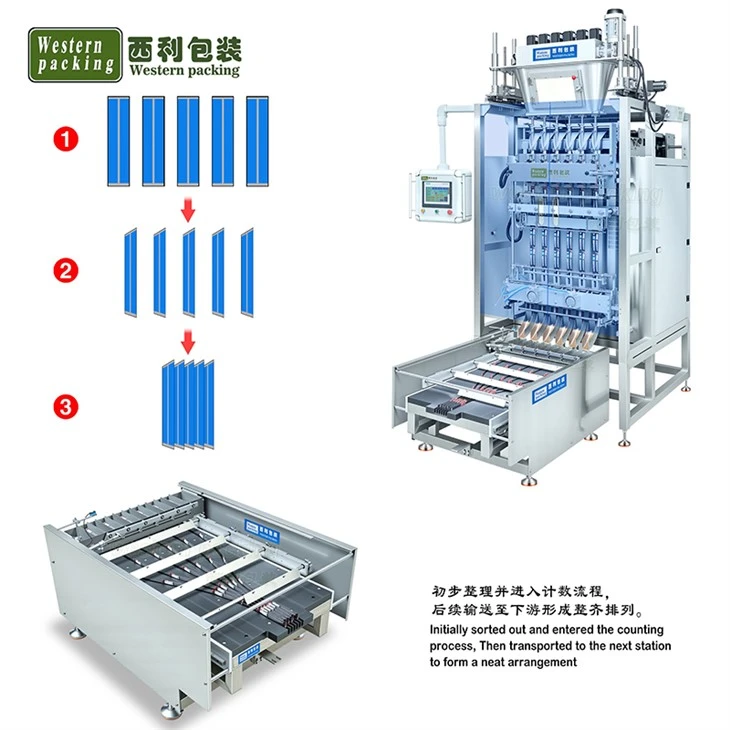

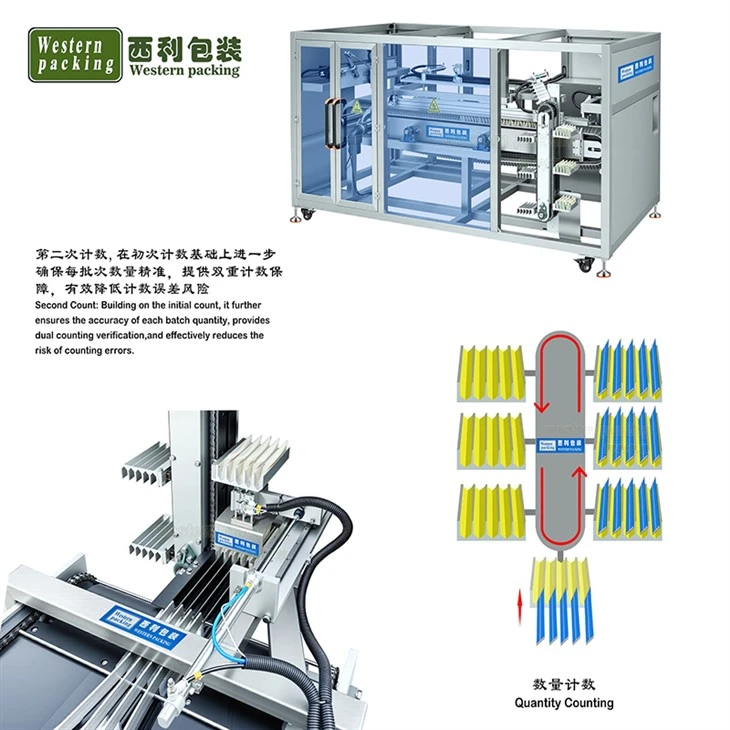

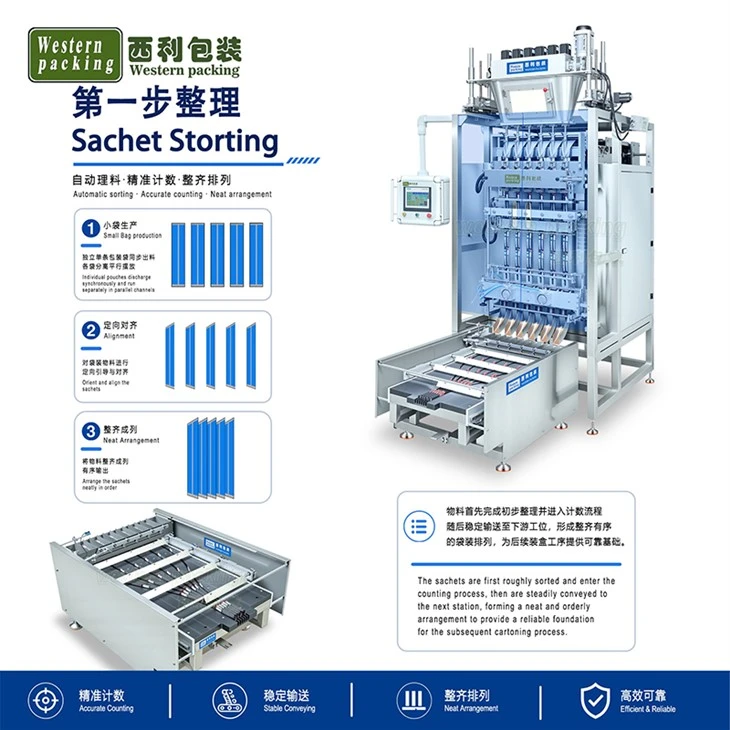

The system automatically arranges the sachets into the required packaging quantity. Adjustable positioning blocks support various loading configurations and ensure precise product spacing prior to loading.
01
The cardboard box hopper stores flat cardboard boxes vertically. Adjustable baffles accommodate cardboard boxes of different sizes.
02

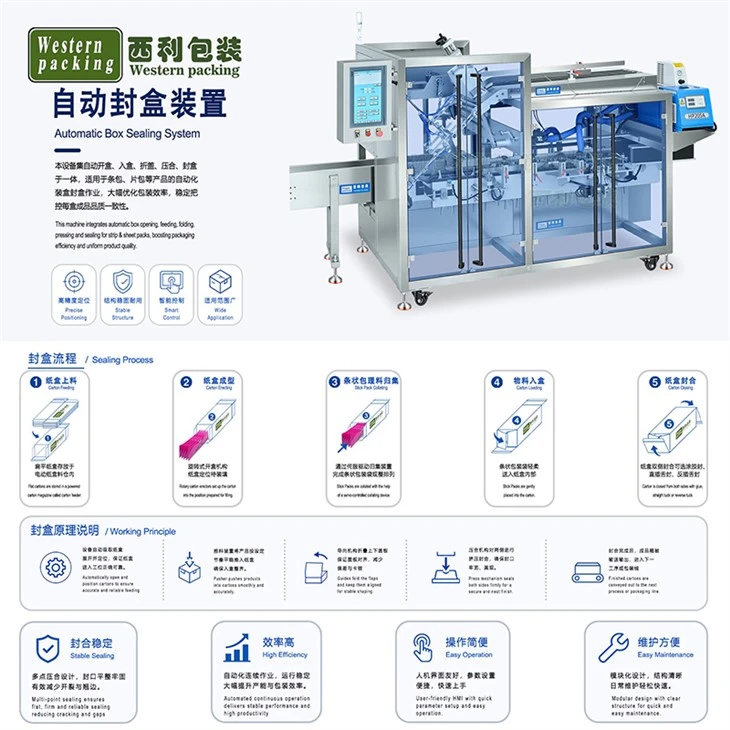

The flap-folding system of the carton sealing mechanism performs sequential folding using specially designed guide plates.
03
The equipment is equipped with features such as a transparent safety guard, an emergency stop button, and overload protection. This allows operators to monitor the production process while ensuring the safe operation of the equipment.
04
Hot Tags: stick bag cartoning machine, China stick bag cartoning machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
Stick Bag Cartoning Machine |
|
Bag style |
3/4 side seal, back seal, Irregularly shaped bag and Stick sachet |
|
Product size |
According to the actual situation |
|
Sorting bag size |
10-200mm |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |
STICK BAG CARTONING MACHINE

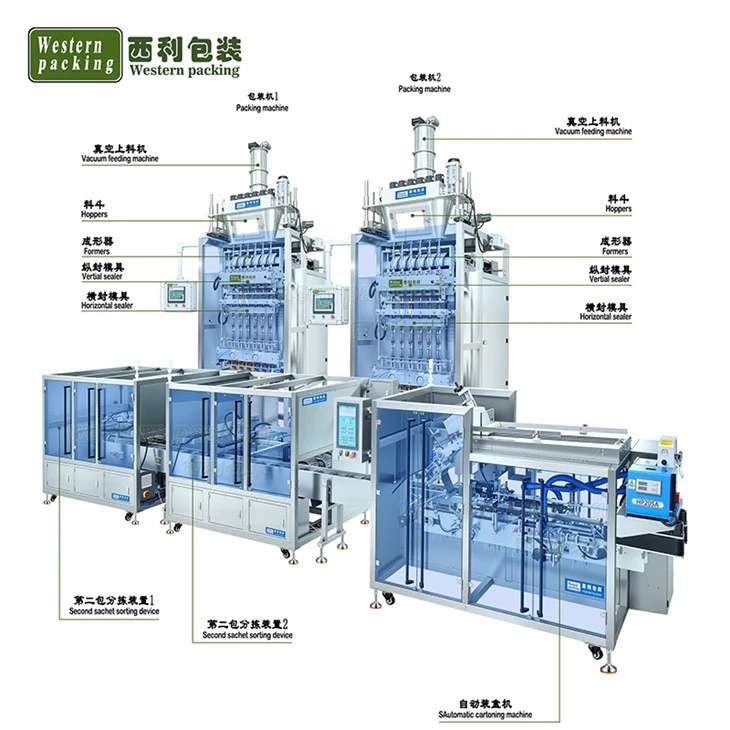

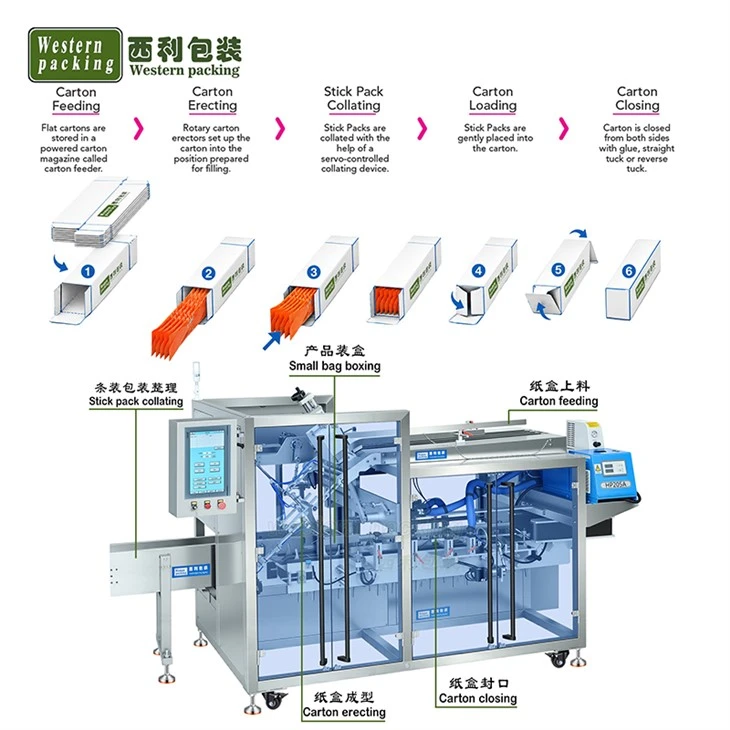

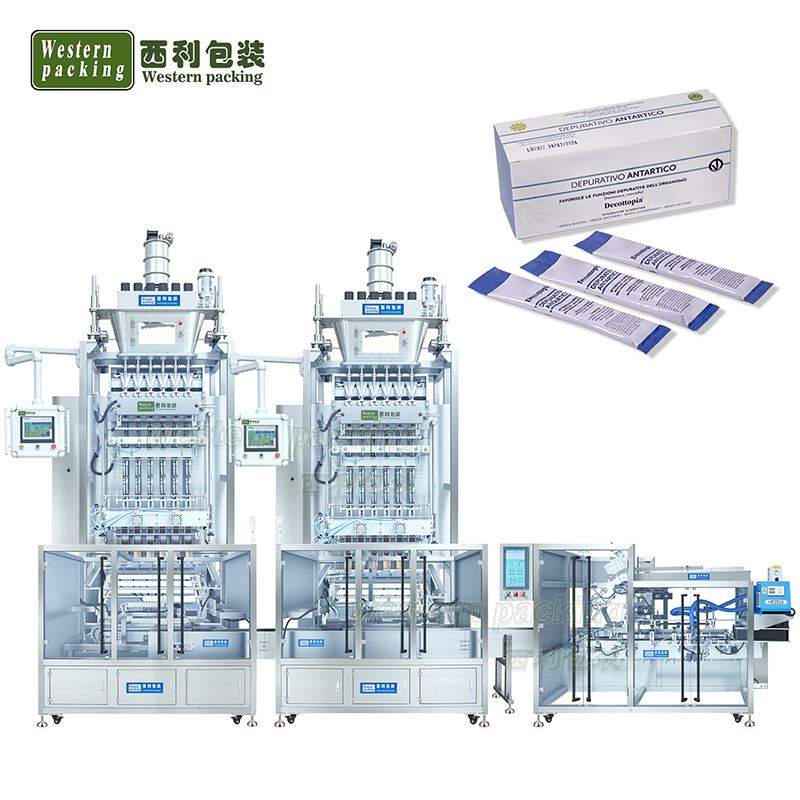

This stick bag cartoning machine is designed for the automatic secondary packaging of pre-made sachets. It receives finished sachets from an upstream packaging machine, arranges them according to a preset quantity, and performs carton forming, product loading, and carton sealing in a continuous process.
The conveyor section features adjustable guide rails, allowing for adaptation to different sachet sizes without the need to replace the entire conveyor assembly. Linear guides and servo-driven mechanisms ensure smooth product transport while minimizing mechanical shock.
The electrical control cabinet is integrated within the machine frame; the wiring layout is organized, facilitating routine maintenance and troubleshooting.
PRODUCT FEATURES
Adjustable product guides: Both the infeed channel and the grouping area can be adjusted to accommodate the width and length of the sachets, allowing for rapid product format changes without the need to replace major components.
Precise product positioning: The loading station utilizes a mechanical positioning mechanism to ensure precise alignment between the sachet group and the carton during the loading process.
Touchscreen interface: Production speed, product count, alarm information, and operating parameters can all be monitored and adjusted via the Human-Machine Interface (HMI).
