Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of automatic stick bag cartoning machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable automatic stick bag cartoning machine made in China here from our factory.
DETAILED DISPLAY
The product guide rails are equipped with an adjustable positioning mechanism to accommodate sachet products of varying widths and lengths.
01
The servo-driven pusher system ensures smooth and repeatable motion during each loading cycle. Both the pushing speed and stroke length are adjustable.
02
After the carton is sealed, it is smoothly conveyed to the discharge conveyor. The conveyor operates in synchronization with the cartoning cycle, ensuring consistent spacing between finished cartons before they proceed to the next packaging stage.
03
The automatic stick bag cartoning machine high-capacity carton magazine stores flat cartons in a stable, vertical orientation, supporting continuous carton feeding during long production runs.
04
Hot Tags: automatic stick bag cartoning machine, China automatic stick bag cartoning machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
Automatic Stick Bag Cartoning Machine |
|
Bag style |
3/4 side seal, back seal, Irregularly shaped bag and Stick sachet |
|
Product size |
According to the actual situation |
|
Sorting bag size |
10-200mm |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |

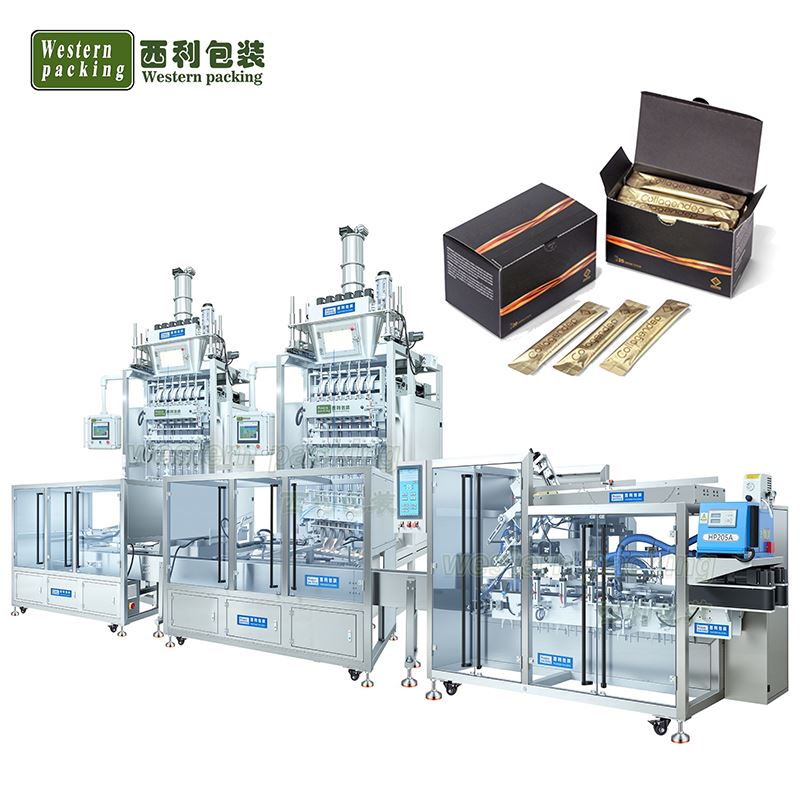

AUTOMATIC STICK BAG CARTONING MACHINE

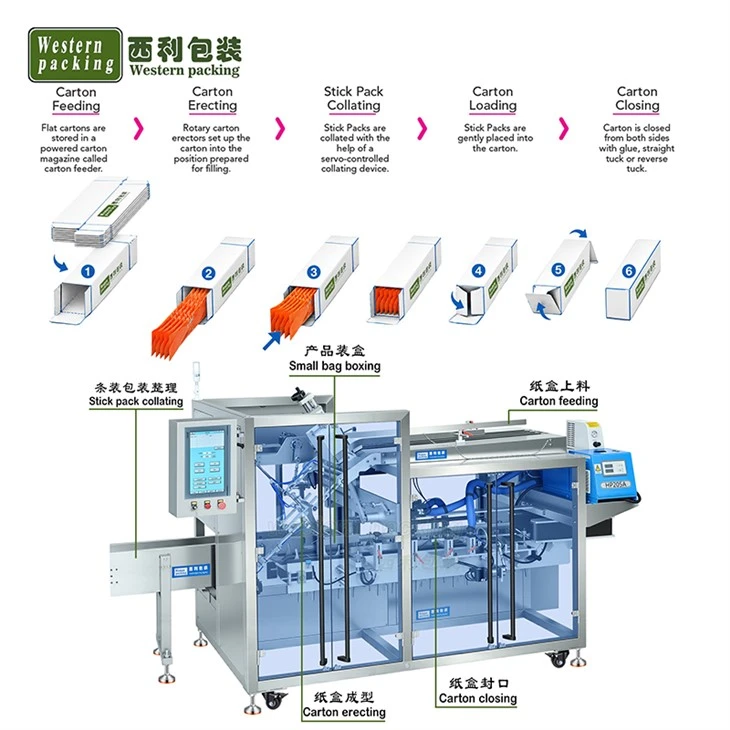

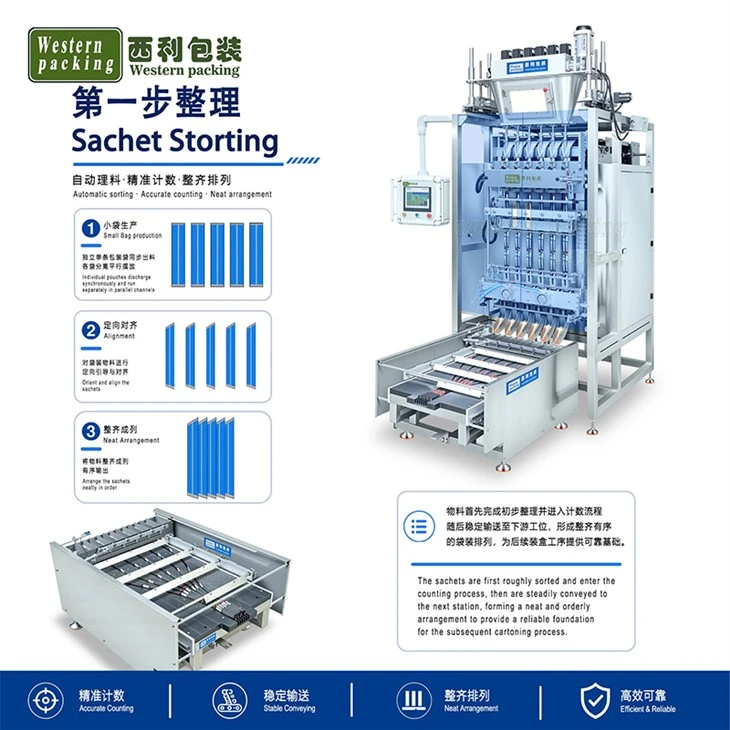

The automatic stick bag cartoning machine is designed for the secondary packaging of pre-filled sachets into cartons. It integrates processes such as sachet organizing and counting, carton forming, filling, and sealing into a single, comprehensive system. Mechanical linkage between the various modules ensures stable product transport and precise cartoning during continuous operation.

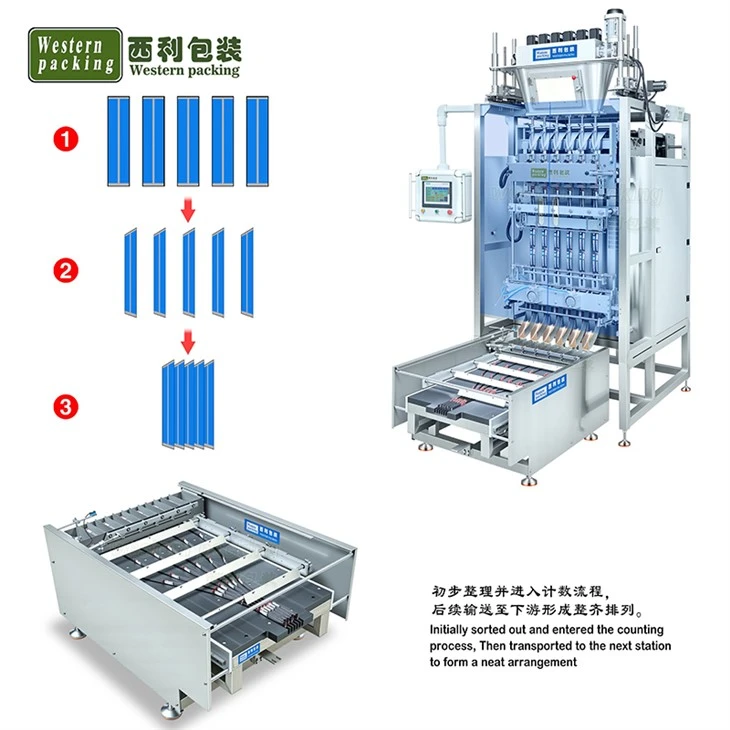

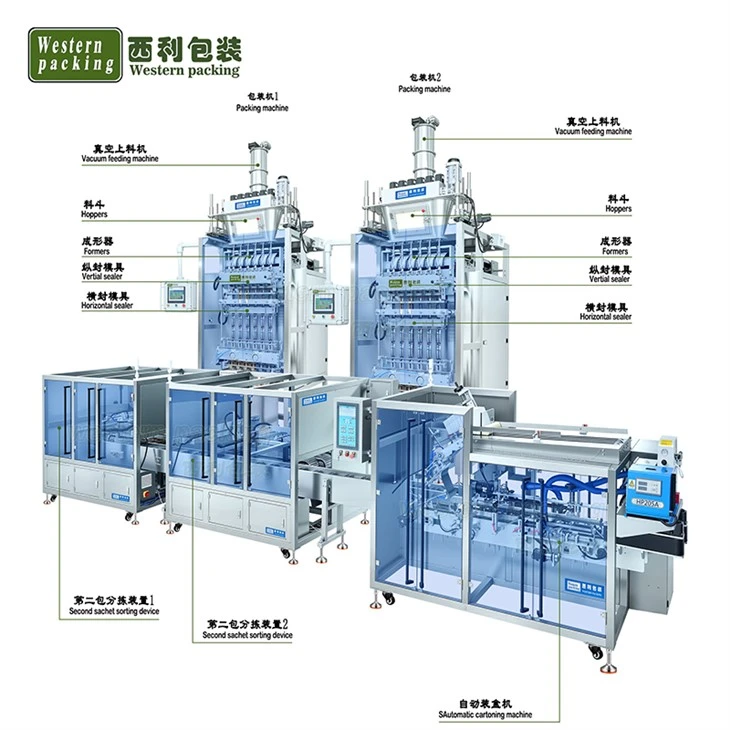

The machine can operate in conjunction with multi-lane sachet packaging equipment and offers flexible configuration options based on carton dimensions, sachet specifications, and the required number of sachets per carton.
PRODUCT ADVANTAGES
Precise mechanical positioning: Each workstation is equipped with a dedicated positioning mechanism to ensure accurate alignment before the product proceeds to the next stage.
Smooth power transmission: The drive system integrates servo motors, synchronous belts, precision shafts, and guide rails, delivering smooth mechanical motion with minimal vibration.
Flexible equipment configuration: Carton specifications, loading quantities, and packaging speeds can be flexibly configured to meet specific production requirements.
