Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of sachet cartoning machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable sachet cartoning machine made in China here from our factory.
DETAILED DISPLAY

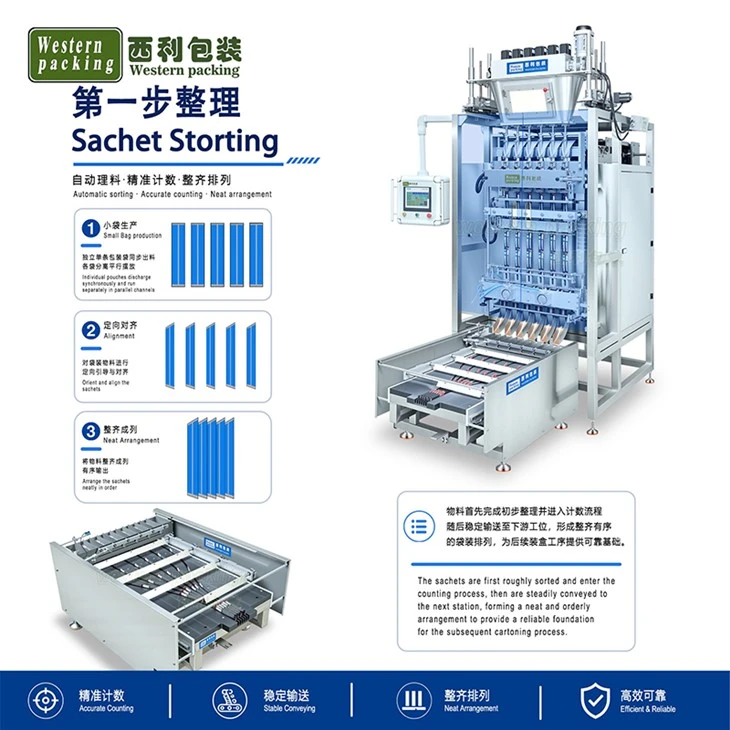

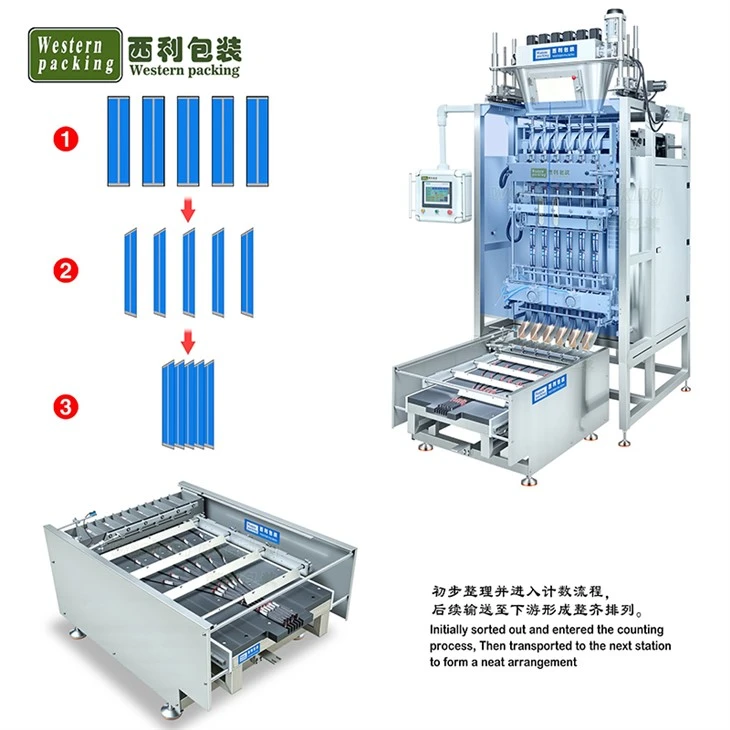

The sachet sorting machine adopts a multi-stage conveying and sorting structure, which sorts the small bags in three steps through baffles and guide rails.
01

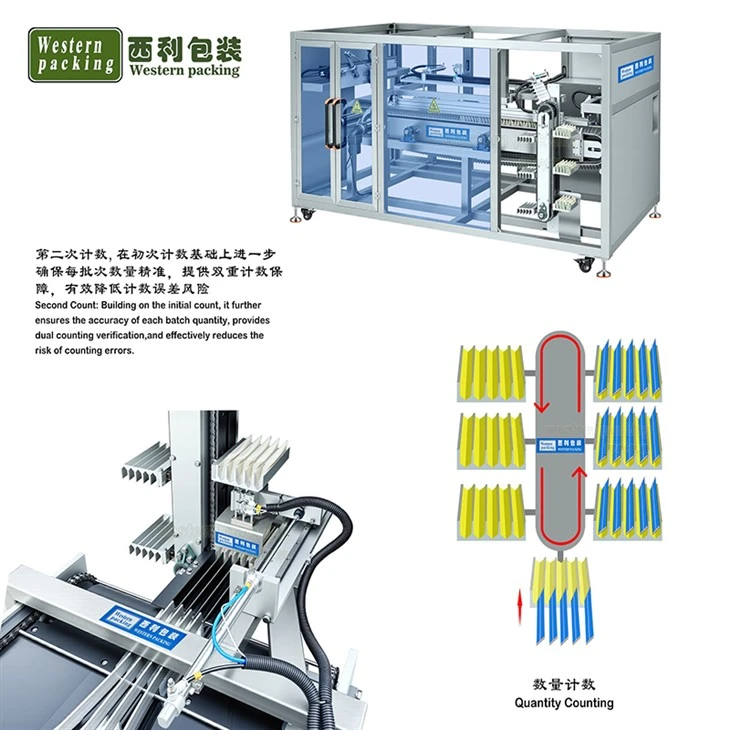

The counting device counts the packaged products twice after they have been sorted.
02

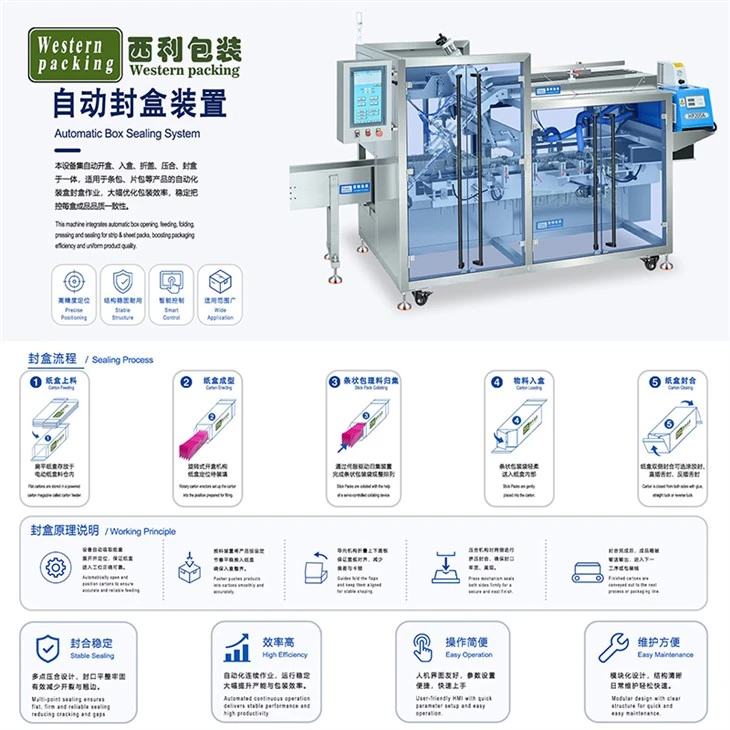

The cardboard box is opened, positioned, and secured to ensure it does not shift or deform during the filling process.
03
The sachet cartoning machine all equipment is equipped with transparent protective covers and emergency stop devices to enhance operational safety.
04
Hot Tags: sachet cartoning machine, China sachet cartoning machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
sachet cartoning machine |
|
Product size |
According to the actual situation |
|
Sorting bag size |
10-200mm |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |

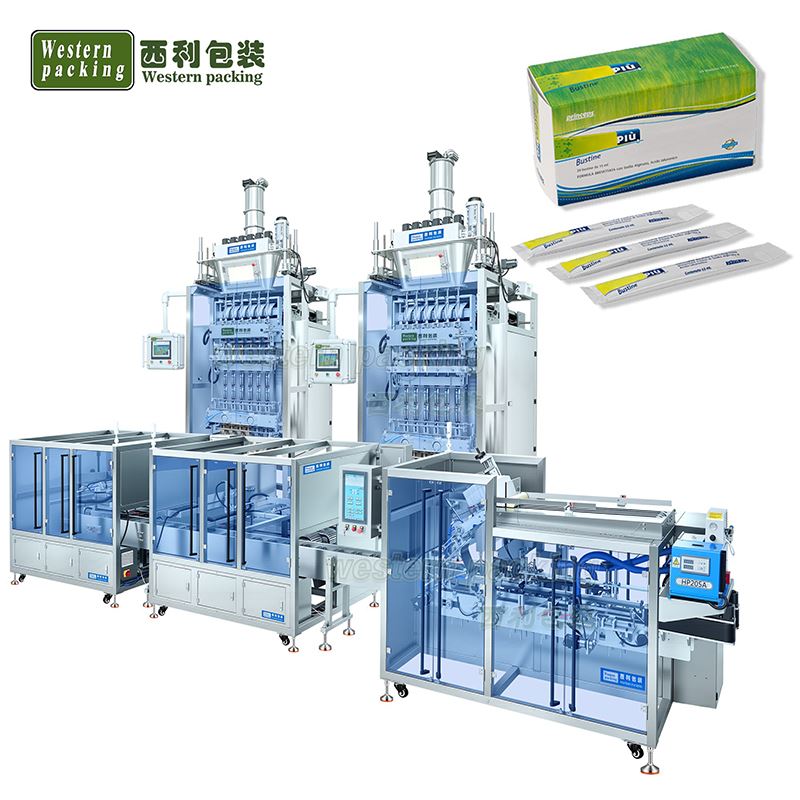

SACHET CARTONING MACHINE

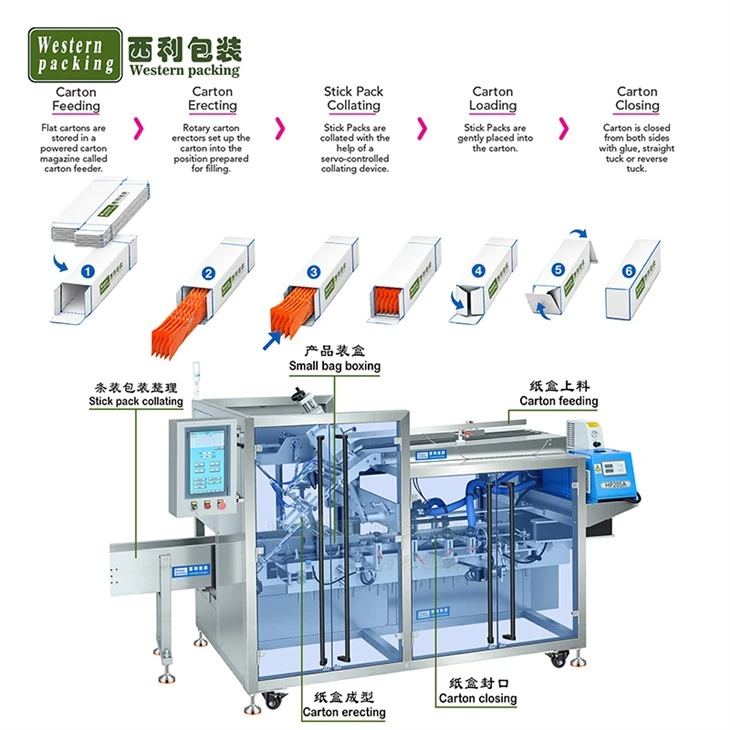

The sachet cartoning machine is mainly used to solve the problem of continuous conveying and automatic integration of small bag products in the subsequent packaging process. It orderly guides scattered packaged products into the cartoning process, achieving automatic conversion from small bag output to boxed output.
The equipment uses a conveying and sorting system to standardize and organize the small bags, ensuring a stable flow of bagged products into the processing channel. Counting is performed in the intermediate stage to ensure accurate quantity for each batch. Subsequently, the cartoning mechanism accurately places and neatly arranges the small bags within the boxes.
The entire system is controlled by a PLC, enabling coordinated operation of each station to guarantee accurate counting and stable cartoning.
PRODUCT FEATURES

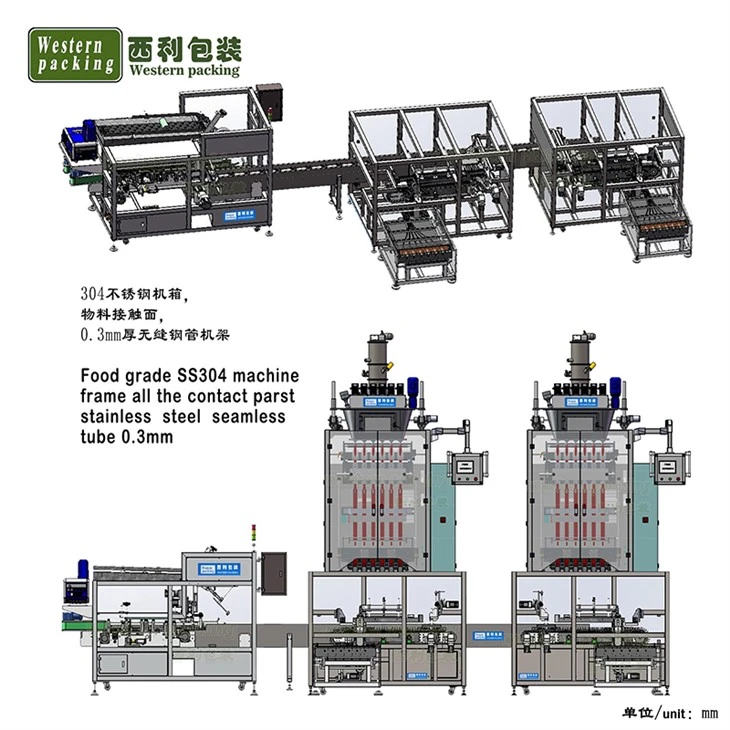

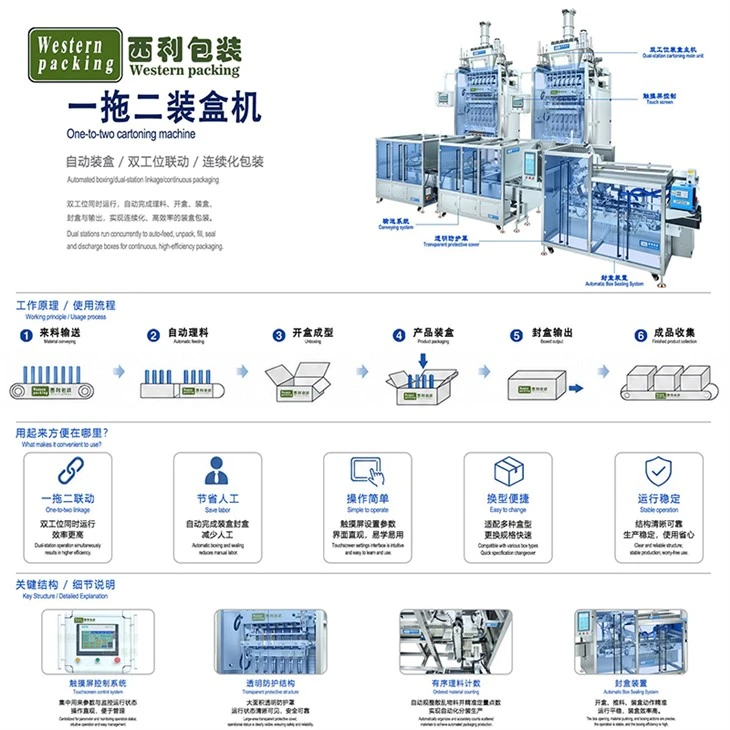

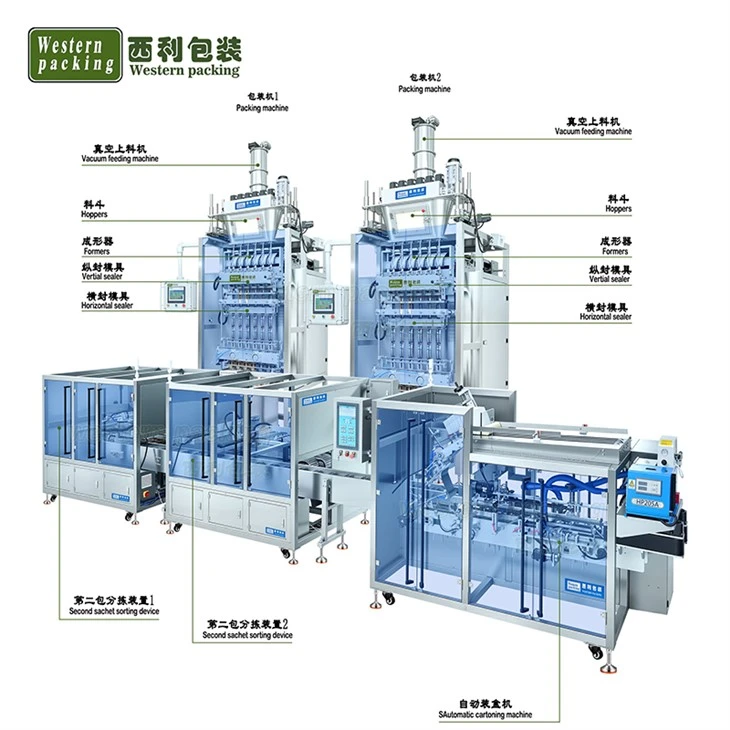

Integrated Line Design: The equipment consists of a multi-row packaging machine at the front end, a sorting and conveying unit, a counting device, and an automatic sealing device at the rear end, each of which can be controlled independently.
High-Precision Counting System: Equipped with a photoelectric detection module, it dynamically identifies and counts small bags; double counting reduces counting errors.
Multi-Specification Customization Design: Supports rapid switching between different sized bags and cartons, reducing changeover and adjustment time.
