Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of sachet cartoner in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable sachet cartoner made in China here from our factory.
DETAILED DISPLAY

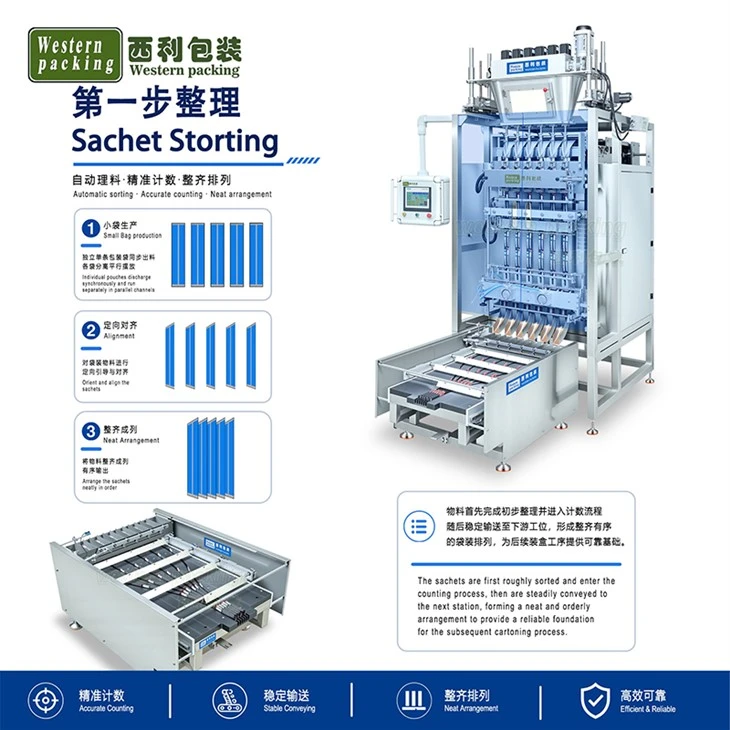

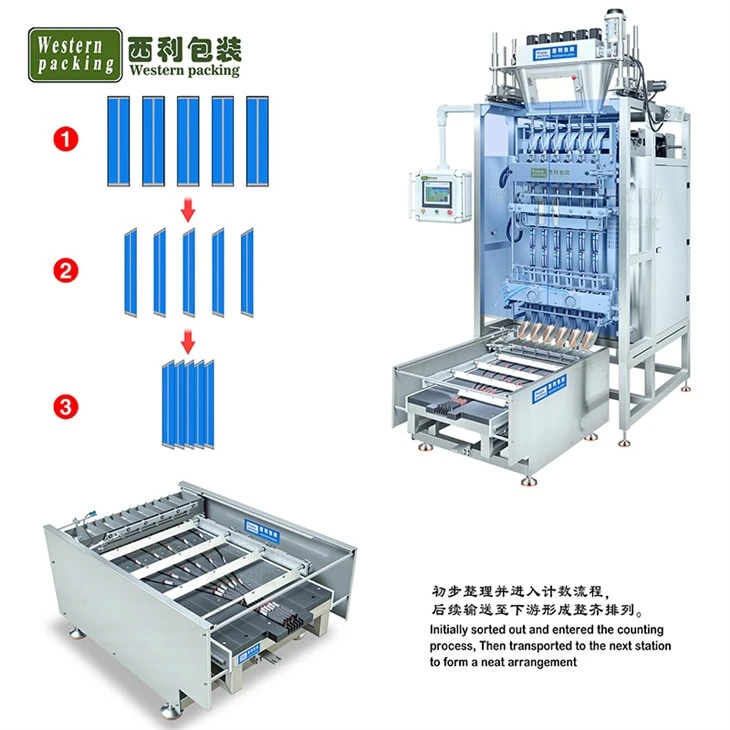

The sachet products discharged from the packaging machine are directionally guided and aligned, then organized into orderly rows for output, facilitating subsequent counting.
01

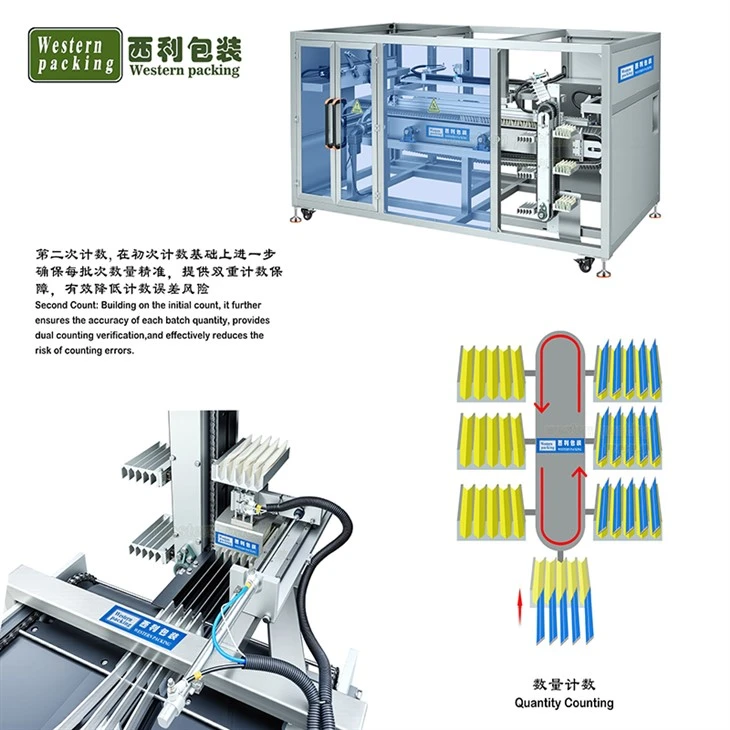

The counting module uses high-speed photoelectric sensors to detect each passing sachet individually. A double-count is performed to ensure accuracy.
02
The pusher mechanism is driven by a servo motor and moves along precision linear guides.
03
Safety guard doors surround the work area, allowing operators to monitor operations without opening the enclosure, thereby ensuring safety.
04
Hot Tags: sachet cartoner, China sachet cartoner manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
Sachet Cartoner |
|
Bag style |
3/4 side seal, back seal, Irregularly shaped bag and Stick sachet |
|
Product size |
According to the actual situation |
|
Sorting bag size |
10-200mm |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |
SACHET CARTONER

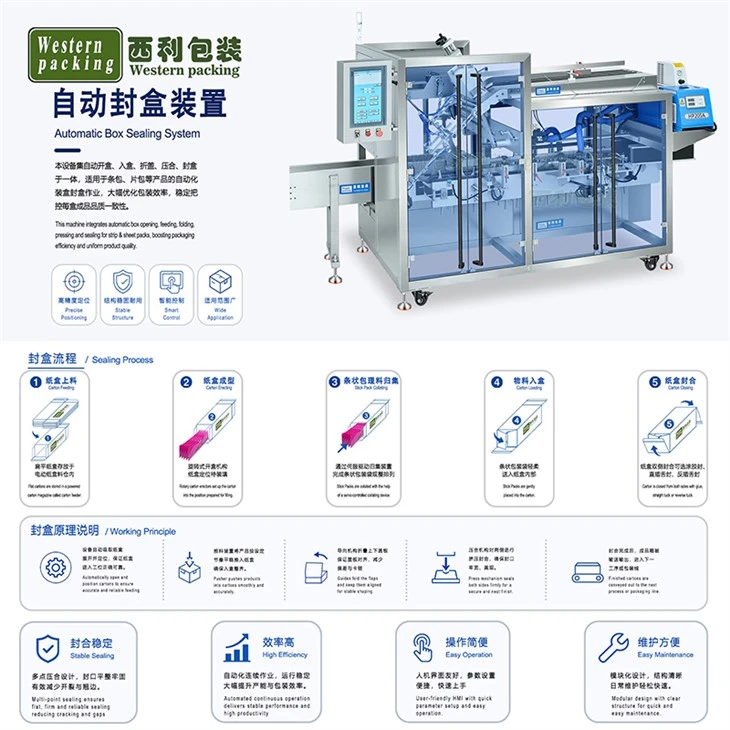

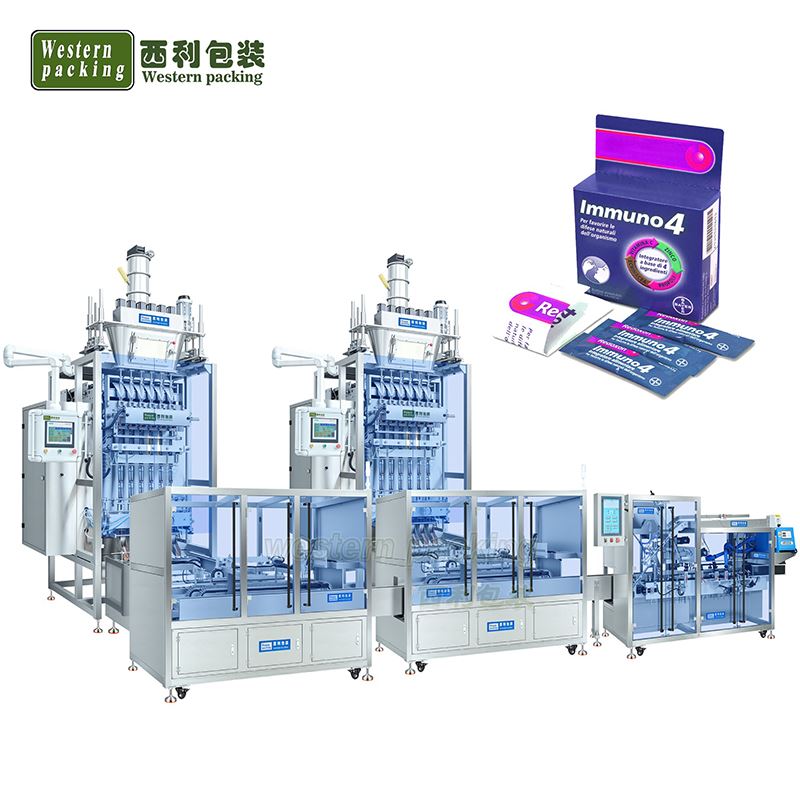

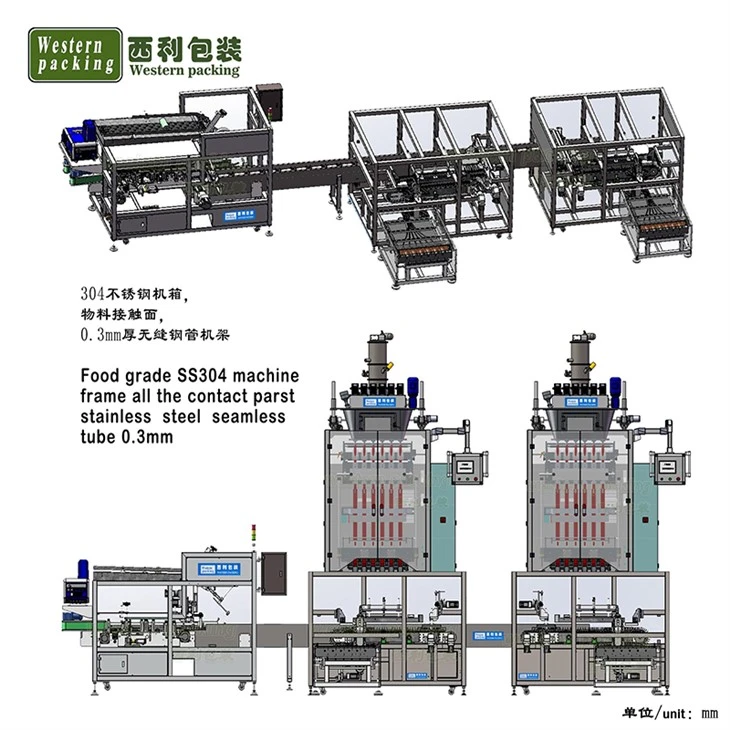

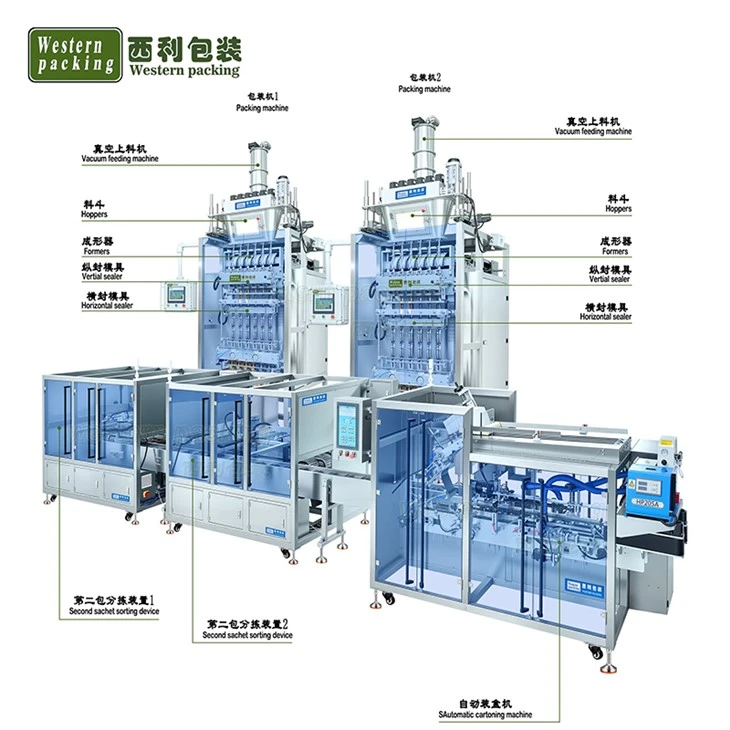

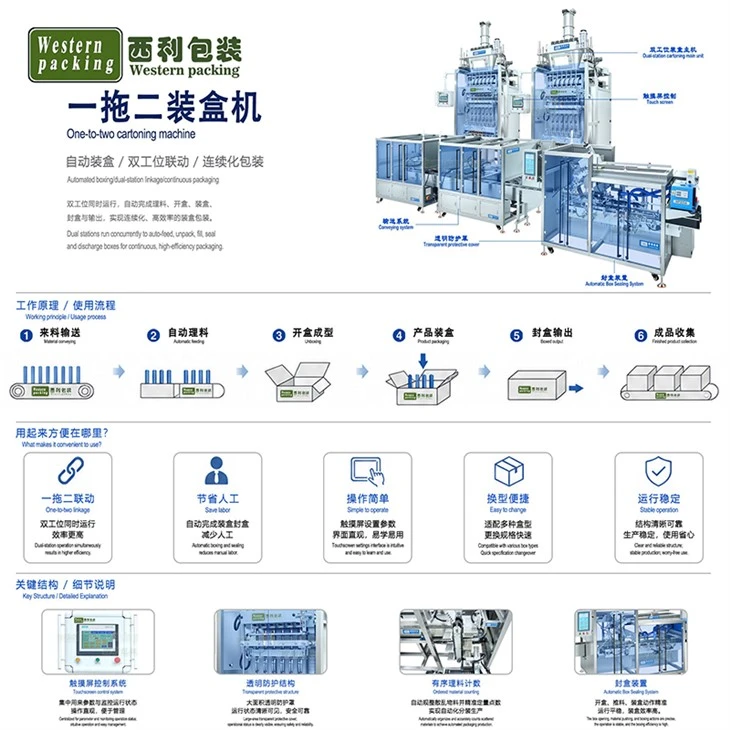

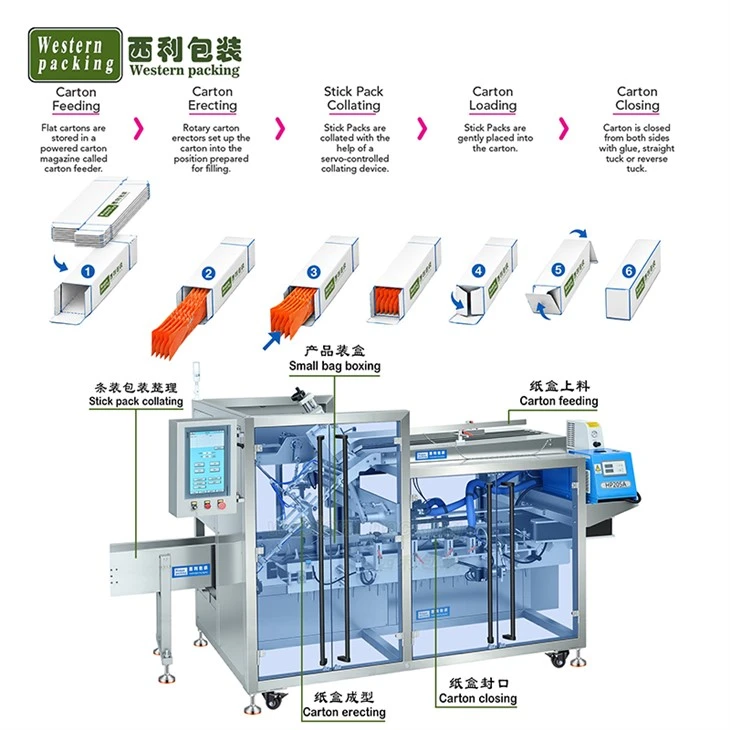

The automatic sachet cartoner is designed to automatically collect, organize, count, and carton finished sachets following the primary packaging stage. Typically integrated with multi-lane sachet packaging machines to form a fully automated production line, the equipment enhances packaging consistency and production efficiency while reducing labor requirements.
This machine is suitable for cartoning a wide range of sachet products, including powders, liquids, granules, tablets, and pastes. Carton dimensions, quantities per carton, and arrangement patterns can be flexibly customized to meet specific production needs. Whether handling coffee sticks, seasoning packets, nutritional supplements, pharmaceutical products, or pet food samples, the equipment maintains stable and continuous cartoning performance during extended production runs.
This allows for the integration of additional packaging equipment or downstream case packers without the need to redesign the entire production line.
PRODUCT ADVANTAGES
Reduced staffing requirements: A single automated cartoning line can replace multiple manual packing stations, thereby lowering labor costs and simplifying personnel management.
Consistent output during extended production runs: The equipment is capable of continuous, long-term operation. Servo drives and a stable conveying system ensure consistent packaging quality, even across multiple production shifts.
Lower packaging error rates: Automated counting functions significantly reduce instances of missing items, overfilling, or incorrect carton counts, thereby enhancing packaging consistency.
Ease of system integration: The system connects seamlessly with multi-lane sachet packaging machines, checkweighers, case packers, and other equipment to form a complete automated packaging line.
