Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of cartonator packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable cartonator packing machine made in China here from our factory.
DETAILED DISPLAY

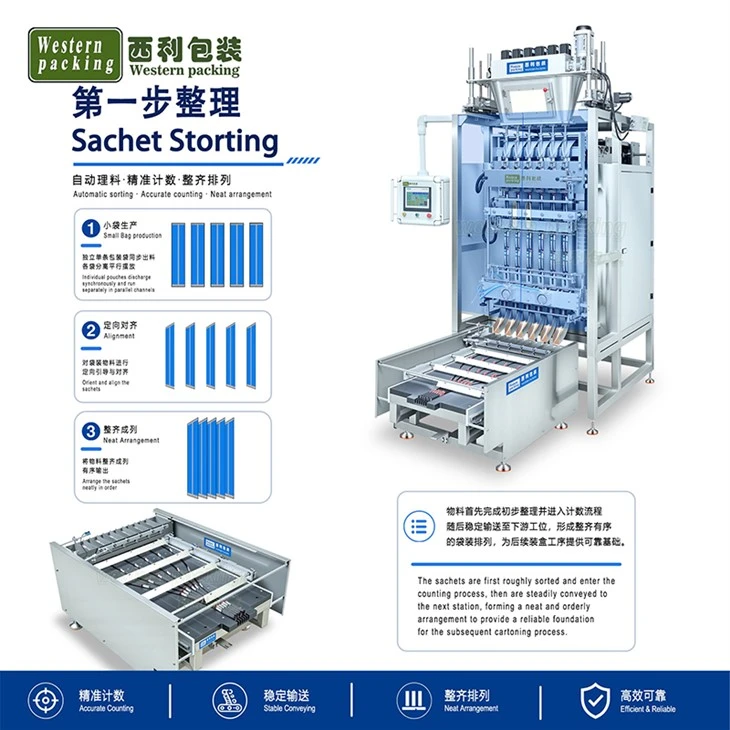

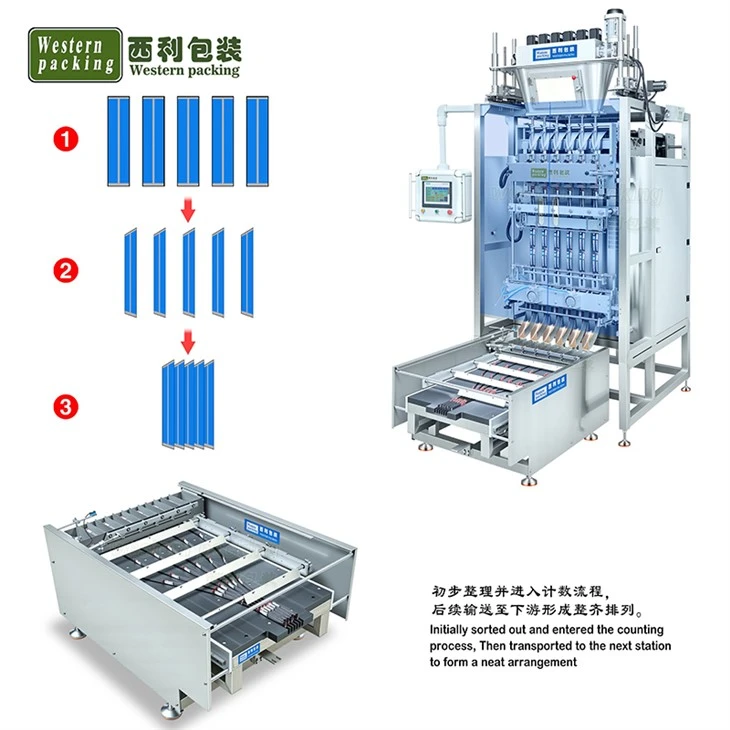

The secondary sorting unit for small pouches is positioned between the packaging machine and the cartoning machine; it organizes the finished pouches according to the required cartoning quantity, preventing random accumulation and forming an orderly product queue.
01
The touchscreen control panel displays production speed, output count, alarm logs, and machine status. The system supports saving and recalling product parameters for different specifications, allowing operators to switch specifications at any time.
02
The cartonator packing machine carton magazine stores a large quantity of flat cartons and feeds them automatically into the forming station.
03

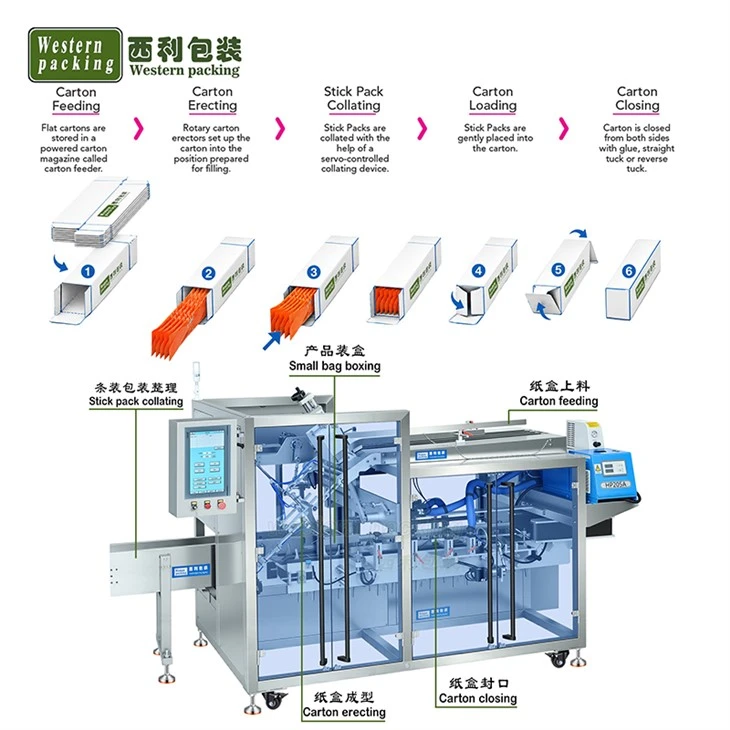

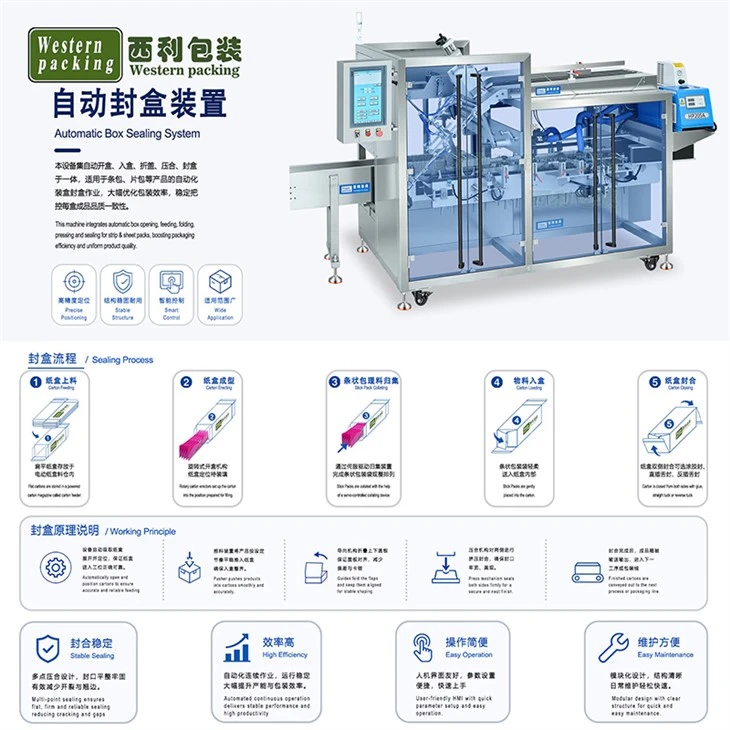

The box-sealing unit ensures precise and smooth operation across all stages-box opening, product pushing, and cartoning-delivering high cartoning efficiency.
04
Hot Tags: cartonator packing machine, China cartonator packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
Cartonator Packing Machine |
|
Bag style |
3/4 side seal, back seal, Irregularly shaped bag and Stick sachet |
|
Product size |
According to the actual situation |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |
CARTONATOR PACKING MACHINE

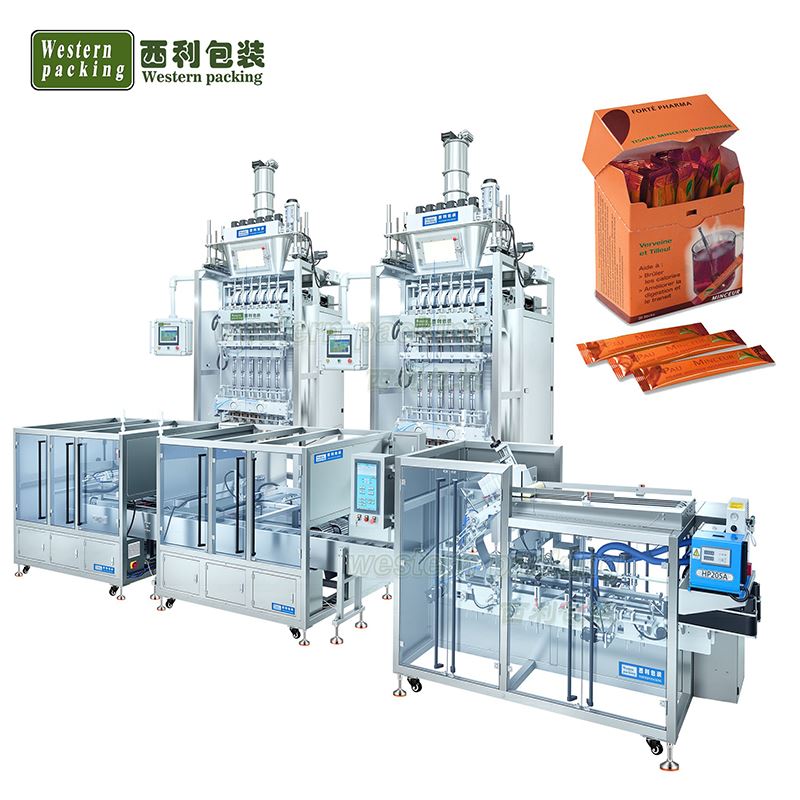

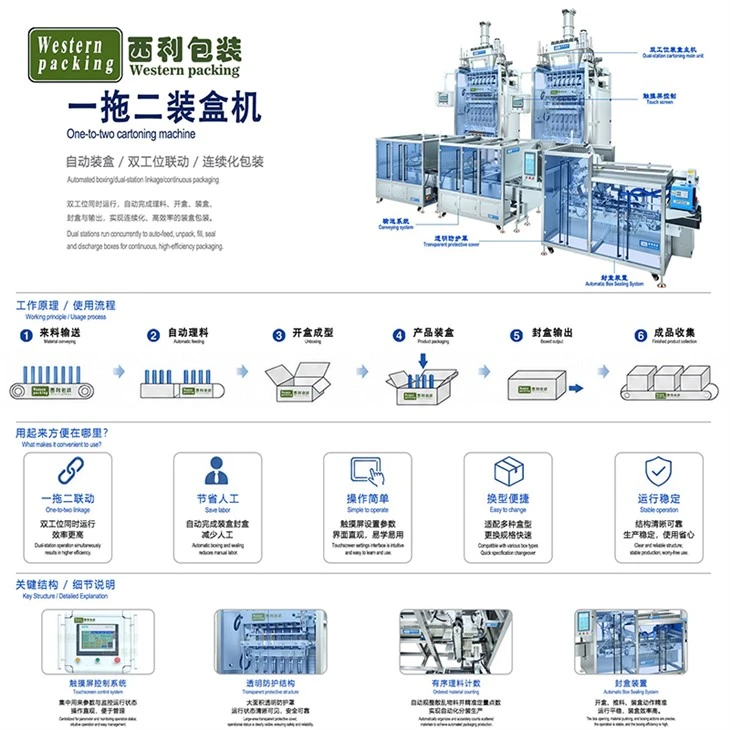

The cartonator packing machine is a back-end packaging system designed to automate the processes of organizing, counting, arranging, and cartoning pre-made sachets.

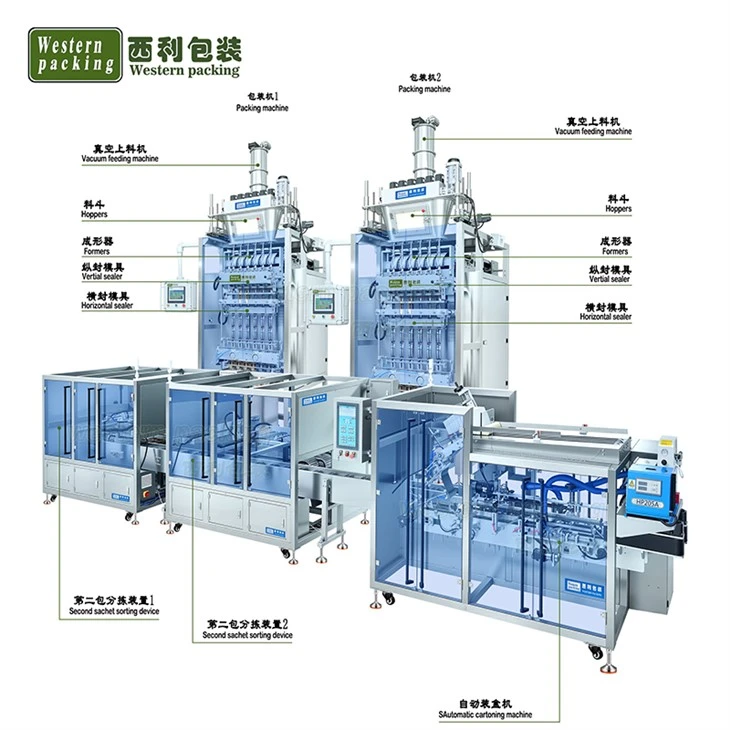

This equipment integrates multiple functions—including sachet conveying, product buffering, automatic counting, grouping, carton feeding, carton erecting, loading, sealing, and finished product discharge—into a single unit. Synchronized operation across all stations is achieved through servo motors and a PLC control system, ensuring smooth product transport and stable cartoning performance.
The machine is suitable for cartoning a wide range of flexible packaging products, such as powders, liquids, granules, stick packs, pharmaceutical sachets, nutritional supplements, seasonings, instant coffee, and sugar sticks. Carton dimensions, sachet quantities, and loading arrangements can be customized to meet specific customer requirements.
PRODUCT FEATURES
Stable product transport: Products are conveyed through dedicated guide channels to minimize unwanted displacement, ensuring a stable and consistent loading process even when packaging material specifications vary.
Continuous material supply: A high-capacity carton magazine and continuous product infeed design effectively reduce production interruptions caused by frequent restocking.
User-friendly operation: Production parameters are clearly displayed on the Human-Machine Interface (HMI), allowing operators to monitor equipment status, output counts, alarm information, and running speed in real-time from a single interface.
