Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of cosmetic cartoning machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable cosmetic cartoning machine made in China here from our factory.
DETAILED DISPLAY

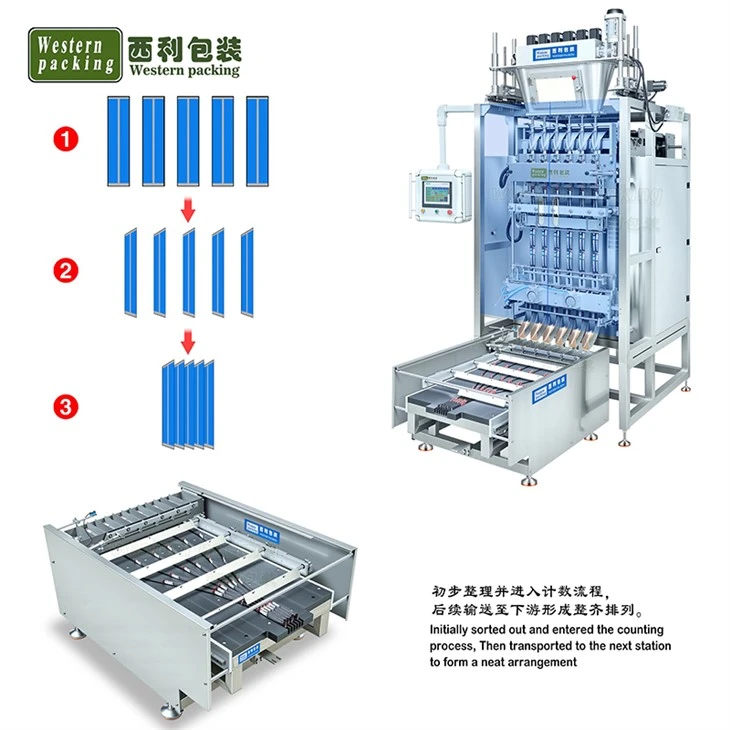

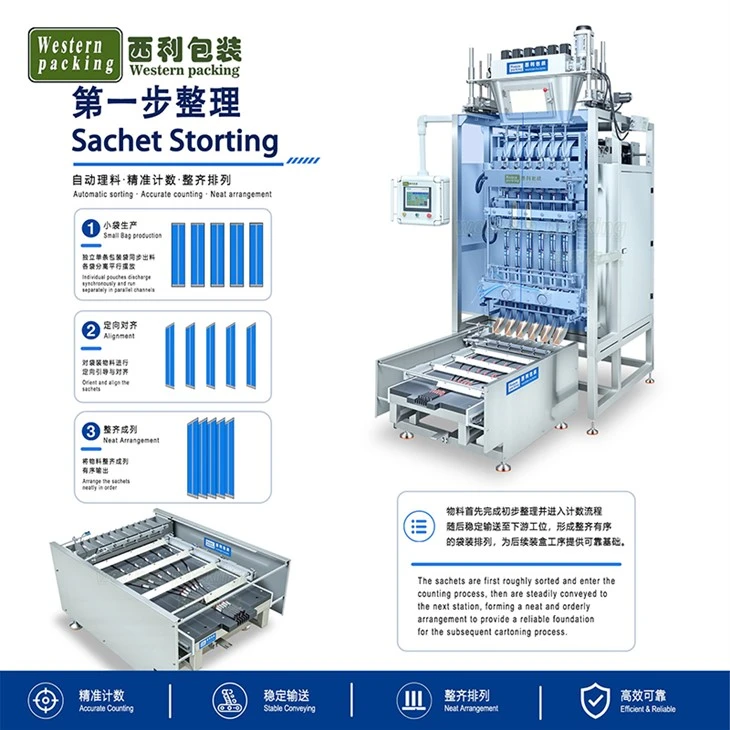

The system employs a multi-segment guide rail and limiting plate structure to progressively sort and distribute the small bags.
01

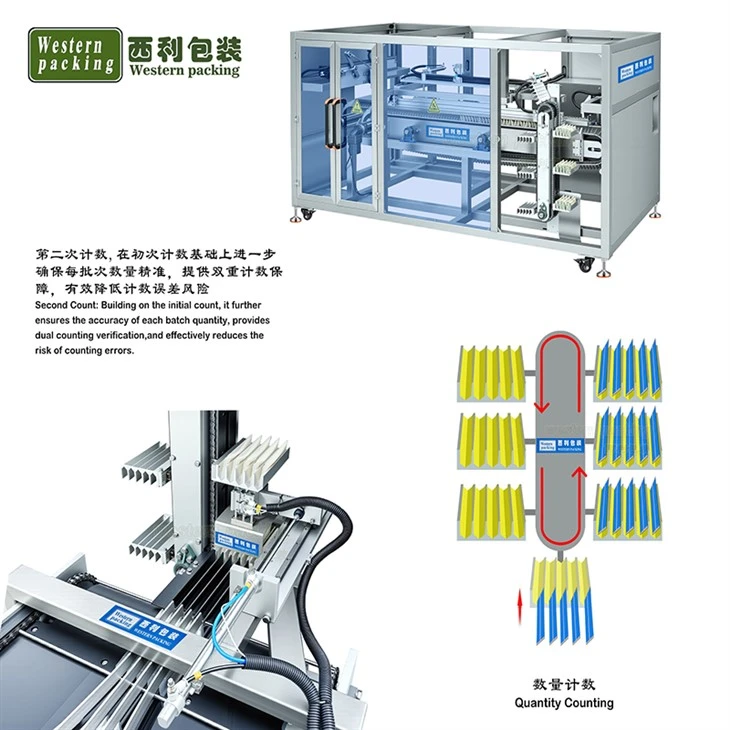

The bags that have been counted once will enter the sorting device for a second count to reduce counting errors.
02

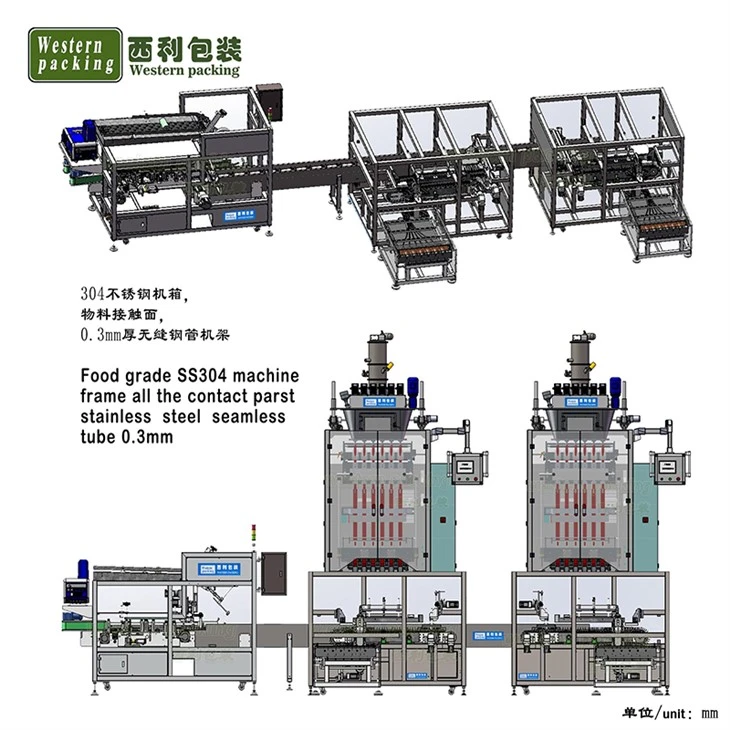

The cosmetic cartoning machine adopts a segmented frame design, and each functional module (feeding, counting, boxing, and sealing) can be independently disassembled and maintained, reducing maintenance downtime.
03
The system employs a PLC centralized control system with a touchscreen user interface, allowing users to directly set parameters such as boxing quantity, speed, and alarm prompts.
04
Hot Tags: cosmetic cartoning machine, China cosmetic cartoning machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
cosmetic cartoning machine |
|
Product size |
According to the actual situation |
|
Sorting bag size |
10-200mm |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |
COSMETIC CARTONING MACHINE

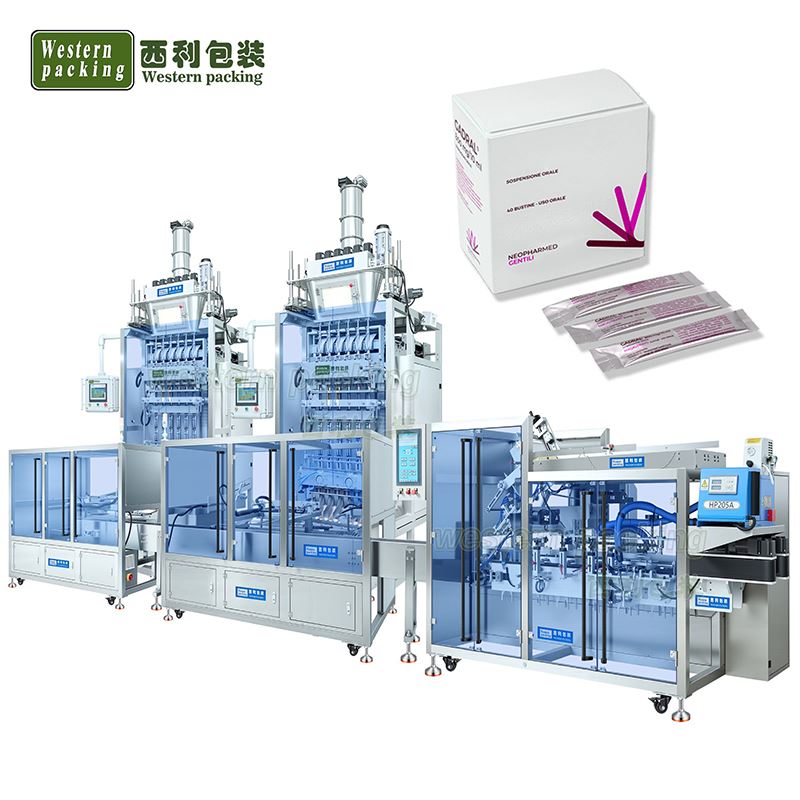

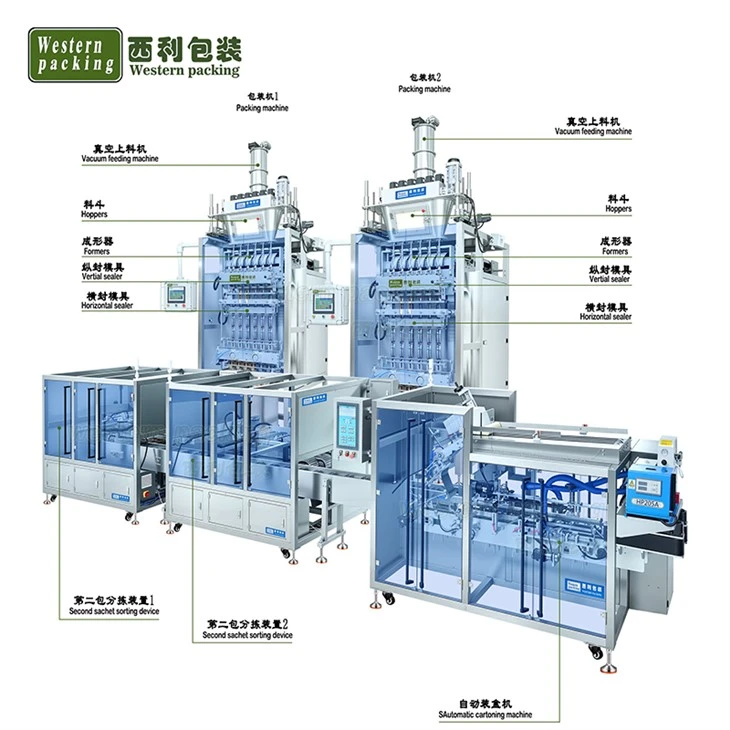

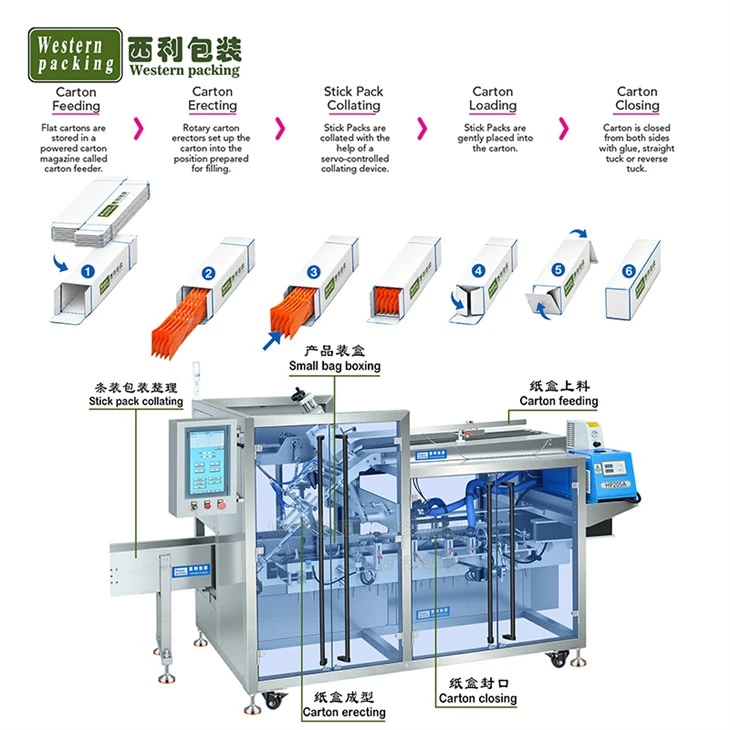

This cosmetic cartoning machine integrates automated feeding, counting, grouping, carton forming, product insertion, and carton sealing into a fully continuous workflow.
It is typically connected downstream of a multi-channel vertical or horizontal pouch packaging machine, forming a complete automated packaging production line.
The system can handle various types of pouches, including liquid bars, powder pouches, granule packs, and gel packs. Its intelligent control system ensures precise grouping before insertion, preventing missed packs or carton overloading.
PRODUCT FEATURES

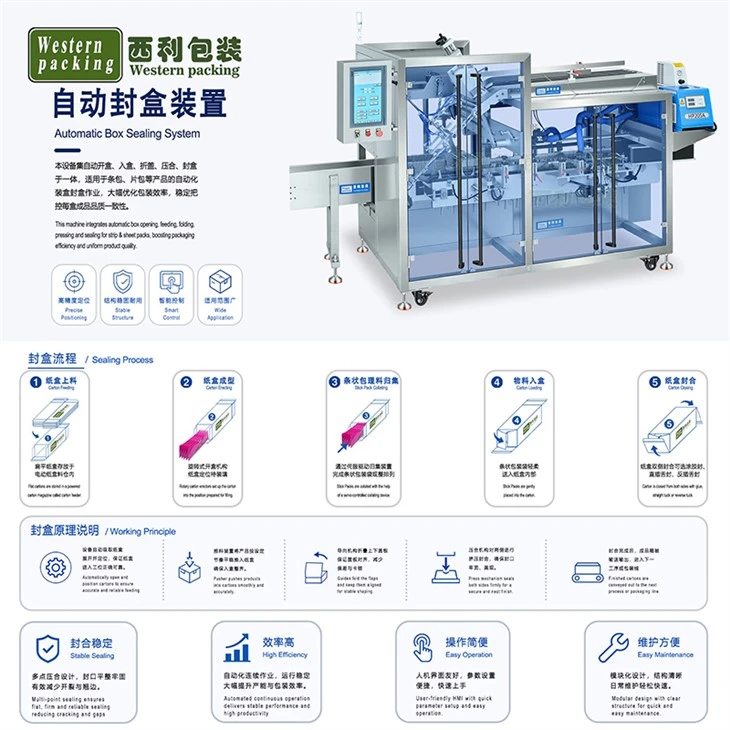

Cartoning Unit: Ensures accurate carton feeding, opening, and sealing, minimizing mechanical wear.
Intelligent Bag Counting and Grouping Module: Automatically detects and organizes bags twice before loading to prevent quantity errors.
Continuous High-Speed Operation System: Maintains stable output even during long production cycles by synchronizing with upstream feed.
Quick Changeover Structure: Tool-assisted adjustments allow for rapid specification changes, reducing downtime between production runs.
Integrated Safety Protection System: Equipped with emergency stop, overload detection, and protective covers to ensure operator safety.
PLC + HMI Intelligent Control Interface: Monitors production status in real time, issues error alarms, and visualizes production data.
