Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of triangle tea bag packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable triangle tea bag packaging machine made in China here from our factory.
DETAILED DISPLAY

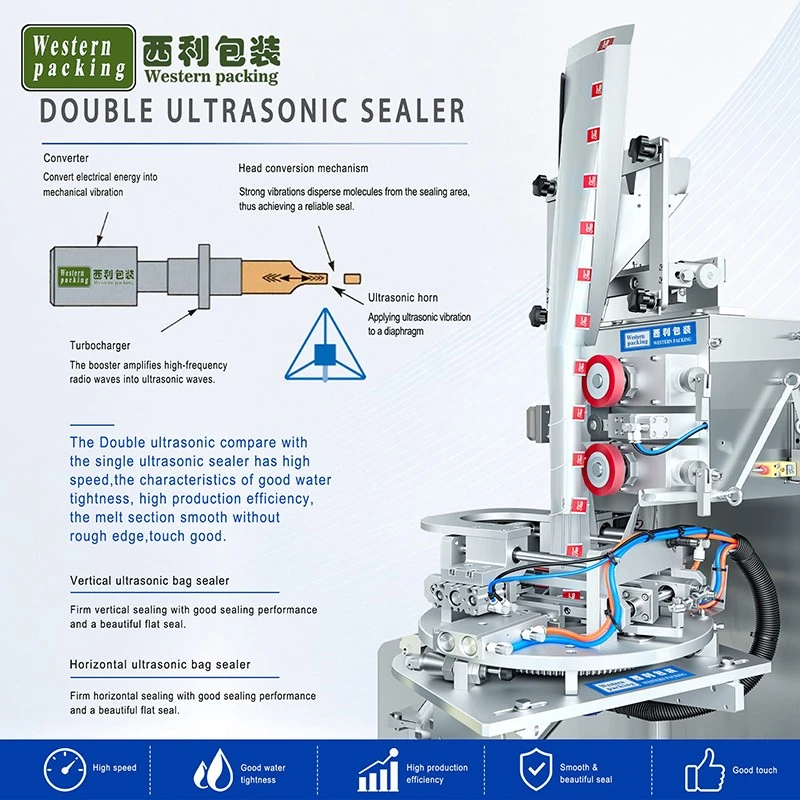

Ultrasonic sealing eliminates the need for continuous heating of the sealing blade, reducing the risk of heat-induced deformation of packaging materials. The sealing process is fast and provides stable pressure, making it suitable for tea bag filter materials such as nylon mesh and non-woven fabrics.
01

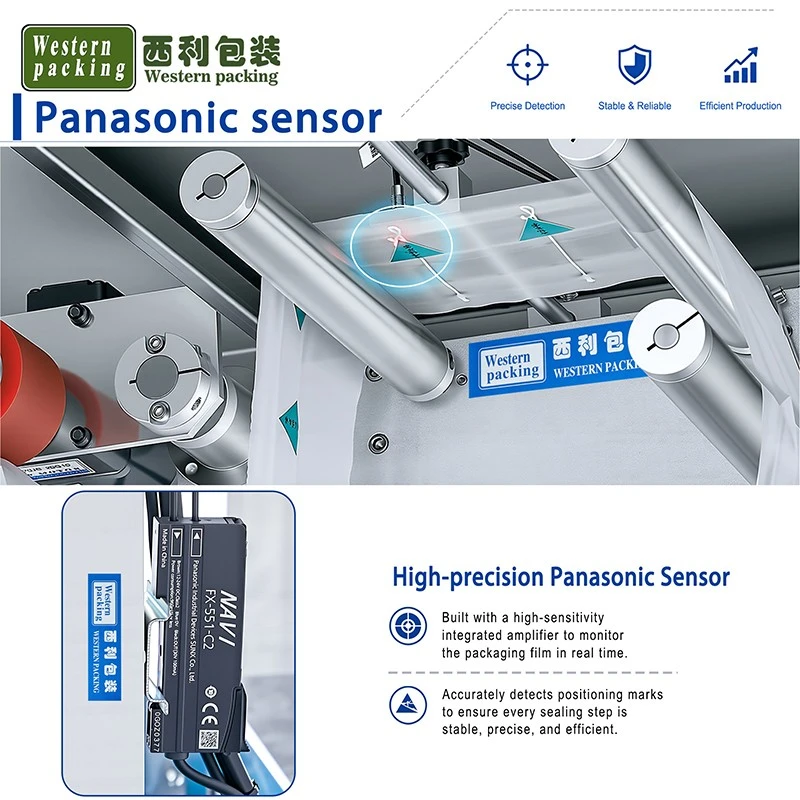

The unwinding shaft, in conjunction with a tension control device, ensures stable film delivery during high-speed operation, preventing bag size deviations caused by variations in material tension.
02
To address the issues of uneven tea leaf density and varying sizes, the equipment can improve filling accuracy by adjusting the metering speed and feeding time.
03
The triangle tea bag packaging machine bag-cutting device features wear-resistant blades, and its cutting action is synchronized with the equipment's operating speed, ensuring clean cuts and reducing damage to packaging bags.
04
Hot Tags: triangle tea bag packaging machine, China triangle tea bag packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Triangle Tea Bag Packaging Machine |
|
Capacity |
30-70 bags/min |
|
Filling Range |
1-5g/bags |
|
Size |
(L)50-80mm(W)140-180mm |
|
Weight |
400kg |
|

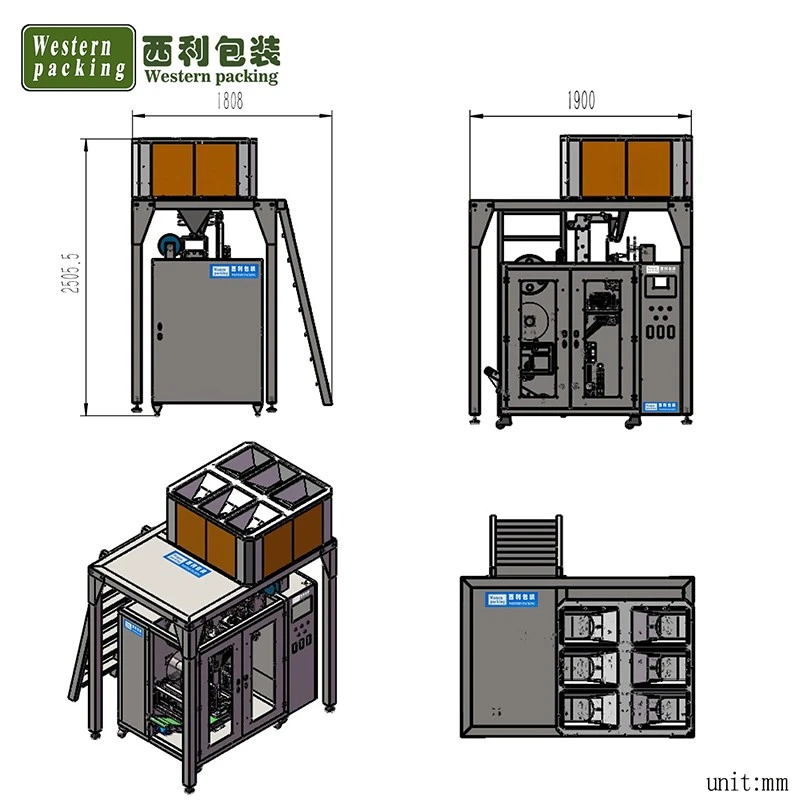

Dimension(L*W*H) |
1600*1006*2300mm |
TRIANGLE TEA BAG PACKAGING MACHINE

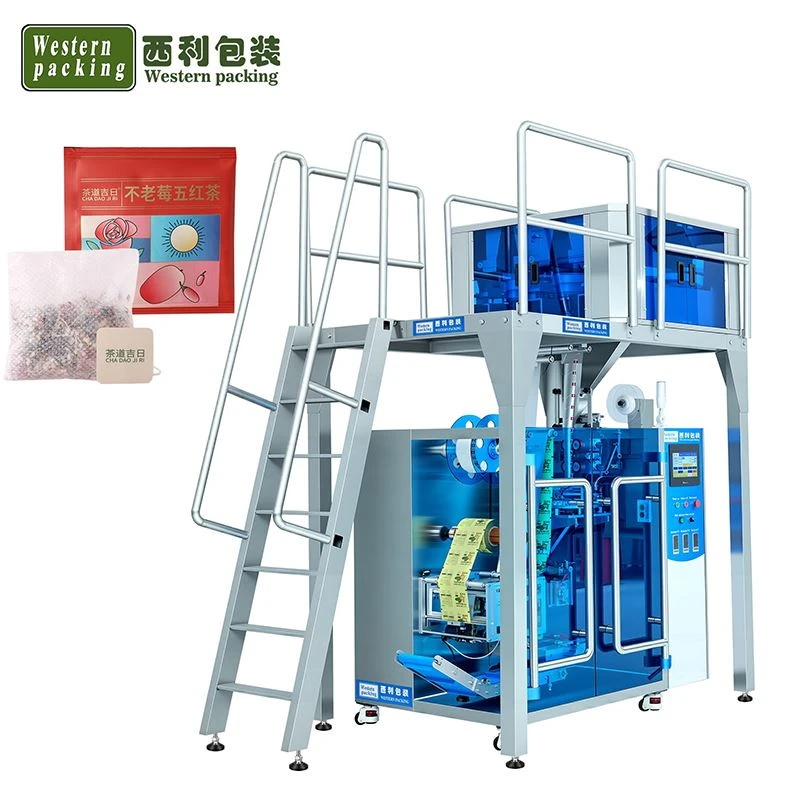

The triangle tea bag packaging machine employs a mechanical structure specifically developed for three-dimensional tea bags. Each functional module operates independently and collaboratively, enabling the equipment to maintain packaging precision even at high production speeds.

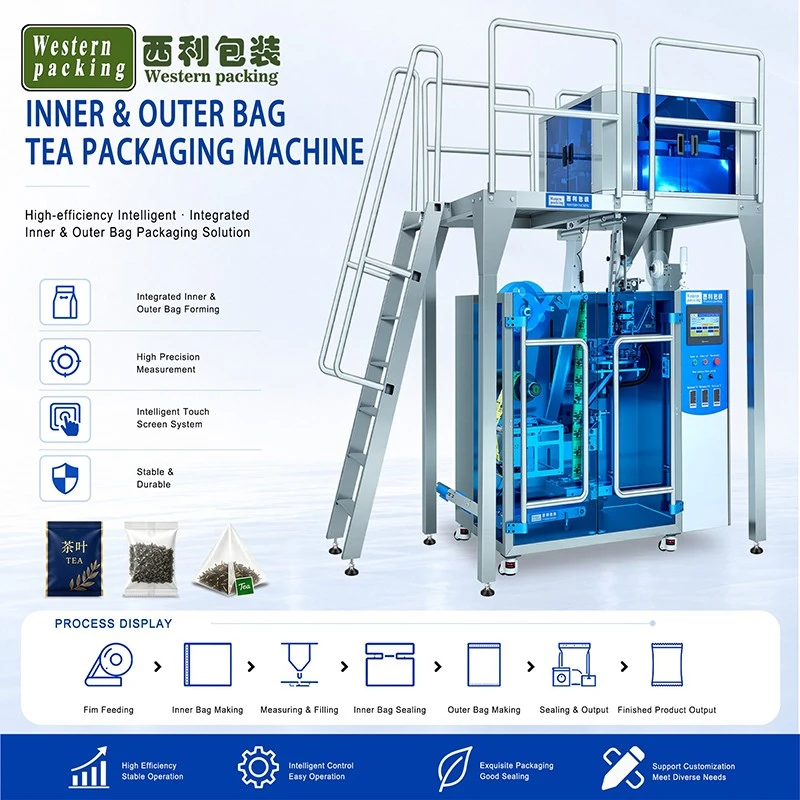

The machine as a whole consists of a film feeding system, a film positioning system, a three-dimensional bag forming system, a tea feeding system, a sealing and heating system, a bag cutting system, and an automatic control unit.
During production, the equipment first continuously unfolds and positions the roll of filter material. The forming component alters the film's shape, creating a triangular bag with a spatial structure. After the tea leaves enter the bag through a dedicated feeding mechanism, the equipment automatically seals and cuts the bag.
Addressing the characteristics of tea products, such as susceptibility to moisture, fragility, and light weight, this equipment has been optimized in terms of feeding stability, sealing temperature control, and packaging speed matching, ensuring consistent packaging results for different types of tea.
WORKING PRINCIPLE
After the equipment starts, the film roll is installed on the film feeding shaft, and the drive roller moves the packaging material at a set speed. After passing through the guiding and positioning mechanism, the film enters the triangular bag forming area, where it gradually forms a continuous three-dimensional bag shape under the action of the forming mold.

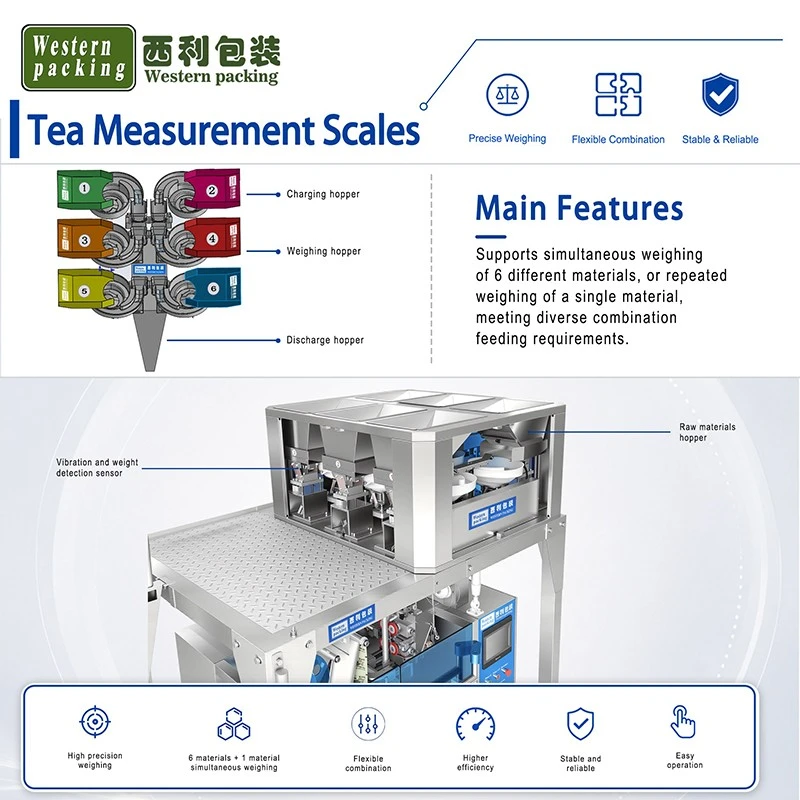

Simultaneously, tea leaves enter the metering mechanism through the storage hopper. The system completes quantitative distribution according to set parameters and controls the feeding time to ensure accurate placement of tea leaves into each bag. After filling, the sealing assembly ultrasonically presses the packaging material to maintain the integrity and seal of the triangular bag.
The continuously formed tea bags are separated by the cutting mechanism and then conveyed to the collection area by the discharge device. The entire process requires no manual intervention, achieving continuous automated packaging.
