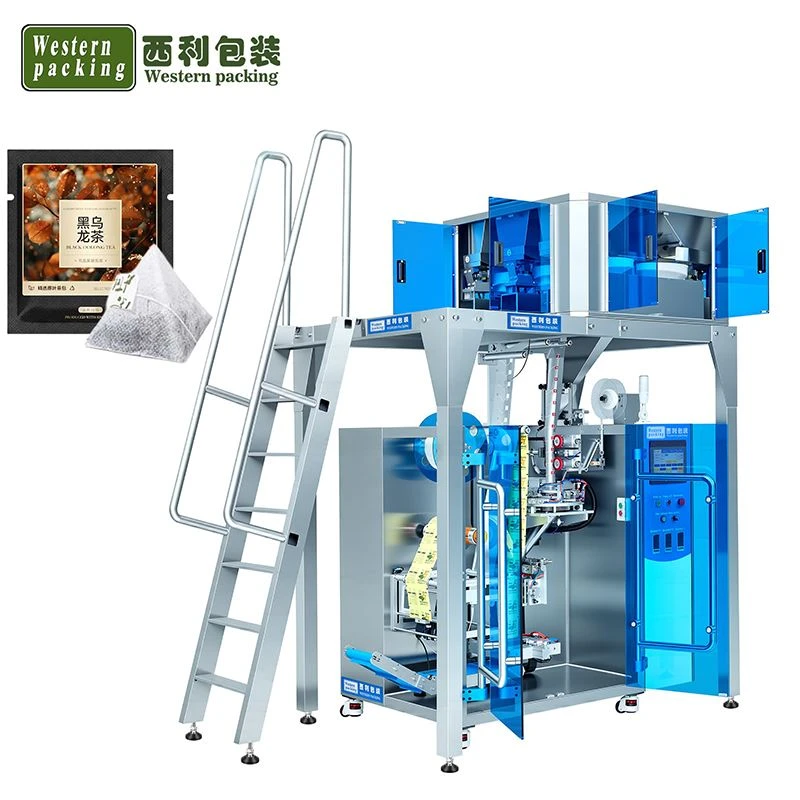

Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of automatic inner and outer packet tea packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable automatic inner and outer packet tea packing machine made in China here from our factory.
DETAILED DISPLAY
Customized forming structure based on bag width guides precise folding of the packaging film, ensuring consistent left and right dimensions of the bag and reducing misalignment during bag formation.
01
Back-sealing heating mechanism with independent temperature control and fast-response heating components ensures a strong seal and adapts to various composite film materials.
02
Horizontal sealing and cutting mechanism completes bag sealing and slitting; precise cutting maintains neat bag edges and supports continuous high-speed operation.
03
PLC control system with touchscreen parameter settings allows for real-time monitoring of operating status and simplifies operation.
04
Hot Tags: automatic inner and outer packet tea packing machine, China automatic inner and outer packet tea packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Automatic Inner and Outer Packet Tea Packing Machine |
|
Bag Style |
3 side sealing flat bag& back sealing bag |
|
Filling Accuracy |
≤±1% |
|
Capacity |
35-60 bags/min |
|
Machine Material |
SUS 304 |
AUTOMATIC INNER AND OUTER PACKET TEA PACKING MACHINE
In the tea packaging process, different types of tea have different flowability and forms, such as broken tea, flower tea, green tea granules, and black tea fragments, each requiring different metering systems and feeding methods from the packaging equipment.
This automatic inner and outer packet tea packing machine adopts a modular design, configuring corresponding metering devices according to the characteristics of the tea to achieve precise packaging of products of different weights.
The main body of the equipment is made of food-grade stainless steel, and the parts in contact with the tea use materials that meet food safety requirements, avoiding contamination during long-term production. Simultaneously, the machine uses a PLC automatic control system, allowing parameter settings via a touchscreen. This enables adjustment of packaging speed, bag length, temperature, and operating status, allowing operators to quickly switch products.
WORKING PRINCIPLE

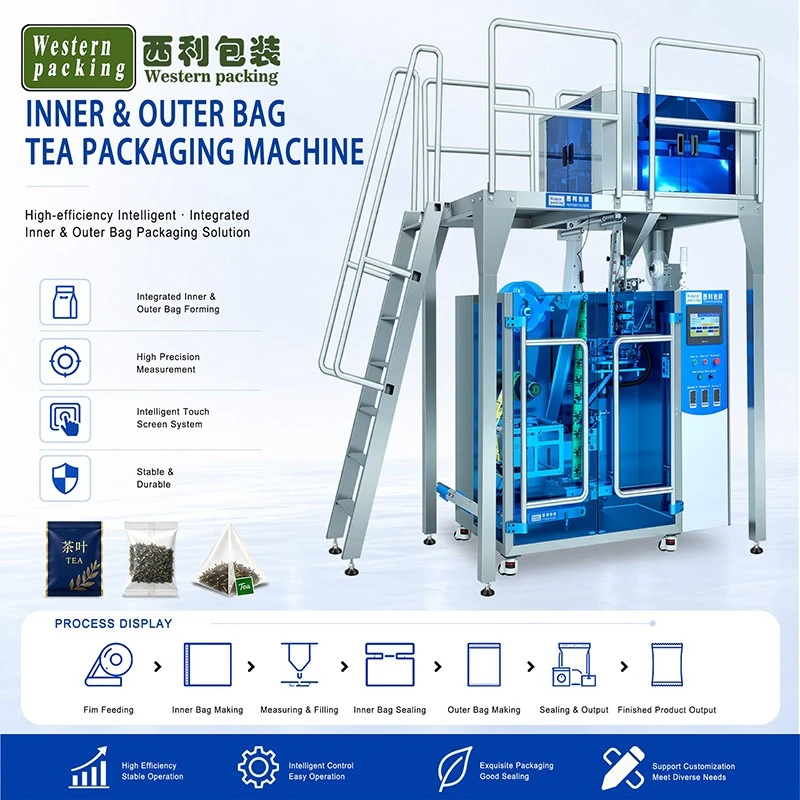

The packaging film is first installed on the film feeding mechanism, and then conveyed to the forming unit by an automatic film feeding system. The forming unit folds the flat packaging film into a bag shape, while a longitudinal heat-sealing system seals the back, creating a continuous bag tube.

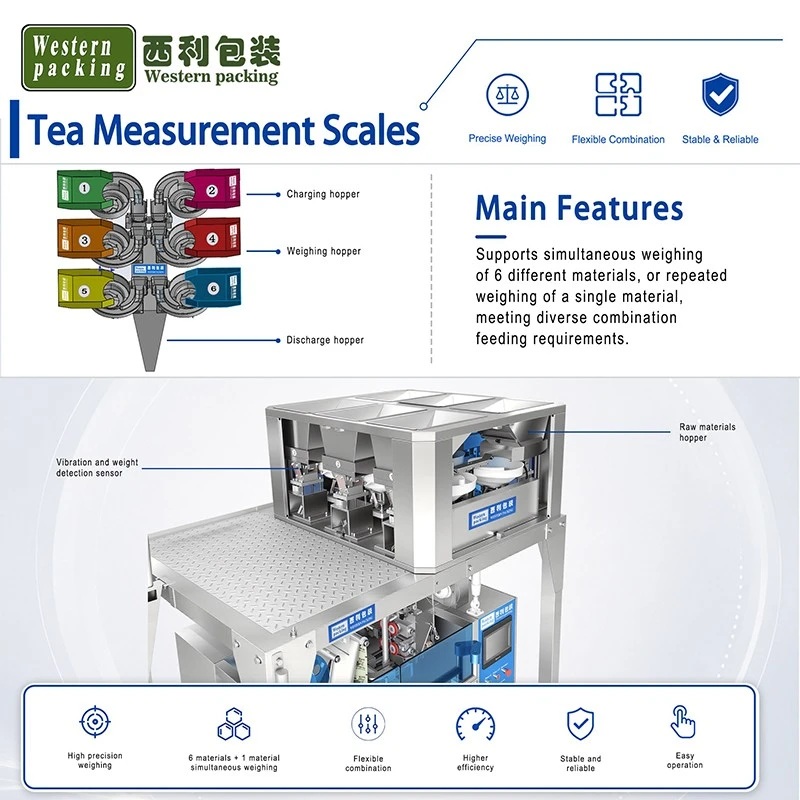

Subsequently, the metering system automatically weighs the tea according to a preset weight and accurately places the material into the bag. A transverse sealing device heat-seals the bag opening, ensuring excellent sealing performance.
After sealing, a cutting system precisely cuts the bag according to a set length, forming individual tea bags.
